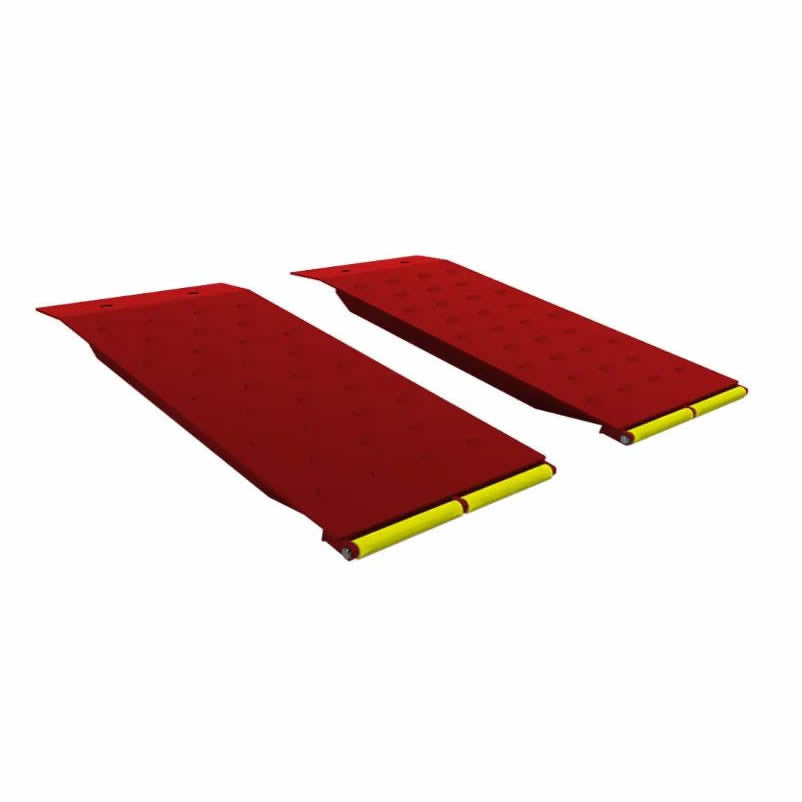

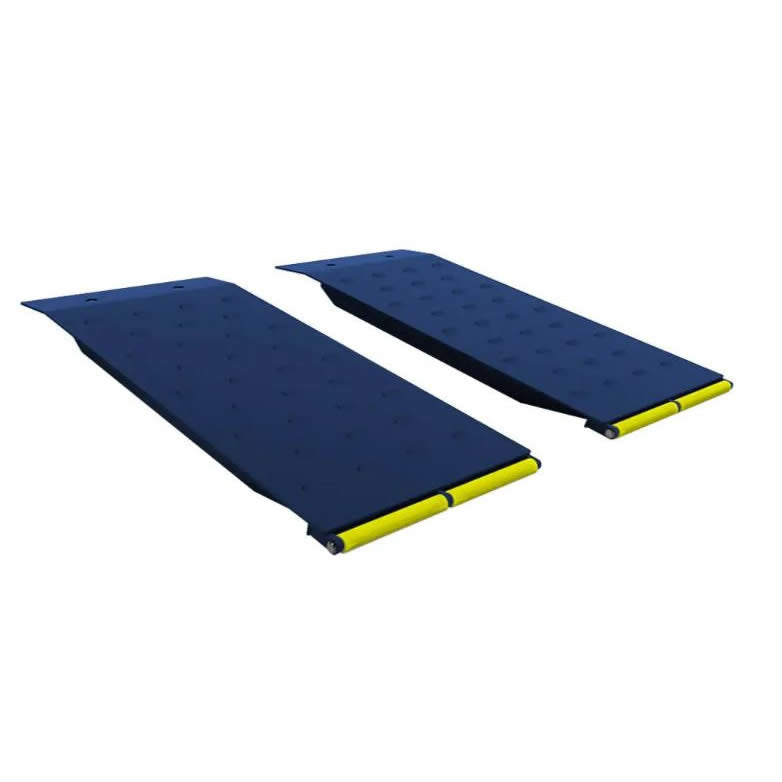

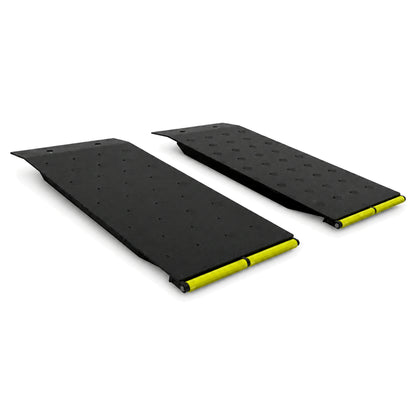

Forward S100151 Standard Ramp Kit for SM, SMO, AR, and ARO14 Four-Post Lifts
The Forward S100151 delivers the proven performance your shop needs for reliable vehicle entry and exit on the 14,000 lb capacity SM/SMO/AR/ARO14 four-post lift series. Each ramp measures 40-1/2" in length and 20" in width, providing stable positioning for standard-height vehicles and accommodating everyday service operations. Constructed from durable materials with an oil-resistant, non-skid coating, the S100151 is the standard choice for shops seeking dependable lift accessories. 5-year structural warranty.
Forward S100151 Features
Proven Standard Length Design
At 40-1/2", the S100151 provides the proven approach angle for standard-height vehicles typical in most service shops. This balanced length works well for passenger cars and conventional light trucks without the added expense of extended ramps.
Reliable Oil-Resistant Surface
The non-skid coating resists hydraulic fluid drips, coolant spills, and harsh shop chemicals. Regular cleaning maintains traction properties through thousands of vehicle cycles, making the S100151 a cost-effective accessory for high-volume operations.
Flexible Ramp Configuration
Hinge pins included with each kit allow quick reversal to a drive-through ramp setup without additional hardware. This reconfiguration capability lets you adapt your lift workflow to match changing shop needs within the same space footprint.
Engineered for SM/SMO/AR/ARO14 Series
Designed specifically for Rotary's 14,000 lb capacity four-post lift lineup, the S100151 connects directly to existing lift anchor points using standard hinge pins. No lift modifications are required during installation.
Forward S100151 Applications
- General Service Departments: Multi-bay shops performing routine maintenance, repairs, and inspections on a mix of passenger vehicles and light trucks benefit from the proven standard ramp design.
- Independent Repair Shops: Single- and multi-technician shops maximizing ROI on lift equipment choose standard ramps as the cost-effective standard accessory without compromising functionality.
- Dealership Service Bays: New vehicle dealerships need reliable, durable ramps that accommodate the typical vehicle population entering service, from compact vehicles to full-size sedans and crossovers.
- Commercial Fleet Maintenance: Fleet maintenance facilities handling standard company vehicles appreciate the economy and durability of proven standard-length ramps for daily operations.
- Multi-Lift Facilities: Shops with multiple lifts standardize on S100151 ramps to maintain inventory consistency, reduce spare parts management, and simplify technician training.
Forward S100151 Specifications
| Specification | Value |
|---|---|
| Overall Length | 40-1/2" (1,029 mm) |
| Overall Width | 20" (508 mm) |
| Quantity | Pair (2 ramps) |
| Material Finish | Oil-resistant, non-skid coating |
| Weight | 350 lb per pair |
| Specification | Value |
|---|---|
| Compatible Lift Models | SM, SMO, AR, ARO14 (14,000 lb capacity lifts) |
| Lift Series | Rotary 100 Series |
| Configuration Options | Drive-on or drive-through (hinge pin reversible) |
| Installation Type | Direct bolt-on, hinge pin attachment |
What's Included
- Two standard-length ramps (40-1/2" each)
- Hinge pins for drive-through reconfiguration
Not Included: Mounting hardware beyond hinge pins, professional installation labor, or lift structural modifications.
Rotary S100151 Shipping and Delivery
Freight Shipping
Coverage: Free shipping to commercial addresses in the 48 contiguous US states. Lead Time: 10-15 business days from factory. Packaging: Factory-sealed, protective wrap to prevent surface damage in transit. International: Contact sales for pricing and availability.
Delivery Requirements
Receiving: Curbside delivery is standard. Loading dock or forklift access is not required but helpful for unloading. Inspection: Verify ramp condition and hinge pin presence before signing bill of lading. Storage: Store in dry location until installation to maintain coating integrity.
Returns and Restocking
Returns accepted within 30 days of purchase if unopened and in original packaging with receipt. 20% restocking fee applies. Buyer pays return freight. Ramps that have been installed or used are non-returnable.
Rotary S100151 Warranty
Rotary Accessories Warranty
- 5 Years Structural: Ramp frame, hinges, and mount points against defects in materials and workmanship
- 1 Year Functional: Surface coating integrity and non-skid properties
- 90 Days Parts: Replacement hinge pins and fasteners
Warranty Activation: Begins upon invoice to authorized distributor or purchase date. Registration not required for standard warranty coverage. Warranty covers factory defects only, not wear items, damage from improper use, or environmental wear.
RAI Installation Benefit: Professional installation by a Rotary Authorized Installer qualifies you for Rotary Solutions' extended warranty options and support priority, as well as potential additional coverage on compatible lift equipment.
Requirements: Proper installation per Rotary specifications, regular maintenance including surface cleaning to preserve non-skid coating, and operation within manufacturer guidelines ensure full warranty protection.
Questions About the Rotary S100151?
Need help determining whether standard or extended ramps suit your operation, or have questions about installation and compatibility?
Rotary S100151 FAQ
What is the ramp length and is it suitable for my vehicle?
The S100151 measures 40-1/2" in overall length, the standard approach length for the 14,000 lb capacity SM/SMO/AR/ARO14 lifts. This length works well for most passenger cars, sedans, crossovers, and light trucks. For vehicles with very low ground clearance, the extended S100152Y ramps at 49-3/8" may be a better choice.
Are these ramps compatible with my Rotary lift?
The S100151 is engineered for the 14,000 lb capacity SM/SMO/AR/ARO14 lift series. Confirm your lift model from the nameplate on the air lock release valve. For other Rotary lift capacities, different ramp kits are available. Contact us with your lift model for compatibility confirmation.
What is the width of the ramps and will it support my vehicle?
Each ramp is 20" wide, providing adequate support for standard tire widths on passenger vehicles and light trucks. The 14,000 lb capacity rating distributes 7,000 lb per axle when properly loaded. Always confirm your vehicle's weight and the lift's capacity specifications before use.
Can I convert these to a drive-through configuration?
Yes. The S100151 includes hinge pins that allow quick reversal between drive-on and drive-through ramp configurations. A single technician can make this adjustment without special tools or additional parts.
What is the warranty coverage on the S100151?
The S100151 includes a 5-year structural warranty on the ramp frame, hinges, and mounting points, plus 1-year functional warranty on the surface coating. Optional extended warranties are available. Installation by a Rotary Authorized Installer (RAI) may qualify you for additional coverage benefits on your lift.
How durable is the non-skid coating?
The oil-resistant, non-skid coating is designed for extended durability in high-volume shops but will eventually show wear through normal use. Regular cleaning with a damp cloth prevents chemical buildup that can degrade the surface. The coating is covered under the 1-year functional warranty. Refinishing services are available through authorized distributors.
Do I need professional installation or can I do it myself?
Installation is straightforward and uses existing hinge pin holes on your SM/SMO/AR/ARO14 lift. Most shops can handle installation in 15-20 minutes without special tools. Professional installation by a Rotary Authorized Installer (RAI) is recommended to ensure proper alignment and to activate extended warranty eligibility and support benefits.
Are there extended-length ramps available if I need them?
Yes. The Rotary S100152Y extended ramp kit provides 49-3/8" length, which is 9-3/8" longer than the S100151. Extended ramps reduce approach angle for vehicles with very low ground clearance. Consult with a product specialist to determine which length best suits your shop's vehicle mix.
What is the lead time for delivery?
Standard lead time is 10-15 business days from factory for continental US commercial addresses with free freight included. Custom orders and international shipments may require extended lead times. Contact sales for your specific order timeline.
What is your return policy?
Unopened ramps in original packaging with receipt are returnable within 30 days of purchase, subject to a 20% restocking fee. Buyer covers return freight. Once installed or used, ramps are non-returnable. Verify your order specifications before purchase to avoid restocking charges.
California Proposition 65 Warning
WARNING: This product can expose you to chemicals including styrene and vinyl chloride, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.p65warnings.ca.gov.
