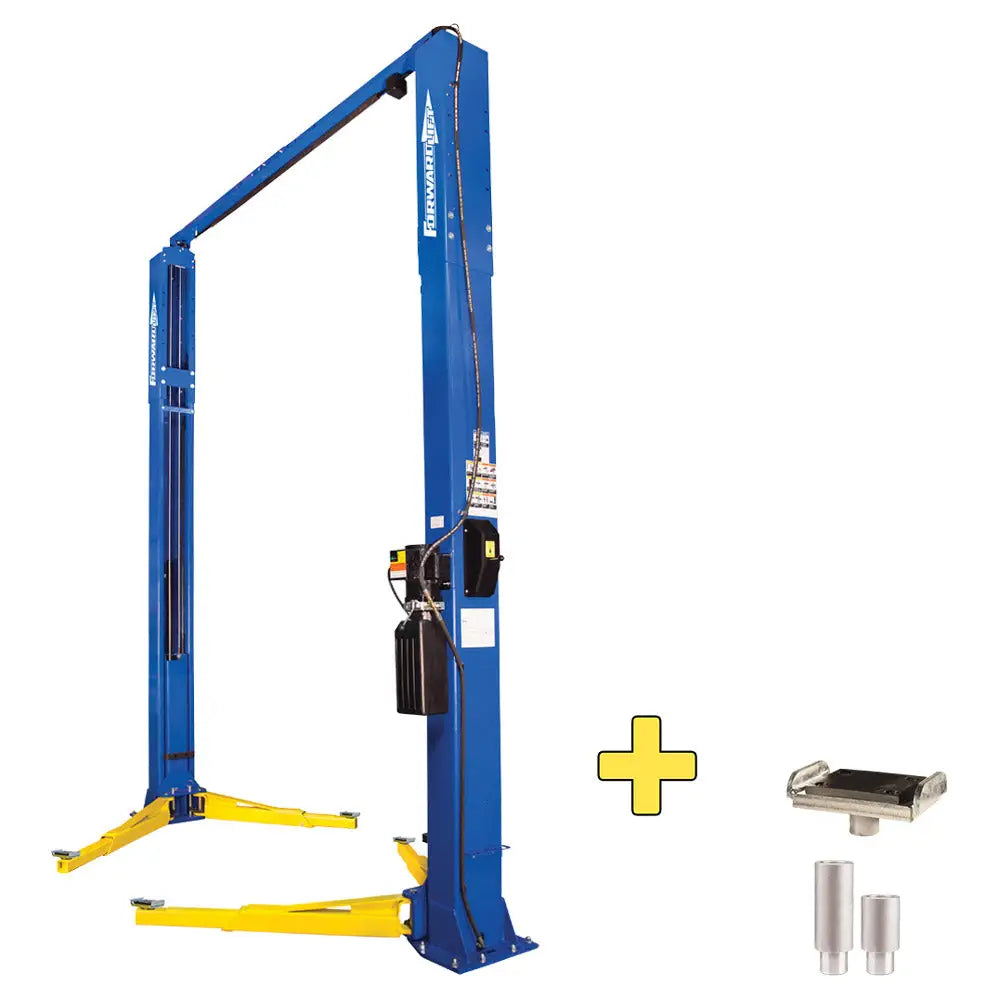

Forward Lift F12 12K Symmetric 2-Post Lift, ALI Certify, Light Duty
- Authorized Forward Lifts Dealer direct manufacturer relationship
- Manufacturer Warranty included with purchase
- Expert Product & Freight Support +1 (855) 498-2147
- Authorized Dealer Price Match verification required
- Fast Delivery some products may have lead times
- No Sales Tax outside PA where applicable
Forward F12 12,000 lb Two-Post Lift for Cars, Trucks, and Vans
The Forward F12 is a gold-certified two-post lift built to handle vehicles up to 12,000 lb, making it ideal for professional service shops working on passenger cars, full-size trucks, and commercial vans. This heavy-duty lift features dual hydraulic cylinders with direct pull-lifting technology for reliable, consistent performance day after day. The durable powder coat finish protects against shop wear, while two-stage front and rear arms provide flexibility for a wide range of vehicle configurations. Forward lifts are manufactured by Rotary and backed by their industry-leading support infrastructure. 3-year structural warranty included.
Forward F12 Features
Versatile Two-Stage Arms
The F12 includes two-stage front arms and two-stage rear arms, giving you flexibility when spotting and lifting different vehicle types. The arm reach adjusts from 35" to 54" on both front and rear, accommodating everything from compact cars to full-size trucks. Spring-operated arm restraints keep these heavy-duty lift arms performing reliably throughout years of demanding use.
Dual Hydraulic Cylinders
Each column houses a dedicated hydraulic cylinder for balanced, powerful lifting performance. These cylinders use direct pull-lifting technology and are top-mounted with full-stroke operation. The cylinder rod is concealed inside the carriage, protecting it from debris and damage while maintaining a clean, professional appearance.
Single-Point Lock Release
The F12 features a single-point lock release system that simplifies operation and reduces the time needed between vehicles. This intuitive design allows technicians to quickly and safely engage or disengage the lift locks from one convenient location, improving workflow efficiency in busy shop environments.
Flexible Height Configurations
This lift is available in four overall height options to match your facility: 11'11", 12'10", 13'10" (standard), and 14'10" (max height). The overhead switch height adjusts accordingly, ranging from 137-1/8" to 172-1/8" depending on configuration. This flexibility ensures the F12 can work in various shop ceiling heights.
Heavy-Duty Construction
Built to Rotary's manufacturing standards, the F12 features a durable powder coat finish that provides exceptional protection against the daily wear and tear of shop use. The gold-certified construction meets rigorous safety standards, giving you confidence that this lift will perform reliably for years of heavy-duty service.
Generous Drive-Through Clearance
Standard drive-through clearance of 102-3/4" accommodates most vehicles with ease, while an optional configuration expands this to 108-3/4" for wider trucks and vans. The width inside columns measures 114-7/8" standard or 120-7/8" optional, providing ample working space for technicians.
Forward F12 Applications
- Professional Auto Repair Shops: Handle everything from daily drivers to heavy-duty trucks with a single lift rated for 12,000 lb capacity.
- Fleet Maintenance Facilities: Service commercial vans, work trucks, and fleet vehicles efficiently with generous clearance and versatile arm configurations.
- Truck and SUV Service Centers: The high capacity and extended arm reach make the F12 ideal for shops specializing in larger vehicles.
- Dealership Service Departments: Gold-certified construction and professional appearance meet the standards expected in dealership environments.
- Municipal and Government Garages: Durable construction and reliable performance support the demanding schedules of government fleet maintenance operations.
Forward F12 Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 12,000 lb (5,443 kg) |
| Maximum Rise | 77-1/2" (1,969 mm) with 5" adapter extension |
| Specification | Value |
|---|---|
| Overall Width | 11' 8" standard or 12' 2" optional |
| Drive-Through Clearance | 102-3/4" standard or 108-3/4" optional |
| Width Inside Columns | 114-7/8" standard or 120-7/8" optional |
| Front Arm Reach (Min/Max) | 35" / 54" |
| Rear Arm Reach (Min/Max) | 35" / 54" |
| Adapter Height (Min/Max) | 4-3/4" (no extension) / 9-3/4" (with 5" extension) |
| Model Number | Overall Height | Overhead Switch Height |
|---|---|---|
| I12N300 (Standard) | 13' 10" | 160-1/8" |
| I12N301 (Max Height) | 14' 10" | 172-1/8" |
| I12N302 | 12' 10" | 148-1/8" |
| I12N303 | 11' 11" | 137-1/8" |
| Specification | Value |
|---|---|
| Voltage | 208-230V |
| Amperage | 17 amps |
| Motor | 2 HP |
| Phase | Single Phase (1 PH) |
| Ceiling Height Required | 168" (4,267 mm) |

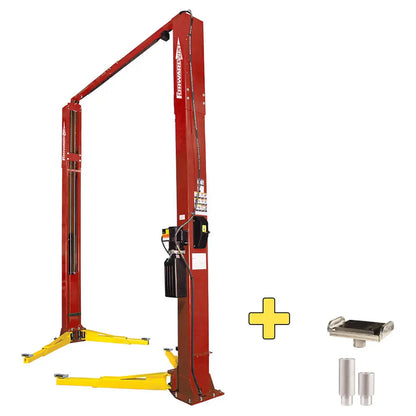

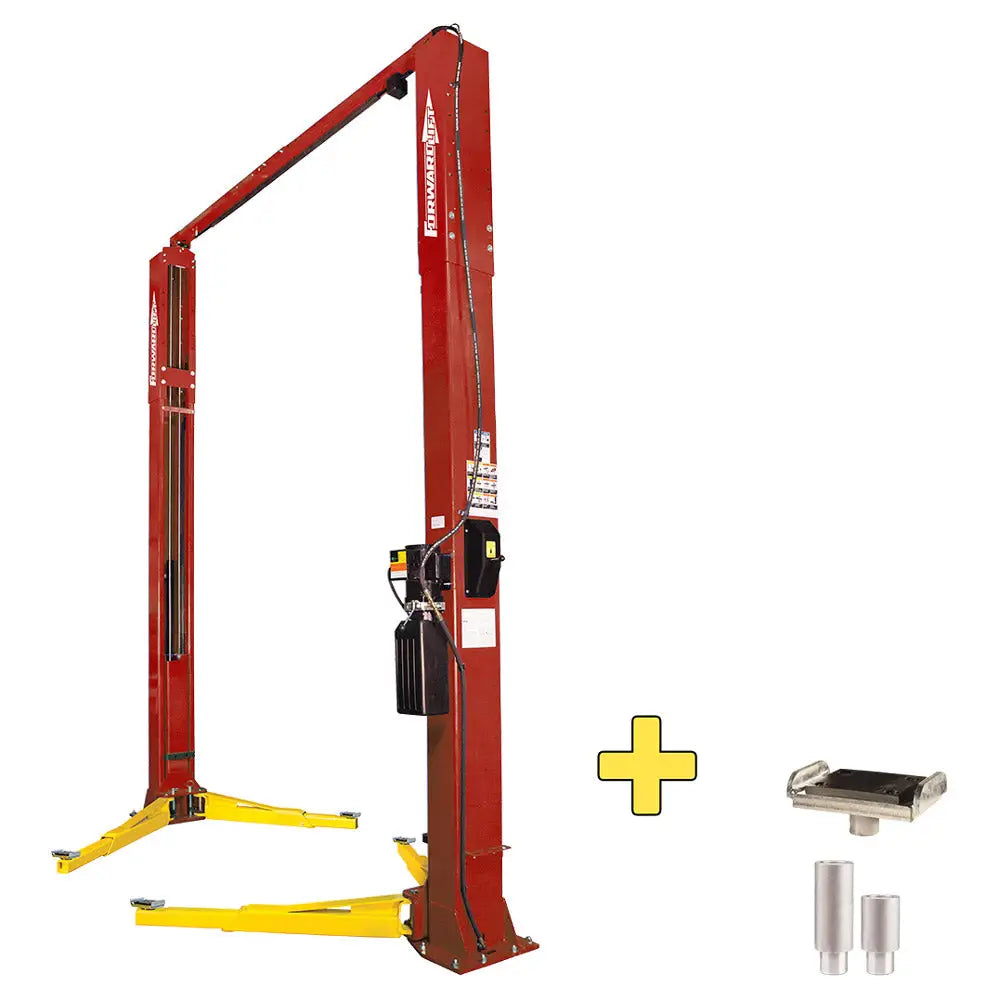

Note: Specifications subject to change without notice. Available in blue (BL) and red (RD) finishes.
Forward F12 Installation Requirements
Electrical Requirements
Power: 208-230V, 17 amps, single phase. A dedicated circuit is required for the 2 HP motor. All electrical work must be performed by a licensed electrician in accordance with local codes.
Concrete Foundation
Anchoring: The F12 must be anchored to a reinforced concrete slab. Minimum concrete thickness of 4" with 3,000 PSI compressive strength is typically required. Consult the installation manual for specific anchor bolt specifications and placement requirements.
Space Requirements
Ceiling Height: Minimum 168" (14 feet) required for standard configuration. Verify your ceiling height matches your selected model option. Floor Width: Allow for 11'8" to 12'2" overall width plus adequate clearance for vehicle doors and technician movement around the lift.
Professional Installation
Professional installation by a Rotary Authorized Installer (RAI) is strongly recommended. RAI installation ensures proper setup, validates your warranty coverage, and includes operator training. Contact us for RAI installer referrals in your area.
What's Included with the Forward F12
- Two-post lift columns with powder coat finish
- Dual hydraulic cylinders with direct pull technology
- Two-stage front arms (2)
- Two-stage rear arms (2)
- Lift adapters with 5" extensions
- 2 HP single-phase power unit
- Single-point lock release mechanism
- Anchor bolts and mounting hardware
- Installation manual and operator documentation
Optional Accessories: Light Kit, Wheel Wing Kit, and 2-Post Air/Electric Work Station are available separately to enhance your lift setup.
Not Included: Electrical wiring, concrete work, and professional installation services are not included with the lift purchase.
Forward F12 Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses with loading dock or forklift access in the contiguous 48 United States. Lead Time: Ships within 5-10 business days. Lead times may vary based on inventory and destination. International: Contact our sales team for international shipping quotes and arrangements.
Delivery Requirements
Unloading: A forklift or loading dock is required to unload this freight shipment. Liftgate service is not available for equipment of this size and weight. Delivery Type: Curbside delivery is standard. Inside delivery may be available for an additional fee. Inspection: Carefully inspect all packages for damage before signing the Bill of Lading. Note any damage on the delivery receipt and photograph it immediately.
Returns
Returns are accepted within 30 days of delivery. Product must be unopened, in original packaging, and accompanied by the original receipt. A 20% restocking fee applies to all returns. Buyer is responsible for return freight costs. Damaged or used equipment cannot be returned.
Forward F12 Warranty
Forward Lift Limited Warranty
- 3 Years: Structural components including columns and carriage assemblies
- 2 Years: Mechanical components including arms, locks, and cylinders
- 1 Year: Hydraulic power unit, hoses, and electrical components
Extended Coverage: Extended warranty options may be available. Contact our sales team for details on additional coverage plans.
Requirements: Warranty coverage requires proper installation according to manufacturer specifications and regular maintenance as outlined in the owner's manual. Installation by a Rotary Authorized Installer (RAI) is recommended to ensure full warranty protection.
Documents
Click to open in a new tab.
Questions About the Forward F12?
Get help with installation planning, specifications, height configurations, and product selection from our lift specialists.
Forward F12 Frequently Asked Questions
What is the lifting capacity of the Forward F12?
The Forward F12 has a lifting capacity of 12,000 lb (5,443 kg), making it suitable for passenger cars, full-size trucks, SUVs, and commercial vans. This capacity is evenly distributed across both columns with dual hydraulic cylinders.
What ceiling height do I need for the Forward F12?
The minimum ceiling height required is 168" (14 feet). The F12 is available in four overall height configurations ranging from 11'11" to 14'10". Select the model that best fits your facility while ensuring adequate overhead clearance for raised vehicles.
What are the power requirements for the Forward F12?
The F12 requires 208-230V, single-phase power at 17 amps. The lift uses a 2 HP motor. A dedicated circuit installed by a licensed electrician is required for proper operation.
What is the drive-through clearance on the F12?
Standard drive-through clearance is 102-3/4", with an optional configuration of 108-3/4" for wider vehicles. The width inside columns is 114-7/8" standard or 120-7/8" optional.
What warranty comes with the Forward F12?
The Forward F12 includes a limited warranty covering structural components for 3 years, mechanical components for 2 years, and hydraulic and electrical components for 1 year. Warranty coverage requires proper installation and maintenance per manufacturer specifications.
Is professional installation required?
While not strictly required, professional installation by a Rotary Authorized Installer (RAI) is strongly recommended. RAI installation ensures proper setup, validates warranty coverage, and includes operator training. Contact us for installer referrals in your area.
What is included with the Forward F12 purchase?
The F12 includes the complete two-post lift assembly with columns, dual hydraulic cylinders, two-stage front and rear arms, lift adapters with 5" extensions, power unit, single-point lock release, anchor bolts, and documentation. Optional accessories like the Light Kit and Wheel Wing Kit are sold separately.
How is the Forward F12 shipped?
The F12 ships via freight carrier with free delivery to commercial addresses in the contiguous 48 states. A forklift or loading dock is required to unload. Typical lead time is 5-10 business days depending on inventory and destination.
What is the arm reach on the Forward F12?
Both front and rear arms have an adjustable reach from 35" to 54". The two-stage arm design provides flexibility for spotting different vehicle types, from compact cars to full-size trucks and vans.
What concrete requirements are needed for installation?
The F12 must be anchored to a reinforced concrete slab. Minimum requirements typically include 4" thickness with 3,000 PSI compressive strength. Consult the installation manual for specific anchor bolt specifications and placement details for your configuration.
What color options are available?
The Forward F12 is available in blue (BL) and red (RD) finishes with a durable powder coat that protects against shop wear.
Who manufactures Forward lifts?
Forward is the value-focused lift brand manufactured by Rotary, maker of the "world's most trusted lift." Forward lifts are built to Rotary's manufacturing and quality standards while offering competitive pricing. They are backed by Rotary's warranty and support infrastructure.
California Proposition 65 Warning
WARNING: This product can expose you to chemicals including styrene and vinyl chloride, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.p65warnings.ca.gov.
