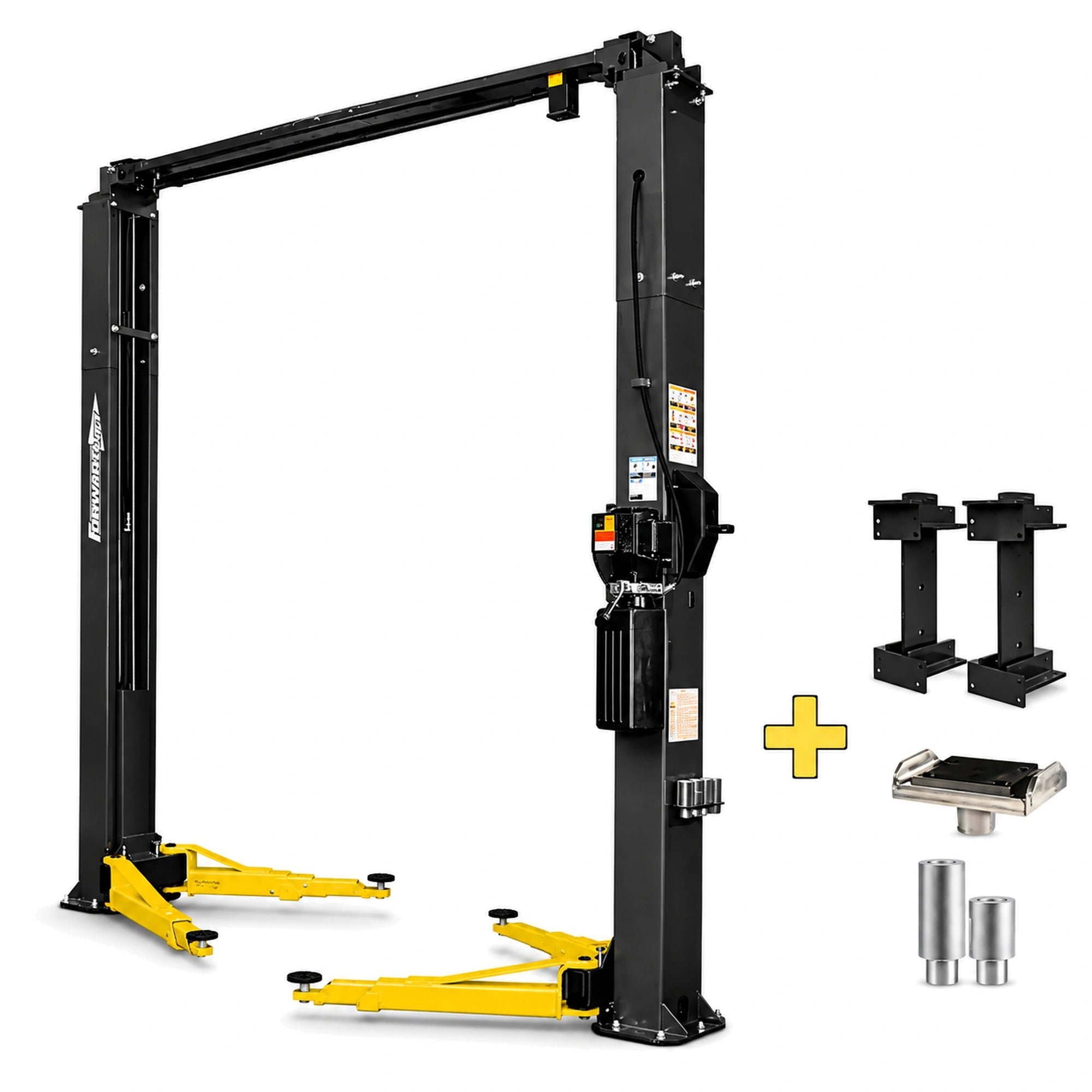

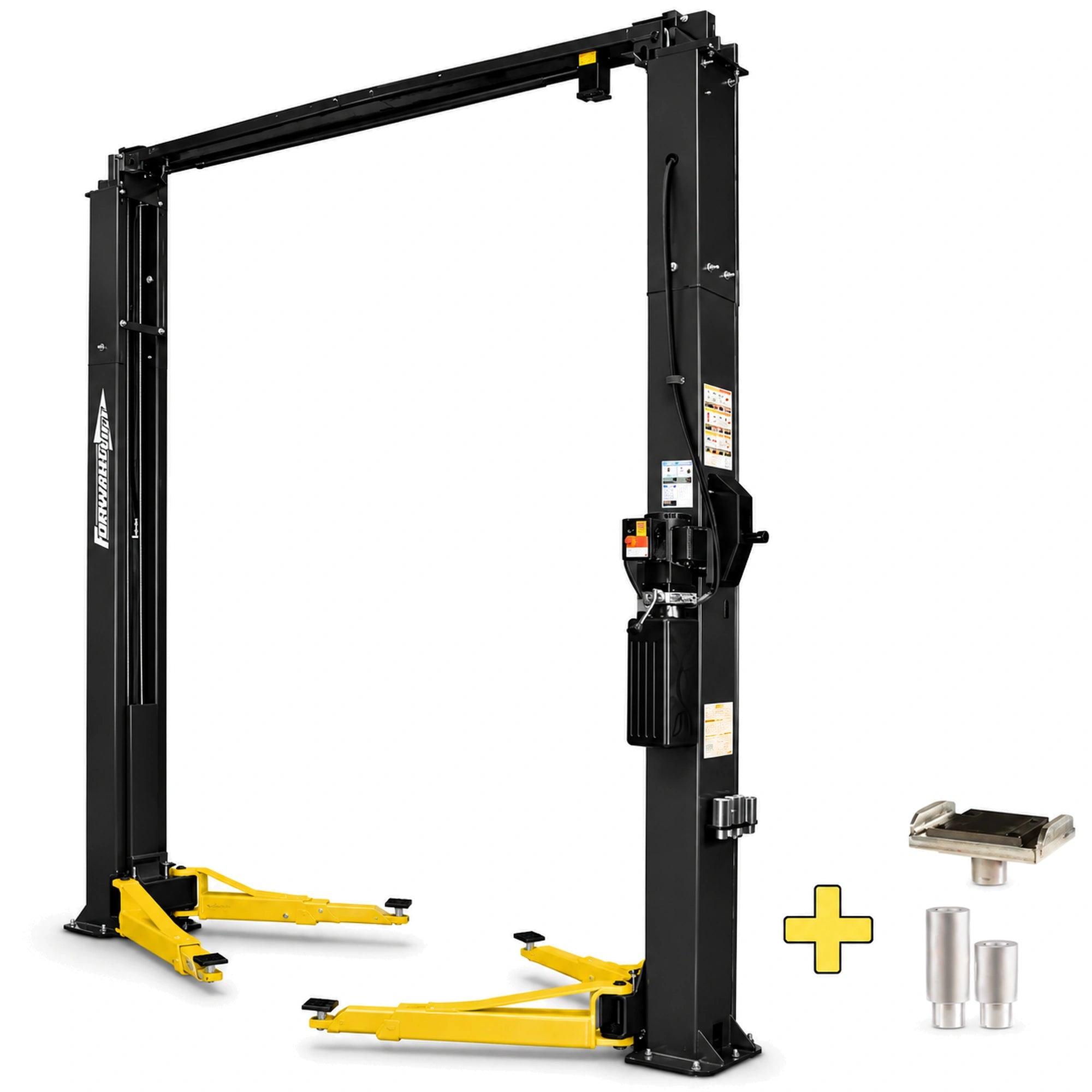

Forward Lift F10 10K Symmetric Two Post Lift, Black
- Authorized Forward Lifts Dealer direct manufacturer relationship
- Manufacturer Warranty included with purchase
- Expert Product & Freight Support +1 (855) 498-2147
- Authorized Dealer Price Match verification required
- Fast Delivery some products may have lead times
- No Sales Tax outside PA where applicable
Forward Lifts F10 10,000 lb Two-Post Lift for Cars, Trucks, and Vans
The Forward F10 is a 10,000 lb capacity two-post lift built to handle passenger cars, trucks, and vans with ease. Featuring versatile three-stage front arms and two-stage rear arms, the F10 provides flexibility for spotting and lifting a wide range of vehicles. Top-mounted direct-pull hydraulic cylinders deliver reliable lifting performance, while overhead cable equalization keeps both carriages synchronized. Powered by a 2 HP single-phase motor on 208-230V, this lift rises to 76.25" with extensions in approximately 45 seconds. ALI Gold Certified with Rotary's 5-year structural warranty.
Forward Lifts F10 Features
Versatile Three-Stage Front Arms
The F10 features three-stage front arms with a reach range of 24.5" to 58" and two-stage rear arms reaching 36" to 58". This extended reach and adjustability gives you flexibility in spotting pickup points on everything from compact cars to full-size trucks. The multi-stage design accommodates asymmetric lift points common on modern vehicles.
Top-Mounted Direct-Pull Cylinders
Each column contains a top-mounted hydraulic cylinder using direct-pull lifting technology. The cylinder rod is concealed inside the carriage, protecting it from shop contamination and damage. This design delivers smooth, reliable lifting with full-stroke operation and approximately 45 seconds rise time unloaded.
Overhead Cable Equalization
Steel equalizer cables run through sheaves in the overhead assembly, keeping both carriages synchronized as the lift rises and lowers. This equalization system ensures the vehicle stays level throughout the lift cycle, even with uneven weight distribution.
Single-Point Lock Release
The mechanical safety lock system engages automatically at all positions as the lift rises. A single-point release mechanism lets you disengage both column locks simultaneously for controlled lowering, making operation quick and efficient.
Spring-Operated Arm Restraints
Automatic arm restraints engage above 2.5" of rise, locking the arms in position once you've set them on the vehicle's lift points. The restraints disengage at floor level for easy arm positioning when loading the next vehicle.
Adjustable Width Configuration
The F10 is available in standard and narrow width configurations. Standard width provides 115" inside columns and 105" drive-thru clearance. Narrow configuration offers 109" inside columns and 99" drive-thru clearance for tighter bay spacing.

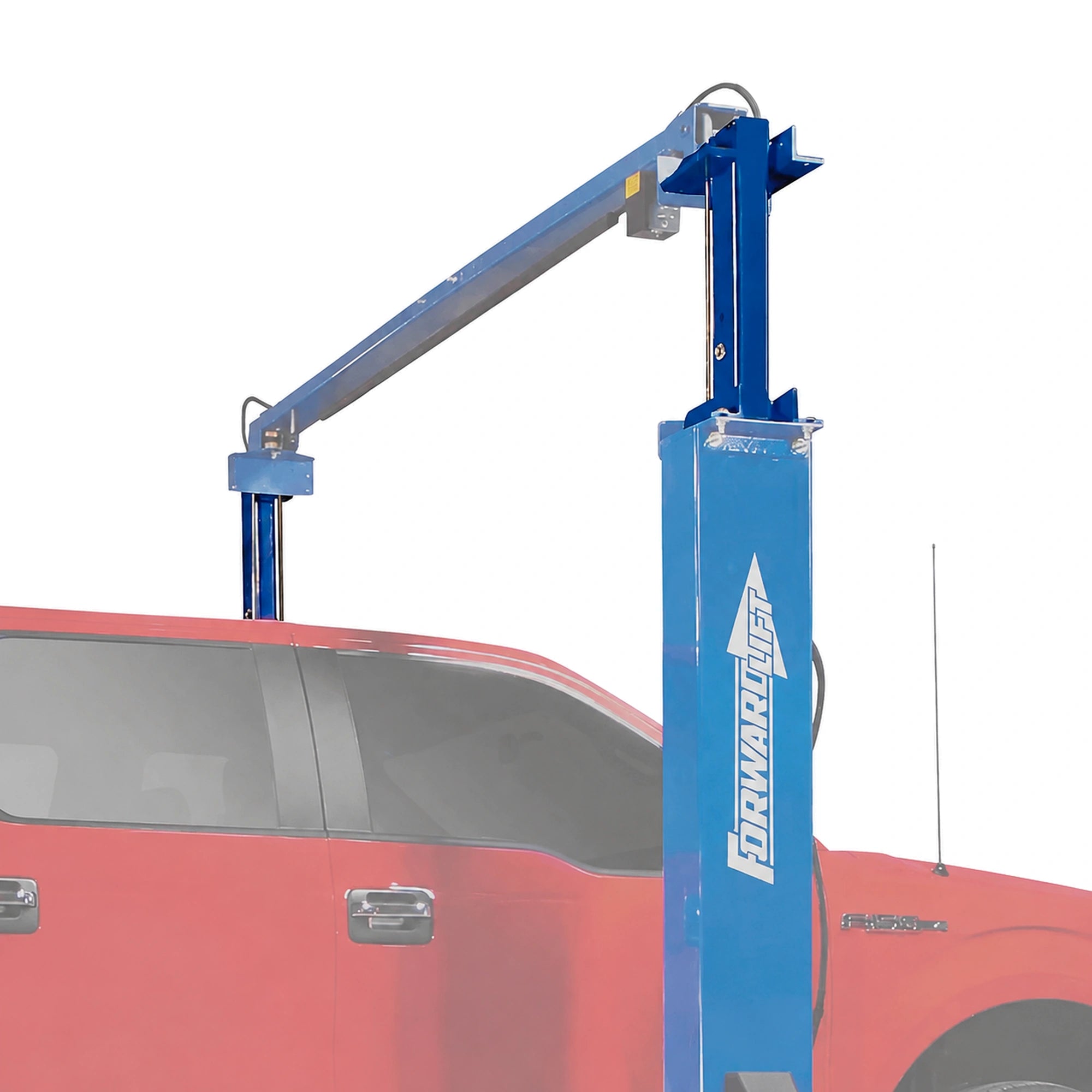

Optional Extended Height
The T100295 Extended Height Kit adds an additional 2 feet to the top of the standard lift, increasing overall height from 11' 9" to 13' 9". The kit includes extended length hydraulic hose, return line, and cables. Ideal for shops with higher ceilings that want maximum working clearance underneath.
Durable Powder Coat Finish
The powder coat paint finish protects against chips, scratches, and corrosion in demanding shop environments. Available in blue and red, the finish maintains its appearance through years of daily use while resisting the chemicals and fluids common in automotive repair.
Forward F10 Applications
- General Automotive Repair: Oil changes, fluid services, filter replacements, and routine maintenance on passenger vehicles up to 10,000 lb.
- Truck and SUV Service: Full-size pickups, SUVs, and vans with the extended arm reach and 10,000 lb capacity to handle heavier vehicles.
- Brake and Suspension Work: Complete undercar access for brake jobs, strut replacement, control arm service, and steering repairs.
- Exhaust System Service: Clear working room underneath for exhaust inspection, catalytic converter replacement, and muffler installation.
- Drivetrain Repairs: Access to transmission, differential, CV axles, and driveshaft components on front and rear-wheel drive vehicles.
- Undercar Inspections: Pre-purchase inspections, state safety inspections, and diagnostic undercar evaluations.
Forward F10 Specifications
| Specification | Value |
|---|---|
| Total Lifting Capacity | 10,000 lb (4,536 kg) |
| Capacity Per Arm | 2,500 lb (1,134 kg) |
| Rise Time (Unloaded) | Approximately 45 seconds |
| Rise Time (Rated Capacity) | Approximately 51 seconds |
| Specification | Standard | Narrow |
|---|---|---|
| Overall Height | 143.5" (11' 9") | |
| Optional Extended Height | 165" (13' 9") | |
| Overall Floor Width | 137" (10' 9") | 131" (11' 5") |
| Inside Columns | 115" | 109" |
| Drive-Thru Clearance | 105" | 99" |
| Width Between Carriages | 113" | 107" |
| Minimum Ceiling Height | 144" (12') | |
| Overhead Switch Height | 137.625" | |
| Specification | Value |
|---|---|
| Maximum Rise with 5" Extension | 76.25" |
| Cylinder Stroke | 67.5" |
| Minimum Lift Height | 3.625" |
| Min Height with 1.75" Adapter | 5.375" |
| Min Height with 3.5" Adapter | 7.125" |
| Min Height with 5" Adapter | 8.625" |
| Specification | Value |
|---|---|
| Front Arm Reach (Min / Max) | 24.5" / 58" |
| Rear Arm Reach (Min / Max) | 36" / 58" |
| Specification | Value |
|---|---|
| Motor (Single Phase) | 2 HP, 208-230V, 60Hz, 16-17 Amps |
| Motor (Three Phase) | 208-230/460V, 50-60Hz |
| Cylinders | Two, one per column (top-mounted) |
| Carriage Bearings | Eight per carriage, UHMW |
| Synchronization | Overhead equalization cables |
| Shipping Weight | 1,505 lb (683 kg) |
| Certification | ALI/ETL Gold Certified |
Forward F10 Installation Requirements
Electrical
Single Phase: 208-230V, 60Hz, 16-17 amp service with 20 amp circuit breaker. Three Phase: 208-230/460V, 50-60Hz available. Use a separate circuit for each power unit. All wiring must comply with NEC and local electrical codes. Installation by a licensed electrician is required.
Concrete Foundation
Minimum Thickness: 4.25" for standard installation, 5" for IBC 2006/2009/2012, 6" for seismic applications. Strength: 3,000 PSI minimum, properly cured. Anchors: Hilti Kwik Bolt III 3/4" x 5.5" (supplied), torqued to 110 ft-lb. Minimum 4.5" from concrete edge, crack, expansion joint, or abandoned anchor hole.
Space Requirements
Ceiling Height: Minimum 144" (12') for standard lift, higher for extended height option. Bay Size: Minimum 12' x 24', verify with site plan and service vehicles. Side Clearance: 72" minimum to nearest obstruction on sides, 132" minimum in front, 156" minimum in rear.
Professional Installation
Professional installation is recommended. Having your Forward lift installed by a Rotary Authorized Installer (RAI) upgrades your functional parts warranty from 1 year to 2 years and makes you eligible for extended warranty purchases. The lift is not intended for outdoor use and has an operating temperature range of 41° to 104°F.
What's Included
- Two-post lift columns with overhead assembly
- Three-stage front arms (2) and two-stage rear arms (2)

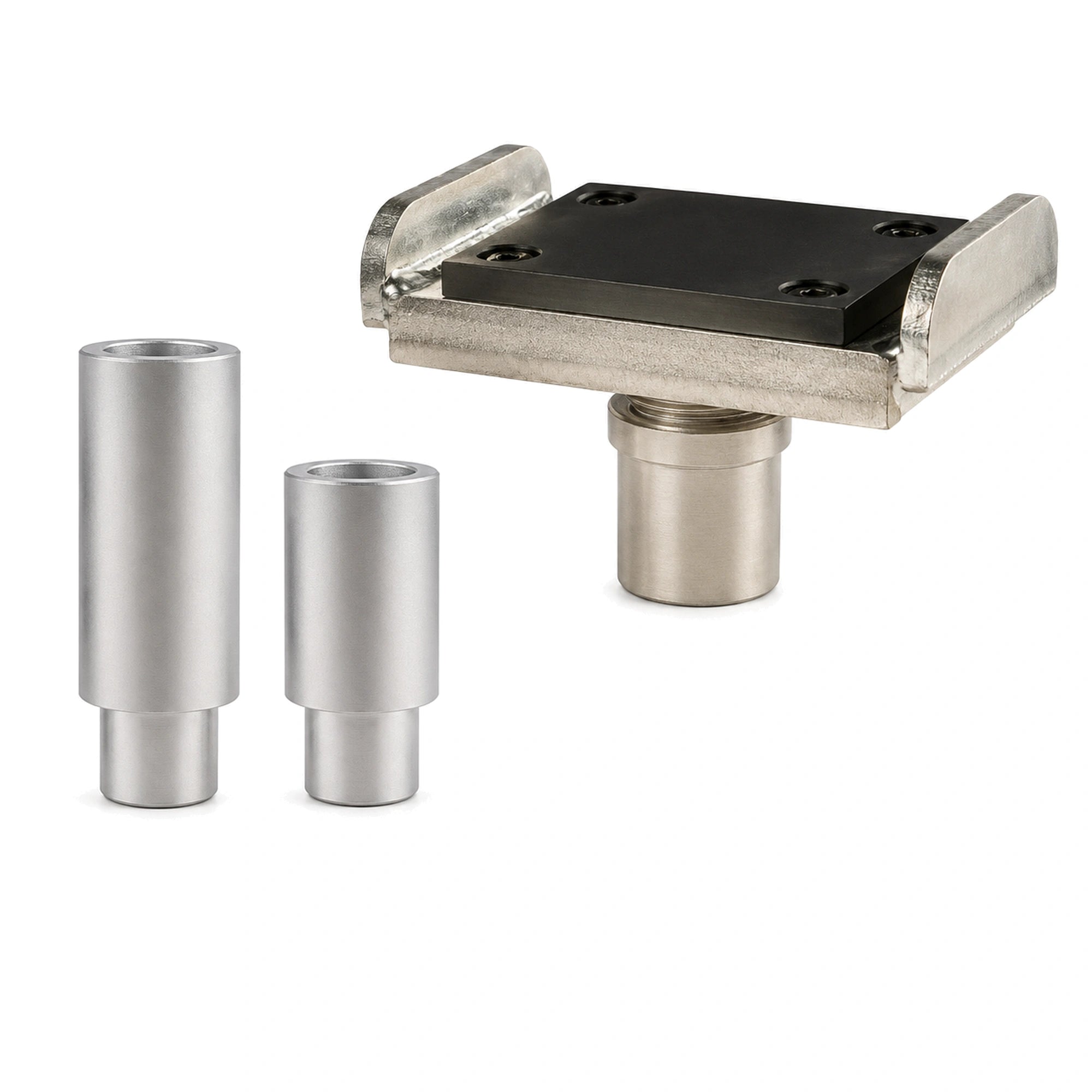

- Large low-profile padded drop-in adapters (4)
- 3.5" adapter extensions (4)
- 5" adapter extensions (4)
- Adapter storage bracket
- 2 HP power unit
- Top-mounted hydraulic cylinders (2)
- Overhead equalization cables and sheaves
- Anchor bolts (Hilti Kwik Bolt III 3/4" x 5.5")
- Installation hardware and shims
- Owner's manual and installation documentation

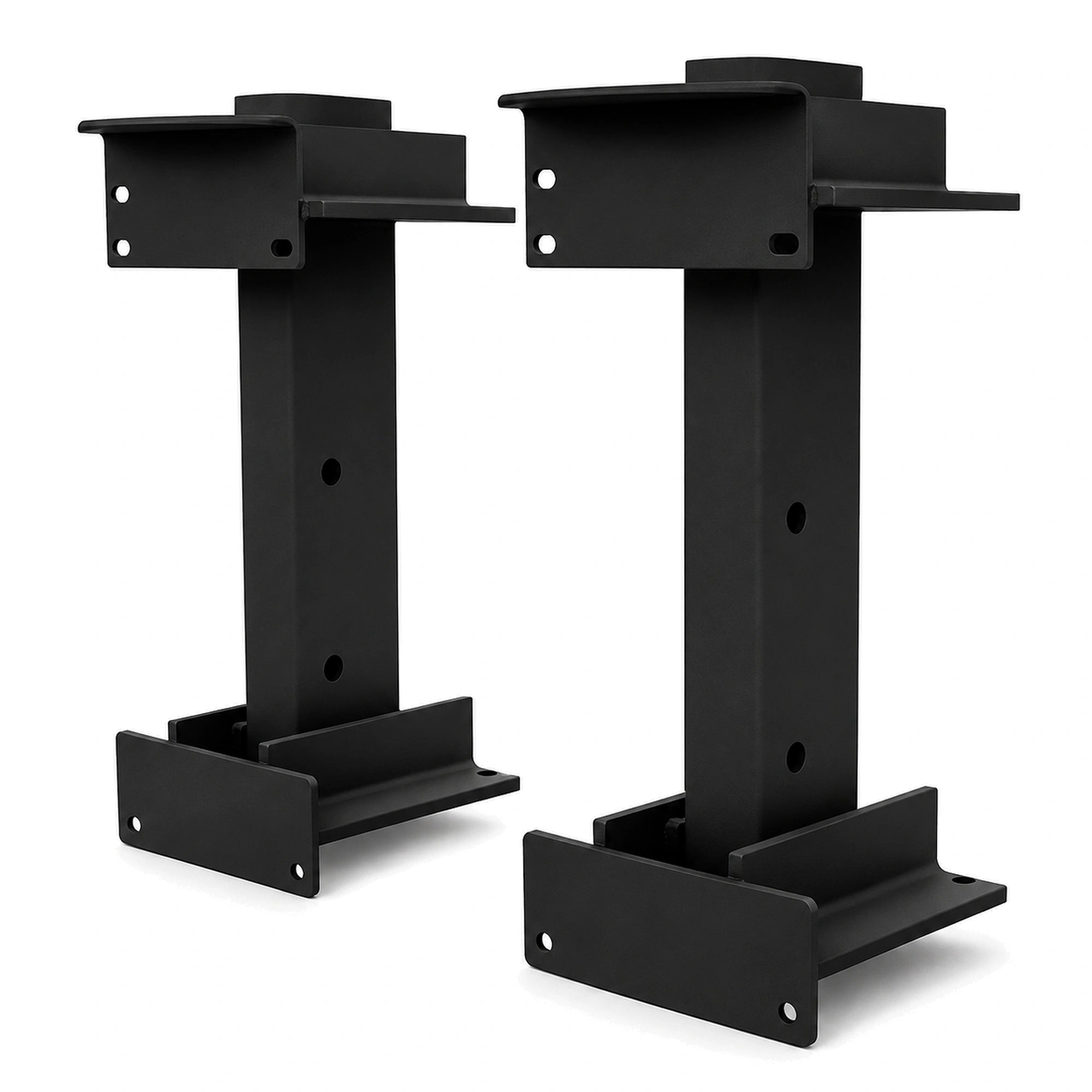

Optional Accessories: T100295 Extended Height Kit, FA5911BK Air/Electric Work Station, FA5974 Wheel Wing Tire Arms, FJ6245YKITM Round Rubber Adapter Kit, FJ6257KIT Wide Drop-In Truck Adapters, FA5701 Column-Mounted LED Light Kit, FA5702 Handheld LED Tech Light.
Not Included: Electrical wiring and breaker installation (by licensed electrician), concrete work if existing slab does not meet specifications, hydraulic fluid (8 quarts Dexron III ATF or ISO 32).
Forward F10 Shipping and Delivery
Freight Shipping
Coverage: Free LTL freight to commercial addresses in the 48 contiguous US states. Residential and limited-access locations may incur surcharges. Lead Time: 3-5 business days processing, subject to inventory availability. International: Contact sales for availability and pricing.
Delivery Requirements
Unloading: Forklift or loading dock required. Shipping weight is 1,505 lb. Delivery Type: Curbside delivery is standard. Liftgate service available for additional fee if you lack unloading equipment. Inspection: Check all packages before signing the bill of lading. Note any visible damage on the BOL before the carrier departs.
Returns
Returns accepted within 30 days of purchase. Items must be unopened in original packaging with receipt. A 20% restocking fee applies and buyer is responsible for return freight. Regular priced items only.
Forward Lifts F10 Warranty
Forward Lift Warranty Coverage
- 5 Years: Structural components including carriage, columns, yokes, arms, runways, baseplates, plungers
- 1 Year: Functional parts including power units, cylinders, hoses, cables, sheaves, latches, adapters, controls
- 1 Year: Labor coverage for warranty repairs
Upgrade to 2-Year Functional: Available when installed by a Rotary Authorized Installer (RAI).
Extended Warranty: 2 additional years of parts coverage available if purchased within 12 months of invoice (RAI installation required).
Requirements: Proper installation per manufacturer's manual. Regular maintenance as specified. Warranty is non-transferable and applies to original owner only.
Documents
Click to open in a new tab.
Questions About the Forward F10?
Get help with product selection, installation planning, concrete specs, electrical requirements, and finding a Rotary Authorized Installer in your area.
Forward F10 FAQ
What is the lifting capacity of the Forward F10?
The Forward F10 has a total lifting capacity of 10,000 lb with a per-arm rating of 2,500 lb. This capacity handles passenger cars, trucks, SUVs, and vans commonly serviced in automotive repair shops.
What ceiling height do I need for the Forward F10?
The F10 requires a minimum ceiling height of 144" (12 feet) for the standard configuration. The overall lift height is 143.5" (11' 9"). If you install the optional T100295 Extended Height Kit, you'll need additional ceiling clearance as the lift height increases to 165" (13' 9").
What is the arm reach on the F10?
The F10 features three-stage front arms with a reach range of 24.5" to 58" and two-stage rear arms reaching 36" to 58". This extended reach accommodates a wide variety of vehicle sizes and lift point configurations.
What electrical power does the Forward F10 require?
The F10 requires 208-230V single-phase power at 16-17 amps with a 20 amp circuit breaker. Three-phase options are available (208-230/460V, 50-60Hz). Use a separate circuit for each power unit. Installation must be performed by a licensed electrician.
What are the concrete requirements?
Standard installation requires minimum 4.25" thick concrete with 3,000 PSI compressive strength. IBC 2006/2009/2012 compliant installations require 5" minimum thickness. Seismic applications require 6" minimum. Anchors are Hilti Kwik Bolt III 3/4" x 5.5" torqued to 110 ft-lb, with minimum 4.5" from any edge, crack, or expansion joint.
What is the maximum rise height of the F10?
The F10 rises to 76.25" with the included 5" adapter extensions. The cylinder stroke is 67.5", and rise time is approximately 45 seconds unloaded or 51 seconds at rated capacity.
What warranty does the Forward F10 come with?
The Forward F10 comes with a 5-year structural warranty covering columns, arms, carriage, and overhead assembly. Functional parts including the power unit, cylinders, hoses, cables, and controls are covered for 1 year, along with 1 year of labor coverage. Installation by a Rotary Authorized Installer (RAI) upgrades the functional parts warranty to 2 years.
What is a Rotary Authorized Installer (RAI)?
A Rotary Authorized Installer is a certified technician trained to install Forward and Rotary lifts according to factory specifications. Using an RAI for installation upgrades your functional parts warranty from 1 year to 2 years and makes you eligible for extended warranty purchases. Contact us to find an RAI in your area.
What's the difference between standard and narrow width?
Standard width provides 115" inside columns and 105" drive-thru clearance. Narrow configuration offers 109" inside columns and 99" drive-thru clearance. Choose narrow for tighter bay spacing while still accommodating most passenger vehicles.
What's included with the Forward F10?
The F10 includes the complete lift with columns and overhead assembly, three-stage front arms (2), two-stage rear arms (2), four large padded drop-in adapters, four 3.5" extensions, four 5" extensions, adapter storage bracket, power unit, top-mounted cylinders, equalization cables, anchor bolts, and all installation hardware.
How is the Forward F10 shipped?
The F10 ships via LTL freight free to commercial addresses in the 48 contiguous states. Shipping weight is 1,505 lb. Processing takes 3-5 business days subject to inventory. You need a forklift or loading dock to unload. Inspect all packages and note any damage on the bill of lading before the carrier leaves.
What is the Extended Height Kit?
The T100295 Extended Height Kit adds 2 feet to the top of the standard F10 lift, increasing overall height from 11' 9" to 13' 9". The kit includes extended length hydraulic hose, return line, and cables. This option is ideal for shops with higher ceilings that want maximum working clearance underneath the vehicle.
California Proposition 65 Warning
WARNING: This product can expose you to chemicals including styrene and vinyl chloride, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.p65warnings.ca.gov.
