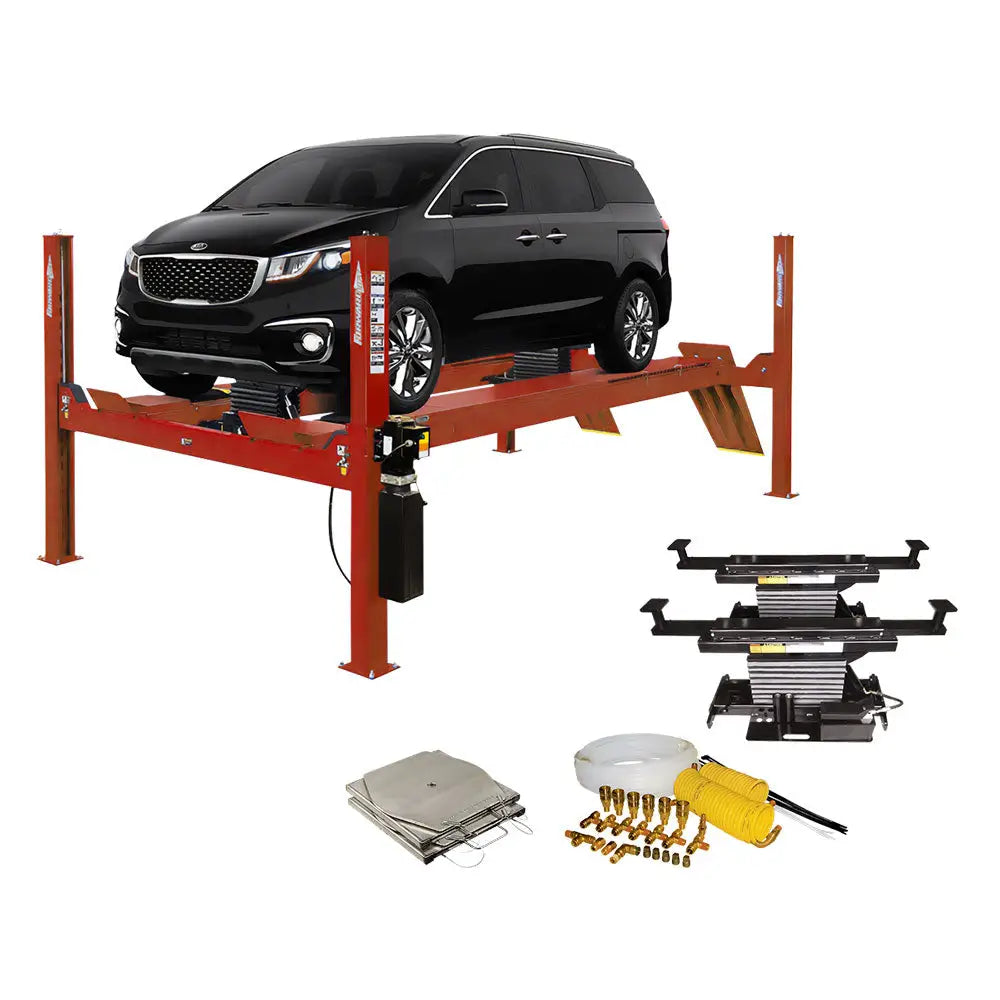

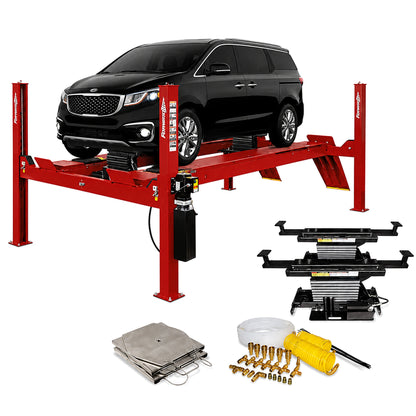

Forward Lift CRA14 14K Alignment Four-Post Lift Bundle, Closed Front
- Authorized Forward Lifts Dealer direct manufacturer relationship
- Manufacturer Warranty included with purchase
- Expert Product & Freight Support +1 (855) 498-2147
- Authorized Dealer Price Match verification required
- Fast Delivery some products may have lead times
- No Sales Tax outside PA where applicable
Forward Lift CRA14 14,000 lb Four-Post Alignment Lift for Professional Shops
The Forward Lift CRA14 is a professional-grade four-post alignment lift designed for precision wheel alignment work on cars, trucks, and SUVs. With a 14,000 lb capacity, this lift handles a wide range of vehicles while providing the stability and accuracy required for professional alignment procedures. The CRA14 features 80-3/4 inch rise, 250-inch overall length, and accommodates wheelbases up to 182-1/2 inches. Standard equipment includes two 7,000 lb rolling jacks, steel turntables, rear wheel slip plates, and an integrated air line kit. Available in red or blue powder coat finish, the CRA14 combines heavy-duty construction with operator-friendly features for efficient alignment service.
Forward Lift CRA14 Features
Heavy-Duty Hydraulic Cylinder
The CRA14 utilizes a heavy-duty hydraulic cylinder with 2HP motor to deliver reliable lifting power for vehicles up to 14,000 lb. The hydraulic system provides smooth, consistent lifting with 72-second rise time, ensuring safe and efficient operation throughout the workday. The heavy-duty construction withstands the demands of busy alignment shops performing multiple services daily.
Single Point Latch Release System
The innovative single point latch release allows operators to unlock all safety latches simultaneously from one location, eliminating the need to walk around the lift to release individual latches. This time-saving feature improves workflow efficiency and reduces operator fatigue during high-volume alignment work.
One-Piece Formed Runway Design
The one-piece formed runway design incorporates integrated rolling jack channels directly into the runway structure, providing convenient storage and positioning for the included rolling jacks. The 20-inch wide runways offer ample vehicle support while maintaining proper spacing for alignment equipment access. This integrated design eliminates loose components and streamlines the work area.
Multiple Position Safety Latches
Multiple position latch points in each structural leg provide safety engagement throughout the lift's travel range, allowing operators to secure vehicles at various heights for different service procedures. The robust latch system meets ALI/ANSI safety standards and provides positive engagement for confident undercarriage access.
Internal Air Line Standard
The CRA14 features integrated air lines running internally through the lift structure, keeping hoses organized and out of the way while providing convenient compressed air access at the lift. The internal routing protects air lines from damage and creates a professional, uncluttered work environment. The included air line kit connects to your shop air supply for pneumatic tools and alignment equipment.
Rear Wheel Slip Plates Standard
Rear wheel slip plates are included as standard equipment, eliminating the need for costly add-ons. The slip plates allow rear wheels to move freely during alignment adjustments, essential for accurate toe adjustment and proper alignment procedures. The steel construction provides durability for thousands of alignment services.
Complete Alignment Package
The CRA14 comes complete with two 7,000 lb rolling jacks and a pair of steel turntables, providing everything needed to begin performing professional wheel alignments immediately. The rolling jacks facilitate safe vehicle positioning and suspension work, while the turntables enable proper front wheel movement during alignment procedures. This comprehensive package eliminates the need to source critical accessories separately.

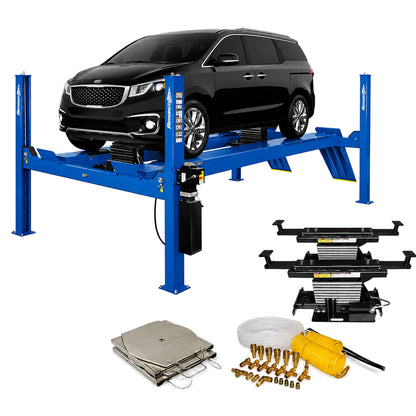

Professional Color Options
Choose between red or blue powder coat finish to match your shop's branding or personal preference. Both colors feature durable powder coat application that resists chipping, fading, and chemical damage for long-lasting professional appearance in demanding shop environments.
Forward Lift CRA14 Applications
- Wheel Alignment Service: Perform precision four-wheel and two-wheel alignments on passenger cars, light trucks, and SUVs with wheelbases up to 182-1/2 inches.
- Suspension Diagnosis and Repair: Utilize the 80-3/4 inch rise and included rolling jacks to access suspension components for inspection, diagnosis, and repair of steering and suspension systems.
- Tire Service Operations: Service tires, perform rotations, and conduct brake inspections with convenient vehicle access and the stability required for safe tire removal and installation.
- Undercarriage Inspection: Conduct thorough inspections of exhaust systems, fuel lines, brake lines, and undercarriage components with full-height access and excellent lighting angles.
- General Automotive Service: Perform oil changes, transmission service, differential work, and other general maintenance procedures with the convenience of drive-on access and stable platform.
- Alignment Shop Operations: Ideal for dedicated alignment shops, tire dealers with alignment services, and general repair facilities offering comprehensive suspension and alignment work.
Forward Lift CRA14 Specifications
| Specification | Imperial | Metric |
|---|---|---|
| Lifting Capacity | 14,000 lb | 6,350 kg |
| Maximum Wheelbase | 182-1/2 in | 4,635 mm |
| Maximum Two-Wheel Alignment | 166-1/4 in | 4,225 mm |
| Maximum Four-Wheel Alignment | 157 in | 3,988 mm |
| Minimum Four-Wheel Alignment | 88 in | 2,235 mm |
| Specification | Imperial | Metric |
|---|---|---|
| Rise | 80-3/4 in | 2,000 mm |
| Overall Length | 250 in | 6,350 mm |
| Overall Width | 131-3/4 in | 3,346 mm |
| Overall Height (Lowered) | 90-1/2 in | 2,281 mm |
| Length Between Columns | 195-1/4 in | 4,959 mm |
| Width Inside Columns | 116-1/4 in | 2,953 mm |
| Runway Width | 20 in | 508 mm |
| Runway Height | 9 in | 228 mm |
| Width Between Runways | 43 in or 46 in | 1,092 mm or 1,168 mm |
| Front of Runway to Center of Radius Gauge | 22-11/16 to 52-11/16 in | 576 to 1,338 mm |
| Specification | Value |
|---|---|
| Motor | 2 HP |
| Rise Time | 72 seconds |
| Power Requirements | Consult installation manual for specific electrical requirements |
| Specification | Imperial | Metric |
|---|---|---|
| Minimum Bay Size | 15 ft x 26 ft | 4,572 mm x 7,925 mm |
| Ceiling Height Required | Minimum 12 ft recommended | 3,658 mm |
| Model Number | Description |
|---|---|
| CRA14N201YBL / CRA14BL | Blue finish |
| CRA14N201YRD / CRA14RD | Red finish |
| CRA14L | Standard model designation |
Forward Lift CRA14 Installation Requirements
Concrete Foundation
Foundation Requirements: Minimum 4-inch thick reinforced concrete slab with 3,000 PSI minimum compressive strength. The concrete must be fully cured (minimum 28 days) before lift installation. Anchoring: The lift must be properly anchored to the concrete foundation using supplied anchor bolts installed per manufacturer specifications.
Electrical Requirements
Power: Consult the installation manual for specific electrical requirements based on motor configuration and local codes. Installation must be performed by a licensed electrician in compliance with NEC and local electrical codes. Circuit Protection: Dedicated circuit with appropriate overcurrent protection required.
Compressed Air Supply
Shop Air Required: Connection to shop compressed air system needed for the integrated air line kit. Standard quick-disconnect fittings accommodate shop air supply lines. Pressure Requirements: 90-150 PSI shop air recommended for optimal performance of pneumatic tools and alignment equipment.
Space Requirements
Minimum Bay Size: 15 feet x 26 feet clear space required for lift installation and operation. Ceiling Height: Minimum 12-foot ceiling recommended to accommodate lifted vehicles and provide adequate working clearance. Drive-Through Access: The four-post design allows vehicles to drive straight through for efficient workflow.
Professional Installation Required
Professional installation by qualified lift technicians is strongly recommended to ensure proper assembly, anchoring, electrical connections, and safety system functionality. Professional installation ensures compliance with ALI/ANSI safety standards and manufacturer warranty requirements. Installation time typically requires 1-2 days depending on site preparation and electrical requirements.
What's Included with the Forward Lift CRA14
- CRA14 four-post alignment lift (complete assembly)
- Two 7,000 lb capacity rolling jacks
- One pair of steel front turntables
- Rear wheel slip plates (standard equipment)
- Integrated air line kit
- Single point latch release system
- Heavy-duty hydraulic cylinder and 2HP motor
- All necessary mounting hardware
- Installation and operation manual
Not Included: Concrete foundation preparation, anchor bolt installation, electrical wiring and connections, compressed air supply lines, wheel alignment equipment (sensors, cameras, computer system), and professional installation labor.
Optional Accessories: Additional turntables, specialty adapters for low-profile vehicles, extended warranties, and service contracts may be available. Contact us for information on available accessories and upgrades.
Forward Lift CRA14 Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous US states. Lead Time: Typically ships within 2-3 weeks from order date, subject to availability. International Shipping: Contact sales department for international shipping quotes and delivery arrangements to Canada, Mexico, and other countries.
Delivery Requirements
Unloading Equipment: Forklift with minimum 6,000 lb capacity or loading dock required for safe unloading. The lift ships on multiple pallets with heavy components. Delivery Type: Curbside freight delivery standard. Liftgate service and inside delivery not available for this size equipment. Inspection: Thoroughly inspect all pallets and components before signing bill of lading. Document any damage or missing items on delivery receipt.
Returns and Cancellations
Return Policy: Lifts may be returned within 30 days of delivery if unused and in original packaging. Returns subject to 20% restocking fee plus return freight costs. Cancellations: Orders may be cancelled before shipment with possible cancellation fees. Contact customer service immediately if cancellation is necessary. Damaged Shipments: File freight claims immediately for any shipping damage noted on delivery receipt.
Forward Lift CRA14 Warranty
Forward Lift Limited Warranty
The Forward Lift CRA14 is covered by Forward Lift's comprehensive limited warranty. Warranty coverage typically includes structural components, hydraulic systems, and mechanical assemblies. Specific warranty terms and duration vary by component and are detailed in the warranty documentation provided with your lift.
Warranty Requirements: Valid warranty requires proper installation by qualified technicians, regular maintenance according to manufacturer schedules, and operation within specified capacity limits. Keep all maintenance records and documentation for warranty claims.
Extended Warranty Options: Extended warranty coverage and service contracts may be available for purchase. Contact us for information on extended protection plans and ongoing maintenance programs.
Questions About the Forward Lift CRA14?
Get expert guidance on alignment lift selection, installation planning, and facility requirements for your shop.
Forward Lift CRA14 FAQ
What is the lifting capacity of the CRA14?
The Forward Lift CRA14 has a 14,000 lb (6,350 kg) lifting capacity, making it suitable for most passenger cars, light trucks, SUVs, and many commercial vehicles. This capacity handles the majority of vehicles requiring alignment service in professional shops and tire dealers.
What wheelbase lengths can the CRA14 accommodate?
The CRA14 accommodates wheelbases up to 182-1/2 inches maximum. For alignment work specifically, the lift handles four-wheel alignments on vehicles with wheelbases from 88 inches minimum to 157 inches maximum, and two-wheel alignments up to 166-1/4 inches. This range covers most passenger vehicles and light trucks commonly serviced in alignment shops.
What comes included with the CRA14?
The CRA14 includes two 7,000 lb rolling jacks, a pair of steel front turntables, rear wheel slip plates, integrated air line kit, single point latch release system, hydraulic cylinder with 2HP motor, and all mounting hardware. This comprehensive package provides everything needed to begin performing professional alignments, except the alignment equipment itself (sensors, cameras, computer system).
What is the maximum rise height?
The CRA14 provides 80-3/4 inches (2,000mm) of rise, offering excellent access to suspension components, steering systems, and undercarriage areas. This substantial rise height allows technicians to work comfortably on alignment adjustments and suspension repairs without excessive bending or awkward positions.
What are the minimum bay size requirements?
The minimum bay size required is 15 feet x 26 feet (4,572mm x 7,925mm) with a recommended minimum ceiling height of 12 feet. The lift's overall footprint is 250 inches long by 131-3/4 inches wide, and you need adequate clearance around the lift for vehicle entry, exit, and operator movement.
Can I choose the color of my CRA14?
Yes, the CRA14 is available in your choice of blue or red powder coat finish. Both colors feature durable powder coating that resists chipping and chemical damage. Specify your preferred color (blue or red) when ordering to match your shop's branding or personal preference.
What electrical power does the CRA14 require?
The CRA14 uses a 2HP motor. Specific electrical requirements (voltage, phase, amperage) should be confirmed with the installation manual based on your motor configuration and local electrical codes. Installation must be performed by a licensed electrician with a dedicated circuit and appropriate overcurrent protection.
How long does it take to raise the lift?
The CRA14 has a 72-second rise time from fully lowered to fully raised position. This relatively fast cycle time improves shop productivity by minimizing wait time between vehicle positioning and alignment work, allowing technicians to process more vehicles throughout the workday.
Does the CRA14 include slip plates for alignment work?
Yes, rear wheel slip plates are included as standard equipment with the CRA14. The slip plates allow rear wheels to move freely during alignment adjustments, which is essential for accurate toe adjustment and proper alignment procedures. Front turntables are also included for complete alignment capability.
What is the single point latch release system?
The single point latch release allows operators to unlock all safety latches simultaneously from one convenient location, eliminating the need to walk around the lift to release individual latches. This time-saving feature significantly improves workflow efficiency, especially during high-volume alignment work where lifts are raised and lowered frequently throughout the day.
Can I use the CRA14 for services other than alignments?
Yes, while the CRA14 is optimized for alignment work, it functions as a versatile four-post lift suitable for general automotive service including suspension repairs, tire service, brake work, oil changes, exhaust work, and undercarriage inspections. The included rolling jacks facilitate these service procedures by providing safe vehicle support for wheel removal and suspension access.
What type of concrete foundation is required?
The CRA14 requires installation on a minimum 4-inch thick reinforced concrete slab with at least 3,000 PSI compressive strength. The concrete must be fully cured (minimum 28 days) before lift installation, and the lift must be properly anchored using the supplied anchor bolts according to manufacturer specifications.
