Forward Lift CR14 14K Four-Post Lift, ALI Cert.
- Authorized Forward Lifts Dealer direct manufacturer relationship
- Manufacturer Warranty included with purchase
- Expert Product & Freight Support +1 (855) 498-2147
- Authorized Dealer Price Match verification required
- Fast Delivery some products may have lead times
- No Sales Tax outside PA where applicable

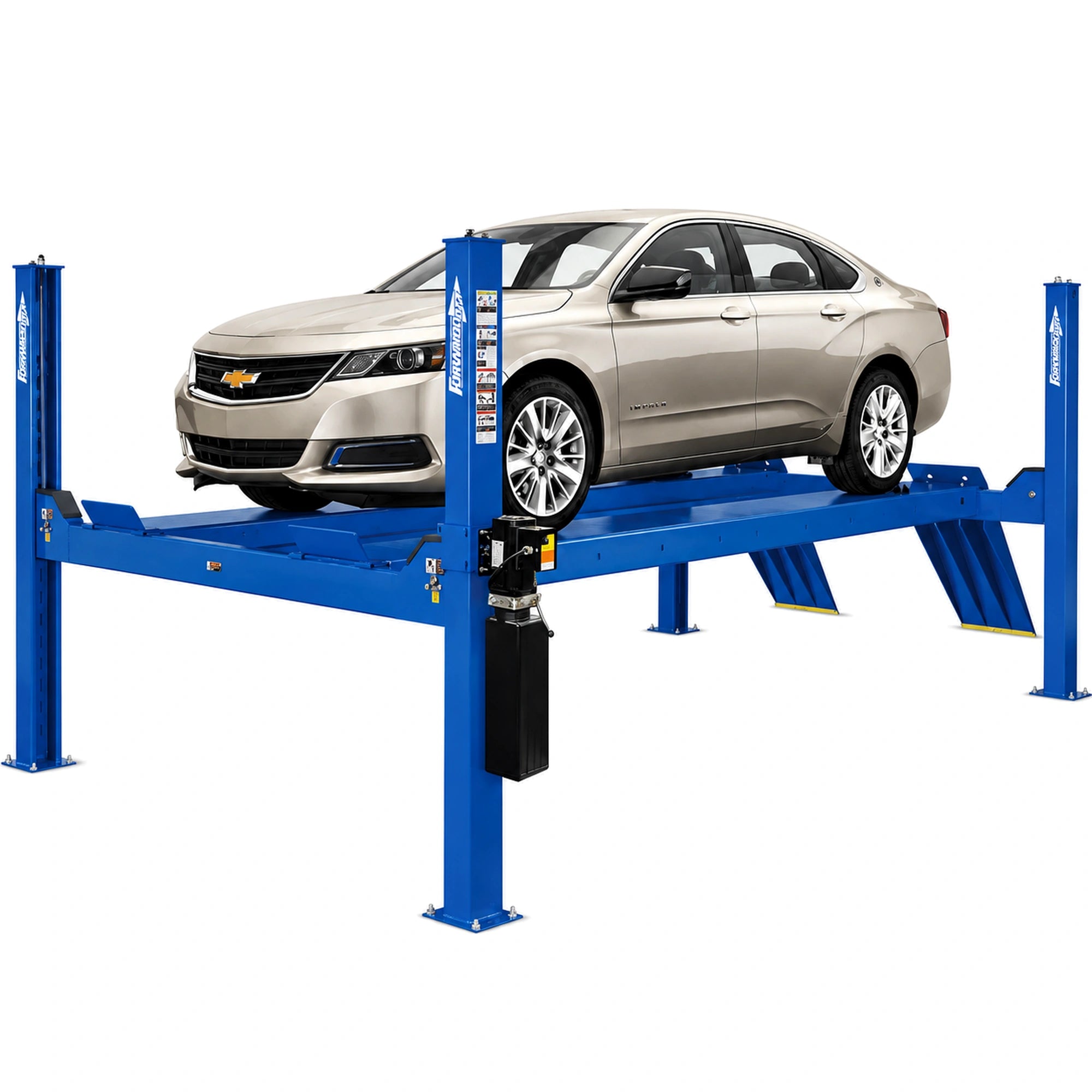

Forward CR14 14,000 lb Four-Post Lift for Cars, Vans, and Trucks
The Forward CR14 is a heavy-duty four-post lift engineered to handle the service demands of modern vehicles with a robust 14,000 lb capacity. Built by Rotary, the maker of the world's most trusted lift, this model delivers professional-grade performance at an accessible price point. The 78-3/4" rise height gives technicians excellent undercarriage access, while multi-position lock components ensure a level platform at any height. A concealed heavy-duty cable and sheaves system provides smooth, reliable operation. Every Forward lift is proof-load tested to 1.5x its rated capacity and backed by Rotary's comprehensive warranty.
Forward CR14 Features
14,000 lb Lifting Capacity
The CR14 delivers a substantial 14,000 lb capacity that handles everything from passenger cars to full-size vans and light trucks. Every unit is proof-load tested to 1.5x its rated capacity (21,000 lb) before leaving the factory, ensuring your shop receives a lift that meets the highest safety and durability standards.
Extended Rise Height
With a 78-3/4" rise height, the CR14 positions vehicles at an optimal working height for undercarriage service, inspections, and repairs. This generous lift range reduces technician fatigue and improves access to hard-to-reach components compared to standard-height four-post lifts.
Long Wheelbase Capacity
The CR14 accommodates wheelbases up to 215", making it suitable for extended-cab pickups, full-size SUVs, and commercial vans. Two model configurations are available with overall lengths of 250" or 283" to match your shop's vehicle mix and bay dimensions.
Multi-Position Locking System
The CR14's multi-position lock components allow the lift to remain perfectly level at any lock position. This flexibility lets technicians set the vehicle at the exact height needed for the task at hand while maintaining a stable, secure platform throughout the service process.
Concealed Cable System
A heavy-duty, high-performance cable and sheaves system is concealed beneath the runways for a clean appearance and protected operation. This design keeps critical lifting components away from debris, lubricants, and accidental contact during daily shop operations.
Adjustable Runway Spacing
The runways can be configured with either 43" or 46" spacing between them, providing flexibility for different vehicle track widths. Each 20"-wide runway offers a stable driving surface for easy vehicle positioning.
Forward CR14 Applications
- General Automotive Service: Ideal for oil changes, brake service, exhaust work, and routine maintenance on cars, trucks, and SUVs with the benefit of full undercarriage access.
- Fleet Maintenance: The 14,000 lb capacity and extended wheelbase support make it well-suited for servicing commercial vans, delivery vehicles, and fleet trucks.
- Wheel Alignment: Compatible with Forward's bolt-on alignment kit accessory for shops that need alignment capabilities without dedicating a separate bay.
- Vehicle Storage: Four-post design allows vehicles to be safely stored on the lift, freeing up valuable floor space in busy shops or collector garages.
- Detailing and Inspection: Provides elevated access for thorough vehicle inspections, undercoating applications, and detailing work.
Forward CR14 Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 14,000 lb (6,350 kg) |
| Rise Height | 78-3/4" (2,000 mm) |
| Maximum Wheelbase | 215" (5,460 mm) |
| Rise Time | 72 seconds |
| Specification | Value |
|---|---|
| Overall Length | 250" (6,350 mm) |
| Overall Width | 131-3/4" (3,568 mm) |
| Overall Height | 90-1/2" (2,299 mm) |
| Length Between Columns | 195-1/4" (4,946 mm) |
| Width Inside Columns | 116-1/4" (2,953 mm) |
| Minimum Bay Size | 15' x 25' (4,572 x 7,620 mm) |
| Specification | Value |
|---|---|
| Overall Length | 283" (7,188 mm) |
| Overall Width | 131-3/4" (3,568 mm) |
| Overall Height | 90-1/2" (2,299 mm) |
| Length Between Columns | 228-1/4" (5,798 mm) |
| Width Inside Columns | 116-1/4" (2,953 mm) |
| Minimum Bay Size | 15' x 28' (4,572 x 8,534 mm) |
| Specification | Value |
|---|---|
| Runway Width | 20" (508 mm) |
| Runway Height | 7" (178 mm) |
| Width Between Runways | 43" (1,092 mm) or 46" (1,168 mm) |
| Specification | Value |
|---|---|
| Voltage | 208/230V |
| Motor | 2 HP |
Forward CR14 Installation Requirements
Electrical Requirements
Power: The CR14 requires a 208/230V electrical supply to operate its 2 HP motor. A dedicated circuit installed by a licensed electrician is required. Verify your facility's electrical capacity before purchase.
Concrete Foundation
Anchoring: The lift must be anchored to a reinforced concrete slab meeting manufacturer specifications. A minimum 4" thick concrete slab with 3,000 PSI compressive strength is typically required. Consult the installation manual for complete foundation requirements.
Space Requirements
Minimum Bay Size: The CR14N201Y requires a bay of at least 15' x 25', while the CR14N202Y requires 15' x 28'. Ceiling Height: Allow clearance above the lift's 90-1/2" overall height plus the height of the tallest vehicle you plan to service. Ensure adequate approach clearance for vehicle entry.
Professional Installation
Professional installation by a qualified technician is strongly recommended. Rotary Authorized Installers (RAI) are factory-trained to install Forward lifts correctly and safely. RAI installation may be required to activate the full manufacturer warranty and ensures your lift meets all safety and performance standards from day one.
What's Included with the Forward CR14
- Complete four-post lift structure with columns and runways
- 2 HP power unit (208/230V)
- Cable and sheaves lifting system
- Multi-position safety locks
- Hardware and anchor bolts
- Installation manual and documentation
Optional Accessories: Forward offers several accessories for the CR14, including the 4-Post Tech Light Kit, Oil Drain Pan, Four Post Lift Efficiency Kit, Approach/Drive Thru Ramps, Bolt-On Alignment Kit, and 4-Post Air/Electric Work Station.
Not Included: Electrical work, concrete work, and professional installation are not included and must be arranged separately.
Forward CR14 Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: Ships within 5-10 business days, subject to availability. International Orders: Contact our sales team for international shipping quotes and arrangements.
Delivery Requirements
Unloading: A forklift or loading dock is required to unload the lift from the delivery truck. Delivery Type: Curbside delivery is standard. Inspection: Carefully inspect all packages for damage before signing the Bill of Lading. Note any visible damage on the delivery receipt and photograph all packaging.
Returns
Returns are accepted within 30 days of delivery. Products must be unopened, in original packaging, and accompanied by the original receipt. A 20% restocking fee applies. The buyer is responsible for return freight costs.
Forward CR14 Warranty
Rotary Lift Warranty Coverage
- 5 Years: Structural components
- 2 Years: Mechanical components
- 1 Year: Power unit and electrical components
Extended warranty coverage may be available. Installation by a Rotary Authorized Installer (RAI) may be required for full warranty activation.
Requirements: Warranty coverage requires proper installation according to manufacturer specifications, use of the lift within its rated capacity, and adherence to recommended maintenance schedules. Keep your proof of purchase and installation documentation for warranty claims.
Documents
Click to open in a new tab.
Questions About the Forward CR14?
Get help with installation planning, specifications, model selection, and accessories.
Forward CR14 FAQ
What is the lifting capacity of the Forward CR14?
The Forward CR14 has a rated lifting capacity of 14,000 lb (6,350 kg). Every unit is proof-load tested to 1.5x its rated capacity (21,000 lb) at the factory to ensure safety and reliability.
What is the maximum wheelbase the CR14 can accommodate?
The CR14 accommodates vehicles with wheelbases up to 215" (5,460 mm). Two model configurations are available with overall lengths of 250" or 283" to suit different vehicle sizes and shop layouts.
What are the power requirements for the Forward CR14?
The CR14 operates on 208/230V power and uses a 2 HP motor. A dedicated electrical circuit installed by a licensed electrician is required.
How much ceiling height do I need for the Forward CR14?
The lift has an overall height of 90-1/2" (2,299 mm). You will need additional clearance above this height to accommodate the tallest vehicle you plan to lift plus a safety margin. Calculate your specific needs based on the vehicles you service.
What is the minimum bay size required?
The CR14N201Y model requires a minimum bay size of 15' x 25' (4,572 x 7,620 mm). The longer CR14N202Y model requires 15' x 28' (4,572 x 8,534 mm). Ensure adequate approach clearance for vehicle entry.
What warranty comes with the Forward CR14?
The CR14 is covered by Rotary's warranty, which includes 5 years on structural components, 2 years on mechanical components, and 1 year on the power unit and electrical components. Installation by a Rotary Authorized Installer (RAI) may be required for full warranty coverage.
What is a Rotary Authorized Installer (RAI)?
Rotary Authorized Installers are factory-trained technicians certified to install Forward and Rotary lifts according to manufacturer specifications. RAI installation ensures your lift is set up correctly, meets all safety standards, and may be required to activate the full manufacturer warranty.
What accessories are available for the Forward CR14?
Forward offers several accessories including the 4-Post Tech Light Kit, Oil Drain Pan, Four Post Lift Efficiency Kit, Approach/Drive Thru Ramps, Bolt-On Alignment Kit, and 4-Post Air/Electric Work Station. Contact us for accessory pricing and compatibility.
How is the Forward CR14 shipped?
The CR14 ships via freight carrier with free shipping to commercial addresses in the 48 contiguous US states. A forklift or loading dock is required for unloading. Curbside delivery is standard. Inspect all packages for damage before signing the Bill of Lading.
Can I use the CR14 for wheel alignments?
Yes, Forward offers a Bolt-On Alignment Kit accessory that adds alignment capability to the CR14. This allows shops to perform alignments without dedicating a separate bay to a specialty alignment lift.
What is the difference between the CR14N201Y and CR14N202Y models?
Both models have the same 14,000 lb capacity and 78-3/4" rise height. The primary difference is length: the CR14N201Y has an overall length of 250" and requires a minimum bay of 15' x 25', while the CR14N202Y is 283" long and requires a 15' x 28' bay. Choose the model that best fits your bay dimensions and the vehicles you service.
How long does it take to raise a vehicle on the CR14?
The CR14 has a rise time of approximately 72 seconds to reach its full 78-3/4" height.
