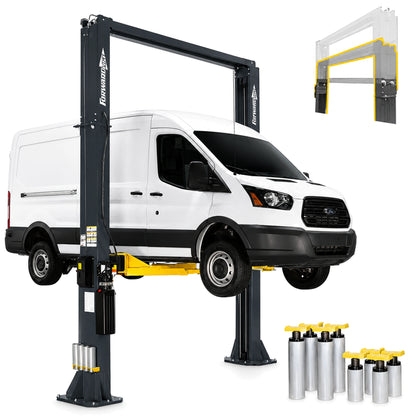

Forward DP15 15K Heavy-Duty Two-Post Lift
- Authorized Forward Lifts Dealer direct manufacturer relationship
- Manufacturer Warranty included with purchase
- Expert Product & Freight Support +1 (855) 498-2147
- Authorized Dealer Price Match verification required
- Fast Delivery some products may have lead times
- No Sales Tax outside PA where applicable

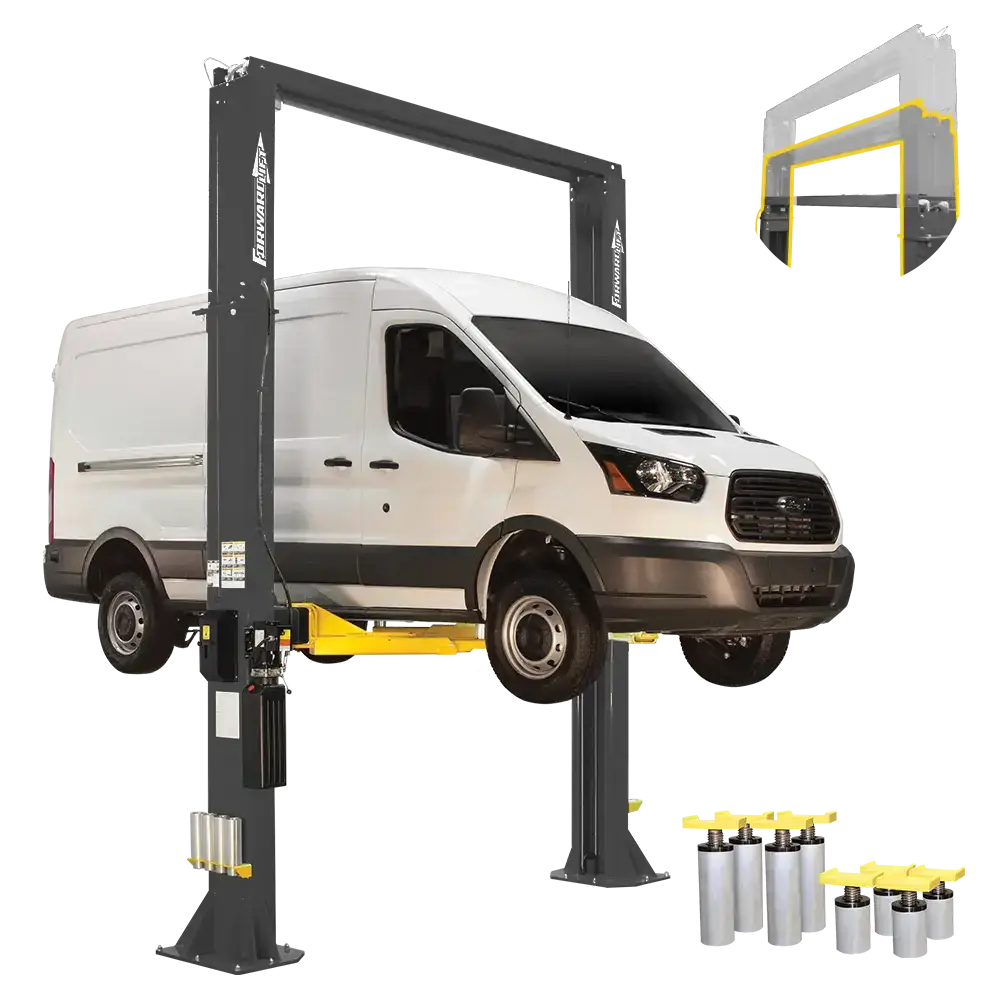

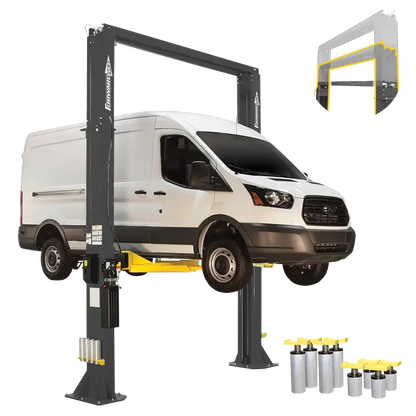

Forward DP15 15,000 lb Heavy-Duty Two-Post Lift for Work Trucks, Vans, and Commercial Vehicles
The Forward DP15 is a heavy-duty two-post lift engineered with high-strength, heavy-gauge steel columns to handle vehicles up to 15,000 lb. This lift delivers 83-1/4" of rise and features two-stage arms that extend from 38" to 61" for easy positioning under larger vehicles. Three height configurations are available to fit ceiling heights from 155-3/4" to 200", making it adaptable to nearly any shop environment. Powered by a 2 HP single-phase motor running on 208/230V, the DP15 is built to Rotary's manufacturing standards and backed by Rotary's warranty infrastructure.
Forward DP15 Features
Heavy-Duty Steel Construction
The DP15 is engineered with high-strength, heavy-gauge steel columns designed to handle the demands of commercial service environments. Large gusseting on a substantial base plate foundation provides the stability and support required when lifting work trucks, delivery vans, and other heavy vehicles up to 15,000 lb.
Two-Stage Extendable Arms
The two-stage arms feature heavy-duty reinforced gusseting and extend from 38" to 61" to accommodate a wide range of vehicle wheelbases. With a minimum adapter height of just 5-1/2" from the floor, you can lift low-clearance vehicles without difficulty. The arms can be easily extended and retracted while lying on the floor spotting a vehicle.
Stackable Adapter Extensions
Forward's light adapter extensions make spotting large vehicles easier than ever. The stackable adapters provide heights of 10-1/2" (low extension) and 15-1/2" (high extension), giving you the flexibility to safely lift vehicles with varying frame heights and configurations.
Three Ceiling Height Options
The DP15 is available in three configurations to fit your shop. The DP15N000 fits ceiling heights as low as 155-3/4" with the overhead cross member mounted directly to the column. The standard DP15N001 fits 176" ceilings, while the extended DP15N002 accommodates 200" ceiling heights.
Wide Drive-Through Clearance
With an inside column width of 119-5/8" and a drive-through clearance of 108-1/4", the DP15 easily accommodates full-size work trucks, cargo vans, and dual-rear-wheel vehicles. The overall floor width of 154-3/8" provides a stable footprint without consuming excessive shop space.
Powerful Hydraulic System
The DP15 is powered by a 2 HP single-phase motor operating on 208/230V at 20 amps. This robust hydraulic system delivers smooth, consistent lifting performance even at full capacity, ensuring efficient workflow in busy commercial service environments.
Forward DP15 Applications
- Commercial Fleet Maintenance: Ideal for servicing delivery vans, box trucks, and work vehicles in fleet operations where downtime must be minimized.
- Work Truck Service: Built to handle service trucks, utility vehicles, and contractor vehicles equipped with heavy tool boxes and equipment.
- Transit and Shuttle Vehicles: Capable of lifting small buses, airport shuttles, and passenger vans for maintenance and inspections.
- RV and Recreational Vehicles: The high capacity and extended arm reach make it suitable for Class B motorhomes and large recreational vehicles.
- Municipal and Government Fleets: Perfect for public works departments maintaining police vehicles, ambulances, and municipal trucks.
- Heavy-Duty Automotive Shops: A reliable choice for shops specializing in trucks, SUVs, and commercial vehicles that exceed standard lift capacities.
Forward DP15 Specifications
| Specification | DP15N000 | DP15N001 | DP15N002 |
|---|---|---|---|
| Total Capacity | 15,000 lb (6804 kg) | 15,000 lb (6804 kg) | 15,000 lb (6804 kg) |
| Rise | 83-1/4" (2114 mm) | 83-1/4" (2114 mm) | 83-1/4" (2114 mm) |
| Column Extensions | No Extensions | Standard Height | Extended Height |
| Arm Type | 2 Stage | 2 Stage | 2 Stage |
| Specification | DP15N000 | DP15N001 | DP15N002 |
|---|---|---|---|
| Overall Height | 154-3/4" (3930 mm) | 175" (4445 mm) | 199" (5054 mm) |
| Height to Shut-Off | 147-1/4" (3735 mm) | 167-1/4" (4250 mm) | 191-1/4" (4860 mm) |
| Minimum Ceiling Height | 155-3/4" (3956 mm) | 176" (4470 mm) | 200" (5080 mm) |
| Overall Floor Width | 154-3/8" (3921 mm) | 154-3/8" (3921 mm) | 154-3/8" (3921 mm) |
| Inside Column Width | 119-5/8" (3038 mm) | 119-5/8" (3038 mm) | 119-5/8" (3038 mm) |
| Drive Through | 108-1/4" (2749 mm) | 108-1/4" (2749 mm) | 108-1/4" (2749 mm) |
| Specification | Value |
|---|---|
| Arm Reach (Retracted) | 38" (965 mm) |
| Arm Reach (Extended) | 61" (1549 mm) |
| Minimum Adapter Height | 5-1/2" (139 mm) |
| Stackable Adapter Height (Low) | 10-1/2" (266 mm) |
| Stackable Adapter Height (High) | 15-1/2" (393 mm) |
| Specification | Value |
|---|---|
| Voltage | 208/230V |
| Amperage | 20 Amps |
| Motor | 2 HP / Single Phase |
Forward DP15 Installation Requirements
Electrical Requirements
Power: The DP15 requires a dedicated 208/230V, 20 amp circuit for the 2 HP single-phase motor. A licensed electrician should install the circuit and verify proper grounding before operation.
Concrete Foundation
Anchoring: The lift must be anchored to a concrete floor with a minimum thickness of 4" and compressive strength of at least 3,000 PSI. The large base plate foundation requires proper anchor bolt installation for safe operation at full capacity.
Space Requirements
Ceiling Height: Select the appropriate model based on your ceiling: DP15N000 requires 155-3/4" minimum, DP15N001 requires 176" minimum, and DP15N002 requires 200" minimum. Floor Width: Allow at least 154-3/8" for the overall footprint plus additional clearance for vehicle doors and technician access.
Professional Installation
Professional installation by a Rotary Authorized Installer (RAI) is strongly recommended. RAI installation ensures your lift is set up correctly and may be required to activate the full manufacturer warranty. RAI technicians are factory-trained and can verify that all safety systems function properly before your lift goes into service.
What's Included with the Forward DP15
- Two heavy-gauge steel columns with overhead cross member
- Four two-stage swing arms with reinforced gusseting
- Stackable adapter set (low and high extensions)
- 2 HP single-phase hydraulic power unit
- Hydraulic cylinders and hoses
- Safety lock system
- Anchor bolt hardware kit
- Installation and operator manual

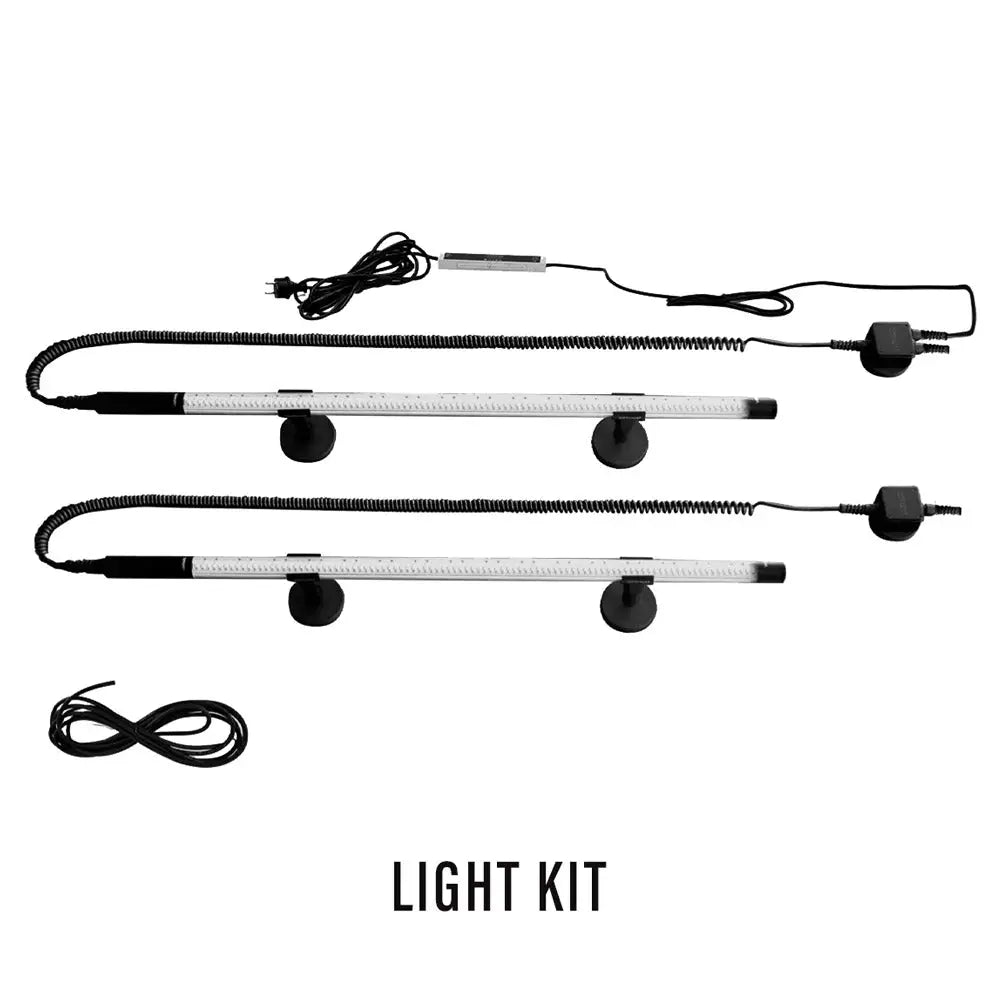

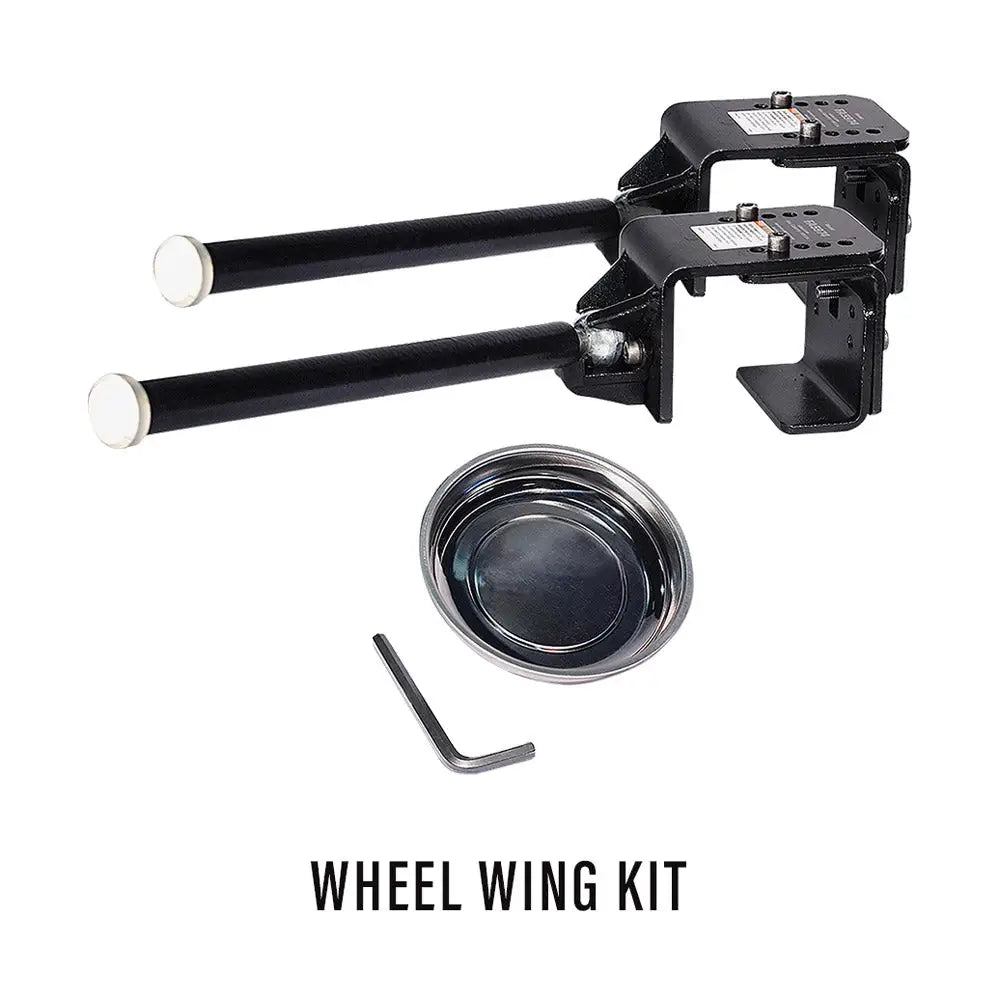

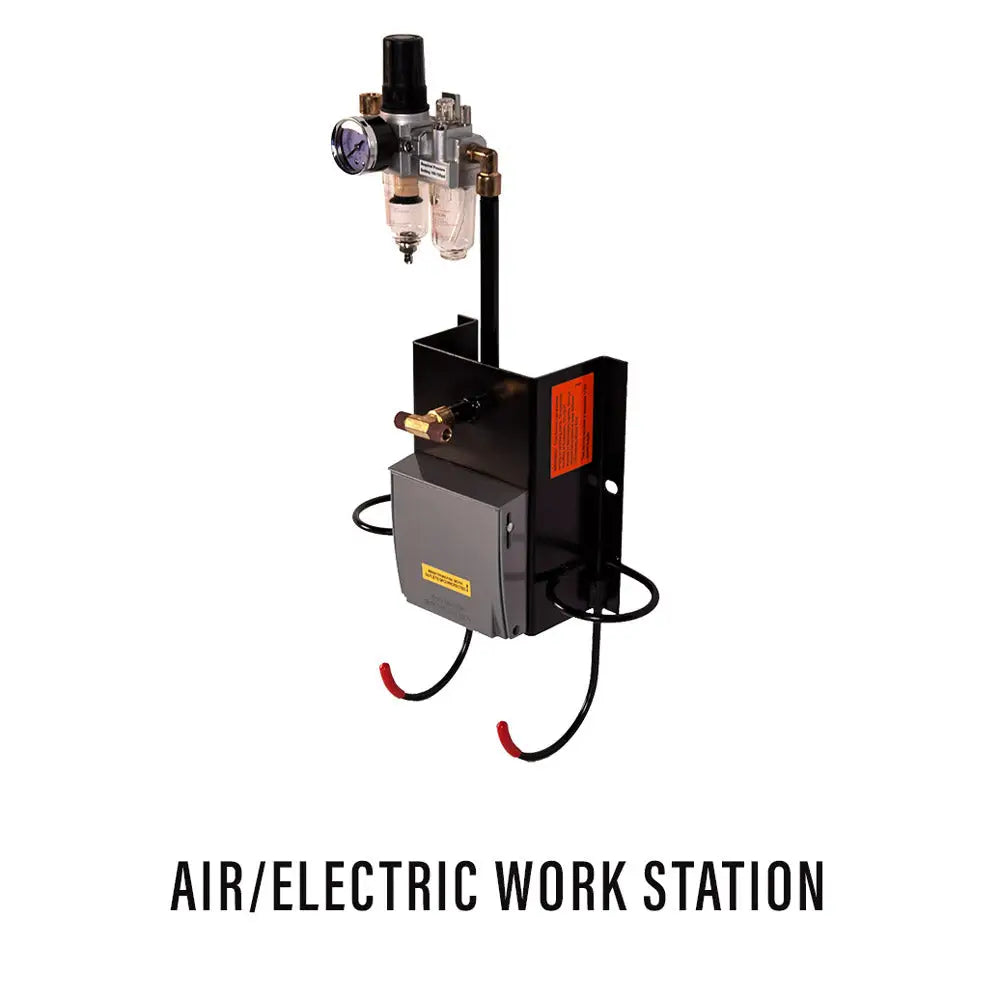

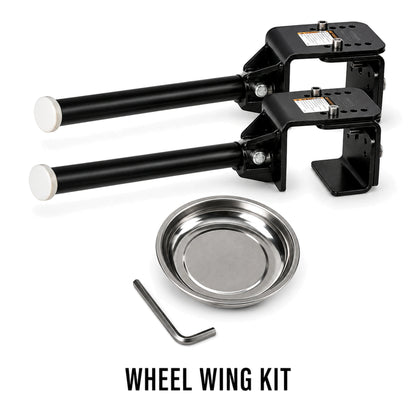

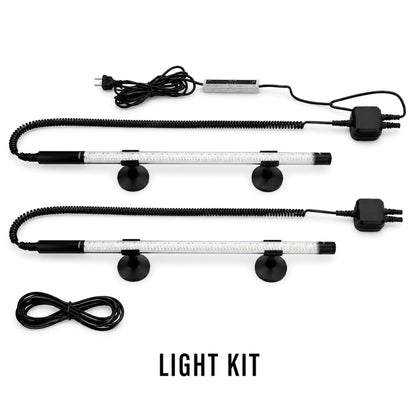

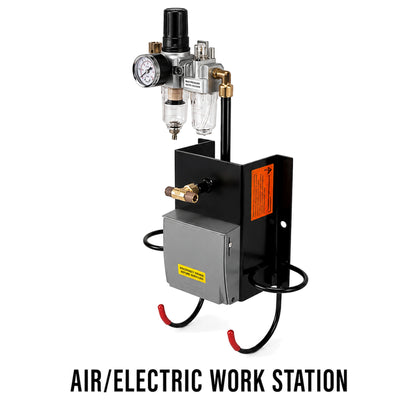

Optional Accessories: Forward offers a 2-Post Air/Electric Work Station, Wheel Wing Kit, and Light Kit to enhance productivity and convenience.
Not Included: Electrical wiring, dedicated circuit installation, concrete work, and professional installation labor are not included with the lift purchase.
Forward DP15 Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses with a loading dock or forklift in the 48 contiguous United States. Lead Time: Ships within 5 to 10 business days from order confirmation, subject to stock availability. International: Contact our sales team for international shipping quotes and arrangements.
Delivery Requirements
Unloading: A forklift or loading dock is required to unload the lift from the freight truck. Delivery Type: Standard delivery is curbside or dock-to-dock. Inside delivery or liftgate service may be available for an additional charge. Inspection: Inspect all packages and crating for damage before signing the Bill of Lading. Note any visible damage on the delivery receipt.
Returns
Returns are accepted within 30 days of delivery. Items must be unopened, in original packaging, and accompanied by a receipt. A 20% restocking fee applies to all returns. Buyer is responsible for return freight costs. Damaged or defective items should be reported within 48 hours of delivery.
Forward DP15 Warranty
Forward Lift Limited Warranty
- 5 Years: Structural components including columns, base plates, and cross members
- 2 Years: Hydraulic cylinders and mechanical components
- 1 Year: Power unit, electrical components, and accessories
Extended warranty coverage may be available through Rotary Authorized Installers. RAI installation may be required for full warranty activation. Contact our sales team for warranty details and extended coverage options.
Requirements: Warranty coverage requires proper installation according to manufacturer specifications, use of approved accessories only, and adherence to the recommended maintenance schedule outlined in the operator manual.
Documents
Click to open in a new tab.
Questions About the Forward DP15?
Our lift specialists can help with installation planning, ceiling height verification, electrical requirements, and product selection for your shop.
Forward DP15 Frequently Asked Questions
What is the lifting capacity of the Forward DP15?
The Forward DP15 has a maximum lifting capacity of 15,000 lb (6804 kg). This capacity applies to all three height configurations: DP15N000, DP15N001, and DP15N002.
What ceiling height do I need for the Forward DP15?
The DP15 is available in three configurations to accommodate different ceiling heights. The DP15N000 requires a minimum ceiling height of 155-3/4" (12 ft 11-3/4 in). The DP15N001 requires 176" (14 ft 8 in). The DP15N002 requires 200" (16 ft 8 in). Measure from the finished floor to the lowest ceiling obstruction to determine which model fits your shop.
What are the electrical requirements for the Forward DP15?
The DP15 requires a dedicated 208/230V, 20 amp circuit. The lift is powered by a 2 HP single-phase motor. A licensed electrician should install the circuit and verify proper grounding before the lift is put into service.
How wide is the drive-through clearance?
The Forward DP15 provides 108-1/4" (2749 mm) of drive-through clearance between the columns. The inside column width is 119-5/8" (3038 mm), and the overall floor width is 154-3/8" (3921 mm).
What is the maximum lift height of the DP15?
The Forward DP15 provides 83-1/4" (2114 mm) of rise from floor level to full height. This measurement is consistent across all three height configurations.
What types of vehicles can the Forward DP15 lift?
The DP15 is designed for work trucks, cargo vans, delivery vehicles, small buses, shuttle vans, fleet vehicles, and other commercial vehicles weighing up to 15,000 lb. The two-stage arms with 38" to 61" reach and stackable adapter extensions make it versatile enough to handle a wide range of vehicle sizes and configurations.
What warranty comes with the Forward DP15?
The Forward DP15 is covered by a limited warranty that includes 5 years on structural components, 2 years on hydraulic cylinders and mechanical parts, and 1 year on the power unit and electrical components. Installation by a Rotary Authorized Installer (RAI) may be required for full warranty activation. Extended warranty options may also be available.
Is professional installation required?
While not strictly required, professional installation by a Rotary Authorized Installer (RAI) is strongly recommended. RAI installation ensures the lift is set up correctly, all safety systems function properly, and may be necessary to activate the full manufacturer warranty. Contact us for RAI referrals in your area.
What concrete requirements does the DP15 have?
The Forward DP15 must be anchored to a concrete floor with a minimum thickness of 4 inches and a compressive strength of at least 3,000 PSI. The anchor bolt hardware is included with the lift. Do not install the lift on asphalt, dirt, or inadequate concrete surfaces.
What is included with the Forward DP15 purchase?
The DP15 includes two steel columns with overhead cross member, four two-stage swing arms, stackable adapter extensions, 2 HP hydraulic power unit, hydraulic cylinders and hoses, safety lock system, anchor bolt hardware, and installation manual. Electrical wiring, concrete work, and professional installation labor are not included.
How is the Forward DP15 shipped?
The DP15 ships via freight carrier to commercial addresses in the 48 contiguous United States. Free shipping is included for locations with a loading dock or forklift. A forklift or loading dock is required to unload the lift. Residential delivery and liftgate service may be available for an additional charge.
What accessories are available for the Forward DP15?
Forward offers several accessories compatible with the DP15, including a 2-Post Air/Electric Work Station for convenient tool and supply access, a Wheel Wing Kit for tire and wheel service, and a Light Kit for improved visibility when working under vehicles.
