Forward CRA14-EL 14,000 lb Four Post Alignment Lift for Professional Service Bays
The Forward CRA14-EL is a heavy duty four post alignment lift designed for professional automotive service operations. With a 14,000 lb capacity and an industry-leading 80-3/4" rise height, this alignment rack provides exceptional technician access for undercarriage work on cars, trucks, and light duty commercial vehicles. The advanced hydraulic and mechanical lifting system is concealed beneath the runways for a clean finish and protected operation. All Forward lifts are manufactured to Rotary's quality standards and come backed by a 5-year structural warranty.
Forward CRA14-EL Features
Industry-Best Rise Height
The CRA14-EL delivers an exceptional 80-3/4" rise height, providing technicians with outstanding access for undercarriage inspections, exhaust work, and drivetrain service. This superior clearance reduces strain and improves productivity during extended service operations.
Concealed Lifting System
All hydraulic and mechanical lifting components are housed beneath the runways using a durable cable and pulley system. This design keeps components protected from debris while maintaining easy access for inspection and maintenance. The heavy duty hydraulic cylinder powers smooth, consistent lifting operations.
Single Point Latch Release
The single point latch release system allows technicians to lower the lift quickly and efficiently from one location. Multiple position latch points in each structural leg enable the lift to be leveled at any lock position for precise vehicle positioning during alignment work.
Integrated Runway Design
One piece formed runways incorporate rolling jack channels directly into the structure. The 20" wide runways provide ample drive-on space while maintaining 43" or 46" adjustable spacing between runways to accommodate various vehicle track widths.
Alignment Ready Configuration
This lift comes complete with a bolt-on alignment kit including radius gauges for immediate wheel alignment capability. The 199-1/4" max two-wheel alignment and 172-1/4" max four-wheel alignment capacities handle the vast majority of passenger vehicles and light trucks.
Proof Load Tested
Forward lifts are rigorously cycle tested at rated load and proof load tested to 1-1/2 times rated capacity. This exceeds standard durability requirements and ensures years of dependable service. All Forward products meet gold certified design standards for safety and performance.
Self-Chocking Safety System
Self-chocking approach ramps and wheel chocks come standard with the CRA14, providing secure vehicle positioning during service. The standard drive-on ramps make loading straightforward while the integrated safety features prevent unintended vehicle movement.
Durable Powder Coat Finish

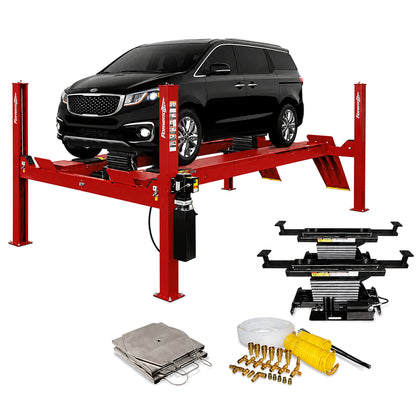

Forward applies a hammer tone powder coat finish that resists chips, scratches, and corrosion in demanding shop environments. The CRA14-EL is available in Blue, Red, or Black powder coat finishes to match your facility.
Forward CRA14-EL Applications
- Wheel Alignment Services: Purpose-built for two-wheel and four-wheel alignments on passenger vehicles, trucks, and SUVs with the included alignment kit and radius gauges.
- General Automotive Service: The 80-3/4" rise and 14,000 lb capacity make this lift ideal for brake work, suspension repairs, exhaust service, and drivetrain maintenance.
- Fleet Maintenance Facilities: Handle mixed fleets including passenger cars, pickup trucks, vans, and light duty commercial vehicles with wheelbases up to 215".
- Tire and Wheel Service Centers: Integrated rolling jack channels and alignment capability streamline tire installations, rotations, and balancing workflows.
- Dealership Service Departments: Professional appearance and reliable performance meet the demands of high volume dealership operations.
Forward CRA14-EL Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 14,000 lb (6,350 kg) |
| Proof Load Tested | 21,000 lb (1.5x rated capacity) |
| Specification | Value |
|---|---|
| Maximum Wheelbase | 215" (5,460 mm) |
| Max Two-Wheel Alignment | 199-1/4" (5,060 mm) |
| Max Four-Wheel Alignment | 172-1/4" (4,375 mm) |
| Min Four-Wheel Alignment | 88" (2,235 mm) |
| Specification | Value |
|---|---|
| Rise | 80-3/4" (2,000 mm) |
| Overall Length | 23' 7" (7,188 mm) |
| Overall Width | 10' 11-3/4" (3,346 mm) |
| Column Height | 7' 6-1/2" (2,281 mm) |
| Inside Columns | 116-1/4" (2,953 mm) |
| Between Front and Rear Columns | 228-1/4" (5,798 mm) |
| Runway Width | 20" (508 mm) |
| Runway Height | 9" (228 mm) |
| Width Between Runways | 43" (1,092 mm) or 46" (1,168 mm) |
| Specification | Value |
|---|---|
| Motor | 2 HP |
| Voltage (Single Phase) | 208V-230V |
| Time to Full Rise | 72 seconds |
| Specification | Value |
|---|---|
| Minimum Bay Size | 15' x 28' (4,572 x 8,534 mm) |
Forward CRA14-EL Installation Requirements
Electrical Requirements
Power: 208V-230V single phase service required for the 2 HP motor. A licensed electrician should install a dedicated circuit with appropriate disconnect. Verify local code requirements before installation.
Concrete Foundation
Anchoring: The CRA14-EL must be anchored to a reinforced concrete slab meeting minimum thickness and PSI requirements per the installation manual. Concrete anchors are included. Consult a structural engineer if you have questions about your existing floor.
Space Requirements
Minimum Bay Size: 15' x 28'. Ceiling Height: Allow clearance for the 7' 6-1/2" column height plus vehicle height at full rise. Verify overhead clearance for doors, lights, and ductwork before installation.
Professional Installation
Professional installation by a Rotary Authorized Installer (RAI) is strongly recommended. RAI installation ensures proper setup, validates your warranty, and provides documentation for insurance and inspection requirements. Contact us for RAI referrals in your area.

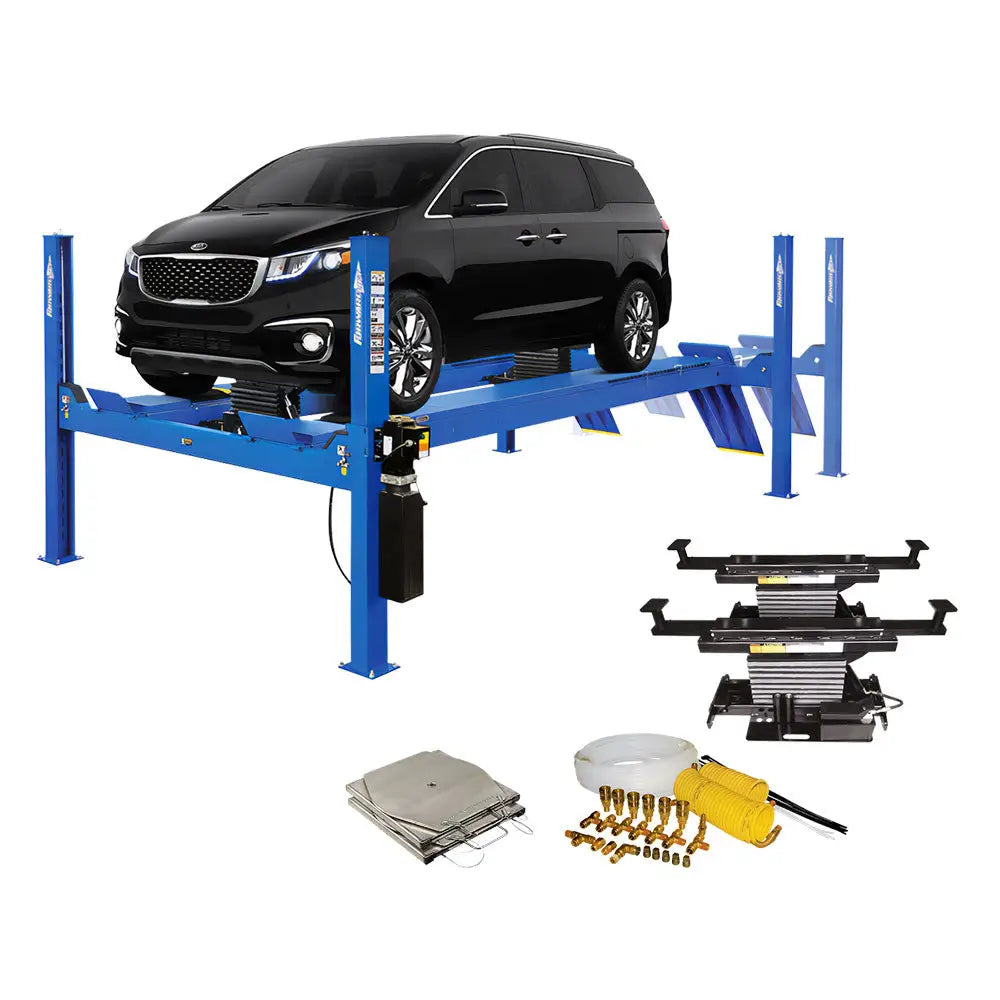

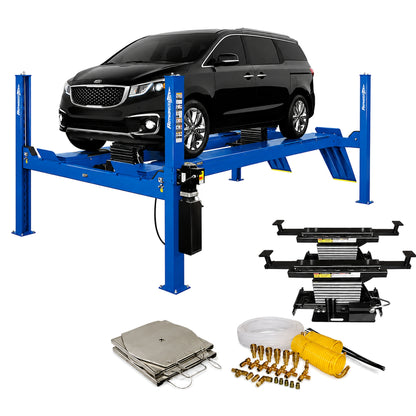

What's Included with the Forward CRA14-EL
- Forward CRA14-EL four post alignment lift
- (2) RRJ70G rolling jacks
- Bolt-on alignment kit with radius gauges
- Internal airline kit
- Standard drive-on ramps
- Self-chocking approach ramps
- Wheel chocks
- Concrete anchor hardware
- Installation manual and documentation
Not Included: Electrical wiring, dedicated circuit installation, concrete work or floor modifications, alignment equipment beyond included kit (alignment machine, sensors, etc.), and professional installation labor.
Optional Accessories: Contact us for available accessories including drip trays, caster kits, and additional rolling jacks.
Forward CRA14-EL Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses with loading dock or forklift capability in the contiguous 48 United States. Lead Time: Ships within 5-10 business days. Lead times may vary based on inventory and destination. International: Contact our sales team for international shipping quotes and requirements.
Delivery Requirements
Unloading: A forklift or loading dock is required to receive this shipment. The lift ships on pallets and cannot be unloaded by the driver. Delivery Type: Curbside freight delivery is standard. Inside delivery or liftgate service may be available for an additional charge. Inspection: Inspect all packages for damage before signing the bill of lading. Note any damage on the delivery receipt and contact us immediately.
Returns
Returns are accepted within 30 days of delivery. Products must be unopened, in original packaging, and in resalable condition. Original receipt required. A 20% restocking fee applies to all returns. Buyer is responsible for return freight costs. Damaged or used products cannot be returned.
Forward CRA14-EL Warranty
Forward Lift Limited Warranty
- 5 Years: Structural components
- 1 Year: Parts
- 1 Year: Labor
Extended warranty coverage may be available. Contact us for details on extended protection plans.
Requirements: Warranty coverage requires proper installation per manufacturer specifications and routine maintenance as outlined in the owner's manual. Installation by a Rotary Authorized Installer (RAI) is recommended to ensure full warranty validation. Keep your proof of purchase and installation documentation for warranty claims.
Documents
Click to open in a new tab.
Questions About the Forward CRA14-EL?
Our team can help with installation planning, bay layout, specifications, and product selection for your shop.
Forward CRA14-EL FAQ
What is the lifting capacity of the Forward CRA14-EL?
The Forward CRA14-EL has a rated lifting capacity of 14,000 lb (6,350 kg). All Forward lifts are proof load tested to 1-1/2 times rated capacity, meaning this lift has been tested at 21,000 lb to ensure safe, reliable operation.
What is the maximum wheelbase this lift can accommodate?
The CRA14-EL accommodates vehicles with wheelbases up to 215" (5,460 mm). For alignment work specifically, the maximum two-wheel alignment wheelbase is 199-1/4" and maximum four-wheel alignment wheelbase is 172-1/4".
What are the electrical requirements?
The CRA14-EL requires 208V-230V single phase power for its 2 HP motor. A licensed electrician should install a dedicated circuit with appropriate overcurrent protection and disconnect per local electrical codes.
How much ceiling height do I need?
The column height is 7' 6-1/2" (2,281 mm). You will need additional clearance above this for the tallest vehicles you plan to service at full rise. Calculate your ceiling requirement by adding the column height plus the height of the tallest vehicle you will lift, plus working clearance for overhead obstructions.
What is the minimum bay size required?
Forward specifies a minimum bay size of 15' x 28' (4,572 x 8,534 mm) for the CRA14-EL. This allows adequate room for vehicle positioning, technician movement, and equipment access around the lift.
What warranty coverage does the CRA14-EL include?
The Forward CRA14-EL comes with a 5-year structural warranty, 1-year parts warranty, and 1-year labor warranty. Installation by a Rotary Authorized Installer (RAI) is recommended to ensure full warranty validation. Extended warranty options may be available.
What is included with the lift?
The CRA14-EL includes two RRJ70G rolling jacks, a bolt-on alignment kit with radius gauges, internal airline kit, standard drive-on ramps, self-chocking approach ramps, wheel chocks, and anchor hardware. Alignment machines and sensors are not included.
Is the lift ETL certified?
Yes, the Forward CRA14-EL is ETL approved, indicating it has been tested and certified to meet recognized safety standards by Intertek, an independent testing laboratory.
How long does it take to reach full rise?
The CRA14-EL reaches full rise in approximately 72 seconds. The concealed hydraulic system provides smooth, consistent lifting throughout the full range of travel.
What finish options are available?
The Forward CRA14-EL is available in powder coat Blue, Red, or Black finishes. The durable hammer tone powder coat resists chips and corrosion in demanding shop environments.
How is the lift shipped and what do I need to receive it?
The CRA14-EL ships via freight carrier on pallets. You will need a forklift or loading dock to unload the shipment, as the driver cannot assist with unloading. Free shipping is available to commercial addresses in the contiguous 48 states. Inspect all packages for damage before signing the bill of lading.
Do I need professional installation?
While not strictly required, professional installation by a Rotary Authorized Installer (RAI) is strongly recommended. RAI installation ensures proper setup, validates your warranty coverage, and provides documentation that may be required for insurance or inspection purposes. Contact us for RAI referrals in your area.
