Forward 1000MCL 1,000 lb Air-Operated Motorcycle Lift for Motorcycles, ATVs, and Small Equipment
The Forward 1000MCL is a portable, air-operated motorcycle lift designed for professional shops and home garages alike. With a 1,000 lb lifting capacity and a maximum rise of 33", this lift brings your motorcycle, ATV, lawn mower, or golf cart to a comfortable working height. The included wheel vise and two 12" side extensions make it versatile enough to handle everything from narrow sport bikes to wider ATVs. Powered by standard shop air at 90-110 psi, the 1000MCL requires no electrical connections and takes up minimal storage space when not in use. Backed by Rotary's warranty and manufacturing standards.
Forward 1000MCL Features
Extendable Platform for ATVs and Wide Equipment
Two removable 12" side platform extensions create a 48" wide runway deck, making the 1000MCL perfect for ATVs and other wide equipment. When working on narrower motorcycles, simply remove the side platforms for easier access to wheels and components.

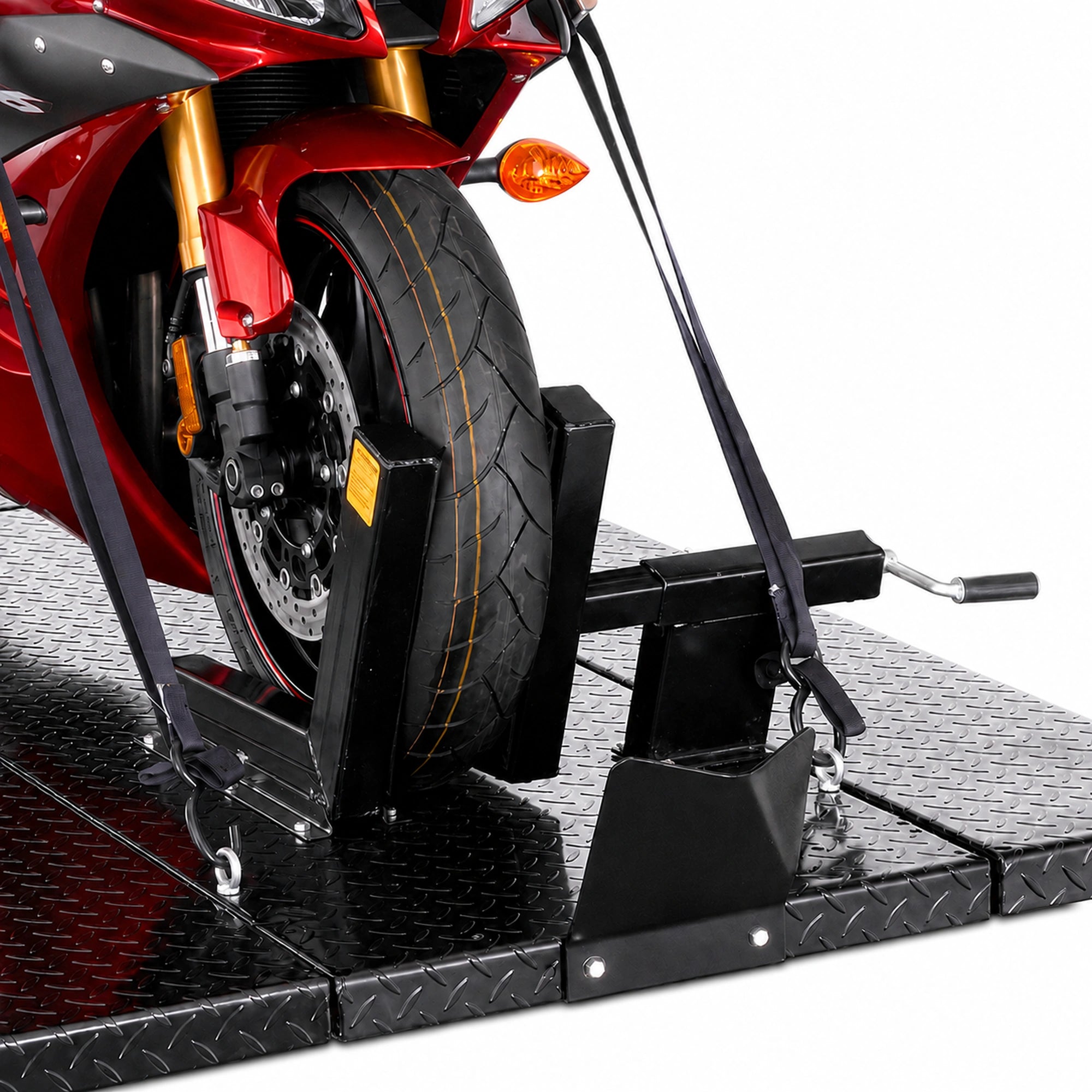

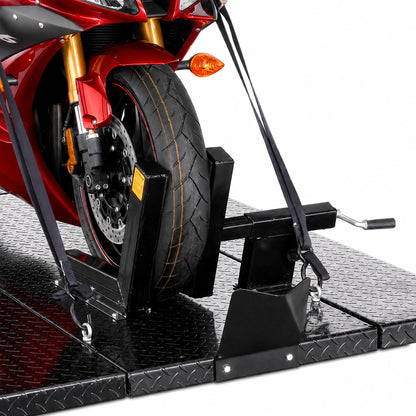

Adjustable Front Wheel Vise
The fully adjustable wheel vise locks in the front wheel to prevent movement during lifting and maintenance. This ensures your motorcycle or equipment stays securely in place while you work, giving you confidence and safety throughout the service process.

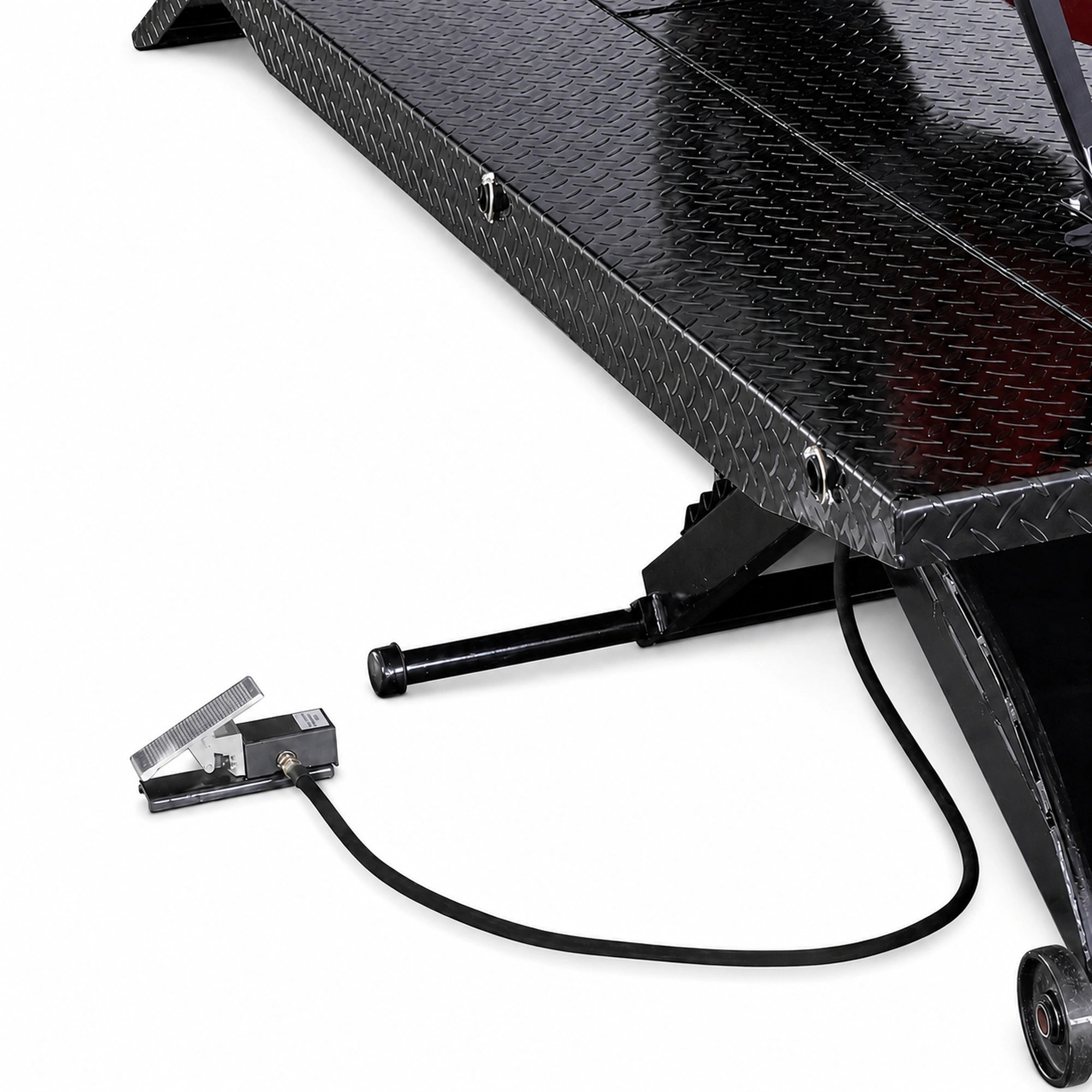

Foot Pedal Controlled Air Valve
The hands-free foot pedal operates the pneumatic lifting system, allowing you to raise and lower the platform while keeping both hands on your equipment. The air valve operates on 90-110 psi compressed air, which is standard in most shop environments.
Professional Working Height
With a maximum rise of 33" and a lowered height of just 7 1/4", the 1000MCL raises your equipment to a comfortable standing work height. No more kneeling or bending over to perform maintenance, repairs, or rebuilds.
Portable and Compact Design
Unlike fixed-bay lifts, the 1000MCL can be used anywhere you have compressed air. The lift is small enough to fit in a shed or garage corner and takes up minimal storage space. Move it where you need it, then store it out of the way when the job is done.
Built-In Loading Ramp
The integrated ramp makes loading motorcycles and equipment easy and safe. The total length with ramp is 113", providing a gentle incline for rolling equipment onto the platform. Without the ramp, the platform measures 93" in length.
Forward 1000MCL Applications
- Motorcycles: Service cruisers, sport bikes, touring bikes, and dirt bikes at a comfortable standing height. The adjustable wheel vise accommodates various tire widths.
- ATVs and UTVs: With the 48" extended platform, the 1000MCL handles four-wheelers and small utility vehicles for tire changes, belt replacement, and general maintenance.
- Lawn Mowers: Raise riding mowers for blade sharpening, deck cleaning, belt replacement, and undercarriage inspection without crawling on the ground.
- Golf Carts: Perform tire service, brake work, and electrical repairs on golf carts at an ergonomic working height.
- Snowmobiles: Service track systems, skis, and drivetrain components with full access to the underside of the machine.
Forward 1000MCL Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 1,000 lb (454 kg) |
| Specification | Value |
|---|---|
| Maximum Rise | 33" (838 mm) |
| Lowered Height | 7 1/4" (184 mm) |
| Overall Width (Standard) | 24" (610 mm) |
| Overall Width (With Extensions) | 48" (1,219 mm) |
| Length With Ramp | 113" (2,870 mm) |
| Length Without Ramp | 93" (2,362 mm) |
| Specification | Value |
|---|---|
| Compressed Air | 90-110 psi |
| Power Type | Pneumatic (air-operated) |
| Specification | Value |
|---|---|
| Color | Black |
| Model Number | 1000MCLMFBK |
Forward 1000MCL Installation Requirements
Air Supply
Compressed Air: 90-110 psi required. A standard shop air compressor with adequate CFM output is needed to operate the lift. No electrical connections are required for the lift itself.
Floor Requirements
Surface: Place the lift on a flat, level concrete floor for stable operation. No anchoring or permanent installation is required, making this lift truly portable.
Space Requirements
Operating Footprint: Allow at least 113" of length (with ramp) and 48" of width (with extensions) for full operation. Additional clearance around the lift is recommended for safe access during service work.
Setup
The Forward 1000MCL is designed for easy setup by the end user. Connect your air supply, attach the side extensions if needed, and the lift is ready to use. Professional installation is not required, though reviewing the owner's manual before first use is recommended.
What's Included
- Forward 1000MCL motorcycle lift platform
- Two 12" removable side runway extensions
- Side extension mounting kit
- Adjustable front wheel vise
- Integrated loading ramp
- Foot pedal air valve control
- Owner's manual
Optional Accessories: Wheel service jack (Model #BJ10BK, 1,000 lb capacity) sold separately.
Not Included: Air compressor and air hose are not included. A compressor capable of delivering 90-110 psi is required for operation.
Forward 1000MCL Shipping and Delivery
Freight Shipping
Coverage: Free shipping to commercial addresses in the 48 contiguous US states. Lead Time: Ships within 5-10 business days. International: Contact sales for international shipping quotes and availability.
Delivery Requirements
Unloading: Forklift or loading dock may be required depending on shipment packaging. Delivery Type: Curbside delivery is standard. Inspection: Inspect all packages for damage before signing the bill of lading. Note any damage on the delivery receipt.
Returns
Returns accepted within 30 days of delivery. Product must be unopened and in original packaging with receipt. A 20% restocking fee applies. Buyer is responsible for return freight costs.
Forward 1000MCL Warranty
Rotary Warranty Coverage
Forward lifts are backed by Rotary's warranty and support infrastructure, providing confidence in your equipment investment. Warranty coverage protects against defects in materials and workmanship under normal use conditions.
- Structural Components: Covered for defects in materials and workmanship
- Mechanical Components: Covered for defects in materials and workmanship
- Hydraulic/Pneumatic Components: Covered for defects in materials and workmanship
Requirements: Warranty coverage requires proper installation, operation according to the owner's manual, and regular maintenance. See the full warranty document for complete terms, conditions, and coverage periods.
Documents
Click to open in a new tab.
Questions About the Forward 1000MCL?
Get help with specifications, accessories, and product selection for your shop or garage.
Forward 1000MCL FAQ
What is the lifting capacity of the Forward 1000MCL?
The Forward 1000MCL has a lifting capacity of 1,000 lb (454 kg). This is sufficient for most motorcycles, ATVs, riding lawn mowers, golf carts, and similar small equipment.
What are the dimensions of the Forward 1000MCL platform?
The platform is 24" wide in standard configuration and expands to 48" wide with the included side extensions installed. The length is 113" with the ramp attached or 93" without the ramp. The lift rises from a lowered height of 7 1/4" to a maximum height of 33".
What power source does the Forward 1000MCL require?
The 1000MCL is entirely air-operated and requires no electrical connection. You need a compressed air supply delivering 90-110 psi. A standard shop air compressor with adequate CFM output will operate the lift effectively.
Do I need professional installation for the Forward 1000MCL?
No, professional installation is not required. The 1000MCL is a portable lift that requires no anchoring or permanent installation. Simply place it on a flat, level concrete surface, connect your air supply, and you are ready to work. Review the owner's manual for proper setup and safety guidelines.
Can I use the Forward 1000MCL for ATVs?
Yes, the 1000MCL is designed to handle ATVs. The two included 12" side extensions expand the platform to 48" wide, providing ample space for four-wheelers and similar wide equipment. Remove the extensions when working on narrower motorcycles for easier access.
What is included with the Forward 1000MCL?
The lift includes the main platform, two 12" removable side runway extensions with mounting kit, an adjustable front wheel vise, an integrated loading ramp, and foot pedal air valve control. An air compressor and air hose are not included.
What warranty covers the Forward 1000MCL?
Forward lifts are backed by Rotary's warranty and support infrastructure. The warranty covers defects in materials and workmanship under normal use conditions. Review the full warranty document for complete terms, coverage periods, and requirements.
How is the Forward 1000MCL shipped?
The 1000MCL ships via freight carrier with free shipping to commercial addresses in the 48 contiguous US states. Lead time is typically 5-10 business days. A forklift or loading dock may be required for unloading. Contact sales for residential delivery options or international shipping.
Is the Forward 1000MCL portable?
Yes, the 1000MCL is designed as a portable lift. It requires no permanent installation or anchoring, so you can move it where needed and store it out of the way when not in use. The only requirement is a compressed air supply and a flat, level surface.
What is the optional wheel service jack for the Forward 1000MCL?
The optional wheel service jack (Model #BJ10BK) is a 1,000 lb capacity jack designed to work with the 1000MCL. It allows you to raise individual wheels off the platform for tire changes and wheel service while the equipment remains on the lift. This accessory is sold separately.
California Proposition 65 Warning
WARNING: This product can expose you to chemicals including styrene and vinyl chloride, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.p65warnings.ca.gov.
