Product highlights
- Leverless Center Post Mounting
- Synchronized Upper and Lower Pressure Wheels
- Hydraulic Drive at 13 to 16 MPa
Fortisky T8-8823 Combo 30" Leverless Tire Changer & 2D Laser Balancer
SKU: T8-8823
$8,449.00
Save 2% with ACH / Wire Payment. Call for details
Financing options available
Financing estimates are based on the product price; selected add-ons and delivery services are excluded.
Talk to a tire equipment specialistExpert product and freight support before you order855-498-2147
- Authorized Fortisky Dealer
- Manufacturer Warrantyincluded with purchase
- Price Match Guaranteefind it lower and we will beat it
- No Sales Tax Collected Outside PAPA orders include sales tax

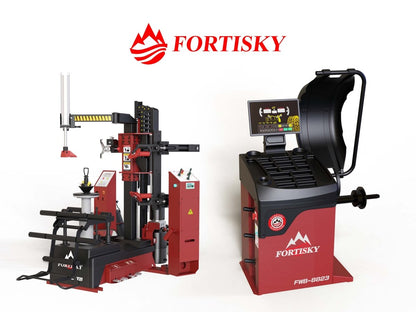

The Fortisky T8-8823 pairs the FTC-T8 leverless tire changer with the FWB-8823 wheel balancer, both rated to 30 inch rims. It is the wheel service package for shops where the wheels coming through the door are the expensive part: no pry bar ever touches a rim, and the balancer's laser puts the weight exactly where the reading says.
The changer runs its main functions on hydraulics at 13 to 16 MPa, backing a 6,614 lb bead breaker, with a 3.0 HP servo motor and synchronized upper and lower pressure wheels working the bead; compressed air is only needed for the bead blaster and the automatic inflation. The balancer's 2D data entry reads rim parameters through a linear grating scale: measure with the stick, lower the guard, spin.
Plan power before ordering: the tire changer takes 220V single phase and the balancer runs on 110V. If you only need the mounting side, the FTC-T8 sells on its own; the combo adds a matched balancer with the same 30 inch ceiling so neither machine limits the other.
Features

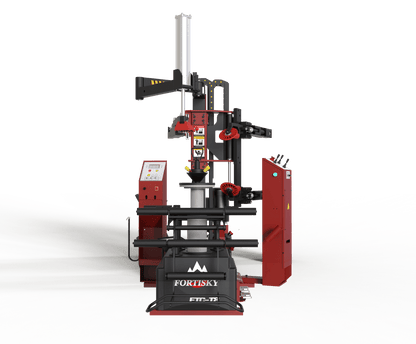

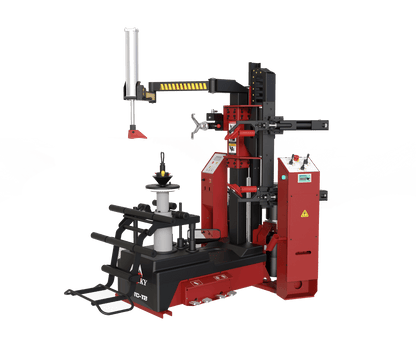

Leverless Center Post Mounting
A hook head and pressure wheels do the mounting and demounting with no pry bars and no metal-to-rim contact. On alloy and custom wheels, that removes the scratch risk that makes traditional swing arm machines nerve-wracking.
Synchronized Upper and Lower Pressure Wheels
The integrated center column links the upper and lower pressure wheels so both move together. One positioning move instead of two keeps the demount-and-mount cycle short, and the paired wheels hold beads in place on low-profile and run-flat tires.
Hydraulic Drive at 13 to 16 MPa
Main machine functions run on hydraulics rather than shop air, which holds positioning steady regardless of compressor behavior. The system backs 6,614 lb of bead breaker force for stiff sidewalls, with air reserved for the bead blaster and inflation only.
3.0 HP Servo Motor with Stepless Speed
The servo motor adjusts rotation speed continuously, so you can crawl through a difficult bead and speed up for routine work. It also keeps the machine under 70 dB, quieter than the induction motors most changers carry.
Bead Blaster and Automatic Inflation
An independent bead blast device seats stubborn beads, with double-button activation so it cannot fire by accident. For inflation, set the target pressure and the system fills to spec on its own instead of someone watching a gauge.

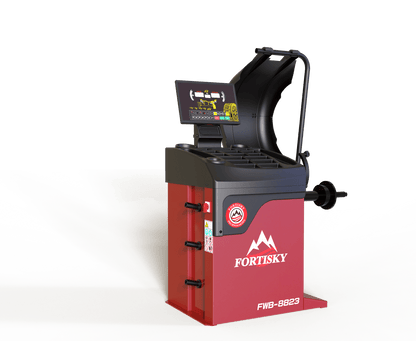

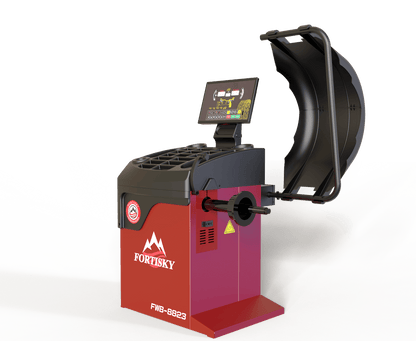

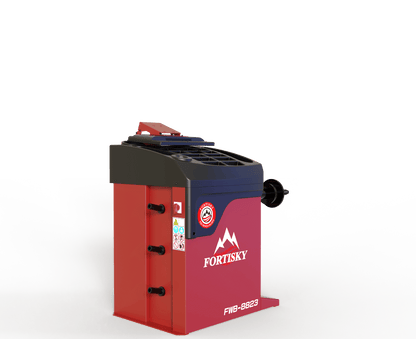

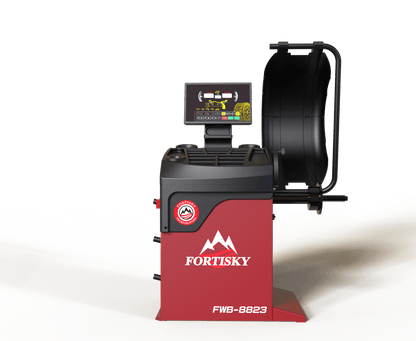

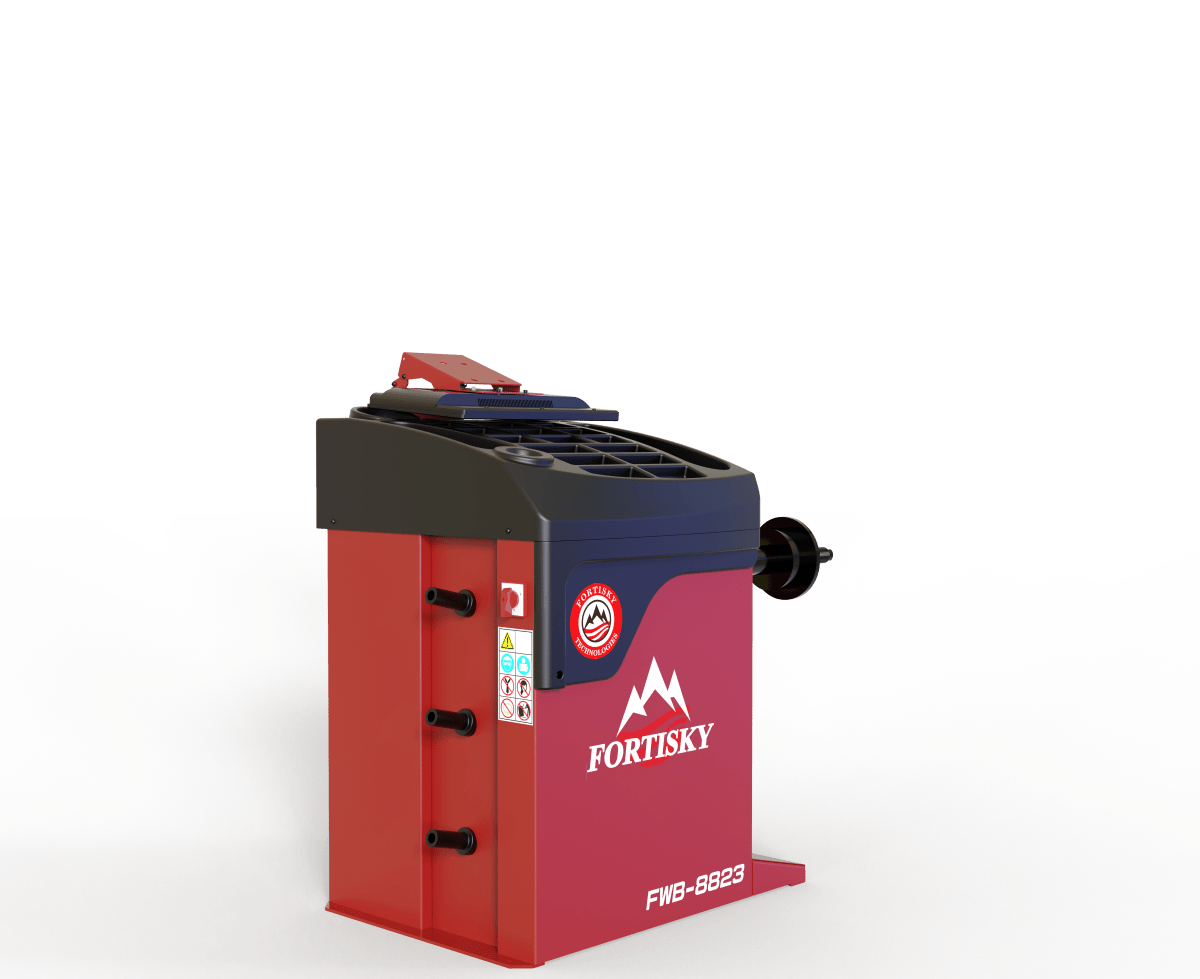

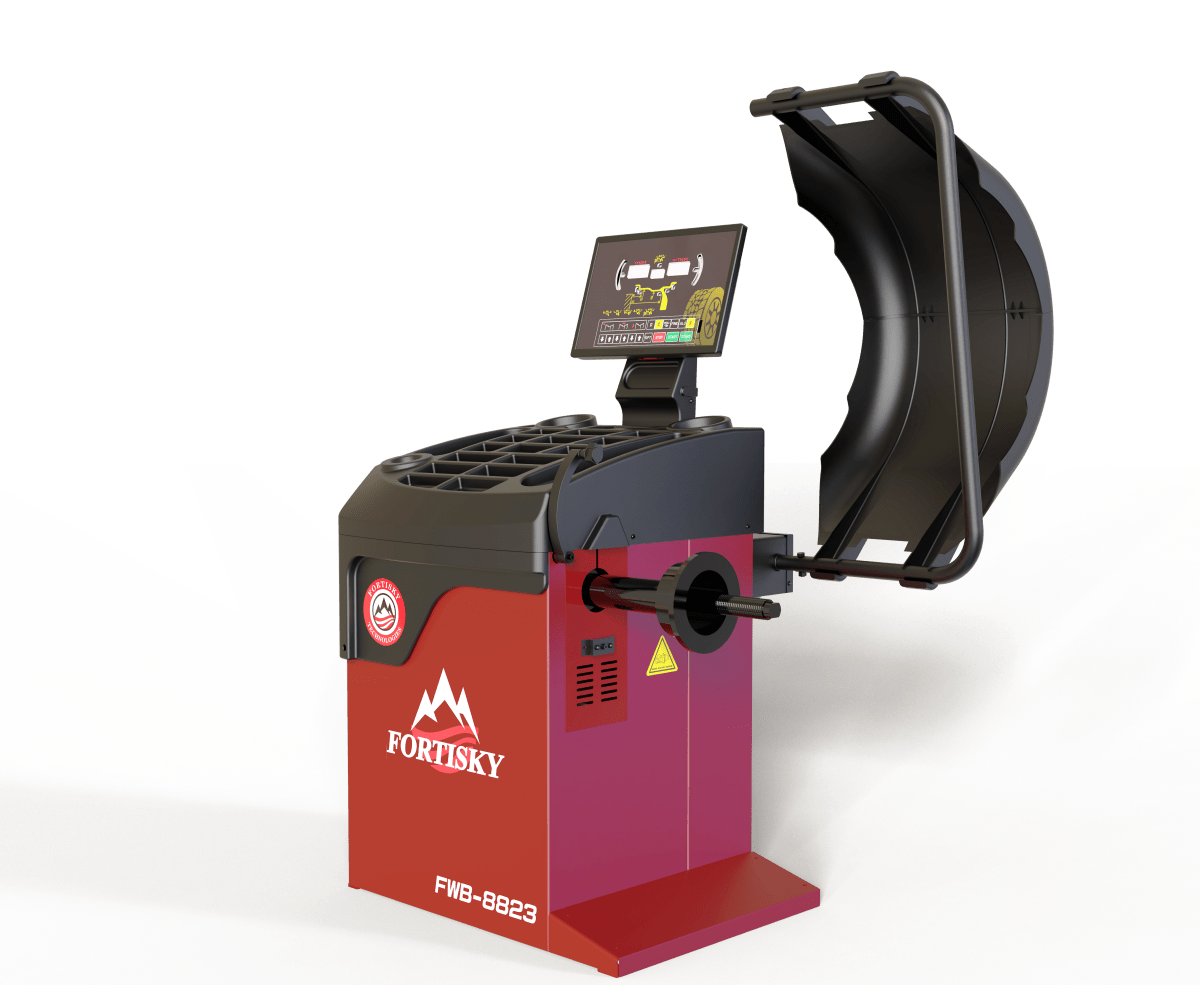

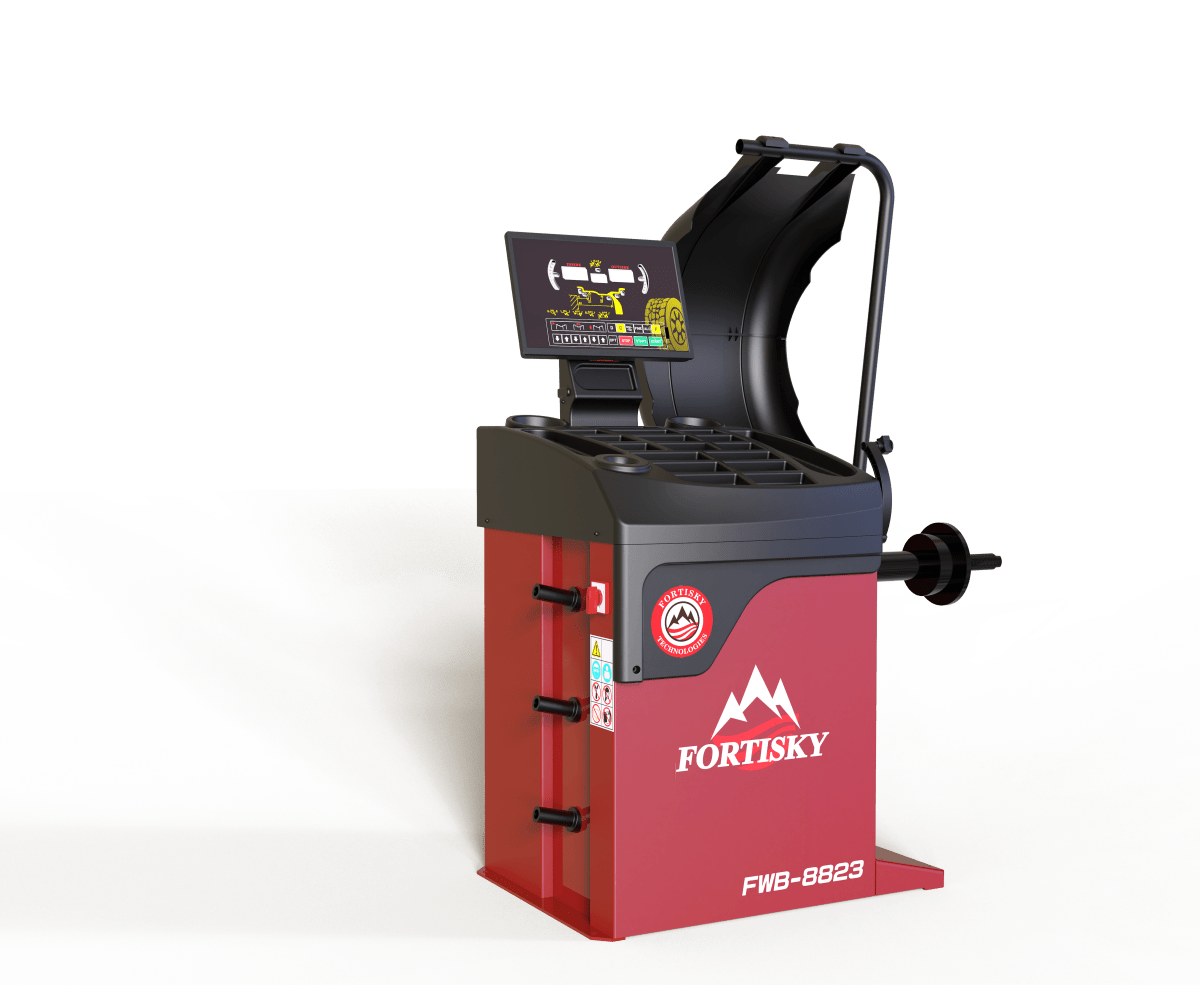

2D Data Entry on the Balancer
The FWB-8823 captures rim parameters automatically through a linear grating measurement scale. Measure with the stick, lower the guard, and spin; there is no manual number entry to slow the cycle or get typed wrong.
Laser Weight Placement and Smart Positioning
A laser marks the exact weight location, backed by an LED fill light for dark wheel barrels. One button rotates the wheel to the balance point and locks it there, and the self-calibration routine keeps accuracy in check without a service call.
Video
Specifications
| Rim Range | 10-30 in |
|---|---|
| Max Tire Diameter | 49 in (1,250 mm) |
| Max Tire Width | 15.7 in (400 mm) |
| Bead Breaker Force | 6,614 lb (3,000 kg) |
| Footprint | 62.6 x 49.2 in (1,590 x 1,250 mm) |
|---|---|
| Height | 68.1 in (1,730 mm) |
| Noise Level | Under 70 dB(A) |
| Balancing Precision | ±1 g |
|---|---|
| Spindle Speed | 180 RPM |
| Measuring Time | 7 seconds |
| Motor Power | 250W |
| Motor | 3.0 HP servo |
|---|---|
| Power Supply | 220V / 60Hz / 1-phase |
| Hydraulic Pressure | 13-16 MPa |
| Net Weight | 1,157 lb (525 kg) |
| Max Rim Size | 30 in |
|---|---|
| Max Wheel Diameter | 39 in (1,000 mm) |
| Wheel Width Range | 1.5-15 in |
| Max Wheel Weight | 165 lb (75 kg) |
| Power Supply | 110V / 60Hz / 1-phase |
|---|---|
| Net Weight | 251 lb (114 kg) |
| Noise Level | Under 70 dB(A) |
Installation Requirements
Electrical
The tire changer runs on 220V / 60Hz single phase and must be properly grounded. The balancer runs on 110V single phase, so plan two different circuits before the crates arrive.
Air Supply
Compressed air feeds only the bead blaster and automatic inflation device; every main machine function is hydraulic. A standard shop compressor covers it.
Space and Floor
The tire changer occupies a 62.6 x 49.2 in footprint. Set both machines on a flat, level floor in a well-lit area, kept clear of oil, grease, debris, and bystanders.
Shipping & Delivery
Warranty
Questions About This Product?
Our team can help with installation planning, freight coordination, and configuration.
Call (855) 498-2147Frequently Asked Questions
What size wheels can this combo handle?
The tire changer takes 10 to 30 in rims with tires to 49 in diameter and 15.7 in width. The balancer covers rims to 30 in, wheel diameters to 39 in, and wheel weights to 165 lb. That spans passenger cars, SUVs, and light trucks.
What is the advantage of the leverless design?
No metal pry bars contact the rim. The hook head and pressure wheels mount and demount tires without touching the wheel face, which is what makes the machine safe around alloy and custom wheels.
Is the tire changer hydraulic or pneumatic?
Hydraulic for all main functions, running at 13 to 16 MPa. Air is used only for the bead blaster and the automatic inflation device, so compressor fluctuations never affect positioning.
What electrical service do I need?
220V single phase for the tire changer and 110V single phase for the balancer, both properly grounded. Plan the two circuits before installation day.
Can it handle low-profile and run-flat tires?
Yes. The synchronized upper and lower pressure wheels hold the bead in place during mounting, the stepless speed control lets you slow down for difficult tires, and the 6,614 lb bead breaker handles stiff run-flat sidewalls.
Have a question we didn't cover? Call (855) 498-2147 and our team will help.
