Fortisky FWB-8833 3D Wheel Balancer: Millimeter Wave Radar, Laser Positioning
Also searched as: FWB8833 / FWB 8833 / Fortisky 3D wheel balancer / radar wheel balancer / car tire balancer

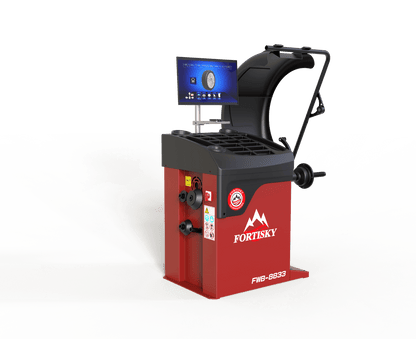

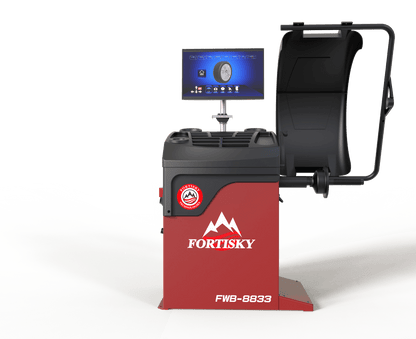

The Fortisky FWB-8833 is a 3D fully automatic wheel balancer with millimeter wave radar for automatic data entry. Handles rims up to 30" and 165 lbs. Features laser-guided weight positioning, mechanical keyboard, and IPS display running an RTOS operating system. Dual-channel cooling keeps the system running without overheating. Under 45dB operation.
Who It's For
High-Volume Tire Shops
3D millimeter wave radar eliminates manual data entry. One-button smart positioning auto-rotates to the balance point. Mechanical keyboard responds 60% faster than touch screens. Faster cycles, fewer errors.
Performance and Custom Wheel Specialists
Multiple ALU modes including ALU-S for hiding weights behind spokes on custom wheels (3-12 spokes). Dynamic balance verification mode confirms accuracy on second assembly. Unbalance optimization for weights over 60g.
Any Shop Wanting Premium Equipment
Under 45dB operation. Dual-channel cooling prevents system freezes. RTOS operating system for fluid response. 110V or 220V single-phase power. Self-calibration maintains accuracy without service calls.
Features
3D Millimeter Wave Radar
Automatic measurement of distance to rim and rim width. Pull the measuring ruler for diameter, lower the wheel guard, and the radar captures remaining parameters. No manual data entry for standard wheels.
Laser-Guided Weight Positioning
Upper and lower laser indicators pinpoint exact weight placement location. One-button smart positioning auto-rotates the wheel to the balance point and locks in place. No manual spinning to find 12 o'clock.
Mechanical Keyboard
Industry-first mechanical keyboard design. 60% faster response than traditional membrane keys. Accurate, smooth operation. Eliminates lag and accidental touches common with touch screens.
IPS Display with RTOS
High-end IPS LCD screen with RTOS real-time operating system. Fluid interface response. Dynamic balance display shows inner and outer imbalance values with position guide bars.
Dual-Channel Cooling System
Air cooling plus flow diversion architecture reduces motherboard temperature 35% below industry standard. Prevents frequency drops and system freezes from overheating. Modular design for easy cleaning.
8 Balance Modes
DYN: Standard steel rims. Static: Motorcycle tires. ALU-1 through ALU-5: Various alloy configurations with clip and adhesive weights. ALU-S: Special mode for hiding weights behind spokes (3-12 spokes configurable).
Product Video
Specifications
| Spec | Value |
|---|---|
| Rim Size | Up to 30" |
| Max Wheel Diameter | 39" (1000mm) |
| Wheel Width | 3" - 16" (80 - 400mm) |
| Max Wheel Weight | 165 lbs (75kg) |
| Spec | Value |
|---|---|
| Spindle Speed | 200 rpm |
| Balance Modes | 8 (DYN, Static, ALU-1 to ALU-5, ALU-S) |
| Noise Level | < 45 dB(A) |
| Spec | Value |
|---|---|
| Motor | 0.25 kW |
| Power Supply | 110V or 220V / 50-60Hz / 1-Phase |
| Dimensions | 38" x 32" x 50" (960 x 820 x 1280mm) |
| Net Weight | 260 lbs (118kg) |
| SKU | FWB-8833 |
Installation Requirements
Floor and Space
Install on flat, solid concrete floor. Uneven or unstable ground affects measurement accuracy. Allow sufficient clearance around machine for operation and wheel handling.
Electrical
Power: 110V or 220V / 50-60Hz / 1-Phase. Standard outlet with grounded plug.

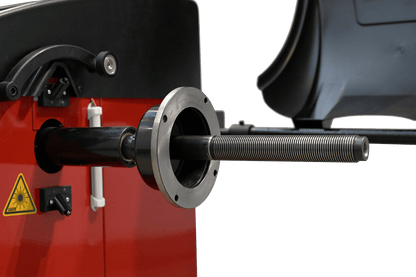

First Use: Mount thread shaft to spindle with alcohol-cleaned surfaces. Run self-calibration with test weight before balancing customer wheels.
Shipping
Free freight shipping to commercial addresses or nearest carrier terminal in the lower 48 states. Residential delivery, liftgate, and farmland/construction site delivery available for additional fee. Forklift or pallet jack required for unloading. Inspect for damage at delivery and note on Bill of Lading. Call +1 (855) 498-2147 with questions.
Warranty
Coverage
1 Year: All operating components covered against defects in material and workmanship. Fortisky repairs or replaces defective parts.
Extended Warranty: 2-year extended coverage available.
Not covered: Ordinary wear, abuse, misuse, shipping damage, improper installation, lack of maintenance. Claims require model and serial number.
Documentation
Buy the Fortisky FWB-8833
Questions about installation, electrical requirements, or specs?
FAQs
What size wheels can the FWB-8833 handle?
Rims up to 30", wheel diameter up to 39", width 3" to 16", and weight up to 165 lbs. Covers passenger cars, SUVs, and light trucks.
How does the 3D radar work?
Millimeter wave radar automatically measures distance to rim and width when you lower the wheel guard. Combined with the measuring ruler for diameter, all parameters are captured without manual entry.
What balance modes does it have?
8 modes: DYN (standard steel), Static (motorcycle), ALU-1 through ALU-5 (various alloy configurations), and ALU-S (hide weights behind spokes, configurable for 3-12 spokes).
Why mechanical keyboard instead of touch screen?
60% faster response than membrane keys and touch screens. No lag, no accidental touches, no failed button presses. More reliable in shop environments with dirty hands.
How quiet is it?
Under 45dB during operation. The dual-channel cooling system and premium motor keep noise low. Significantly quieter than most wheel balancers.
What electrical service do I need?
110V or 220V / 50-60Hz / 1-Phase. Standard grounded outlet. 0.25 kW motor draw.
How do I calibrate the machine?
Built-in self-calibration for tire balance, radar, and measuring ruler. Use a 15" rim and follow on-screen prompts. Calibration data saves to memory.
Can it balance motorcycle tires?
Yes. Use Static mode for motorcycle tires and other single-plane applications.
