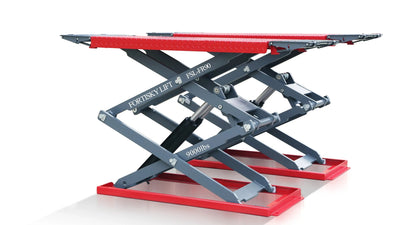

Fortisky FSL-FR90 Full-Rise Scissor Lift with 9,000 lb Capacity and Electric Lock Release
The Fortisky FSL-FR90 full-rise scissor lift delivers 9,000 lb capacity with 72 inch rise height for complete undercarriage access on passenger cars, SUVs, and pickups. Four-cylinder hydraulic design with electric lock release, 24V control system, and Q355B manganese steel construction for commercial shop durability.
Full-Rise Scissor Lift for Complete Undercarriage Access
The FSL-FR90 provides 72 inches of lift height, standing clearance for transmission work, exhaust systems, and full undercarriage inspections that mid-rise lifts can't reach.
Four-cylinder hydraulic system keeps platforms level throughout the lift cycle. Electric lock release and height limit switch provide controlled operation for daily commercial use.
Full-Rise Scissor Lift: Buying Guide
Full-Rise vs Mid-Rise Scissor Lifts
Mid-rise scissor lifts reach 36 to 48 inches, enough for tire changes, brake work, and suspension. Full-rise lifts like the FSL-FR90 at 72 inches provide standing clearance for transmission removal, exhaust work, and complete undercarriage access.
Mid-rise for tire shops and quick lube. Full-rise for general repair shops needing two-post lift access without vertical columns.
Scissor Lift vs Two-Post Lift
Two-post lifts require arm positioning, take permanent floor space, and obstruct service areas with vertical columns. Scissor lifts eliminate arm setup, allow drive-over access when flush mounted, and keep floors clear when lowered.
Tradeoff: two-post lifts reach 78 to 84 inches versus 72 inches on the FSL-FR90. For ceiling-restricted shops or where floor flexibility matters, scissor lifts often make more sense.
Single-Cylinder vs Four-Cylinder Design
Single-cylinder scissor lifts rely on mechanical linkage for leveling. With uneven weight distribution, they can develop platform tilt. The FSL-FR90's four-cylinder design maintains consistent leveling across varied loads.
Four-cylinder designs also distribute hydraulic stress across multiple components, extending service life.
Electric vs Pneumatic Lock Release
Air-actuated locks require shop air routed to the lift. The FSL-FR90's electric lock release simplifies the control system, though air supply (0.6 to 0.8 MPa) is still required per manufacturer specifications.
The 24V control system keeps operator-accessible voltage safe while the 220V power unit runs the hydraulic pump.
Key Features & Benefits
9,000 lb Lifting Capacity
Covers many SUVs and pickups up to 9,000 lb. Platform dimensions of 59 inches by 25.6 inches support varied frame configurations with open center access for transmission jacks and oil drains.
72 Inch Full-Rise Height
72 inches of lift height provides standing clearance for technicians up to 6 feet. The 4.1 inch lowered height allows low-profile vehicles to drive on without ramps. Full cycle: under 50 seconds up, 30 seconds down.

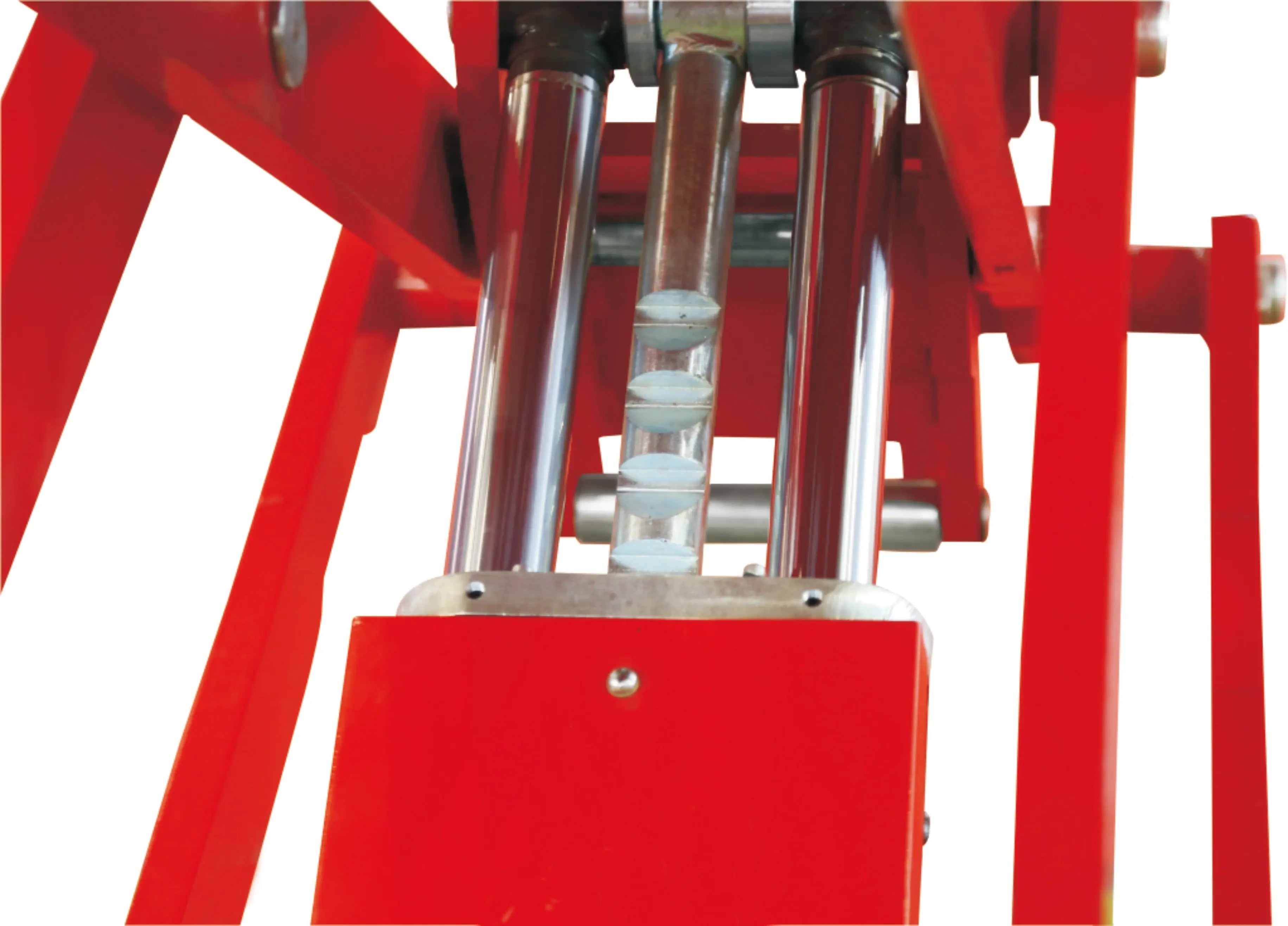

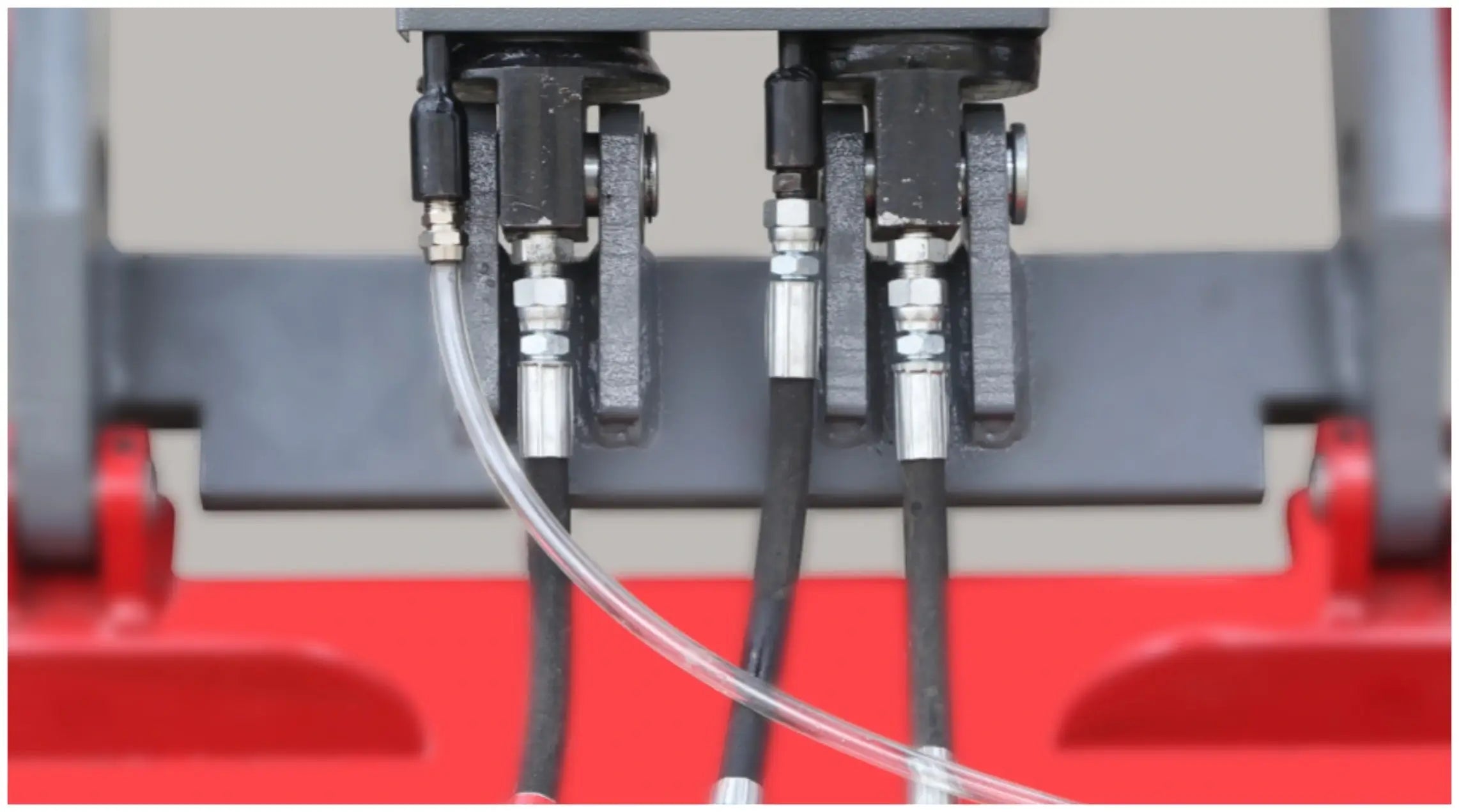

Four-Cylinder Hydraulic System
Four-cylinder design distributes lifting force for stable platform operation. Each cylinder includes anti-surge valves preventing rapid descent. Operates at 24 MPa rated pressure with under 70 dB noise.

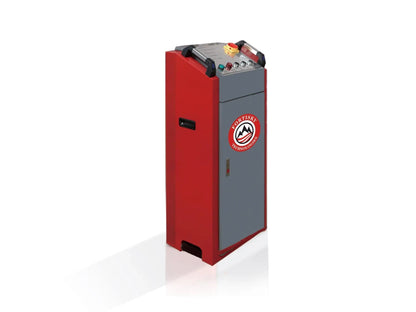

Electric Lock Release System

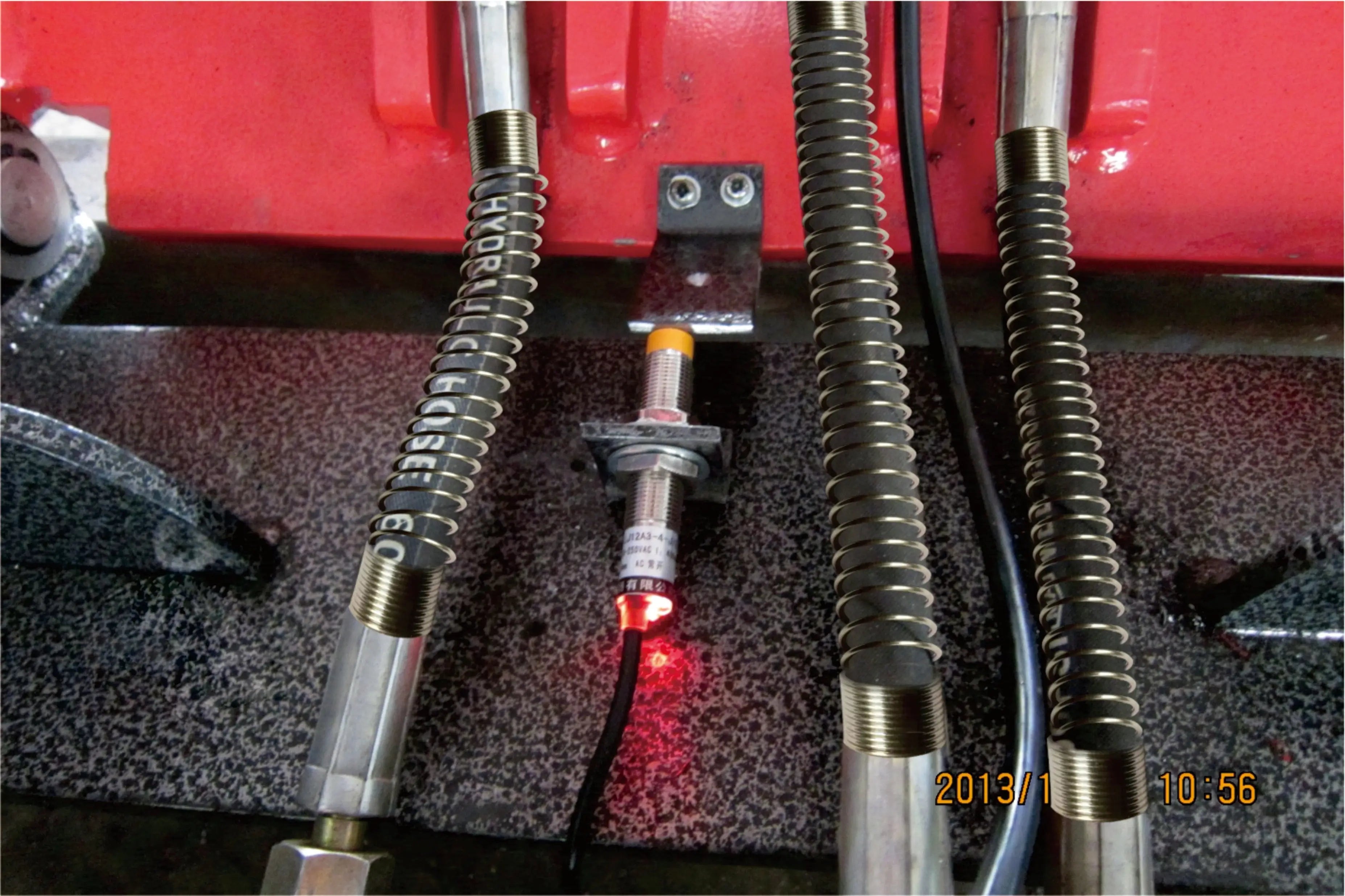

Electric released safety locking system with height limit switch to prevent over-travel. 24V control circuit for operator safety. Front and rear control boxes allow operation from either end. Air supply (0.6 to 0.8 MPa) still required per manufacturer spec.

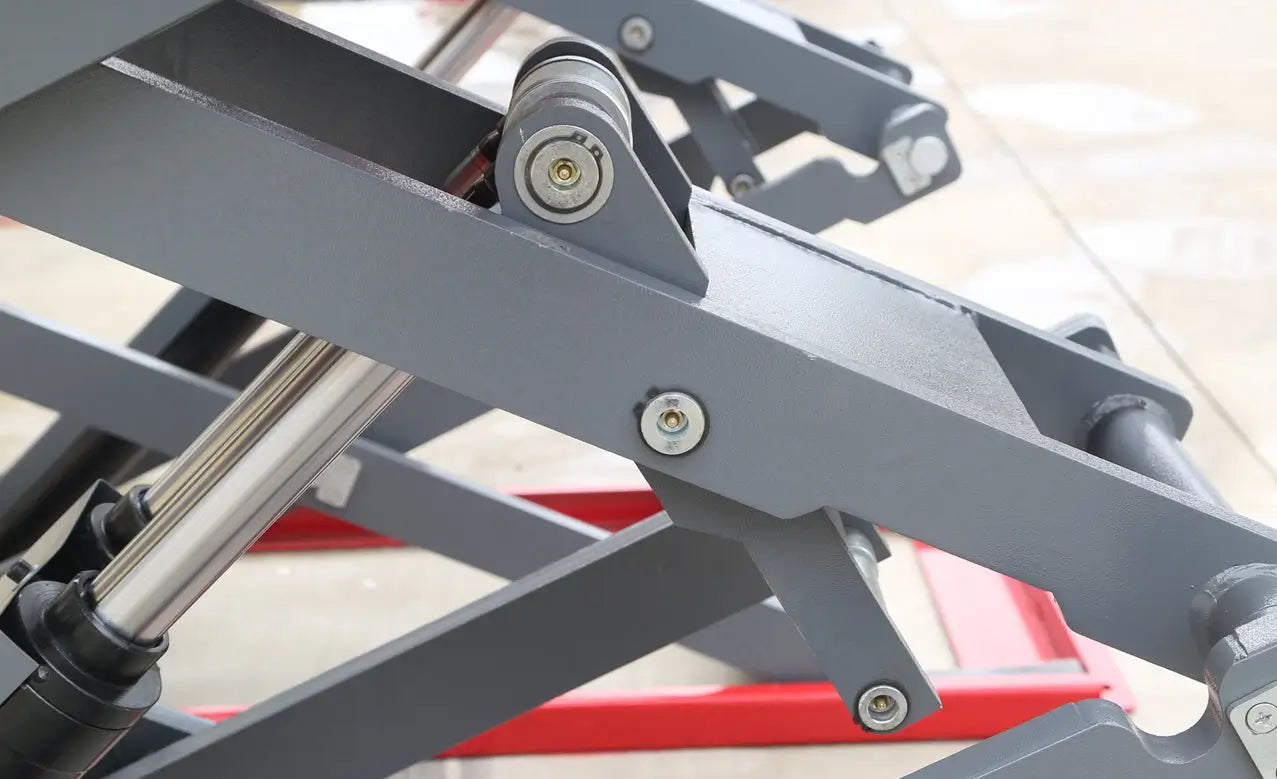

Q355B Manganese Steel Construction

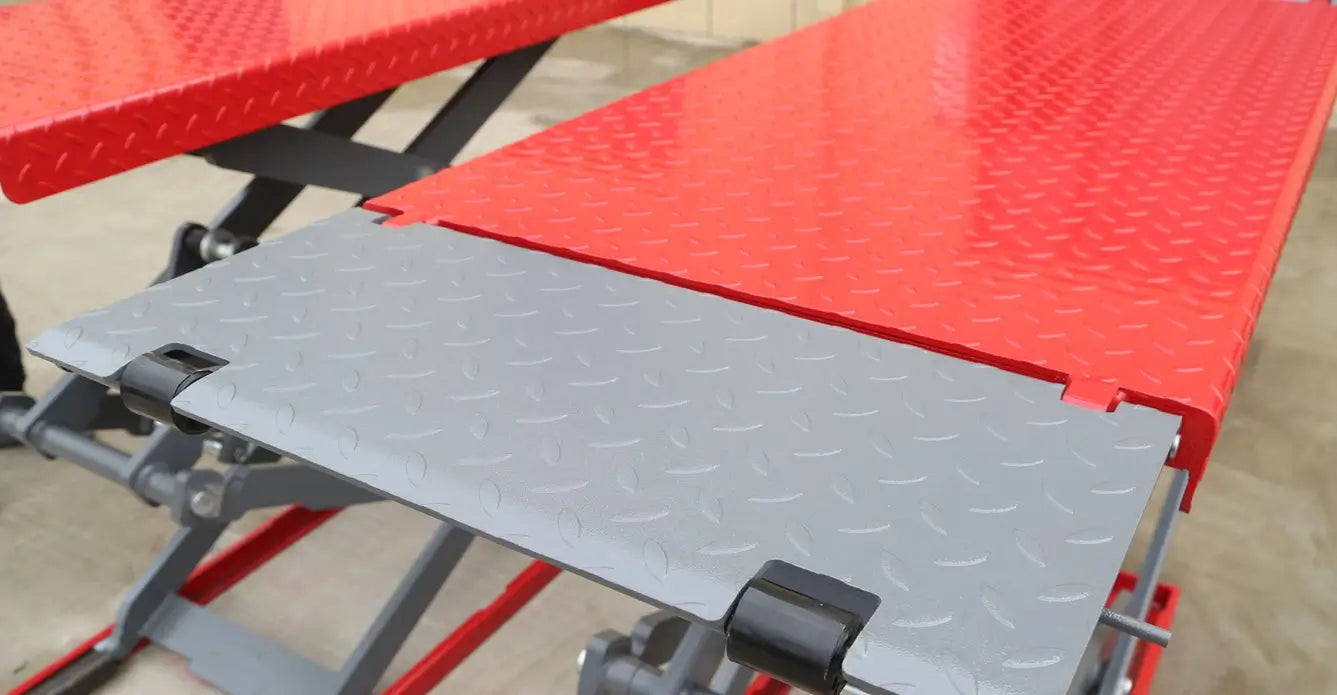

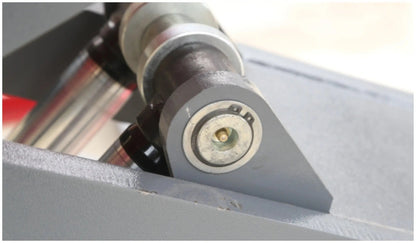

Scissor arms use Q355B high-strength manganese plate with higher yield strength than standard carbon steel. Checkered plate platform surfaces for anti-slip. Self-lubricated bushings reduce maintenance. Powder coat finish for corrosion protection.
Applications & Use Cases
- General Automotive Repair: Full undercarriage access for transmission, exhaust, suspension, and drivetrain service on passenger vehicles and pickups up to 9,000 lb
- Fleet Maintenance Facilities: Service on delivery vans, service trucks, and company vehicles within 9,000 lb capacity
- Auto Dealership Service Departments: Clean floor appearance without vertical lift columns for customer-facing service areas
- Body Shops: Low-profile design allows floor space flexibility and easy repositioning between work stages
- Facilities with Ceiling Restrictions: 72 inch rise height fits spaces where standard two-post lifts exceed available clearance
Technical Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 9,000 lb (4,082 kg) |
| Maximum Lift Height | 72 in (1,830 mm) |
| Minimum Height | 4.1 in (100 mm) |
| Platform Length | 59 in (1,500 mm) |
| Platform Width | 25.6 in (650 mm) |
| Overall Length | 81 in (2,050 mm) |
| Overall Width | 80 in (2,032 mm) |
| Lift Time | ≤50 seconds |
| Lowering Time | ≤30 seconds |
| Power Supply | 220V, 60Hz, single phase |
| Motor Power | 2.2 kW |
| Rated Oil Pressure | 24 MPa |
| Air Pressure Requirement | 0.6 to 0.8 MPa (87 to 116 PSI) |
| Noise Level | ≤70 dB |
| Net Weight | 1,968 lb (893 kg) |
| Installation Location | Indoor use only |
Installation Requirements
Electrical Requirements
- Power Supply: 220V, 60Hz, single phase
- Circuit Capacity: Dedicated circuit for 2.2 kW motor load
- Control System: 24V low-voltage control circuit (transformer included)
Hydraulic System
- Oil Type: AW32 or AW46 hydraulic oil (lift ships dry)
- Rated Pressure: 24 MPa operating pressure

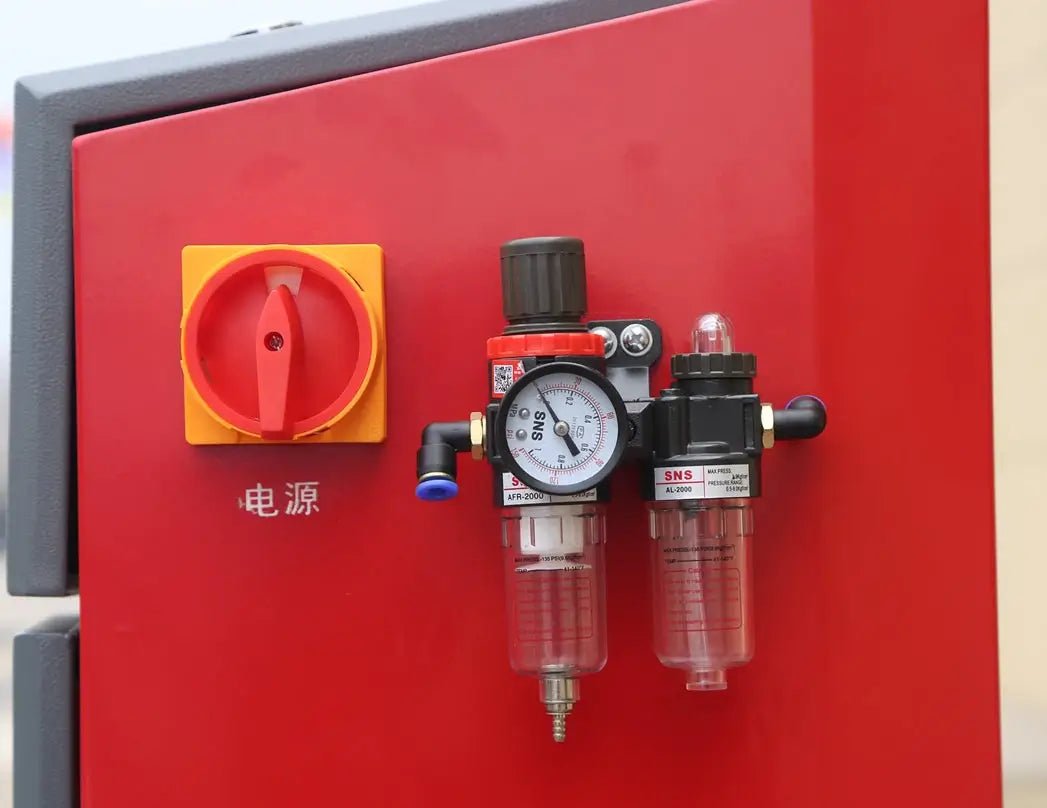

Air Supply
- Air Pressure: 0.6 to 0.8 MPa (87 to 116 PSI) compressed air
- Air Quality: Clean, dry air for pneumatic components
- Connection: Standard shop air fitting
Floor Requirements
- Surface: Level concrete floor capable of supporting 1,968 lb lift weight plus 9,000 lb vehicle load
- Condition: Minimum 4 inch concrete thickness recommended
- Location: Indoor installation only per manufacturer specifications
- Clearance: 81 x 80 inch footprint plus access space on all sides
Shipping & Delivery
Freight Coverage
Shipping: Freight shipping to commercial addresses within lower 48 United States. Surcharges apply for residential delivery addresses.
Delivery Type: Commercial address delivery standard. Residential delivery may require liftgate and handling charges.
Receiving: Buyer responsible for unloading with appropriate material handling equipment.
Delivery Requirements
Unloading Equipment: Forklift or equivalent required for safe unloading (unit weight 1,968 lb).
Inspection Protocol: Inspect all packages before signing bill of lading. Note visible damage on BOL before driver departs.
Damage Reporting: Photograph any damage and retain packaging materials for carrier inspection and claim filing.
Warranty Coverage
3-Year Structural Warranty
Coverage: Arms, columns, carriages, legs, uprights, tracks, cross rails, and swivel pins are warranted for three years against defects in material and workmanship.
2-Year Limited Parts Warranty
Coverage: Fortisky will replace any part found defective in materials or workmanship under normal use for two years from purchase. Defective parts replaced at no charge with free shipping.
Exclusions: Wear parts (cables, slider blocks, chains, rubber pads, pulleys), normal maintenance items, and on-site labor. After the first 30 days, seal kits and installation instructions are provided for hydraulic repairs.
Warranty Requirements
Installation: Professional installation per manufacturer specifications required. Warranty does not apply to improperly installed, altered, or poorly maintained equipment.
Freight Inspection: Inspect equipment for damage before signing shipping receipt. Note any damage on the BOL. Freight damage is not covered under warranty.
Missing Parts: Notify Fortisky of missing parts within 72 hours of delivery for warranty coverage.
Documentation: Model and serial number required for all warranty claims. Warranty applies to original purchaser only and is not transferable.
Ready to Upgrade Your Shop?
Get guidance on scissor lift selection, installation requirements, and floor preparation for your service operation.
Frequently Asked Questions
What is the maximum lifting capacity of the Fortisky FSL-FR90?
The FSL-FR90 full-rise scissor lift has a 9,000 lb lifting capacity for passenger cars, SUVs, and light trucks including full-size pickups.
How high does the FSL-FR90 scissor lift rise?
The FSL-FR90 provides 72 inches of lift height from a 4.1 inch lowered position, standing clearance for most technicians.
What are the power requirements for the FSL-FR90?
220V, 60Hz, single phase power for the 2.2 kW motor. Control system operates on 24V. Air supply of 0.6 to 0.8 MPa (87 to 116 PSI) required. Lift ships dry; use AW32 or AW46 hydraulic oil.
What is the advantage of four-cylinder vs single-cylinder scissor lifts?
Four-cylinder design distributes lifting force for consistent platform leveling with uneven loads. Single-cylinder designs rely on mechanical linkage that can develop tilt.
Can the FSL-FR90 be flush mounted?
The FSL-FR90 is designed for above-ground surface installation. Contact us for flush mount options for your facility.
What safety features does the FSL-FR90 include?
Electric released safety locking system, height limit switch, anti-surge valves on all four cylinders, 24V control system, and locking drive-on ramps.
How long does it take to raise and lower the lift?
Full lift in under 50 seconds, lowering in under 30 seconds.
What floor space does the FSL-FR90 require?
81 x 80 inch footprint plus clearance for vehicle access. Indoor installation on level concrete required.
