Product highlights
- Pneumatic Tilt-Back Tower
- Helper Arm with Three-Point Pressing
- Turbo Bead Blaster
Fortisky 1670-8823 Combo 28" Tilt-Back Tire Changer & 2D Laser Balancer
SKU: 1670-8823
$3,049.00
Save 2% with ACH / Wire Payment. Call for details
Financing options available
Financing estimates are based on the product price; selected add-ons and delivery services are excluded.
Talk to a tire equipment specialistExpert product and freight support before you order855-498-2147
- Authorized Fortisky Dealer
- Manufacturer Warrantyincluded with purchase
- Price Match Guaranteefind it lower and we will beat it
- No Sales Tax Collected Outside PAPA orders include sales tax

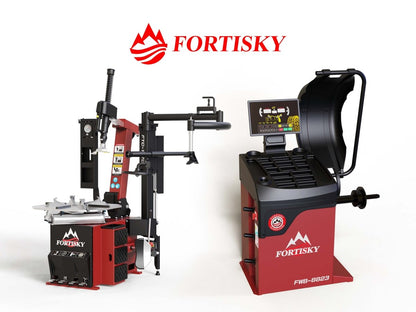

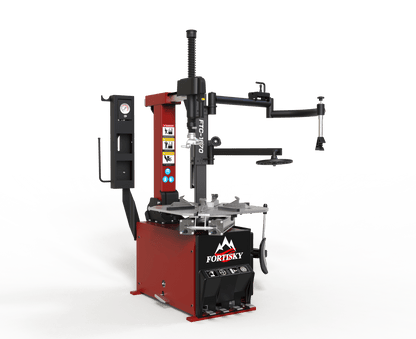

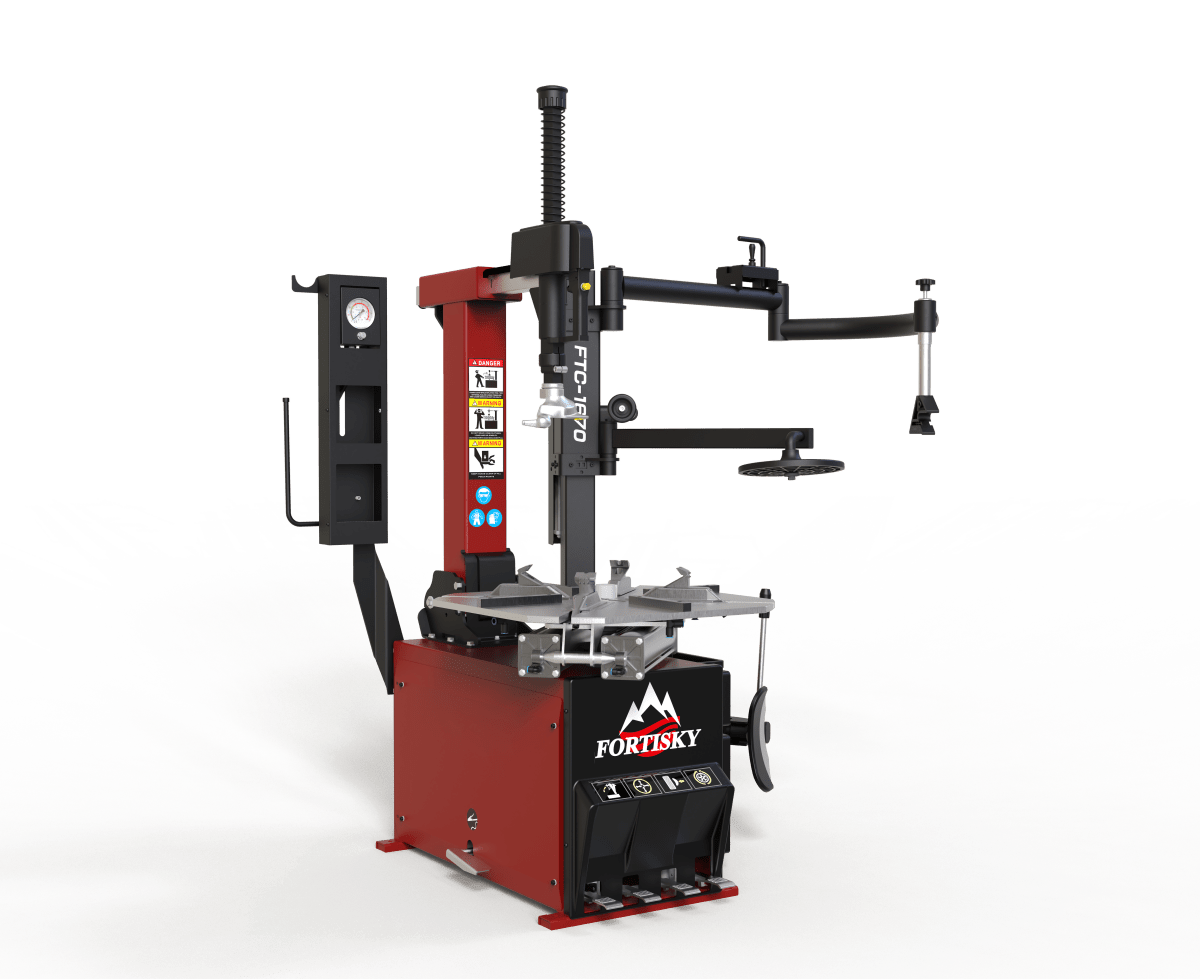

The Fortisky 1670-8823 pairs the FTC-1670 tilt-back tire changer with the FWB-8823 2D wheel balancer, a matched tire changer and wheel balancer combo for passenger car and light truck work. The changer clamps 14-26 in outside and 16-28 in inside with a 5,510 lb bead breaker, helper arm, and turbo bead blast; the balancer takes rims to 30 in and wheels to 165 lb at ±1 g.
The balancer is where this package saves time: a linear grating scale captures rim data automatically, a laser projects the weight location on the rim, and one button rotates the wheel to the balance point and locks it. No tape measure, no hunting for 12 o'clock.
Both machines run on 110V single phase, and the changer can alternatively be wired for 220V three phase. The changer needs 116-145 PSI shop air; the balancer is electric only.
Features

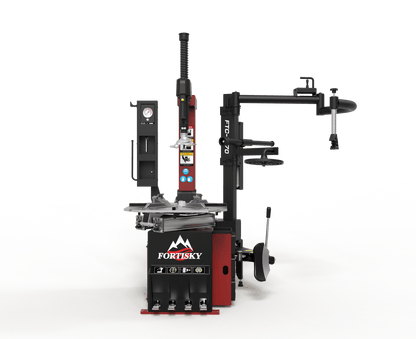

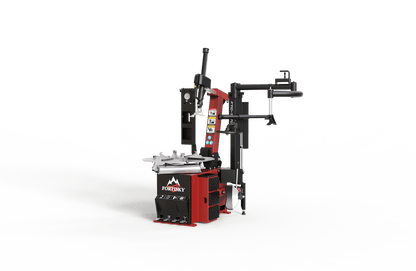

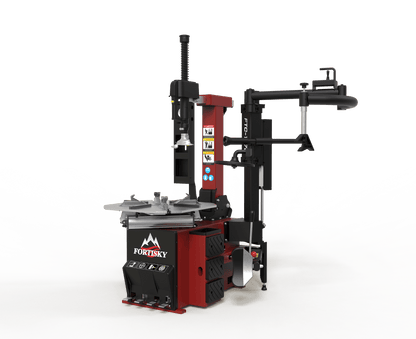

Pneumatic Tilt-Back Tower
The FTC-1670's column tilts back pneumatically with automatic push-pull locking, swinging the head clear of the wheel between cycles. Loading the next wheel does not mean threading it around the tower.
Helper Arm with Three-Point Pressing
The integrated helper arm holds the bead down in the drop center while the three-point push system guides the tire onto the rim. That is the hardware that makes low-profile and run-flat tires routine instead of a wrestling match.

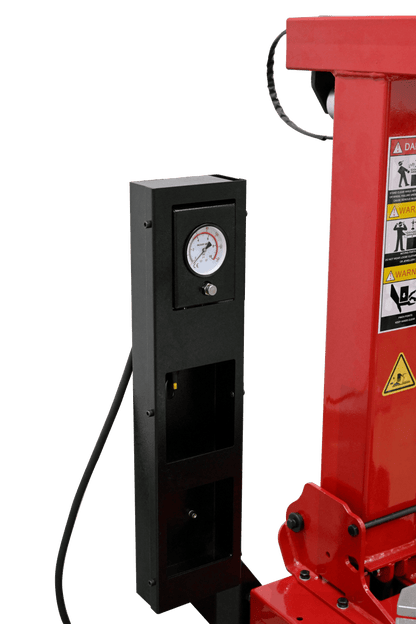

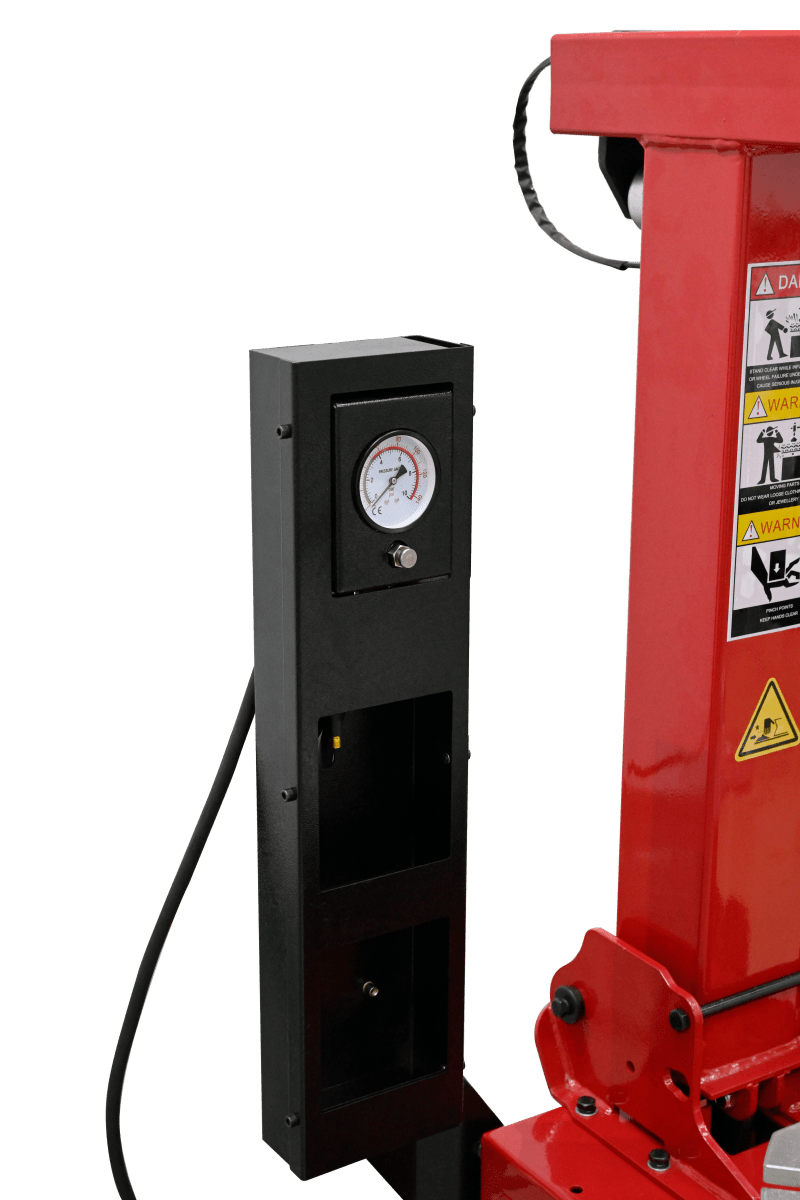

Turbo Bead Blaster
A direct-connect turbo blast pipe delivers high-volume air at the bead to seat stubborn tires. Activation takes two buttons pressed together, so it cannot fire by accident.

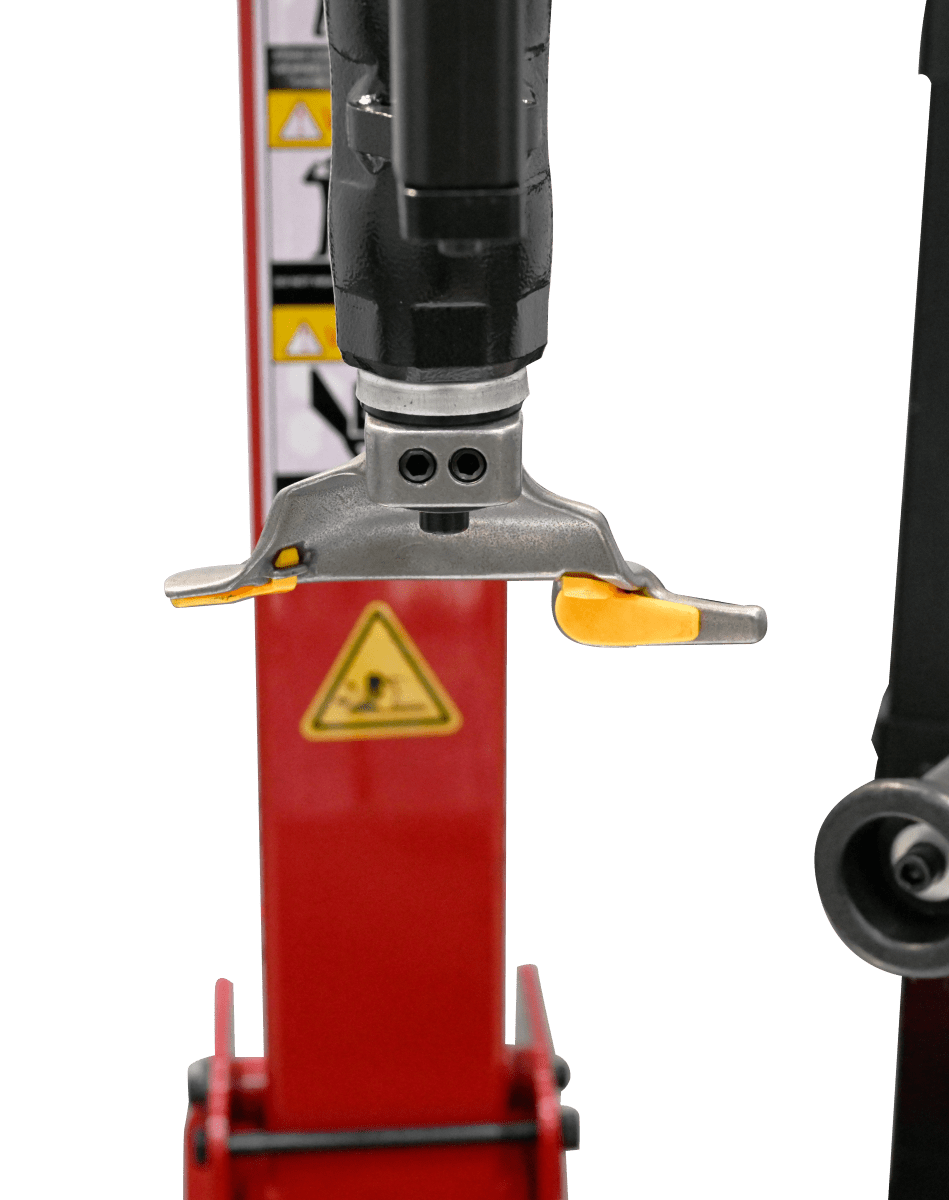

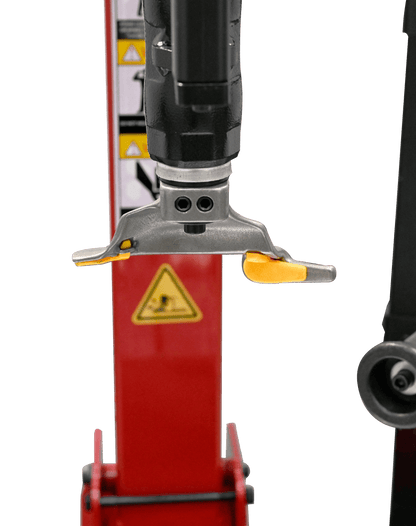

Four-Jaw Turntable and Chrome Working Head
The four-jaw turntable self-centers wheels from the outside in through a linkage on a one-piece machined chuck base that resists deformation under clamping load. The working head is high-frequency quenched, hard chrome plated, and detachable for easy replacement.

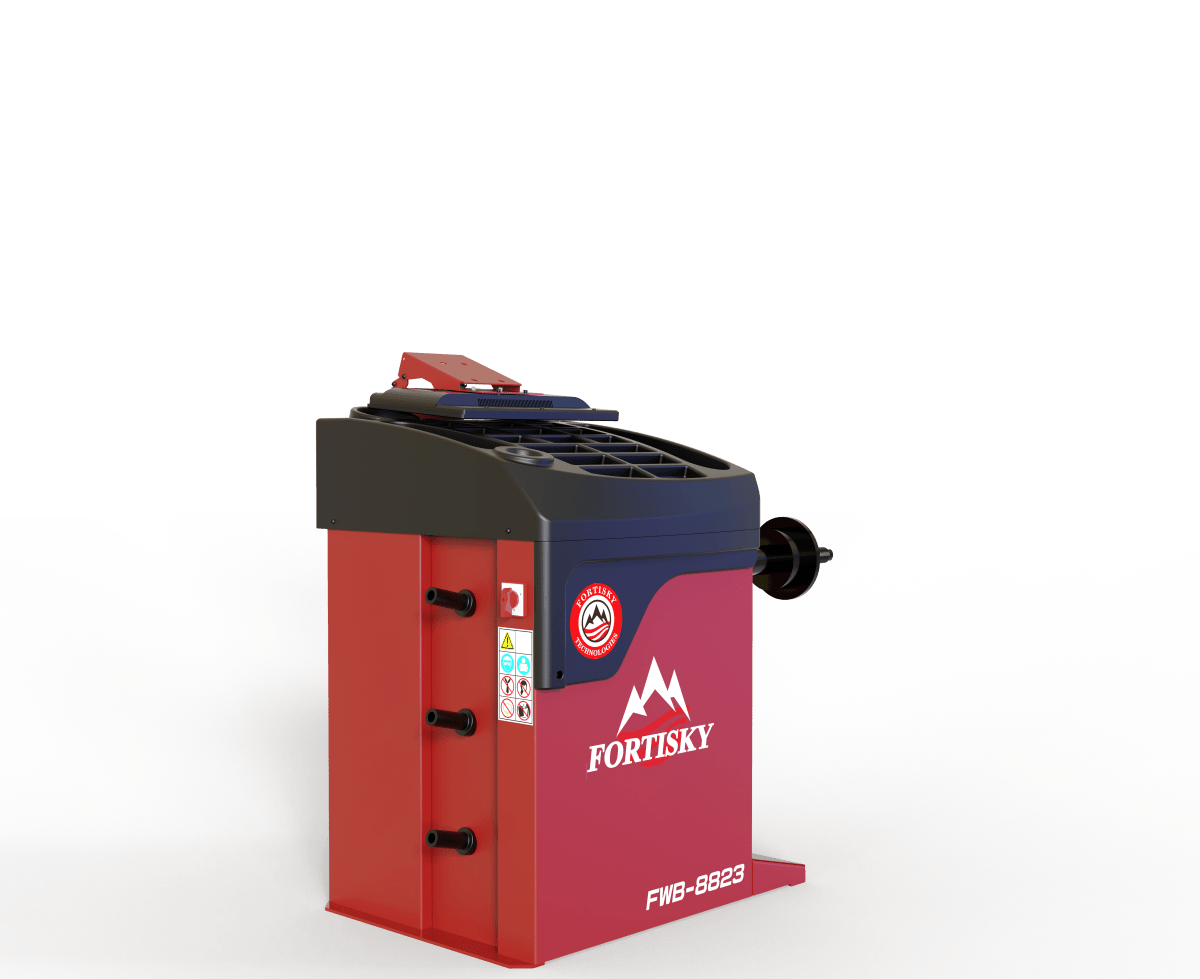

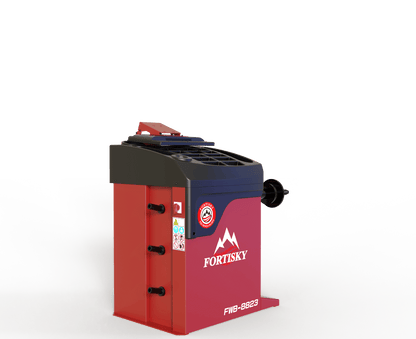

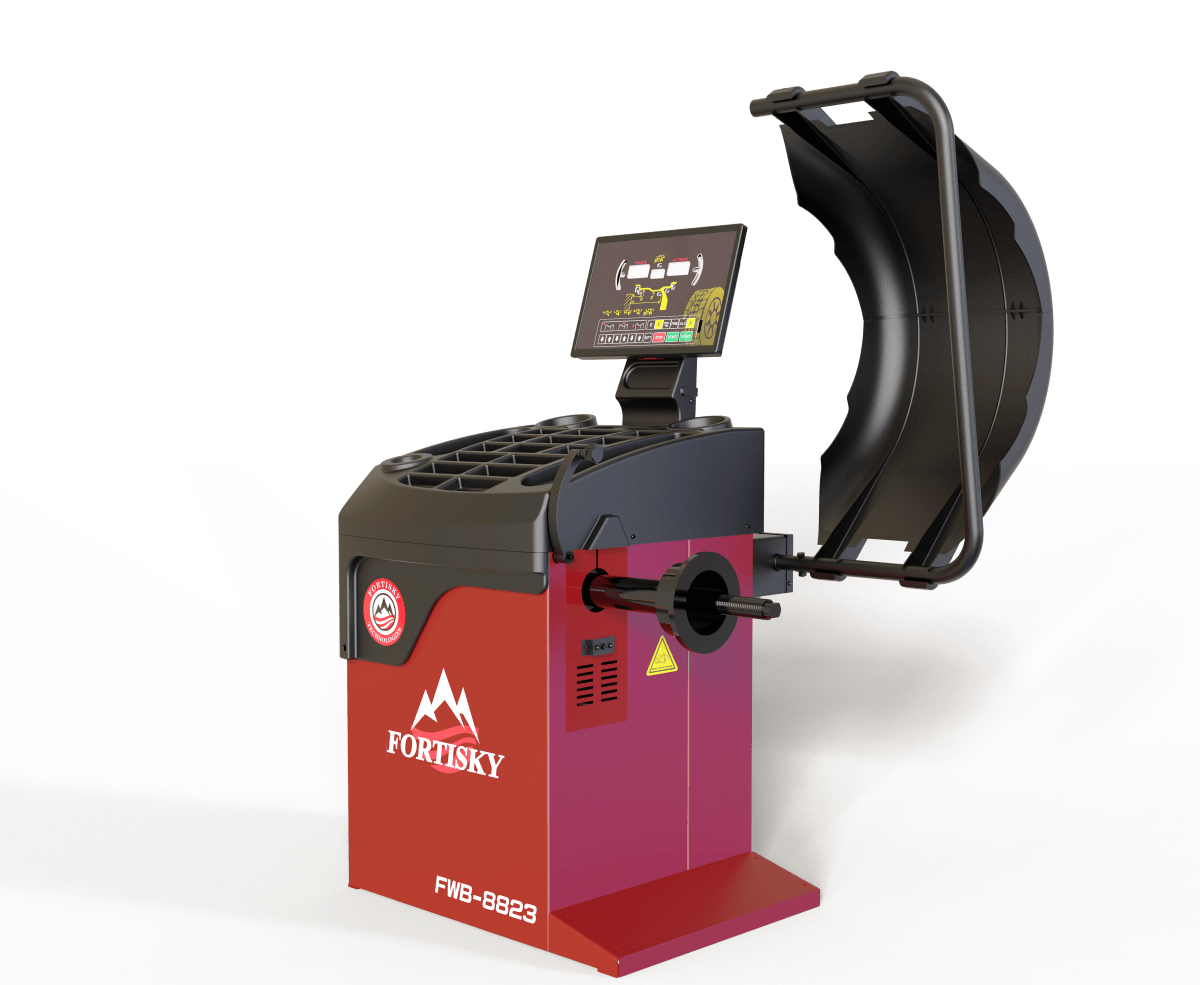

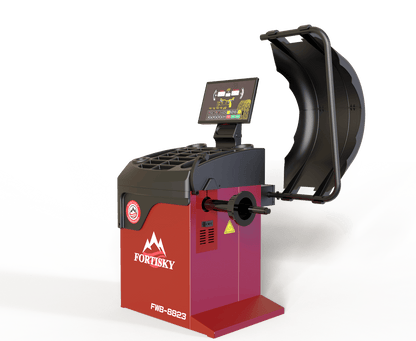

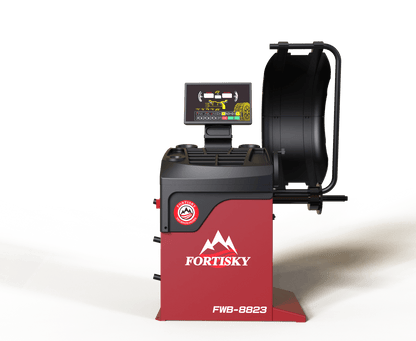

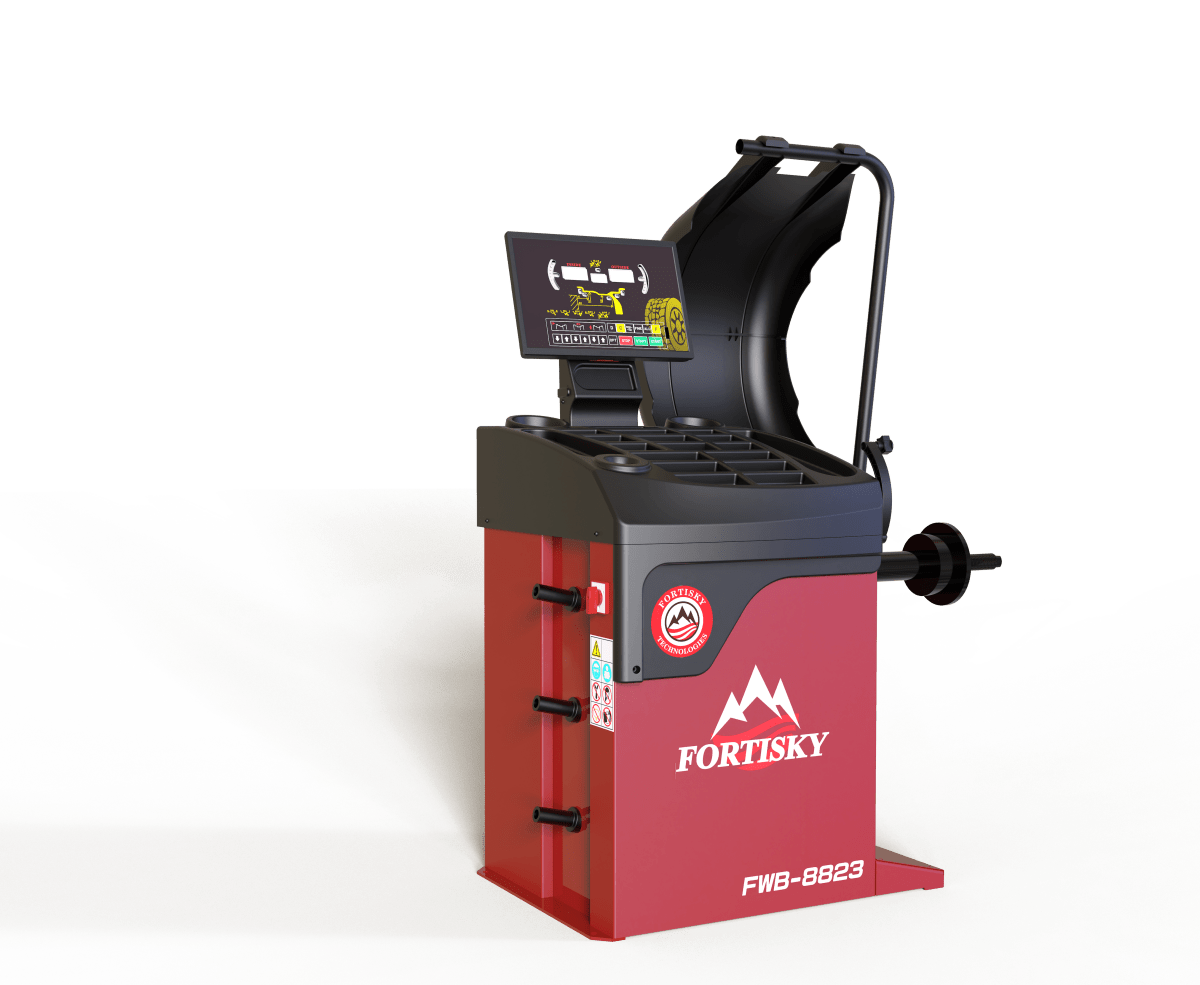

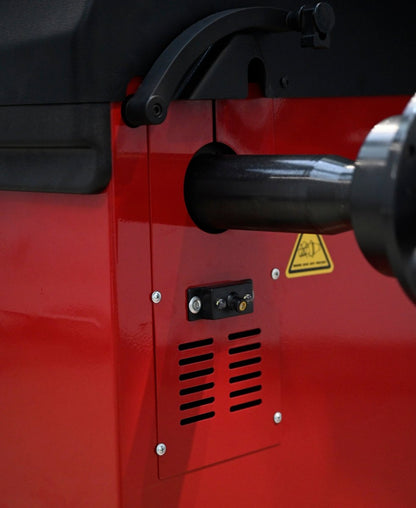

2D Automatic Data Entry on the Balancer
The FWB-8823 captures rim parameters from a linear grating measurement scale: touch the stick to the rim, lower the guard, spin. No keying in dimensions between wheels.

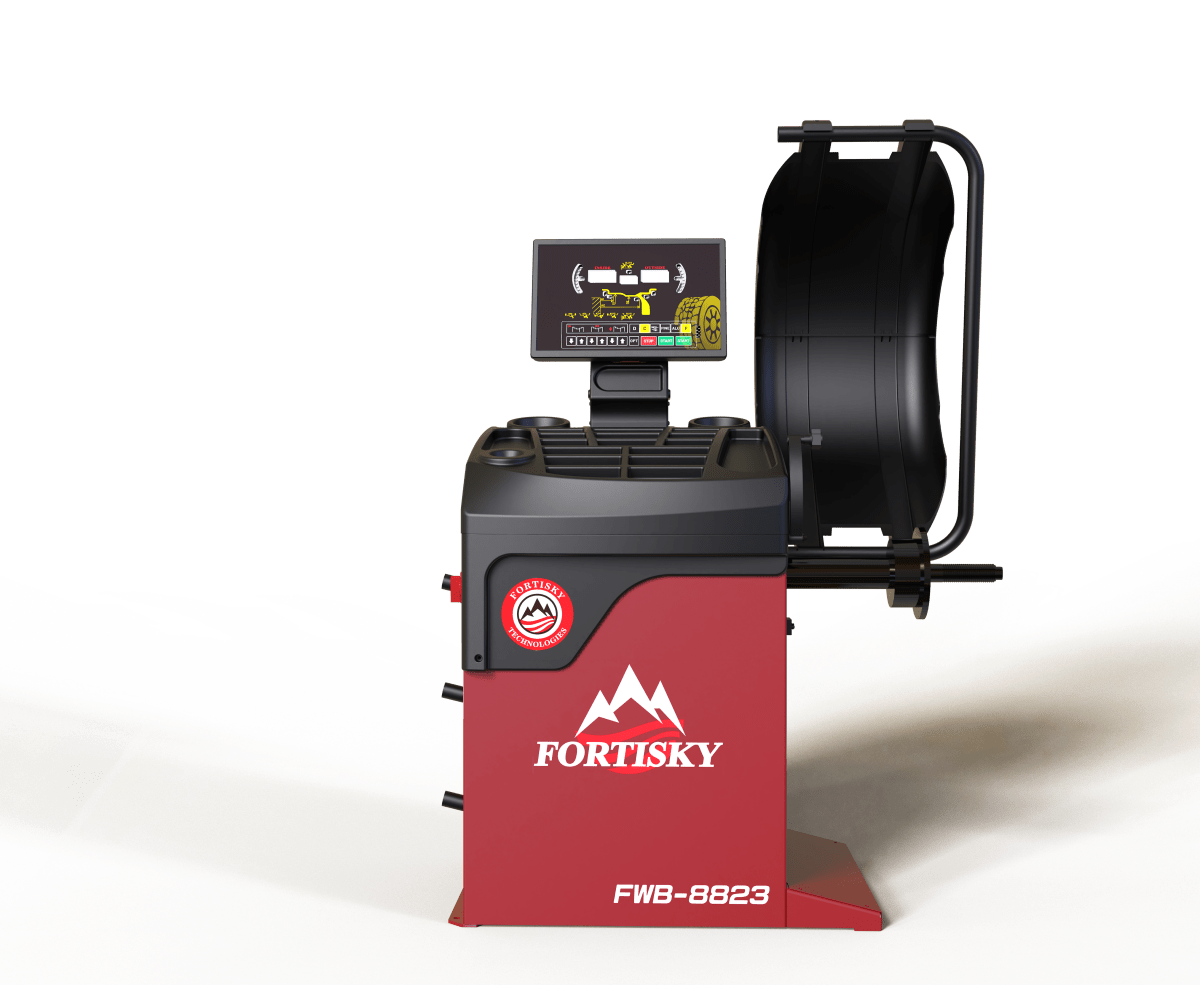

Laser Weight Placement with Smart Positioning
After the spin, one button rotates the wheel to the balance point and locks it, and a laser projects the exact weight location on the rim with an LED fill light for dim corners of the shop. The balancer also self-calibrates, so routine accuracy checks do not need a service call.
Video
Best For
Automotive Service Shops
Daily passenger car and light truck tire work is the design center. The tilt-back tower clears the wheel for loading, the helper arm handles low-profile and run-flat tires, and automatic data entry keeps the balancer from becoming the bottleneck.
Tire Dealers
The changer spans 14-26 in outside clamping with 5,510 lb of bead breaker force, and the balancer runs to 30 in rims and 165 lb wheels. That range covers the full spread of passenger and light truck wheels a dealer sees.
Home and Small Garages

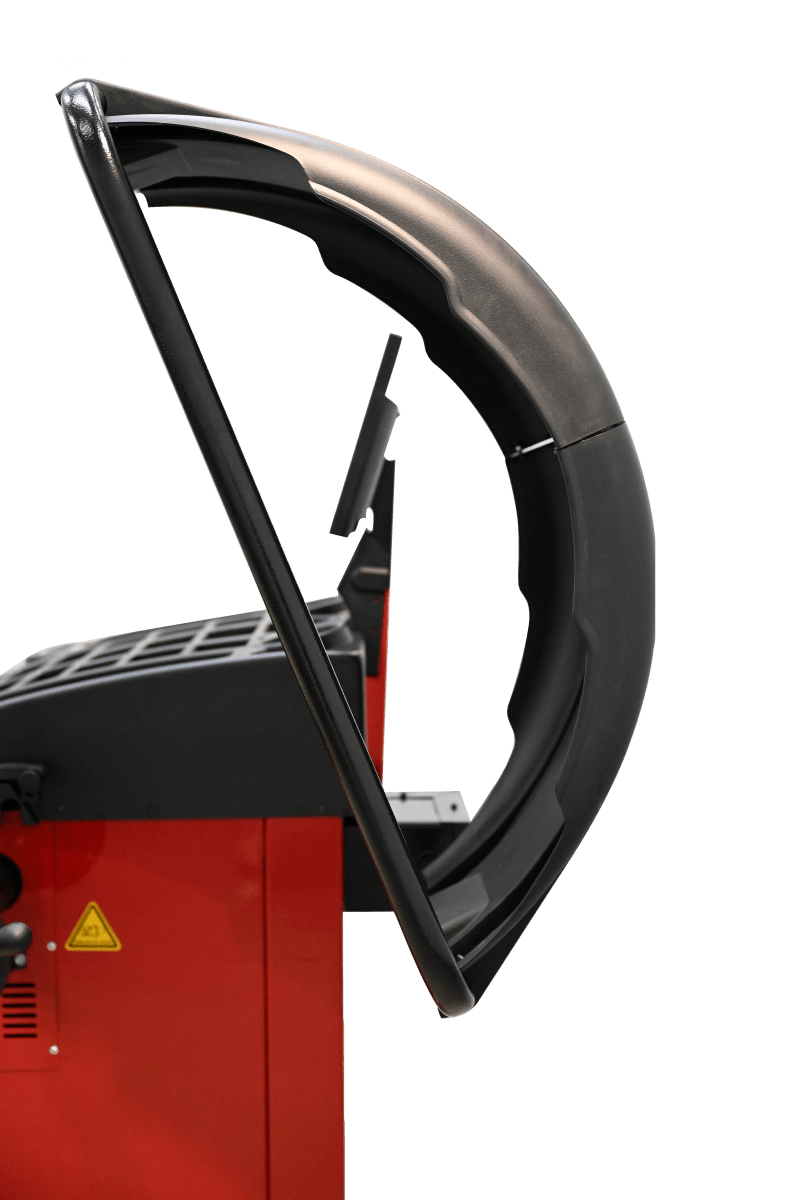

Both machines run on 110V single phase shop power, and protective pads on the tire-contacting tools keep rims safe in less practiced hands. The balancer's automatic guard-down start keeps operation simple.
Specifications
| Outer Rim Clamping | 14-26 in |
|---|---|
| Inner Rim Clamping | 16-28 in |
| Max Tire Diameter | 47 in (1200 mm) |
| Max Tire Width | 15 in (380 mm) |
| Bead Breaker Force | 5,510 lb (2500 kg) |
| Max Rim Size | 30 in |
|---|---|
| Max Wheel Diameter | 39 in (1000 mm) |
| Wheel Width Range | 1.5-15 in |
| Max Wheel Weight | 165 lb (75 kg) |
| Power Supply | 110V / 60 Hz / 1-phase |
|---|---|
| Net Weight | 251 lb (114 kg) |
| Noise Level | < 70 dB(A) |
| Motor | 1.5 kW (2.0 HP) |
|---|---|
| Power Supply | 110V 1-phase or 220V 3-phase |
| Operating Air Pressure | 116-145 PSI |
| Net Weight | 485 lb (220 kg) |
| Balancing Precision | ±1 g |
|---|---|
| Spindle Speed | 180 RPM |
| Measuring Time | 7 seconds |
| Motor Power | 250W |
Installation Requirements
Electrical
The tire changer runs on 110V single phase or 220V three phase, with a 30 mA circuit breaker, 25A fuse, and proper grounding required. The balancer runs on 110V/60 Hz single phase.
Air Supply

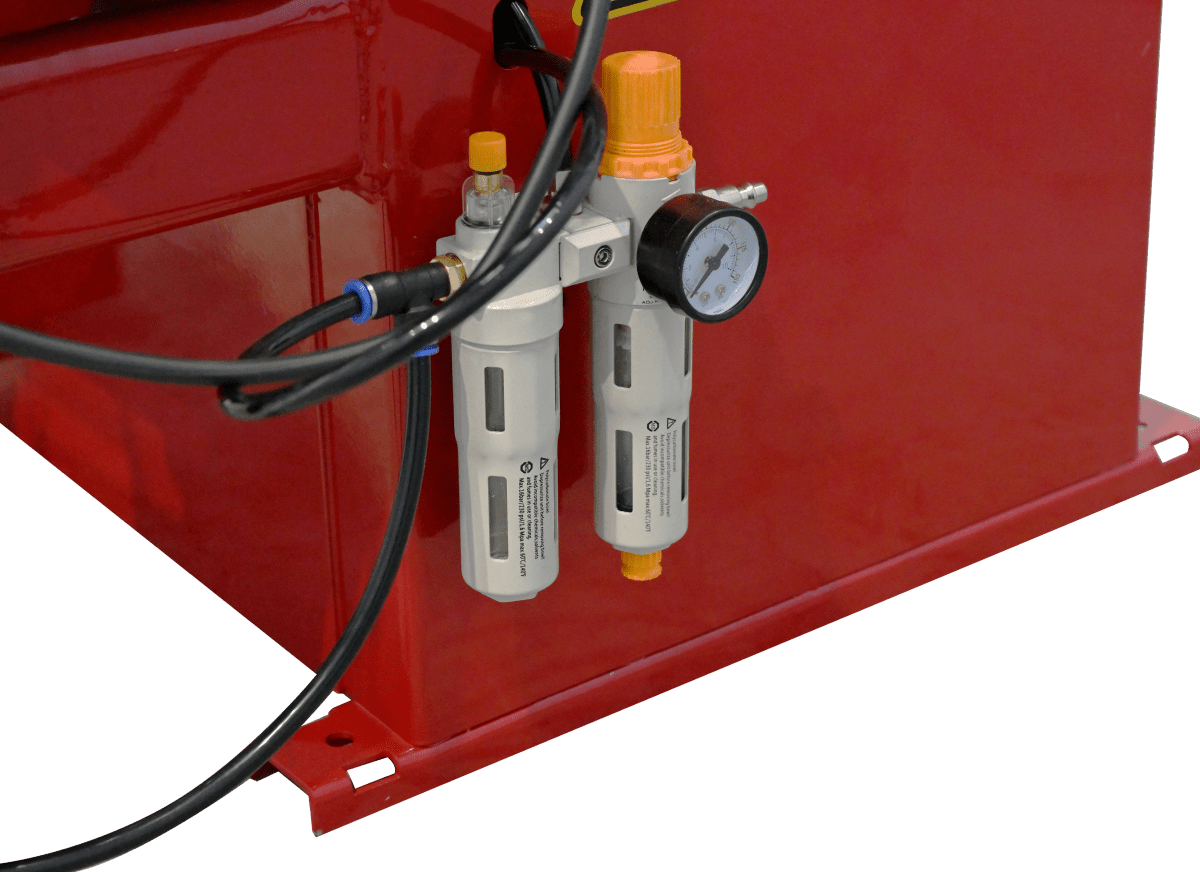

The tire changer requires 116-145 PSI (8-10 bar) compressed air; a high-pressure water and oil filter is included. The balancer needs no air.
Space and Floor
Install both machines on a flat, level floor in a well-lit area, kept clear of oil, grease, debris, and bystanders.
Shipping & Delivery
Warranty
Questions About This Product?
Our team can help with installation planning, freight coordination, and configuration.
Call (855) 498-2147Frequently Asked Questions
What size wheels can this combo handle?
The tire changer clamps 14-26 in outside and 16-28 in inside with tires to 47 in diameter. The balancer takes rims to 30 in and wheels to 165 lb. Together that covers passenger cars, SUVs, and light trucks.
What electrical service do I need?
Both machines run on 110V single phase. The tire changer can alternatively be wired for 220V three phase, and requires a 30 mA circuit breaker, 25A fuse, and proper grounding.
Do I need an air compressor?
Yes, for the tire changer: 116-145 PSI compressed air. The balancer is electric only.
Can it handle low-profile and run-flat tires?
Yes. The helper arm and three-point pressing system hold the bead in the drop center during mounting, which is what those tires require.
How does the laser weight placement work?
After a spin the balancer displays the imbalance readings. Press one button and the wheel rotates to the balance point and locks; the laser then projects the exact weight location on the rim, with an LED fill light for low-light conditions.
Have a question we didn't cover? Call (855) 498-2147 and our team will help.
