ESCO YAK Axle Saddle, For YAK Jacks (Ea) - 92024
- Authorized Online Dealer direct manufacturer relationship
- No Sales Tax outside PA where applicable
- Authorized Dealer Price Match verification required
- Fast Delivery some products may have lead times
- Manufacturer Warranty included with purchase
- Questions? +1 (855) 498-2147

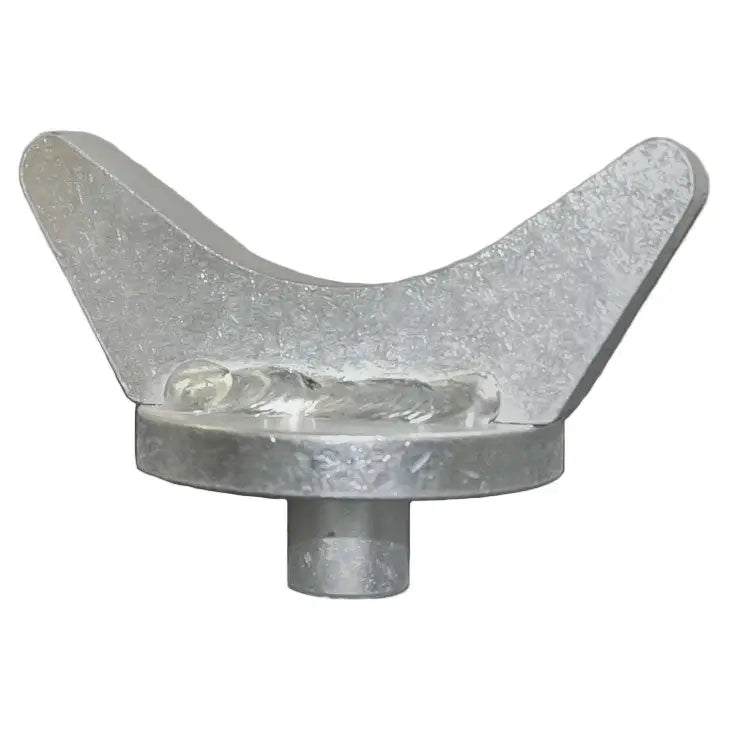

ESCO YAK Axle Saddle for YAK Jacks - Standard Size Model 92023
The ESCO YAK Axle Saddle is a precision contact point designed for heavy-vehicle lifting, providing safe and stable support when lifting vehicles by their axles with standard-size YAK air-hydraulic jacks. With 80-ton capacity and ultra-lightweight 2-lb construction, this accessory integrates with YAK jacks to enable secure lifting of trucks, buses, and heavy equipment. The saddle features a curved contact surface that conforms to rounded axle profiles, minimizing slippage and distributing load evenly for reliable performance in commercial and heavy-duty service environments. Ships individually, backed by 3-year warranty with registration.
ESCO YAK 92023 Axle Saddle Features
Curved Axle Contact Surface
The saddle's precisely curved geometry conforms to vehicle and equipment axle profiles, creating a stable contact point that prevents rolling or slipping during lifting. This engineered shape distributes load pressure evenly across the contact area, extending jack durability and improving safety when working with rounded surfaces.
80-Ton Load Rating
With an 80-ton (176,000 lbs) capacity, the axle saddle handles the heaviest commercial trucks, buses, and industrial equipment. This generous safety margin ensures reliable performance even when positioning heavy vehicles for chassis work, frame repair, and major service operations without overstress.
Ultra-Lightweight Compact Design
At just 2 lbs (0.7 kg), the saddle is remarkably portable and easy to handle. Technicians can carry multiple saddles in a toolbag or service vehicle without adding significant weight, and the compact size stores easily in cabinets or work carts when not in use.
Standard YAK Jack Compatibility
The saddle is engineered to work seamlessly with standard-size YAK air-hydraulic jacks, integrating into your existing lift setup with no additional fittings or adapters. The design excludes smaller bladder jack models, ensuring optimal fit and performance with full-tonnage jacks.
Durable European Construction
Manufactured to ESCO's rigorous European standards, the saddle withstands years of professional service in busy shops and roadside operations. The solid construction resists damage from repeated use, corrosion, and environmental exposure typical of commercial service environments.
Three-Year Warranty with Registration
ESCO stands behind the axle saddle with a 3-year limited warranty when registered online. This reflects ESCO's confidence in product durability and represents significant protection for professional shops and fleet operators investing in quality service equipment.
ESCO YAK 92023 Axle Saddle Applications
- Heavy truck frame and chassis work: Provides stable axle contact point for Class 7 and 8 trucks during suspension repairs, frame straightening, and alignment adjustments.
- Bus and motorcoach service: Enables safe lifting of intercity and transit buses for major undercarriage repairs and scheduled maintenance work requiring multiple support points.
- Commercial vehicle fleet maintenance: Ideal for tire shops, quick-lube facilities, and fleet service centers that service heavy commercial vehicles daily.
- Equipment and machinery lifting: Supports construction equipment, agricultural machinery, and industrial equipment requiring precise height adjustment and load distribution.
- Roadside emergency service and mobile repair: When paired with portable YAK jacks, enables technicians to perform roadside repairs on stranded heavy vehicles and equipment.
ESCO YAK 92023 Axle Saddle Specifications
| Specification | Value |
|---|---|
| Load Capacity | 80 tons (176,000 lbs) |
| Service Rating | Heavy-duty commercial and industrial |
| Safety Factor | Tested and certified for industrial use |
| Specification | Value |
|---|---|
| Weight | 2 lbs (0.7 kg) |
| Model Number | 92023 |
| Part Number | A00875 |
| Packaging | Sold individually (each) |
| Specification | Value |
|---|---|
| Jack Type | Standard-size YAK air-hydraulic jacks |
| NOT Compatible With | Models 92000, 92001, 92005, 92009, 92011, 92012, 92013, 92014 |
| Contact Surface | Curved axle-contact geometry |
| Origin | Made in Europe |
ESCO YAK 92023 Axle Saddle Installation and Use
Mounting on YAK Jacks
The saddle mounts directly on compatible standard-size YAK jacks via a simple connection. Before use, verify jack model compatibility - the saddle is NOT designed for small bladder jack models (92011, 92012, 92013, 92014). Ensure all connections are secure and the saddle is properly seated on the jack before lifting any load.
Axle Positioning and Load Centering
Saddle Placement: Position the curved saddle surface directly under the vehicle or equipment axle, ensuring the contact surface aligns properly with the rounded axle profile. Center the load on the saddle to distribute weight evenly. Never position the saddle at an angle or on a side edge, as this compromises stability and safety.
Surface Requirements and Setup
Work Surface: Use the jack assembly only on solid, level concrete or steel surfaces. Never place jacks on gravel, asphalt, soft ground, or uneven surfaces where base stability may be compromised. Ensure adequate clearance around the jack for safe operation and technician access.
Pre-Operation Safety Verification
Before each use, visually inspect the saddle for cracks or damage, verify all jack connections are secure, confirm the saddle contact surface is clean and free from debris, and test the jack's full lift range with no load to ensure smooth operation. Never exceed the 80-ton capacity or use the saddle on incompatible jack models.
What's Included with the ESCO YAK 92023 Saddle
- ESCO YAK Axle Saddle (Model 92023, single unit)
- Mounting connection assembly
- Product documentation and specifications
Optional Accessories: ESCO offers complementary saddle options including the YAK Extension Saddle (Model 92022, 1.6 inch) for applications requiring additional height. Multiple saddles can be purchased for multi-point lifting setups.
Not Included: YAK air-hydraulic jacks (sold separately), compressed air supply, air hose or fittings, pressure regulator, vehicle or shop equipment, and installation labor.
ESCO YAK 92023 Shipping and Delivery
Parcel Shipping
Method: Standard parcel carrier (UPS, FedEx, or equivalent). Lead Time: 3-5 business days from order placement. Advantage: The ultra-lightweight 2-lb saddle ships inexpensively and arrives quickly, making it ideal for customers who need immediate stock replacement or spare parts.
Delivery and Inspection
Package Condition: Inspect packaging and saddle immediately upon delivery for any visible damage or defects. Note Any Damage: If the saddle arrives damaged, photograph the item and packaging, then contact Garage Supply Guys for replacement or refund within 48 hours of delivery.
Returns and Restocking
Returns accepted within 30 days of delivery when unopened in original packaging with receipt. If the saddle has been mounted on a jack or used, a 20% restocking fee applies. Buyer is responsible for return shipping costs unless the unit arrived defective due to carrier damage.
ESCO YAK 92023 Axle Saddle Warranty
Limited 3-Year Warranty
ESCO backs the YAK axle saddle with comprehensive warranty coverage against defects in materials and workmanship under normal use and service conditions.
- 3 Years: Full coverage for the saddle contact surface, mounting hardware, and all structural components when registered with ESCO
- Coverage Includes: Manufacturing defects, material flaws, and structural failures under rated load conditions
- Not Covered: Normal wear from use, damage from over-load or abuse, misuse outside design specifications, improper storage in wet or corrosive environments, unauthorized modifications
Requirements: Warranty activation requires registration at www.esco.net/warranty within 30 days of purchase. Keep the original product receipt and warranty card on file. Use only with compatible standard-size YAK jacks and never exceed the 80-ton capacity rating. Follow all safety guidelines in the product manual and maintain cleanliness of the contact surface.
Questions About the ESCO YAK Axle Saddle?
Our equipment specialists can help verify compatibility with your specific YAK jack models, recommend the right number of saddles for your multi-point lifting setup, and provide guidance on optimal positioning for various vehicle types and service applications.
ESCO YAK 92023 Axle Saddle FAQ
What is the maximum weight the YAK 92023 axle saddle can safely support?
The saddle has an 80-ton (176,000 lbs) load capacity, rated for heavy commercial vehicles, buses, and industrial equipment. This represents the maximum safe working load when the saddle is properly mounted on a compatible YAK jack and used according to all safety guidelines. Never exceed this capacity, as overloading voids the warranty and creates serious safety hazards.
Which YAK jack models are compatible with the 92023 axle saddle?
The Model 92023 is designed for standard-size YAK air-hydraulic jacks. It is NOT compatible with the following models: 92000, 92001, 92005, 92009, 92011, 92012, 92013, and 92014 (which are small bladder jacks and other specialty models). Before purchasing, verify your jack model number. If unsure, contact our sales team with your jack specifications for confirmation.
How much does the YAK 92023 saddle weigh?
The axle saddle weighs only 2 lbs (0.7 kg), making it extremely portable and easy to carry in a technician's toolkit or service vehicle. The lightweight design allows you to stock multiple saddles for multi-point lifting setups without adding significant weight to your equipment inventory.
Can the saddle be used on equipment other than vehicles?
Yes. While designed for vehicle lifting, the saddle is also suitable for construction equipment, agricultural machinery, and industrial equipment with rounded axle or load-contact surfaces. The 80-ton capacity and curved contact design work well for any heavy-equipment lifting requiring stable axle support. Ensure the jack model is compatible before use.
What does the curved contact surface do?
The curved contact surface is engineered to conform to vehicle and equipment axle profiles, creating multiple contact points that distribute load evenly and prevent the saddle from rolling or slipping during lifting. This geometry significantly improves stability compared to flat saddle designs, reducing safety risks and protecting the jack from uneven loading.
How do I maintain the YAK 92023 axle saddle?
Keep the saddle clean and free from dirt, debris, or corrosive materials after each use. Wipe the curved contact surface with a dry cloth before storage. Store the saddle in a dry location away from moisture and extreme temperatures. Periodically inspect the saddle for cracks or damage, especially if it receives heavy use. Proper maintenance extends service life and ensures continued safety.
Is the 92023 compatible with the YAK 92022 extension saddle?
Both saddles are designed for standard-size YAK jacks and can be used together in multi-point lifting setups. You can stack or position both the 92023 axle saddle and the 92022 extension saddle on compatible jacks to achieve the lift height and positioning required for your application. Consult your jack documentation for load distribution guidance when using multiple saddles.
What warranty coverage comes with the YAK 92023 saddle?
ESCO provides a 3-year limited warranty on the axle saddle when the warranty card is registered at www.esco.net/warranty within 30 days of purchase. The warranty covers defects in materials and workmanship under normal use, including the contact surface, mounting hardware, and structural components. Warranty does not cover damage from overloading, misuse, improper storage, or use on incompatible jack models.
Can I use the saddle with a manual floor jack or only with air-hydraulic jacks?
The saddle is specifically designed for ESCO YAK air-hydraulic jacks. It is not compatible with manual floor jacks or jacks from other manufacturers. Using the saddle on incompatible equipment voids the warranty and may create safety hazards due to improper fit or load distribution. Always verify jack compatibility before purchasing.
How many saddles do I need for a typical heavy truck lifting setup?
This depends on your lifting configuration and jack availability. Most commercial shops use at least two saddles for dual-point axle lifting on heavy trucks and buses. Some operations use three or four saddles when positioning vehicles with extended chassis or multiple axles. Consult your jack capacity ratings and vehicle specifications to determine the optimal number of saddles for your operation.
Where can I order replacement saddles or additional units?
You can purchase additional ESCO YAK 92023 axle saddles and related accessories through Garage Supply Guys. We stock individual saddles and bulk quantities for fleet operations and service centers. For large orders or custom requirements, contact our sales team directly for volume pricing and delivery scheduling.
Is the 92023 saddle made in the USA or overseas?
The ESCO YAK saddle is manufactured in Europe according to strict quality and safety standards. ESCO contracts with established European manufacturers known for precision equipment production. All YAK products are tested for durability and performance before shipment and backed by ESCO's 3-year warranty when registered.
California Proposition 65 Warning
WARNING: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.p65warnings.ca.gov.
