ESCO YAK Air/Hydraulic HD Jack

The YAK 92003 features dual-stage lifting capacity rated at 44 tons primary stage and 22 tons secondary stage (40/20 tonnes metric). This dual capacity allows flexible lifting configurations - use full 44-ton capacity for single-stage applications or 22-ton for dual-stage lifts requiring higher precision. Always verify vehicle weight and saddle point specifications before lifting. Never exceed rated capacity regardless of vehicle size or weight.

The minimum height when fully retracted is 5.9 inches (150 mm), making it one of the lowest-profile jacks available for heavy vehicles. This ultra-low profile enables access under vehicles with restrictive ground clearance that traditional jacks cannot reach. The jack extends to a maximum height of 14.7 inches (370 mm) with a 5.9-inch stroke, providing adequate vertical lift range for most service applications while maintaining a compact footprint.

The YAK 92003 operates on shop compressed air at 116-145 PSI (8-10 bar). This range is standard for most workshop air systems. Connect the jack to your existing air supply using standard 1/4-inch or larger hose with proper moisture trap and pressure regulator. Verify your compressor maintains consistent pressure within the operating range during extended lift cycles. Lower pressure results in slower operation; higher pressure within the safe range improves responsiveness.

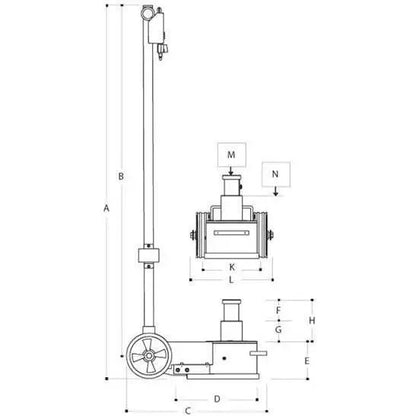

The YAK 92003 footprint is approximately 55 inches (1,400 mm) in length and 52 inches (1,320 mm) in width - comparable to a large pallet. Allow at least 5 feet of overhead clearance for full handle rotation during lifting and lowering. The 86-pound weight allows placement on standard workshop floors without special reinforcement. Position the jack away from high-traffic areas to prevent accidental operator contact during service operations.

The two independent descent valves provide precise load control and prevent uncontrolled descent under all conditions. Each valve independently regulates lowering speed, allowing technicians to maintain perfect control even during extended service procedures. Dual valves provide redundancy - if one valve experiences any malfunction, the second continues to hold the load safely. This is critical for security during tire work, undercarriage repairs, and chassis modification where load stability is essential.

Yes, at 86 pounds (39 kg), the YAK 92003 is specifically engineered for mobile service. The lightweight design easily fits in service vans and mobile units without requiring heavy lifting equipment or multiple technicians. The 56.61-inch handle allows one operator to maneuver the jack from storage to service location. Air-hydraulic design eliminates complex hydraulic hose requirements typical of other mobile jacks, and connection to any existing shop air system is straightforward.

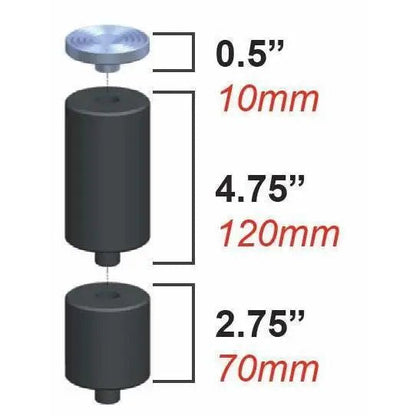

The YAK 92003 includes a 4.725-inch saddle extension (120 mm) for standard lifting, multiple 2.75-inch extension sets (70 mm) for various vehicle saddle configurations, a 0.5-inch saddle pad (10 mm), and an extension holder for organized storage. These allow precise saddle point alignment on different vehicle types without purchasing additional equipment. Keep extensions organized in the included holder to quickly select the correct configuration for each lift.

The YAK 92003 requires minimal maintenance. Inspect all external components monthly for leaks, cracks, or damage. Verify the dual descent valves operate smoothly at mid-lift position. Ensure compressed air supply includes adequate moisture trap and regulator function. Change or clean air filter regularly depending on shop air quality. Keep saddle points clean and lightly lubricated. Store in a clean, dry environment and verify all extensions are present before each service cycle.

Yes, the YAK 92003's dual descent valves and stable load holding make it ideal for collision repair and frame straightening operations. The 44/22-ton capacity accommodates most commercial vehicle frames without strain. Always position the jack at manufacturer-specified lift points and use proper frame contact adapters. Verify the floor is level and stable before beginning any frame work. Never perform welding operations with the jack as the sole support - use proper frame jigs with the jack as supplemental support only.

ESCO backs the YAK 92003 with a 3-year limited warranty covering all hydraulic components, pistons, cylinders, descent valves, and structural elements against manufacturing defects. The warranty requires the jack be used within rated capacity and operated according to the instruction manual. Keep your receipt and warranty registration documentation. Normal wear items like seals and gaskets are excluded, as are damages from misuse, overload, or unauthorized disassembly.

No, professional safety standards require secondary support at all times. Always position safety jack stands or equivalent secondary support alongside the YAK 92003 before beginning any service work underneath the vehicle. Never rely solely on the hydraulic jack - use it for lifting and positioning, then engage mechanical jack stands before working underneath. This redundant support provides critical protection if the primary jack malfunctions or experiences unexpected pressure loss.

The YAK 92003 combines the portability and ease of use of a floor jack with the load security and control of permanent lifting systems. Stationary systems like two-post lifts are better for high-volume service centers requiring rapid vehicle turnover, while the YAK excels in mobile operations, multi-location shops, and specialized applications requiring flexibility. The YAK's 5.9-inch minimum height accesses vehicles that traditional lifts cannot reach, making it valuable for mixed fleet servicing.
