ESCO Talon Bead Breaker (Model 10109) for Heavy Duty 3-Piece Earthmover Rims
The ESCO Talon Bead Breaker (Model 10109) is a professional-grade OTR bead breaking tool engineered for heavy duty 3-piece earthmover rims with extended flanges that have replaced standard 5-piece rims. Delivering 10 tons (20,000 lbs) of bead breaking force with an 8-1/8" (210 mm) stroke, this hydraulic tool works on all new 3-piece wheels 25" and larger with a flange height of 2" or more. Backed by ESCO's 30+ years as an industry leader in tire service equipment, the Talon is designed to work on both front and back beads without dismounting the wheel from the vehicle, saving valuable time on the job. Weighing just 30 lbs, it pairs with any 10,000 PSI (700 bar) hydraulic pump for fast, reliable bead breaking and is backed by ESCO's 3-year warranty with product registration.
ESCO Talon 10109 Features
20,000 lbs of Hydraulic Bead Breaking Force
The Talon's 10-ton hydraulic ram with an 8-1/8" (210 mm) stroke delivers massive force to push the tire bead off the rim taper quickly and efficiently. This heavy-duty power ensures even the most stubborn, corroded beads are broken in seconds, minimizing downtime on the job site.
Designed for 3-Piece Earthmover Rims
Purpose-built for the heavy duty 3-piece rims with extended flanges that have replaced standard 5-piece rims. The Talon works on all new 3-piece wheels 25" and larger with a flange height of 2" or more, including popular sizes like 23.5 x 25, 26.5 x 25, and 29.5 x 25 wheels.
No Wheel Dismounting Required
The Talon's clamp-on design allows you to break both the front and back tire beads without removing the wheel from the vehicle. This saves significant time and labor on every tire service job, especially critical for mobile tire truck operations where efficiency directly impacts profitability.
Universal Wheel Compatibility
The tool works on open center wheels, closed center wheels, and wheels equipped with Cat Shur-Lok adapters. The adjustable allen screw system allows the clamp to be precisely aligned to the curve of any compatible wheel, ensuring a secure and accurate fit every time.

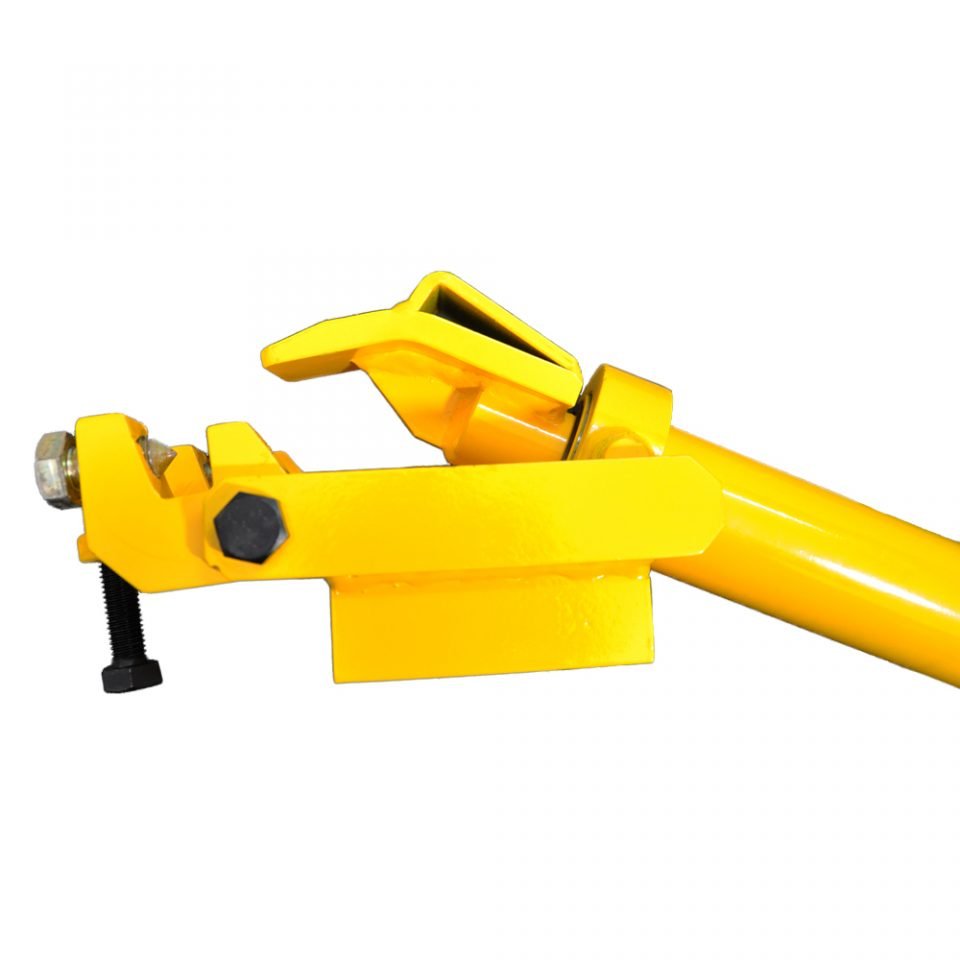

Heavy-Duty Clamp Assembly
The universal mechanical clamp securely attaches to the rim flange using four adjustable allen screws and two clamping bolts. An adjusting screw allows fine-tuning to ensure the clamp sits at a perfect 90-degree angle to the wheel face, critical for safe and effective bead breaking.
Included Wedge Spacers for Stubborn Beads
Two steel wedges are included for use on heavily rusted or corroded rims. Insert the wedges between the tire bead and rim flange to block each push and prevent re-seating, then reposition the clamp and repeat until the bead is fully unseated - a must-have feature for real-world field conditions.
ESCO Talon 10109 Applications
- Mobile Tire Service Trucks: A must-have tool for tire service trucks that perform on-site tire changes on heavy equipment. The clamp-on design and no-dismount operation allow fast tire servicing in the field.
- Mining Operations: Ideal for servicing earthmover tires on loaders, haul trucks, and graders used in mining environments where 3-piece rims with extended flanges are standard.
- Construction Equipment: Break beads on large wheel loaders, scrapers, and articulated dump trucks equipped with 25" and larger 3-piece rims commonly found on construction sites.
- Quarry and Aggregate Operations: Service the heavy-duty tires on crushers, conveyors, and haulers that operate in harsh quarry conditions where bead corrosion is common.
- OTR Tire Shops: Equip your shop with the industry-standard bead breaker for 3-piece earthmover rims. Compatible with any 10,000 PSI hydraulic pump already in your shop.
ESCO Talon 10109 Specifications
| Specification | Value |
|---|---|
| Bead Breaking Force | 10 tons (20,000 lbs) |
| Ram Stroke | 8-1/8" (210 mm) |
| Required Pump Pressure | 10,000 PSI (700 bar) |
| Pump Type | Manual or hydraulic (not included) |
| Specification | Value |
|---|---|
| Rim Type | Heavy duty 3-piece earthmover rims |
| Minimum Wheel Size | 25" |
| Minimum Flange Height | 2" |
| Wheel Center Types | Open center, closed center, Cat Shur-Lok adapters |
| Common Wheel Sizes | 23.5 x 25, 26.5 x 25, 29.5 x 25 |
| Specification | Value |
|---|---|
| Weight | 30 lbs (13 kg) |
| ESCO Part Number | 10109 |
ESCO Talon 10109 Setup and Safety Requirements
Hydraulic Pump Required (Not Included)
Pump Rating: 10,000 PSI (700 bar), manual or air/hydraulic. The Talon bead breaker tool requires a compatible hydraulic pump to operate. ESCO offers complete kits (Models 10223, 10837, 10848) that include the pump, hose assembly, and air reducer.
OSHA Safety Training Required
Regulation: OSHA #29CFR 1910.177 - Servicing Single-Piece and Multipiece Rim Wheels. All operators must be properly trained according to this regulation before using the Talon bead breaker or any tire service tools. Contact ESCO or OSHA for a copy of the regulation.
Pre-Use Safety Procedures
Tire Deflation: Always fully deflate the tire and verify it is completely empty of air before beginning work. Run a wire through the valve stem to confirm it is not blocked. Never use a steel hammer on the flange ring - use only a dead-blow plastic hammer or lead mallet.
Maintenance Requirements
Allen set screws must be inspected regularly and replaced once they wear down to ensure proper alignment of the tool. Failure to replace worn set screws may result in tool damage. Always apply tire mounting paste to the spade and the tire/rim contact area before each use.
What's Included with the ESCO Talon 10109

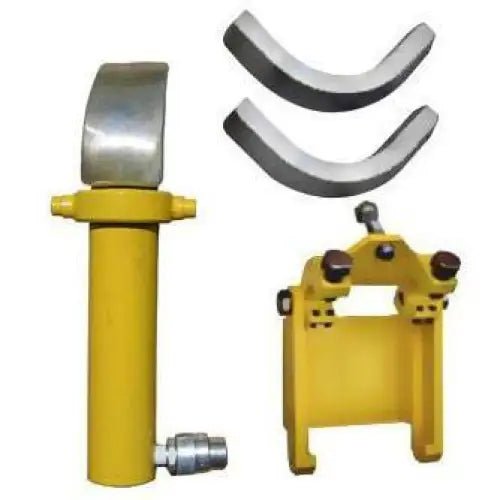

- ESCO Talon Bead Breaker clamp assembly (Part #10113)
- Adjusting clamp (Part #10117)
- 10-ton hydraulic ram with 8-1/8" stroke (Part #10304)
- Trunion (Part #10118)
- Bead breaker spade (Part #10119)
- Wedges x 2 (Part #TO-100-23)
- Allen screws x 4 (Part #10115)
- Clamping screws x 2 (Part #10111)
- Adjusting screw x 1 (Part #10112)
- Joint screws x 2 (Part #10114)
- Coupling, ram half (Part #10606)
- Spacers x 2 (Part #10116)
- Instruction manual
Optional Kits (Include Pump and Hose): Model 10223 (with 5 Qt Turbo II Pump), Model 10837 (with Yellow Jackit 5 Qt Plastic Pump), Model 10848 (with Yellow Jackit 5 Qt Metal Pump).
Not Included: Hydraulic pump, hose assembly, air reducer, tire mounting paste, 15/16" wrench.
ESCO Talon 10109 Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: 3-5 business days. International: Contact sales for quote.
Delivery Requirements
Shipping Weight: Approximately 30 lbs. Delivery Type: Standard ground shipping. Inspection: Inspect all packages for damage before signing. Note any damage on delivery receipt.
Returns
Returns accepted within 30 days of delivery. Product must be unopened in original packaging with receipt. 20% restocking fee applies. Buyer responsible for return freight costs.
ESCO Talon 10109 Warranty
ESCO Limited Warranty
ESCO Professional Hydraulic Tools are warranted to be free from defects in materials and workmanship under normal use and service.
- 3 Years: Full coverage for defects in materials and workmanship when product warranty registration is on file with ESCO
- Lifetime (First Purchaser): Tools are warranted for so long as they are owned by the first using purchaser
Requirements: Warranty registration must be on file to qualify for the 3-year warranty extension. Register online at www.esco.net/warranty. This warranty is not transferable beyond the first using purchaser and is limited to new products sold through ESCO authorized representatives and channels. Does not cover improper use, modification, abuse, or alteration.
ESCO Repair and Service Program
ESCO maintains an in-house repair facility in Brooksville, Florida with a guaranteed 1-day turnaround repair service. Over 50+ authorized repair and warranty centers are located throughout the US and Canada. ESCO will pick up products for repair/warranty at your location and guarantees all repairs for 30 days. Call 1-800-352-9852 for technical support or repair service.
Documents
Click to open in a new tab.
Questions About the ESCO Talon 10109?
Our equipment specialists can help with product selection, compatible pump kits, replacement parts, and technical questions for your tire service operation.
ESCO Talon 10109 FAQ
What rim sizes does the ESCO Talon 10109 work on?
The Talon 10109 is designed for heavy duty 3-piece earthmover rims with a flange height of 2" or more. It works on all new 3-piece wheels 25" and larger, including popular sizes like 23.5 x 25, 26.5 x 25, and 29.5 x 25. It is compatible with open center wheels, closed center wheels, and wheels equipped with Cat Shur-Lok adapters.
Does the ESCO Talon 10109 include a hydraulic pump?
No, the Model 10109 is the bead breaker tool only. It requires a 10,000 PSI (700 bar) hydraulic pump, which is sold separately. If you need a complete kit with the pump included, consider ESCO Kit Model 10223 (with 5 Qt Turbo II Pump), Model 10837 (with Yellow Jackit Plastic Pump), or Model 10848 (with Yellow Jackit Metal Pump).
How much bead breaking force does the Talon produce?
The Talon 10109 produces 10 tons (20,000 lbs) of bead breaking force through its hydraulic ram, which has an 8-1/8" (210 mm) stroke. This is sufficient to break even heavily corroded beads on large earthmover tires.
Can I use the Talon without removing the wheel from the vehicle?
Yes. The Talon's clamp-on design allows you to break both the front and back tire beads while the wheel remains mounted on the vehicle. This is one of the tool's primary advantages, especially for mobile tire service trucks working in the field.
What is the warranty on the ESCO Talon 10109?
ESCO Professional Hydraulic Tools are warranted to be free from defects in materials and workmanship for the life of the first using purchaser. A 3-year warranty extension is available when the product warranty card is on file or registered online at www.esco.net/warranty. The warranty is not transferable and applies only to products sold through ESCO authorized channels.
What's included in the box?
The Model 10109 includes the complete clamp assembly, adjusting clamp, 10-ton hydraulic ram, trunion, bead breaker spade, two wedges, all necessary hardware (allen screws, clamping screws, adjusting screw, joint screws, coupling, and spacers), and an instruction manual. A hydraulic pump, hose, and wrench are not included.
How is the ESCO Talon 10109 shipped?
The Talon 10109 weighs approximately 30 lbs and ships via standard ground shipping. Free freight shipping is available to commercial addresses in the 48 contiguous United States. Contact our sales team for international shipping quotes.
What type of hydraulic pump do I need?
The Talon requires a 10,000 PSI (700 bar) hydraulic pump - either manual or air/hydraulic. ESCO offers several compatible pumps including the Model 10592 (5 Qt Turbo II Air/Hydraulic Pump) and the Model 10875 (Yellow Jackit 5 Qt Pump). Any third-party 10,000 PSI pump with a compatible coupler will also work.
Will the Talon work on standard 5-piece rims?
The Talon 10109 is specifically designed for the newer heavy duty 3-piece rims with extended flanges (2" or more) that have replaced standard 5-piece rims. For other rim types, ESCO offers different bead breaker models. Contact us for help selecting the right bead breaker for your application.
What do I do if the bead is badly rusted?
The Talon includes two steel wedges for handling corroded rims. After the initial push, insert the wedges between the tire bead and rim flange before releasing hydraulic pressure. Then reposition the clamp to the right or left and repeat the process until the bead is pushed back far enough to remove the lock ring. Always apply tire mounting paste liberally before beginning work.
Is safety training required to use this tool?
Yes. OSHA Regulation #29CFR 1910.177, "Servicing Single-Piece and Multipiece Rim Wheels," requires that all operators be properly trained before using tire service tools including bead breakers. Always deflate the tire completely and verify with a wire through the valve stem before beginning any work.
Can ESCO repair my Talon bead breaker if it needs service?
Yes. ESCO maintains an in-house repair facility in Brooksville, Florida offering a guaranteed 1-day turnaround. Additionally, over 50 authorized ESCO warranty and repair centers are located throughout the US and Canada. ESCO will pick up products for repair at your location and guarantees all repair work for 30 days. Call 1-800-352-9852 for service.
