ESCO ESC300 Dual Wheel Farm Tractor Tire Bead Breaker - 10,000 lb Force
The ESCO ESC300 Dual Wheel Farm Tractor Tire Bead Breaker (Model 10165) is a specialized tire service tool designed to break the inner bead on outside dual tires without removing the tire from the tractor. With 10,000 lbs of hydraulic pushing force, scissor-style arms, and a minimum 4.5-inch operating space, the ESC300 delivers in-place bead separation that saves time and labor. Weighing only 25 lbs (11.3 kg) with a removable handle and 90-degree hydraulic coupler, this hydraulic tool is essential for farm equipment service centers and agricultural tire shops. Backed by a 3-year ESCO warranty, the ESC300 meets professional-grade durability standards.
ESCO ESC300 Features

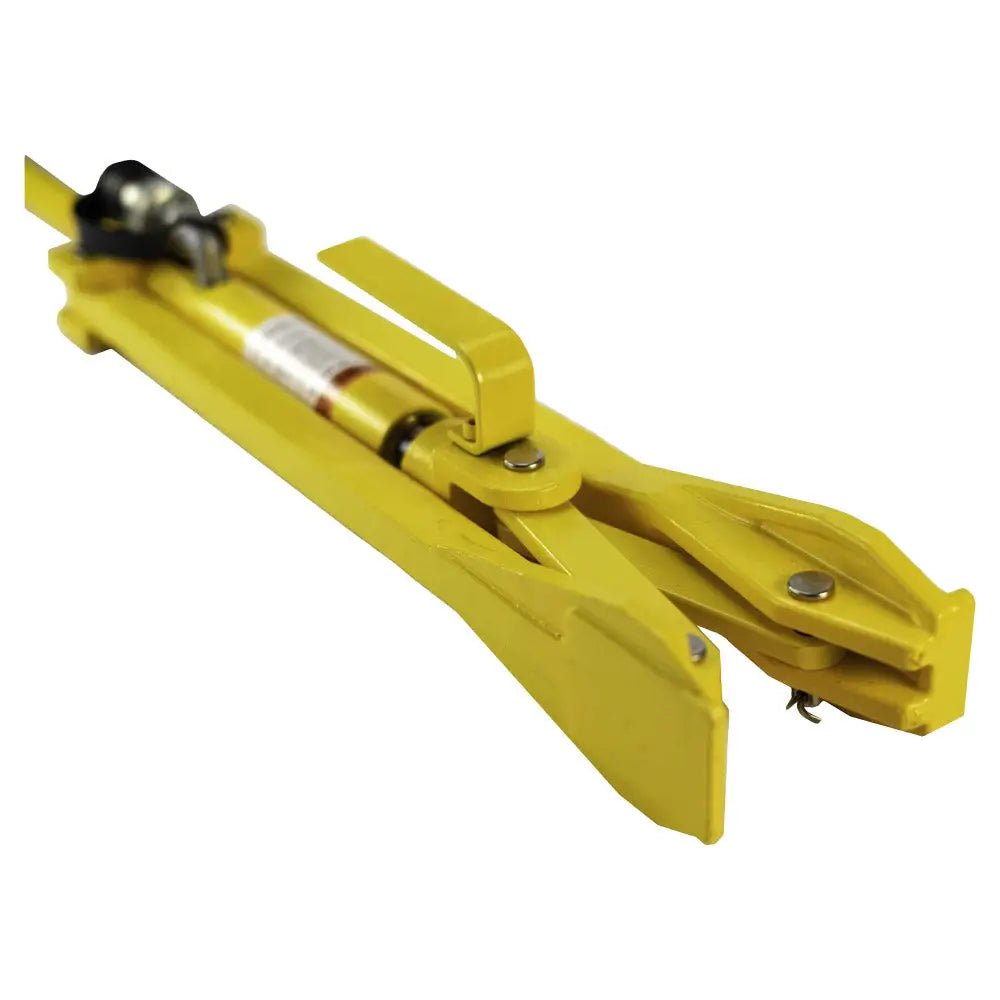

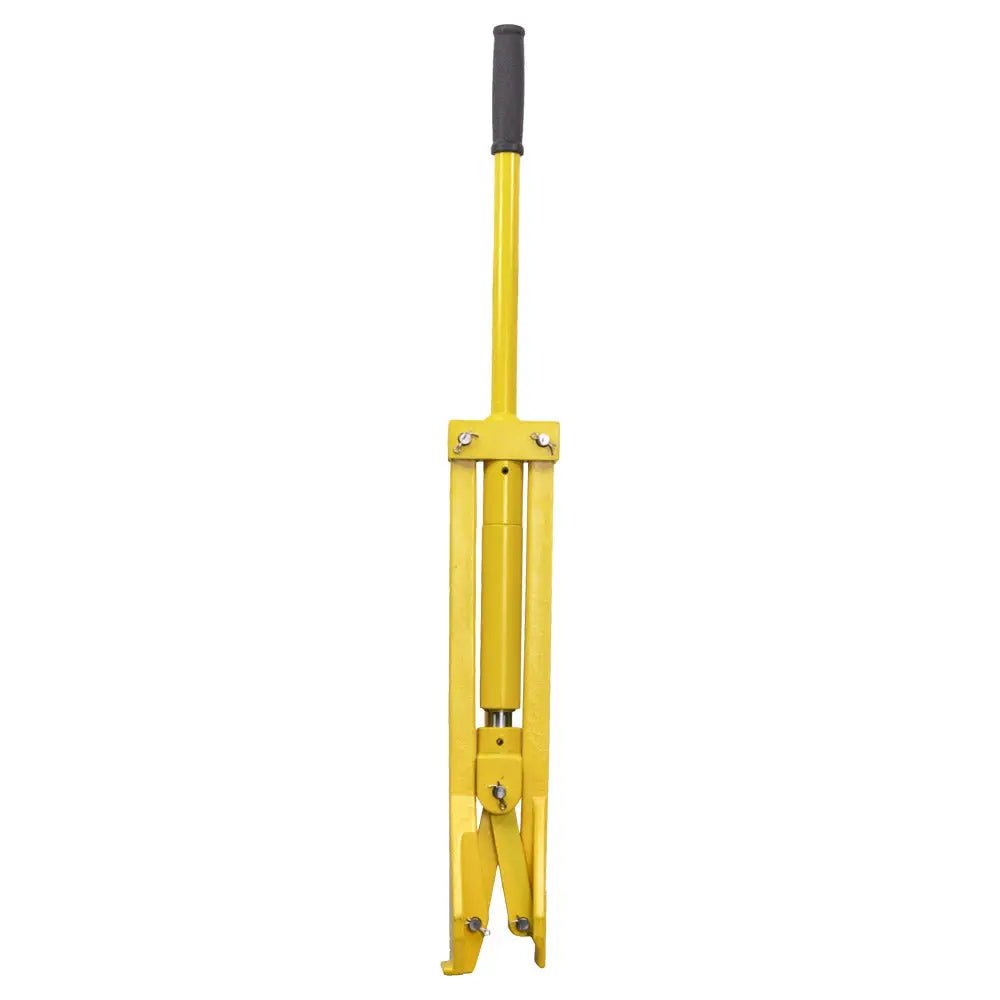

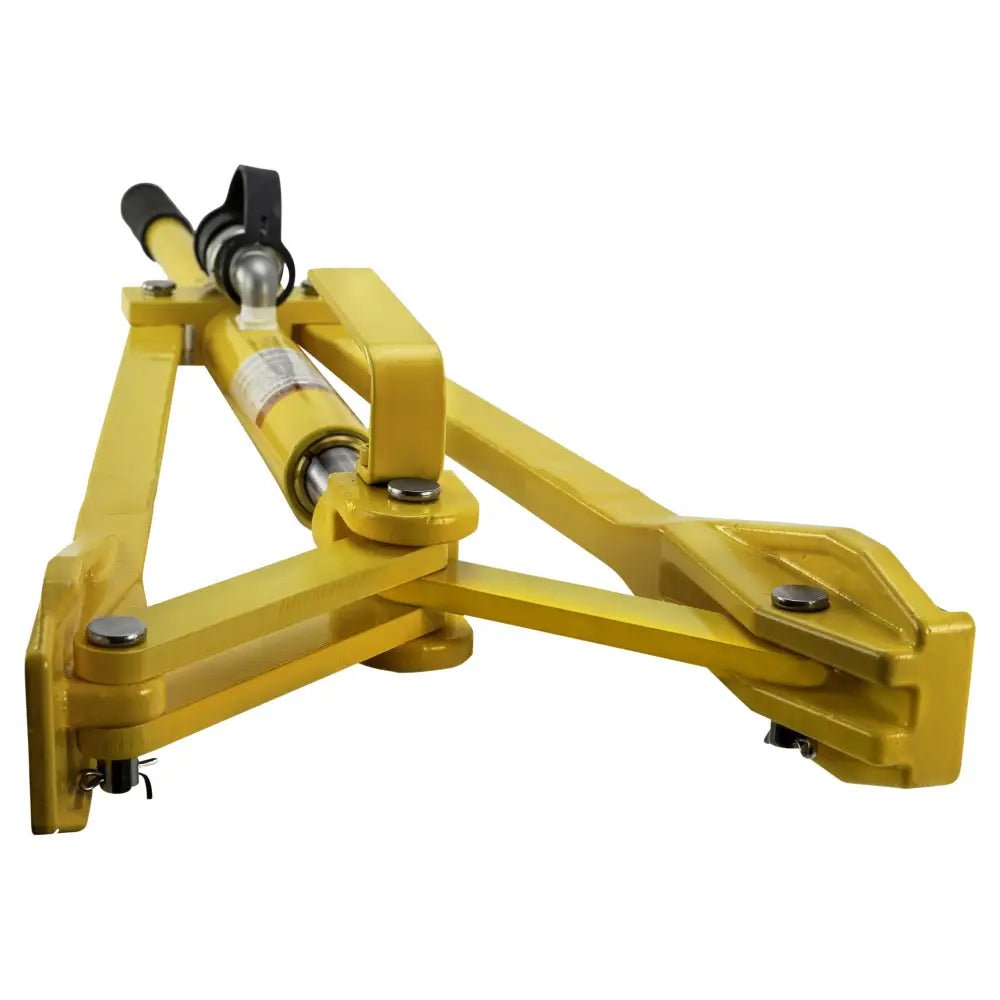

Wide Spread Jaw Design
Dual scissor-style arms with a 4.5-inch minimum opening fit between most dual tire configurations and expand to 12 inches maximum width. This range accommodates the outer dual on farm tractors without requiring tire removal, allowing inner bead separation while the wheel remains mounted on the vehicle.
10,000 lb Hydraulic Force
The ESC300 delivers 10,000 lbs of pushing force through a single 5-ton hydraulic cylinder, generating sufficient pressure to break the bead seal between tire and rim. This hydraulic design ensures consistent, controllable force compared to manual bead breakers.

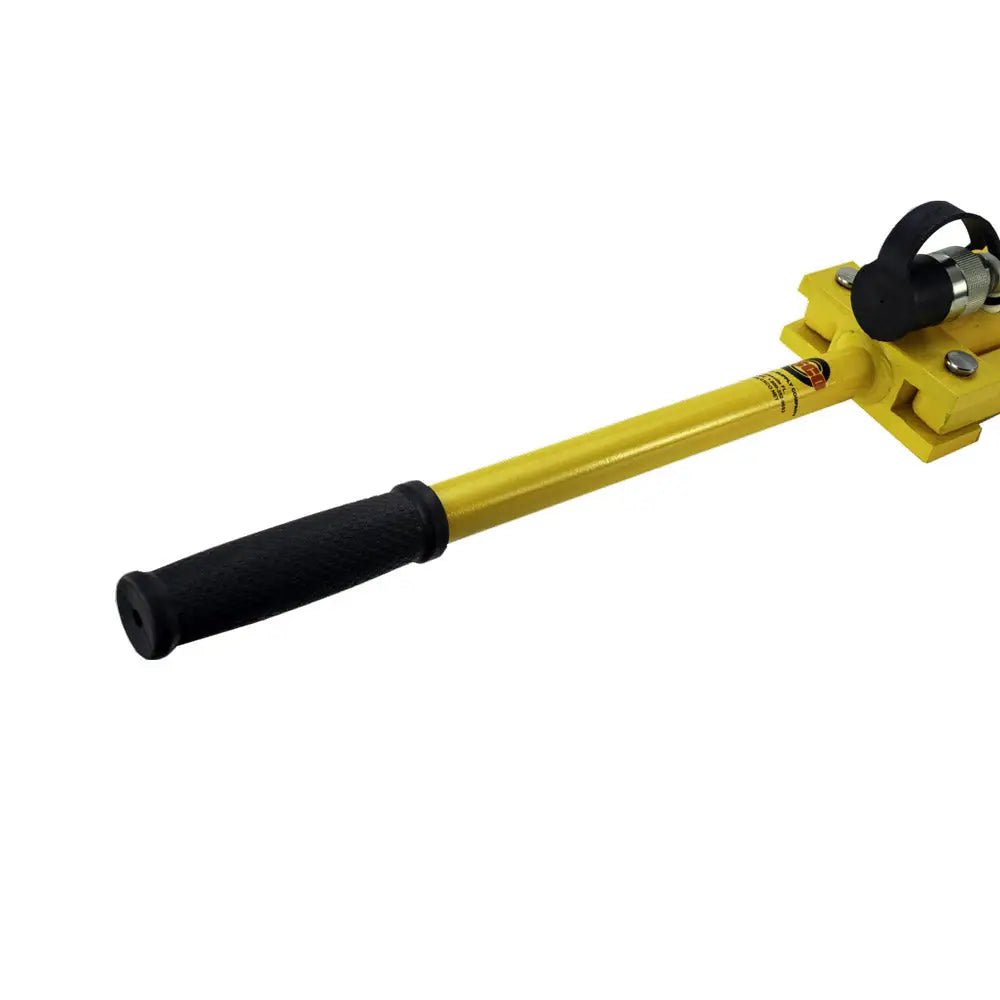

Ergonomic Positioning Handle
A removable positioning handle (15.375 inches long with 1.5-inch height) eliminates technician strain when placing and aligning the bead breaker. The handle secures with two screws and improves leverage, ensuring proper bead contact with the rim without manual force or awkward positioning.

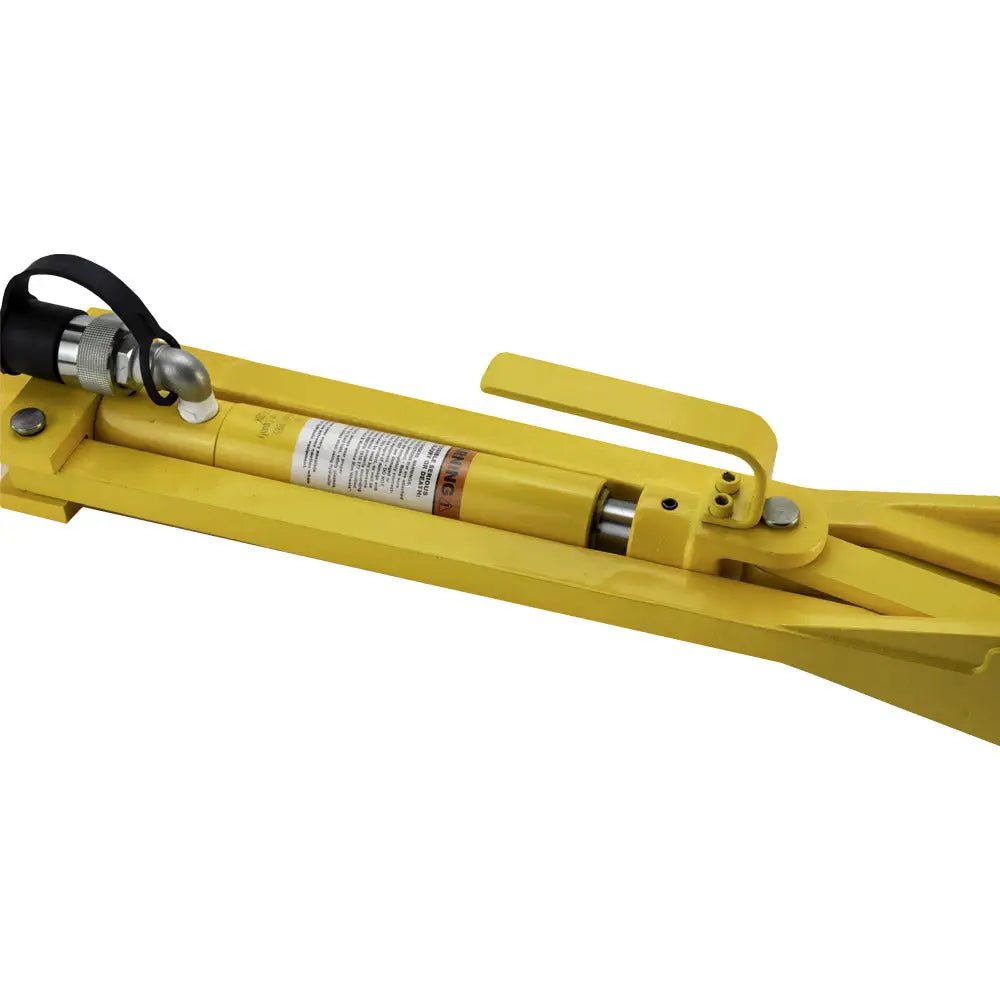

90-Degree Hydraulic Coupler
The built-in 90-degree NPT coupler redirects the hydraulic hose away from the tire and wheel area, keeping the hose clear during service. This design prevents hose interference and damage while working on dual tire assemblies. Dust cap included for protection.

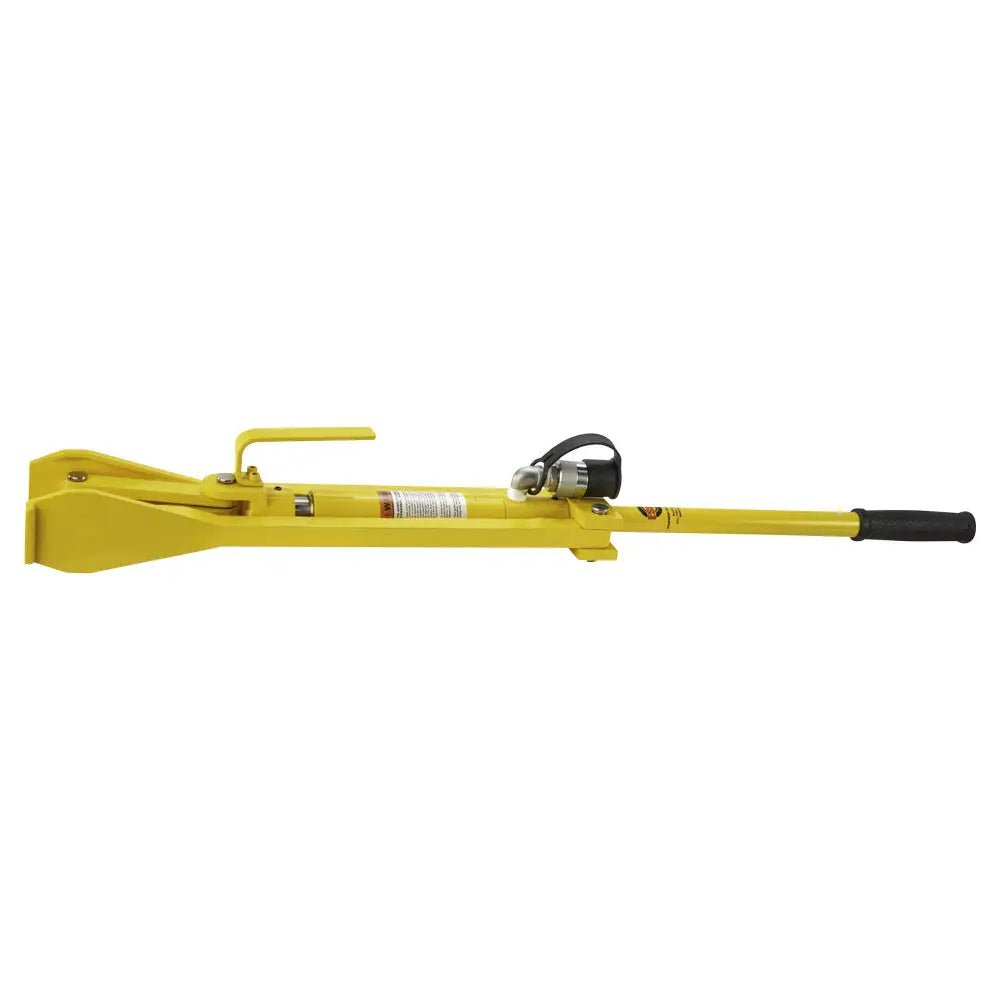

Compact and Portable
At only 25 lbs (11.3 kg) with overall dimensions of 37 inches long, 5 inches wide, and 5 inches tall, the ESC300 is lightweight enough for mobile tire shops and service trucks. The removable handle and compact design facilitate easy transport between service locations.
3.5-Inch Stroke Range
The 3.5-inch (89mm) stroke provides sufficient travel to fully separate the bead from the rim seat. This stroke length, combined with wide jaw opening, accommodates various rim designs and bead seat configurations found on modern farm tractors.
ESCO ESC300 Applications
- Farm Equipment Service Centers: Primary tool for breaking beads on dual-wheel agricultural tractors during tire maintenance, repair, and replacement without dismounting tires from the vehicle.
- Agricultural Equipment Shops: Used by shops specializing in farm machinery maintenance to service dual tires on harvesters, sprayers, large wheeled loaders, and other agricultural equipment.
- Tire Service Facilities: Essential equipment for tire centers and retreading facilities that service farm equipment and heavy agricultural machinery with dual tire configurations.
- Mobile Equipment Service: Integrated into mobile tire service units and field service trucks that travel to farms and equipment sites for on-location tire maintenance and bead repair.
- Equipment Fleet Maintenance: Used by operators and technicians at agricultural cooperatives, rental facilities, and fleet operators managing multiple dual-wheel tractors and equipment.
ESCO ESC300 Specifications
| Specification | Value |
|---|---|
| Hydraulic Pushing Force | 10,000 lbs |
| Cylinder Capacity | 5 ton |
| Model Number | 10165 |
| Product Name | ESC300 Dual Wheel Farm Tractor Tire Bead Breaker |
| Specification | Value |
|---|---|
| Minimum Spreader Opening | 4.5 in (114 mm) |
| Maximum Spreader Opening | 12 in (305 mm) |
| Stroke Length | 3.5 in (89 mm) |
| Bead Breaker Arm Length | 20.4375 in (519 mm) |
| Specification | Value |
|---|---|
| Overall Length | 3 ft (0.9 m) |
| Main Handle Length | 15.375 in (390 mm) |
| Detachable Handle Length | 5 in (127 mm) |
| Detachable Handle Height | 1.5 in (38 mm) |
| Weight | 25 lbs (11.34 kg) |
| Specification | Value |
|---|---|
| Box Dimensions | 37 x 5 x 5 in (940 x 127 x 127 mm) |
| Product Dimensions | 37 x 5 x 5 in (940 x 127 x 127 mm) |
| UPC Code | 816904025359 |
ESCO ESC300 Installation and Setup Requirements
Hydraulic Pump Connection
Coupler Type: NPT 3/8" female coupler with 90-degree elbow joint. Pressure: Consult the hydraulic pump manufacturer for safe operating pressure. Connect the bead breaker to a compatible hydraulic pump using proper hose fittings. Ensure all connections are secure and the dust cap is in place on unused couplers.
Pre-Operation Inspection
Visual Inspection: Check all visible parts including scissor arms, cylinder, and connections for shipping damage or cracks before first use. Assembly Verification: Confirm that the detachable positioning handle is properly secured with the two retaining screws. Test the handle for secure attachment.
Tractor and Equipment Preparation
Jacking: Raise the tractor until the dual wheels clear the ground using a proper floor jack rated for the vehicle's weight. Safety: Place appropriate jack stands under the tractor axle and lower onto the stands. Never work on the tire assembly without proper jack stands in place. Tire Deflation: Fully deflate the outside dual tire and evacuate any ballast liquid that may remain in the tire.
Positioning and Operation
Placement: Position the ESC300 between the dual wheels with the bead-breaking arm (with lip) facing the inner bead of the outer dual. Place the tool tip against the tire sidewall as close to the rim lip as possible. Contact: Apply light hydraulic pressure until the tool side contacts the rim flange of the inside dual. Separation: Continue applying pressure until the bead separates from the rim. Rotate the wheel in small increments and repeat until complete separation.
What's Included with the ESCO ESC300
- ESCO ESC300 Dual Wheel Farm Tractor Tire Bead Breaker (Model 10165)
- Removable positioning handle with two retaining screws
- Scissor-style bead breaking arms assembly
- Hydraulic cylinder with 5-ton capacity
- 90-degree NPT 3/8" female coupler with dust cap
- NPT 3/8" elbow joint
- All internal seals, springs, and replacement parts listed in parts breakdown
- User manual with operating instructions and safety information
- Parts breakdown diagram with part numbers
Not Included: Hydraulic pump, hydraulic hose, hose fittings, pressure gauge, safety equipment (gloves, glasses), floor jack, jack stands, or operator training. These items must be sourced separately based on your specific equipment setup and OSHA requirements.
ESCO ESC300 Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: 5-10 business days for in-stock units. International: Contact sales for international shipping quotes and availability.
Delivery Requirements
Packaging: Ships in secure box packaging measuring 37 x 5 x 5 inches. Delivery Type: Curbside or dock delivery standard. Inspection: Carefully inspect the package upon arrival before accepting delivery. Verify the UPC code (816904025359) matches your order. Note any visible shipping damage on the delivery receipt immediately.
Returns
Returns accepted within 30 days of delivery. Product must be unopened and unused in original packaging with receipt. A 20% restocking fee applies to all returns. Buyer is responsible for return freight costs. Contact Garage Supply Guys for return authorization before shipping.
ESCO ESC300 Warranty
3-Year Limited Warranty
ESCO warrants the ESC300 to be free from defects in materials and workmanship for a period of 3 years from the date of shipment to the end user.
- 3 Years: Full coverage on all hydraulic components, cylinder assembly, scissors arms, handles, seals, and structural parts against manufacturing defects
- Coverage Includes: Repair or replacement (at ESCO's discretion) of unaltered parts proven defective within the warranty period
- Warranty Registration: Submit the warranty card to ESCO at www.esco.net/warranty or by mail to 15270 Flight Path Drive, Brooksville, FL 34604
Warranty Service: ESCO maintains an in-house repair facility in Brooksville, Florida with guaranteed 1-day turnaround service on warranty repairs. Pickup available for repairs at your location. ESCO also partners with 50+ authorized repair facilities across the US and Canada.
Exclusions: Warranty does not cover damage from improper use, lack of maintenance, incorrect application, or unauthorized modifications. Damage from shipping is not covered by warranty; claims must be filed with the carrier within 90 days of delivery.
Documents
Click to open in a new tab.
Questions About the ESCO ESC300?
Our equipment specialists can help with hydraulic pump selection, hose sizing, safety setup, and farm equipment tire service planning.
ESCO ESC300 FAQ
What is the difference between the ESC300 and standard bead breakers?
The ESCO ESC300 is specifically engineered for dual-wheel agricultural tractors. Unlike standard bead breakers that require tire removal, the ESC300 breaks the inner bead on outer dual tires while they remain mounted on the vehicle. With 10,000 lbs of hydraulic force and a narrow 4.5-inch minimum opening that expands to 12 inches, the ESC300 fits the specific gap between dual wheel assemblies common on farm equipment, making it ideal for in-place bead separation without dismounting.
Can the ESC300 be used on tires other than farm tractor duals?
While the ESC300 is specifically designed and optimized for dual-wheel farm tractor tire bead breaking, its 10,000 lb hydraulic force and adjustable 4.5-inch to 12-inch opening width can potentially work on other dual tire configurations. However, ESCO recommends consulting the user manual and contacting ESCO technical support at 1-800-352-9852 before attempting non-standard applications to ensure proper bead contact and safe operation on other equipment types.
How much hydraulic pressure is required to operate the ESC300?
The ESC300 is powered by a 5-ton hydraulic cylinder and generates 10,000 lbs of pushing force. The exact hydraulic pressure required depends on your specific pump, hose size, and coupler type. The bead breaker features an NPT 3/8-inch female coupler with a 90-degree elbow joint. Consult your hydraulic pump manufacturer's specifications and the ESC300 user manual for recommended operating pressure, and always use a pressure gauge to verify safe operating conditions before each use.
Is the ESC300 hard to position on the tire?
No. The ESC300 includes a removable ergonomic positioning handle (15.375 inches long, 1.5 inches high) that attaches with two screws. This handle eliminates technician strain and provides proper leverage for accurate bead breaker placement. The handle improves positioning by reducing the need to hold the tool's weight by hand, preventing improper alignment and reducing fatigue during service on multiple dual tires.
What is the 90-degree coupler and why is it important?
The ESC300 includes a built-in NPT 3/8-inch female coupler with a 90-degree elbow joint. This angled design redirects the hydraulic hose away from the tire and wheel work area, keeping the hose clear and preventing interference or damage during tire service. The dust cap keeps the coupler protected when not in use. This is an important ergonomic feature that improves technician safety and access to the tire being serviced.
How do I use the ESC300 to break the inner bead on outer dual tires?
After safely raising the tractor on jack stands and deflating the outer dual tire, place the ESC300 between the dual wheels with the bead-breaking arm facing the inner bead of the outer tire. Position the tool tip against the tire sidewall close to the rim lip. Apply light hydraulic pressure until the tool side contacts the inner rim flange. Continue applying pressure until the bead separates from the rim. Rotate the wheel in small increments and repeat until the entire bead is separated. Detailed instructions are in the user manual.
What is the weight of the ESC300 and is it portable?
The ESC300 weighs only 25 lbs (11.34 kg), making it highly portable for mobile tire shops and field service trucks. The overall dimensions are 37 inches long, 5 inches wide, and 5 inches tall. The removable positioning handle and compact design allow easy transport between service locations. It ships in a 37 x 5 x 5-inch box that fits standard vehicle storage and shelving.
What warranty coverage does ESCO provide with the ESC300?
The ESC300 is backed by a 3-year Limited Warranty covering all hydraulic components, cylinder assembly, scissor arms, handles, seals, and structural parts against manufacturing defects. ESCO maintains an in-house repair facility with guaranteed 1-day turnaround service. The company also partners with 50+ authorized repair centers across the US and Canada. To activate warranty coverage, register the warranty card at www.esco.net/warranty. Shipping damage is not covered; claims must be filed with the carrier within 90 days.
Can I use a standard hydraulic pump with the ESC300?
The ESC300 can be used with any hydraulic pump that has an NPT 3/8-inch female outlet coupler or compatible adapter. The choice of pump depends on your operating pressure requirements (consult the pump manual), desired flow rate, and portability needs. ESCO recommends using pumps specifically designed for tire service equipment. The ESC300 user manual provides guidance on pump selection. Contact ESCO at 1-800-352-9852 or sales@esco.net for pump recommendation and compatibility assistance.
Are replacement parts available for the ESC300?
Yes. The ESC300 parts list (included in documentation) identifies all internal components including seals, springs, O-rings, cylinders, and structural parts. ESCO maintains parts inventory and supplies replacements for wear items and components. Contact ESCO at 1-800-352-9852, info@esco.net, or visit www.esco.net to order parts. ESCO also offers repair service through its Brooksville facility and 50+ authorized repair centers if major components need professional service.
Is operator training required for the ESC300?
Yes. ESCO strongly recommends that operators be trained according to OSHA Regulation 29 CFR 1910.177, "Servicing Single-Piece and Multipiece Rim Wheels." The user manual includes safety information and operating instructions. Operators should also be familiar with tire and wheel manufacturer specifications for their specific equipment, as well as local government safety regulations. Improper use can result in serious injury. When in doubt about proper operation or safety precautions, contact ESCO technical support.
What safety precautions must I take when using the ESC300?
Never work on tires or wheels without first securing the vehicle on appropriate jack stands rated for the tractor's weight. Always deflate the tire completely and evacuate any ballast fluid before breaking the bead. Wear appropriate safety equipment including work gloves and safety glasses. Ensure proper hydraulic coupler connections and check for leaks before operating. Keep hands and body clear of the equipment arms during operation. Review the safety section of the user manual thoroughly and follow all warnings. Contact ESCO if you have questions about safe operation.
California Proposition 65 Warning
WARNING: This product can expose you to chemicals including styrene and vinyl chloride, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.p65warnings.ca.gov.
