ESCO 8ft Hydraulic Hose, w/ Half Coupler, 3/8" 18 Male - 10604
- Authorized Online Dealer direct manufacturer relationship
- No Sales Tax outside PA where applicable
- Authorized Dealer Price Match verification required
- Fast Delivery some products may have lead times
- Manufacturer Warranty included with purchase
- Questions? +1 (855) 498-2147

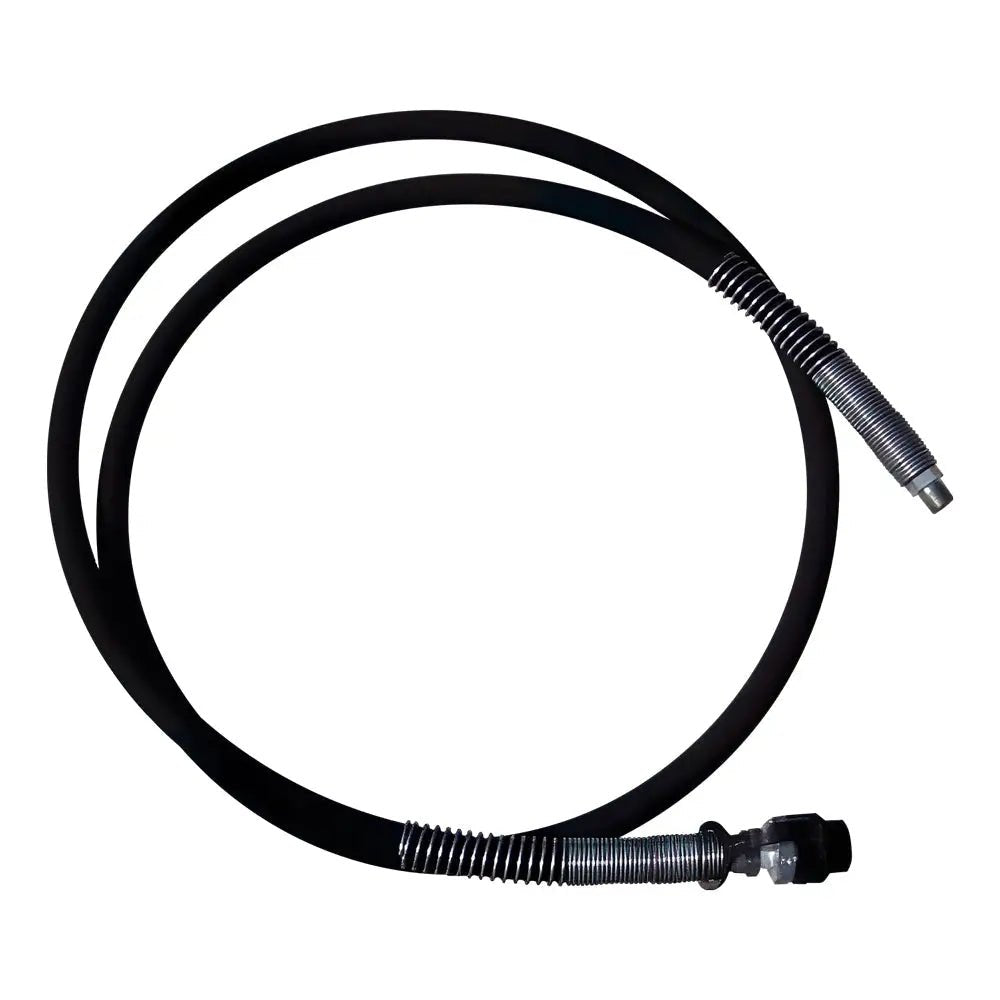

ESCO 10604 Heavy Duty 8ft Hydraulic Hose with Anti-Kink Swivel
The ESCO 10604 is a professional-grade 8 foot hydraulic hose rated for 10,000 PSI with dual steel-braided reinforcement and anti-kink swivel fitting. Built to handle the toughest shop conditions, this hose delivers consistent performance from freezing weather to hot engine bay applications. Unlike standard hydraulic lines that kink, twist, and crack under repeated pressure cycles, the 10604 features a 3/8 inch NPT swivel fitting that prevents hose memory while maintaining rock-solid pressure integrity. Includes the ESCO 10605 half-coupler for universal compatibility with 10,000 PSI hydraulic systems.
ESCO 10604 Heavy Duty Hydraulic Hose Features
Dual Layer Steel-Braided Reinforcement
Two layers of braided steel construction provide industrial-strength burst protection and extended service life. The dual reinforcement design prevents hose rupture and cracking under repeated pressure cycles, far exceeding single-layer construction found in standard hydraulic lines.
Anti-Kink Swivel Fitting Design
The integrated swivel fitting eliminates hose memory and twisting, allowing technicians to position tools and equipment without fighting stiff, kinked lines. Smooth rotation prevents stress points and extends hose life by reducing metal fatigue at fitting crimps.
Extreme Temperature Performance
Engineered to perform reliably in extreme temperatures from -40°F to 212°F. Maintains seal integrity and hose flexibility in freezing outdoor repairs and high-heat engine bay applications where standard hoses become brittle or soft.
Professional 10,000 PSI Capacity
Rated for 10,000 PSI maximum working pressure compatible with professional hydraulic pumps, rams, bead breakers, and shop equipment. Consistent pressure delivery enables reliable operation across all hydraulic tool applications in commercial service bays.
Universal 3/8 Inch NPT Fitting

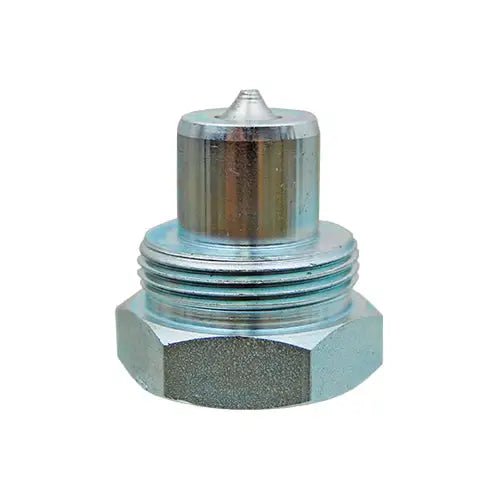

3/8 inch NPT male threads connect to standard hydraulic equipment and adapters. Includes ESCO 10605 half-coupler for immediate compatibility with female hydraulic couplings on pumps, tanks, and tool connections.
Heavy-Duty Construction for Shop Durability
Built from premium materials engineered for harsh professional environments. The 5 pound assembly combines durable black hose with spring-protected crimped ends, delivering heavy-duty reliability that stands up to daily shop abuse and demanding maintenance cycles.
ESCO 10604 Hydraulic Hose Applications
- Tire Service and Bead Breakers: Delivers consistent 10,000 PSI pressure to professional bead breakers for rapid tire demounting and remounting in high-volume tire shops, with extreme cold tolerance for winter outdoor service.
- Shop Hydraulic Jacks and Rams: Powers heavy-duty automotive lifts, hydraulic jacks, and lifting rams used for vehicle support during suspension, transmission, and engine work in service bays.
- Mobile Roadside Repair Equipment: Reliable pressure lines for mobile service rigs and roadside assistance vehicles that require durable, freeze-resistant hydraulic hoses for year-round emergency repairs.
- Heavy Equipment Maintenance: Supports hydraulic systems on construction equipment, agricultural machinery, and industrial lifting tools operating in demanding field conditions and extreme temperatures.
- Body Shop Hydraulic Tools: Powers pneumatic and hydraulic rams, straightening equipment, and lifting systems used for vehicle frame work and collision repair in professional body shops.
ESCO 10604 Specifications
| Specification | Value |
|---|---|
| Hose Length | 8 feet |
| Maximum Working Pressure | 10,000 PSI |
| Fitting Size | 3/8 inch NPT male threads |
| Weight | 5 lbs (2.2 kg) |
| Specification | Value |
|---|---|
| Reinforcement | Dual layer braided steel construction with spring guards |
| End Fittings | 3/8 inch x 3/8 inch male ends with swivel fitting |
| Coupler Included | ESCO 10605 half-coupler |
| Hose Color | Black |
| Specification | Value |
|---|---|
| Temperature Range | -40°F to 212°F (-40°C to 100°C) |
| Swivel Fitting | Anti-kink rotation design |
| Durability Rating | Heavy-duty professional use |
| Model Number | ESCO 10604 |
What's Included with the ESCO 10604
- 8 foot hydraulic hose with dual steel-braided reinforcement
- Anti-kink swivel fitting on 3/8 inch NPT male ends
- ESCO 10605 half-coupler for immediate connection
- Spring-protected crimped end fittings
Not Included: Additional couplers, adapters, hydraulic fluid, pressure gauge, or installation labor.
ESCO 10604 Hydraulic Hose Shipping and Delivery
Standard Shipping
Coverage: Free standard shipping to addresses in the 48 contiguous United States. Lead Time: 2-3 business days. International: Contact sales for international shipping rates.
Delivery Requirements
Packaging: Shipped via standard parcel carrier with protective packaging. Inspection: Inspect hose and coupler upon receipt for damage. Damage Claims: If package appears damaged, note condition on delivery receipt and contact customer service within 24 hours.
Returns
Returns accepted within 30 days of delivery. Product must be unused, in original packaging with receipt. 15% restocking fee applies. Buyer responsible for return shipping. Items that have been pressurized or used are not eligible for return.
ESCO 10604 Warranty
Manufacturer Warranty
The ESCO 10604 Hydraulic Hose is backed by manufacturer warranty covering defects in materials and workmanship.
- 1 Year: Coverage for manufacturing defects, material failure, fitting integrity, and swivel operation under normal service conditions
Requirements: Warranty applies when hose is used in proper 10,000 PSI applications according to specifications. Does not cover damage from overpressurization, improper storage, abrasion from contact with sharp edges, impacts, or normal wear from extended service. Proof of purchase required for warranty claims.
Questions About the ESCO 10604 Hydraulic Hose?
Our hydraulic equipment specialists can help with pressure system design, hose sizing, connector compatibility, and professional installation guidance.
ESCO 10604 Hydraulic Hose FAQ
What is the maximum PSI rating for the ESCO 10604 hose?
The ESCO 10604 is rated for 10,000 PSI maximum working pressure. This rating makes it compatible with professional hydraulic pumps, bead breakers, rams, and automotive equipment operating in commercial service bays. Never exceed the 10,000 PSI specification to maintain safe operation and preserve hose integrity.
Will this hose fit my existing hydraulic equipment?
Yes. The 3/8 inch NPT male threads are standard for professional hydraulic equipment including pumps, cylinders, and bead breakers rated for 10,000 PSI service. The included ESCO 10605 half-coupler provides immediate connection to female hydraulic couplings on most shop equipment. If your equipment has non-standard fittings, adapters are available separately.
What makes the swivel fitting important?
The anti-kink swivel fitting eliminates hose twisting and memory that causes premature cracking and stress points at crimped connections. Unlike fixed fittings that force technicians to fight stiff lines, the swivel design allows smooth rotation for proper tool positioning, reducing fatigue and extending overall hose service life.
Can I use this hose in extreme cold weather?
Absolutely. The ESCO 10604 is specifically engineered for extreme temperatures down to -40°F, maintaining seal integrity and hose flexibility in freezing conditions where standard hydraulic hoses become brittle and prone to cracking. Winter outdoor tire service and mobile repair work are ideal applications.
How does dual steel-braided reinforcement compare to single-layer hoses?
Dual layer braided steel construction provides superior burst protection and longer service life compared to single-layer hoses used in standard equipment. The additional reinforcement layer prevents rupture failures and allows the hose to withstand repeated pressure cycles without developing weak points or internal damage.
What is included with the ESCO 10604?
The package includes the 8 foot hydraulic hose with swivel fitting and the ESCO 10605 half-coupler for immediate connection to female hydraulic couplings. No additional adapters or couplers are needed for standard 10,000 PSI equipment connections. Spring-protected crimped ends provide impact resistance.
How should I store the hydraulic hose when not in use?
Store the hose in a cool, dry location away from direct sunlight, extreme heat, or corrosive chemicals. Coil the hose loosely without kinks to preserve hose integrity. Keep fitting ends capped to prevent contamination. Proper storage extends shelf life and maintains performance characteristics until installation.
Can I splice or repair a damaged section of this hose?
No. Hydraulic hoses must never be spliced, patched, or repaired due to safety and pressure integrity concerns. If the hose is damaged, it must be replaced entirely with a new ESCO 10604 or equivalent. Using damaged or repaired hoses risks pressure failures and equipment damage.
Is this hose suitable for both indoor and outdoor shop use?
Yes. The ESCO 10604 is rated for both indoor service bays and outdoor mobile repair applications. The extreme temperature range and durable dual steel-braided construction perform reliably in harsh environmental conditions, wet weather, and temperature extremes typical of automotive service work.
What pressure should I use for optimal performance and hose life?
Operate at the pressure required by your specific hydraulic equipment, typically 5,000 to 10,000 PSI. Never exceed the 10,000 PSI maximum specification. Operating below maximum rated pressure reduces stress on hose components and extends service life. Verify your pump or equipment manual for recommended operating pressure.
Does the swivel fitting reduce hose flexibility or flow rate?
No. The swivel fitting does not impair flow rate or hose flexibility. It simply allows rotation without internal twisting that would otherwise force the hose into kinked positions. Flow capacity and hydraulic performance are identical to fixed-fitting hoses of the same specification.
What is the warranty coverage for the ESCO 10604?
The ESCO 10604 includes 1 year manufacturer warranty covering defects in materials and workmanship under normal service conditions. Warranty does not cover overpressurization, improper storage, abrasion from sharp edges, impact damage, or wear from extended service. Proof of purchase is required for warranty claims.
California Proposition 65 Warning
WARNING: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.p65warnings.ca.gov.
