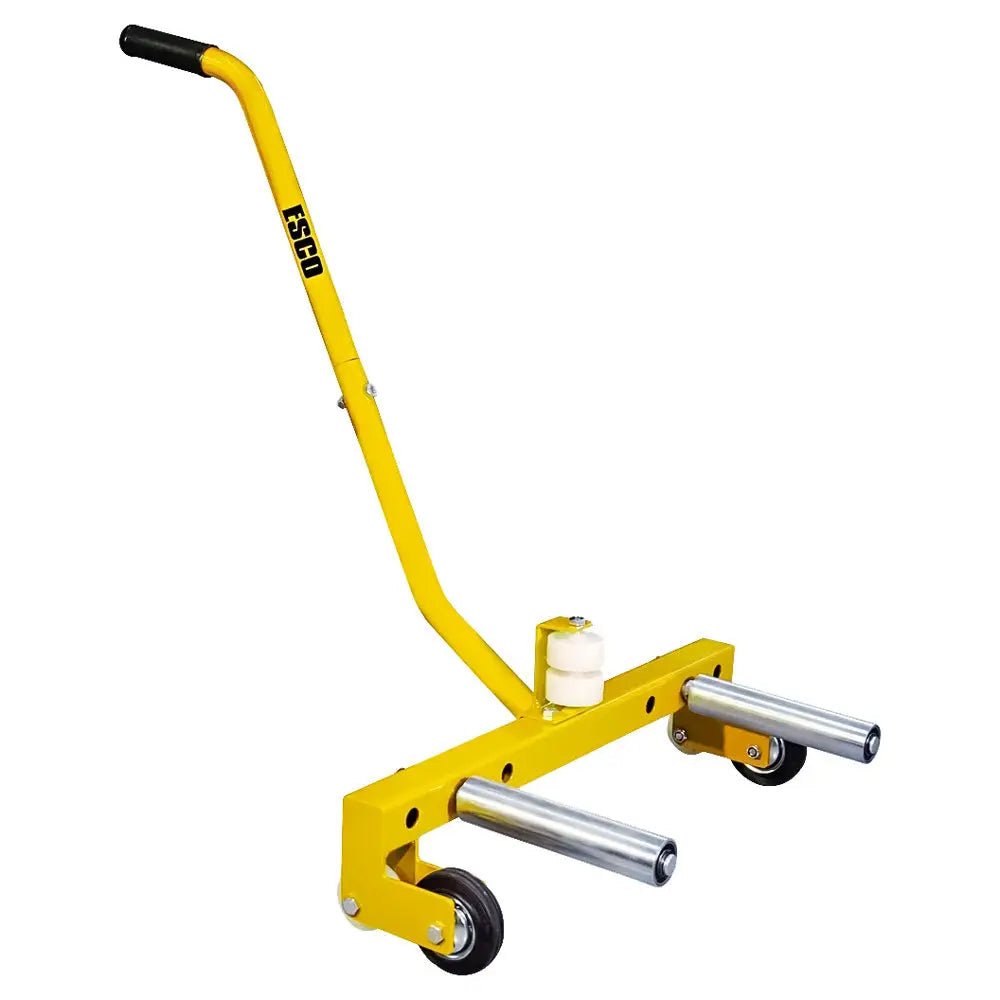

ESCO 70134 HD Adjustable Wheel Dolly

330 lb capacity, adjustable for tires 23.5" to 43.5"

The ESCO 70134 is a lightweight, portable wheel dolly that eliminates manual tire lifting during service work. With a 330 lb lifting capacity, adjustable rollers for tire diameters from 23.5" to 43.5", and dual-wheel design, this dolly reduces labor time and prevents rim damage. The ergonomic 38-inch handle provides comfortable positioning, while smooth rollers enable 360-degree tire rotation for precise wheel alignment.

Key Features

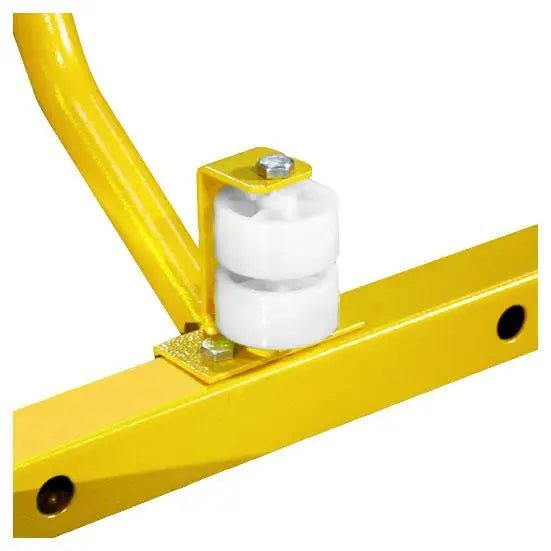

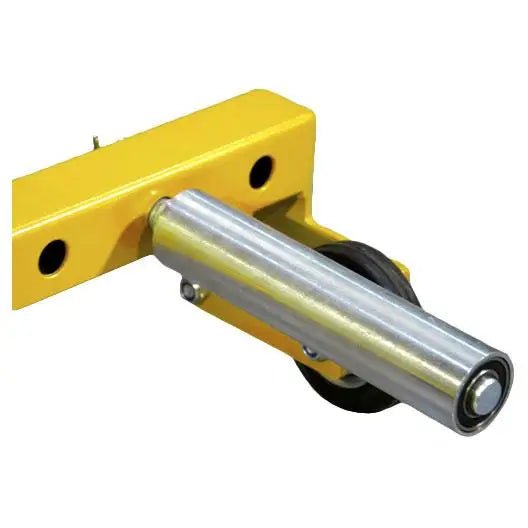

Adjustable Rollers

Three adjustable height positions accommodate tire diameters from 23.5" to 43.5". Rollers grip tires securely without marking rims, protecting expensive wheels during mounting and demounting work.

360-Degree Rotation

Smooth adjustable rollers enable effortless tire rotation in either direction for precise lug hole alignment with wheel studs. Smooth action minimizes operator effort and reduces installation time.

Dual-Wheel Design

4-inch and 2.5-inch wheels provide excellent maneuverability across shop floors. Separate wheels allow precise positioning and smooth rolling across concrete without binding or requiring multiple operators.

Lightweight and Portable

At only 28 lbs, the 70134 is easily transported between work areas and stored in tight spaces. Heavy-duty steel construction supports the full 330 lb capacity without compromising portability.

What's Included

ESCO 70134 HD Adjustable Wheel Dolly (assembled unit)
Ergonomic handle
Dual wheels (4-inch and 2.5-inch)
Adjustable rollers with 3 position settings

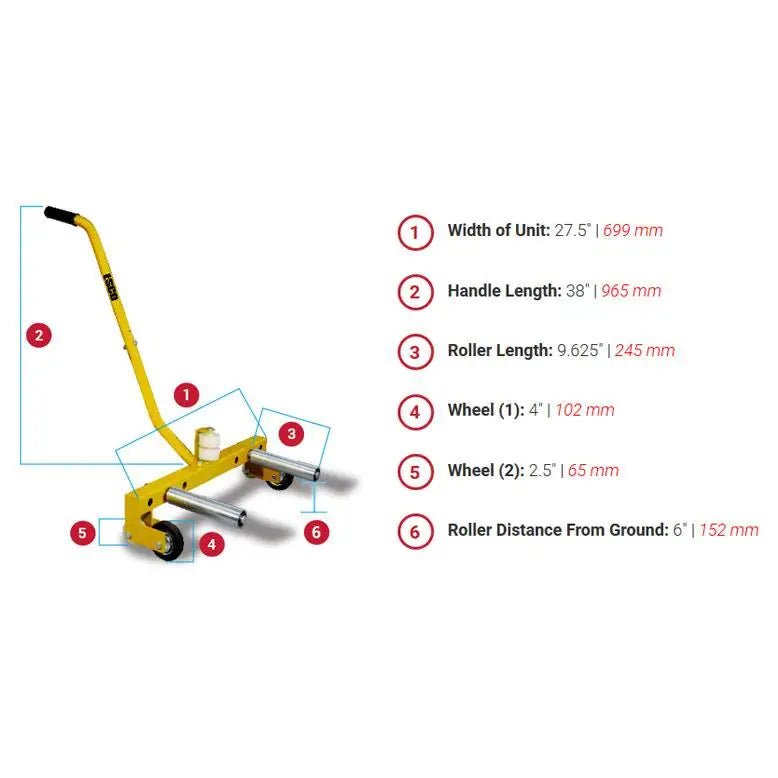

Specifications
Specification	Value
Brand	ESCO
Model	70134
SKU	ESC-70134
Lifting Capacity	330 lbs. (150 kg)
Tire Diameter Range	23.5" to 43.5" (597 mm to 1105 mm)
Width of Unit	27.5"
Handle Length	38"
Roller Length	9.625"
Roller Positions	3 adjustable height settings
Wheel 1 Diameter	4"
Wheel 2 Diameter	2.5"
Weight	28 lbs. (12.7 kg)

Perfect For

Tire shops and service centers handling high-volume tire mounting and demounting
Dealership service departments managing customer tire rotations and replacements
Fleet maintenance facilities servicing commercial vehicles and trucks
Independent repair shops seeking professional tire handling without large equipment
Agricultural equipment service for farm tractors and large tires
Technicians reducing physical strain and preventing rim damage during service
