Esco 40130 Sleeve Nuts for Aluminum and Steel Wheel - Each

ESCO 40130 Sleeve Nuts for Aluminum and Steel Wheel

$10.75

Qty: Each

Each
Box of 100

Product variants

$ Save 3% with ACH / Wire Payment — call for details

Authorized Online Dealer direct manufacturer relationship
No Sales Tax outside PA where applicable
Authorized Dealer Price Match verification required
Fast Delivery some products may have lead times
Manufacturer Warranty included with purchase
Questions? +1 (855) 498-2147

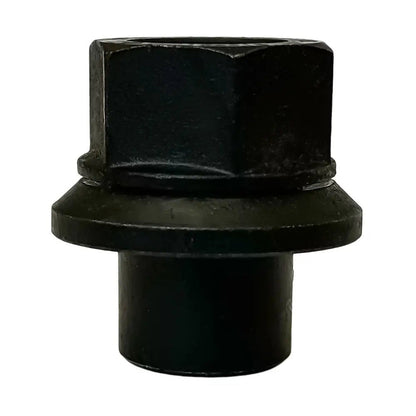

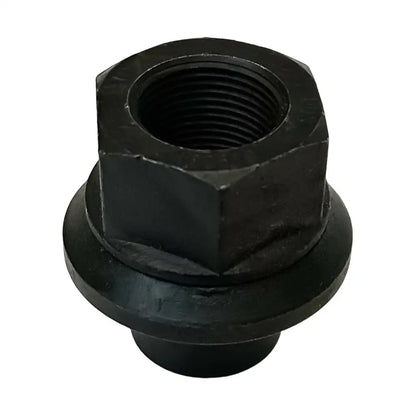

ESCO 40130 Wheel-Tite Sleeve Nuts for Commercial Trucks

M22 flange nuts with graphite coating, prevents wheel clocking

The ESCO 40130 is a precision-engineered M22 flange nut replacement featuring a 19.5-millimeter extended sleeve and graphite coating designed to eliminate wheel clocking and prevent costly wheel-offs on commercial trucks. These nuts withstand over 2,500 pounds of force while the graphite coating prevents rust between the hub and nut. Ideal for aluminum steer axles paired with steel drive axles or mixed steel and aluminum drive configurations.

Key Features

Eliminates Wheel Clocking

The 19.5-millimeter extended sleeve locks the rim to the hub, preventing rotation that causes thread damage and stud failure. This design stops the stress risers that lead to premature stud failure and wheel-offs in commercial trucking applications.

Graphite Coating Protection

Special graphite coating prevents rust buildup between the nut and hub while reducing friction during installation and removal. The coating fills gaps between studs and bolts, extending wheel assembly service life and improving operational reliability.

Exceeds Torque Standards

Engineered to withstand over 2,500 pounds of force and meets or exceeds industry torque tension specifications (SAE J1965). Safe for the heaviest commercial truck applications including tandem axle configurations and maximum payload operations.

Reduces Maintenance Costs

By preventing wheel clocking and hub misalignment, these nuts reduce stud replacements, wheel hub rebuilds, and suspension repairs. Fleet operators report significant savings through fewer emergency roadside repairs and extended component life.

What's Included

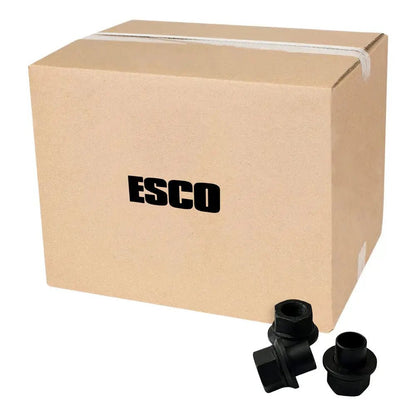

ESCO 40130 M22 Sleeve Nuts with graphite coating (individual unit or box of 100)

Specifications
Specification	Value
Brand	ESCO
Model	40130
SKU	ESC-40130
Nut Type	Flange Nut with Extended Sleeve
Thread Size	M22
Sleeve Length	19.5 millimeters
Force Rating	Over 2,500 lbs.
Coating Type	Graphite
Weight per Unit	0.4 lb.
Torque Standard	Meets and exceeds SAE J1965
Compatible Configurations	Aluminum steer with steel drive, steel outer with aluminum inner drive

Perfect For

Commercial truck fleets with aluminum steer axles and steel drive axles
Tandem axle dual rear wheel configurations requiring wheel stability
Long-haul operations where wheel clocking causes safety and alignment issues
Heavy equipment and construction trucks with high payload demands
Fleet preventive maintenance programs reducing emergency roadside repairs

California Proposition 65 Warning

WARNING: This product can expose you to chemicals including lead which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.p65warnings.
