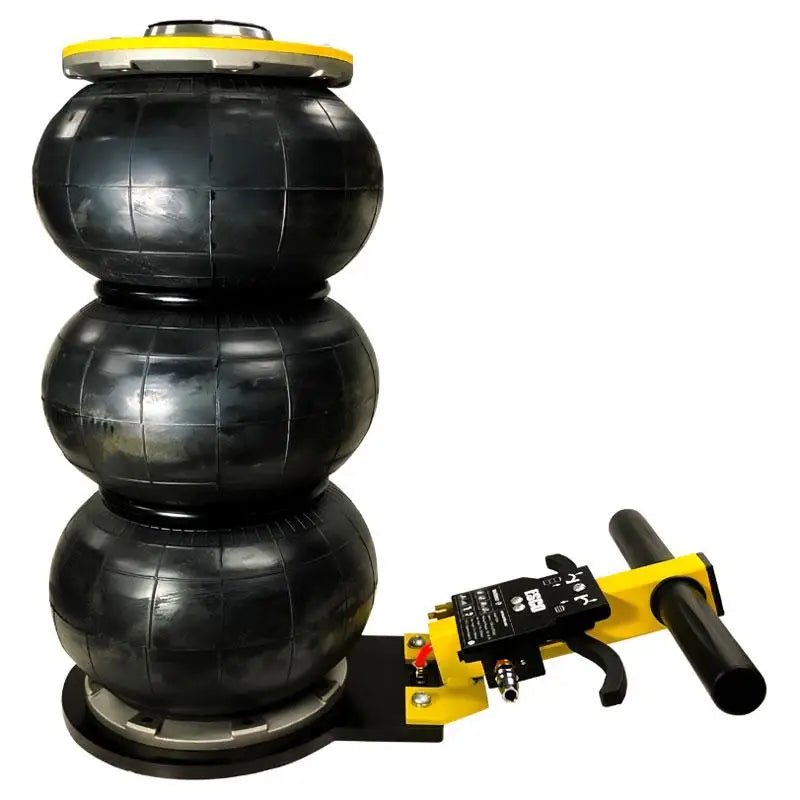

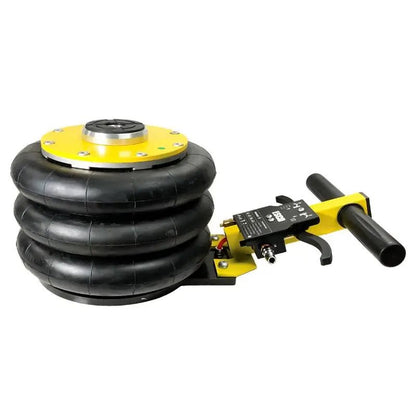

ESCO YAK 203 2.2 Ton 3-Stage Air Bladder Jack
Pneumatic lift for tire and bodywork, 8.07" to 19.29" height range
Air-powered jack with 2.2 ton capacity for tire technicians and body shops. Three-stage expansion provides smooth, controlled lifting from 8.07" minimum to 19.29" maximum height. Pneumatically controlled with internal telescope guide, limit stop device, and safety valve for reliable operation under load.
Key Features
3-Stage Air Expansion
Pneumatic bladder design expands in three smooth stages for controlled lifting. No manual pumping required - simply apply shop air for immediate operation.
Low 8.07" Minimum Height
Fits under low-clearance vehicles and odd lift points. Maximum reach of 19.29" handles standard service work without additional extensions.
Built-In Safety Systems
Limit stop device and safety valve prevent overextension and overloading. Highly resistant diaphragm and internal telescope guide ensure long-term reliability.
Lightweight and Silent
Weighs 37 lbs. for easy positioning and handling. Quiet operation makes it ideal for tire bays and body shops working near service customers.
What's Included
- ESCO YAK 203 2.2 Ton Air Bladder Jack (ESC-92013)
| Specification | Value |
|---|---|
| Brand | ESCO |
| Model | YAK 203 (ESC-92013) |
| SKU | ESC-92013 |
| Capacity | 2.2 tons |
| Lift Mechanism | Pneumatic air bladder with 3-stage expansion |
| Minimum Height | 8.07" |
| Maximum Height | 19.29" |
| Working Air Pressure | 116-145 PSI |
| Net Weight | 37 lbs. |
| Warranty | 3 years (with registration) |
Perfect For
- Tire shops and service bays handling frequent lifts
- Automotive body work and panel beating shops
- Mobile technicians and service trucks
- Shops with limited space or low-clearance lift points
- High-volume lifting operations requiring quiet operation
Frequently Asked Questions
How does pneumatic operation work compared to hydraulic jacks?
This jack uses shop air pressure to expand an internal bladder in three stages, providing smooth, controlled lifting without the need for fluid maintenance. No hydraulic fluid leaks, no pumping action required - simply connect to your air line and it operates at 116-145 PSI. Air-powered units are quieter and lighter than comparable hydraulic models, making them ideal for high-frequency lifting in busy shops.
Will this jack work on all vehicle types?
Yes, the 2.2 ton capacity handles sedans, compact trucks, and light SUVs within its weight range. The 8.07" minimum height allows access under low-clearance vehicles. For heavier vehicles or higher lift points, check the manufacturer's specifications or consider a higher-capacity model. Always verify your specific vehicle's weight and lift point compatibility before lifting.
What air pressure do I need for this jack?
The jack operates at 116-145 PSI, which is within the standard shop air supply range. Most commercial compressor systems exceed this requirement. Ensure your air line is clean and dry to prevent bladder damage. The working pressure maintains consistent lifting power across all three expansion stages.
Is this available in a trolley version?
Yes, the ESCO YAK 203 is available in a trolley version (Model ESC-92014), which provides mobility across your shop floor. Extensions for additional height are also sold separately (Model ESC-92017). Contact the manufacturer or sales team for availability and current pricing on these variants.
What maintenance does this jack require?
Minimal maintenance is required for pneumatic operation. Keep the air line connection clean and ensure your shop air is properly filtered and dried to protect the internal bladder. Check the diaphragm periodically for wear and verify the limit stop device and safety valve function correctly. The 3-year warranty covers defects with product registration.
Can I use this jack on an alignment rack or column lift?
Yes, these jacks are designed for use with column lifts and alignment equipment. The lightweight design and compact footprint make them ideal for supplemental lifting in professional shop environments. Verify compatibility with your specific equipment and follow all safety guidelines for multi-jack lifting scenarios.
