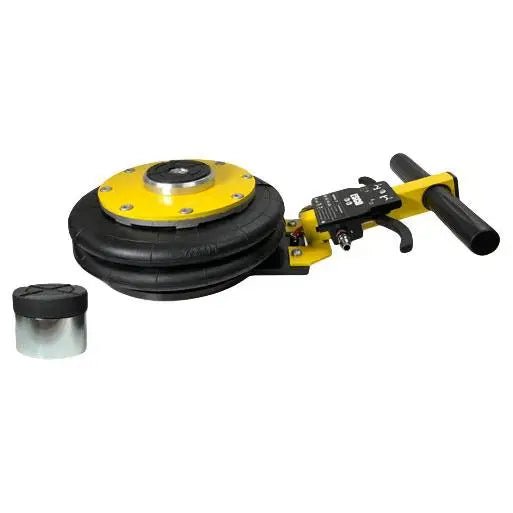

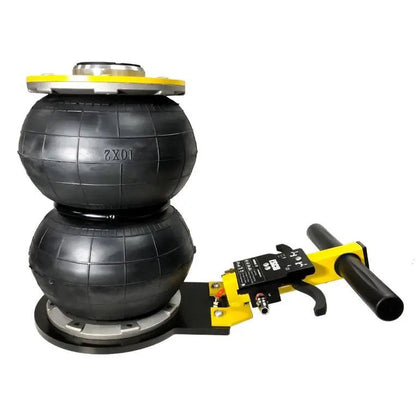

ESCO 92040 Pro Series 2 Ton 2 Stage Bladder Jack
The ESCO Pro Series 92040 is a versatile pneumatic bladder jack engineered for automotive, SUV, and light truck applications. Delivering a 2-ton capacity (4,000 lbs) with a 2-stage expandable design, this jack operates at 100-145 PSI air pressure and expands from 4.5 inches minimum height to 17 inches maximum, including a 3-inch extension. Equipped with dual safety valves that prevent over-inflation and uncontrolled deflation, the ESCO 92040 provides precise lifting control for tire work, suspension service, brake repairs, and body shop frame machine applications. The large bottom plate ensures exceptional stability while the heavy-duty airbag construction handles demanding daily service shop conditions.
ESCO 92040 Features
2-Stage Expandable Bladder Design
The 2-stage expandable system lifts from a compact 4.5-inch minimum height up to 17 inches maximum, providing professionals with the flexibility needed for diverse lifting scenarios. This expandable design eliminates the need to purchase multiple jacks for different applications.
Dual Safety Valve System
Built-in dual safety valves prevent dangerous over-inflation that can damage the jack and uncontrolled deflation (descent) under load. This redundant safety system ensures the jack cannot accidentally drop a load, protecting both equipment and personnel during critical lifts.
Heavy-Duty Airbag Construction
The heavy-duty designed airbags withstand repetitive daily use in busy service shops without degradation or failure. The pneumatic bladder system is inherently stable and provides controlled, predictable lifting performance across thousands of cycles.
Large Stability Plate
The large bottom plate distributes load pressure across a wider surface area, significantly increasing stability on concrete floors, metal frames, and uneven shop surfaces. This wide footprint prevents tipping and ensures safe operation even with awkwardly positioned loads.
Easy Up-and-Down Operation
The intuitive up-and-down function handle provides one-handed control of inflation and deflation, enabling technicians to make precise height adjustments without releasing their grip on the jack. This responsive control is essential for delicate frame machine work and suspension service.

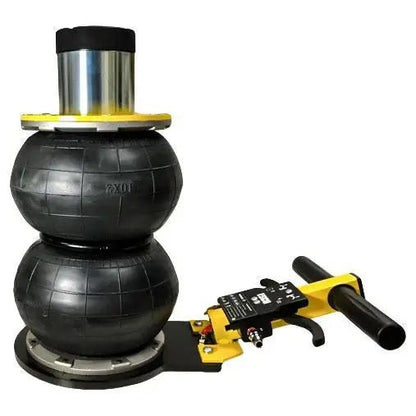

Includes 3-Inch Extension
The 3-inch (80mm) extension comes standard with the 92040, expanding capability beyond the standard reach and adapting to even the most challenging lifting scenarios without requiring additional purchases.
ESCO 92040 Applications
- Tire and Wheel Service: Lift vehicles safely for tire mounting, dismounting, and wheel removal during tire shop operations without the need for larger stationary lifts.
- Suspension and Brake Work: Raise vehicles with precision for suspension component service, brake line work, and suspension geometry inspection in high-volume service centers.
- Collision Repair and Frame Machines: Provide supplemental lifting support on frame straightening machines, allowing technicians to raise and lower components in small increments for precise alignment corrections.
- Mobile Service Technicians: Deliver portable, pneumatic lifting capability for field service operations where stationary lift systems are unavailable but 2-ton capacity is sufficient.
- Precise Lift Adjustments: Enable extremely controlled lifting for delicate operations on expensive vehicles, luxury cars, and specialty vehicles where stability and precision are paramount.
ESCO 92040 Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 2 tons (4,000 lbs) |
| Jack Type | 2-Stage pneumatic bladder |
| Airbag Design | Heavy-duty 2-bag configuration |
| Specification | Value |
|---|---|
| Minimum Height (A) | 4.5 inches (115 mm) |
| Extended Height (B) | 9.25 inches (235 mm) |
| Extension Height (C) | 3 inches (80 mm) |
| Maximum Height (A+B+C) | 17 inches (430 mm) |
| Base Width | 10.4 inches (265 mm) |
| Weight | 29.6 to 34 lbs (13-15 kg) |
| Specification | Value |
|---|---|
| Working Air Pressure | 100-145 PSI |
| Safety Features | Dual safety valves prevent over-inflation and uncontrolled deflation |
| Control Type | Up-and-down function handle for precise operation |
| Air Connection | Standard pneumatic air inlet |
What's Included with the ESCO 92040
- ESCO 92040 Pro Series 2 Ton 2-Stage Bladder Jack
- 3-inch (80mm) extension for expanded reach
- Up-and-down operation handle
- Dual safety valve system pre-installed
- Instruction card with safety ratings and guidelines
Optional Accessories: ESCO offers additional extension pieces and lifting pads available separately to further customize height and load distribution for specific applications.
Not Included: Air compressor, air hose, or pneumatic connections. A pneumatic air source capable of 100-145 PSI is required for operation.
ESCO 92040 Shipping and Delivery
Standard Shipping
Coverage: Free shipping on orders over $50 to all U.S. locations. Lead Time: 3-5 business days. International: Contact sales for international rates and availability.
Delivery Details
Packaging: Jack ships fully assembled and pressure-tested to ensure all airbags seal properly. Inspection: Inspect unit upon arrival for visible damage. Inflate with air compressor to verify both airbag stages engage properly before placing into service.
Returns
Returns accepted within 30 days of delivery if unused and in original packaging. 20% restocking fee applies. Buyer responsible for return shipping costs. Once inflated and used, returns are not accepted.
ESCO 92040 Warranty
Standard Manufacturer Warranty
The ESCO Pro Series 92040 Bladder Jack includes a comprehensive 1-year limited warranty against defects.
- 1 Year: Covers manufacturing defects in airbags, valves, and structural components under normal commercial use
Coverage Details: Protects against defects in materials and workmanship from the date of original purchase. Warranty excludes damage from overloading beyond rated capacity, improper storage, rupture from impact, or failure to maintain appropriate air pressure. Non-transferable and applies only to the original end-user purchaser. Proof of purchase required for warranty claims.
Questions About the ESCO 92040?
Our equipment specialists can help with air compressor compatibility, lifting calculations, and product selection for your shop or mobile service needs.
ESCO 92040 FAQ
What is the maximum weight the ESCO 92040 can lift?
The ESCO 92040 has a 2-ton lifting capacity, which equals 4,000 pounds maximum safe working load. This capacity applies when the jack is properly positioned on a level surface with the load centered on the lifting surface. Never exceed this rated capacity. For loads exceeding 2 tons, use a larger capacity lifting solution.
What is the minimum and maximum height of this jack?
The ESCO 92040 has a minimum collapsed height of 4.5 inches and a maximum expanded height of 17 inches with the 3-inch extension included. The 2-stage design allows you to use intermediate heights: approximately 9.25 inches in the first stage, then add the 3-inch extension for additional reach. This 12.5-inch range of motion accommodates most automotive lifting applications.
What air pressure does this jack require?
The ESCO 92040 operates at 100-145 PSI pneumatic air pressure. Any standard shop air compressor capable of delivering 100 PSI or higher is sufficient. Lower pressures slow lifting speed, while higher pressures within the rated range improve responsiveness. Verify your air compressor's output pressure before connecting the jack.
Can I use this jack with a standard air compressor?
Yes. The ESCO 92040 connects to any standard 100-145 PSI air compressor using standard pneumatic hose and quick-connect fittings. Most shop air systems easily meet these requirements. Verify your compressor can maintain at least 100 PSI steady-state pressure under load when connected to this jack.
How do the dual safety valves work?
The dual safety valve system has two independent functions: one prevents over-inflation if air pressure accidentally exceeds 145 PSI, venting excess pressure to protect the airbags. The second prevents uncontrolled deflation by restricting how quickly the airbag can release pressure. Together, these valves ensure the jack cannot rupture and cannot drop a load suddenly even if the air valve is accidentally opened.
Is this jack suitable for collision repair shops?
Yes. The ESCO 92040 is a popular choice among collision repair facilities for use with frame straightening machines. The precise up-and-down control and 2-stage expandable design make it ideal for making small, controlled height adjustments during frame alignment work. The 2-ton capacity is sufficient for supplemental lifting support on frame machines.
What maintenance does the ESCO 92040 require?
The ESCO 92040 requires minimal maintenance. After each use, deflate the jack completely and store in a dry location. Inspect the airbags monthly for cracks, punctures, or weak areas. Wipe the jack with a dry cloth occasionally to prevent rust or corrosion on metal components. Do not apply oils or solvents that might deteriorate the rubber airbags.
Can the airbags be repaired if damaged?
Airbag repair is not recommended. If the airbags rupture or develop leaks, the entire jack should be replaced. Attempting to patch or glue a damaged airbag is unsafe and may fail under load. Contact ESCO for replacement options if you experience airbag damage.
How does this compare to other 2-ton jacks?
The ESCO 92040 stands out through its 2-stage expandable design (4.5-inch to 17-inch height range), dual safety valves, and pneumatic operation. Unlike manual bottle jacks, it requires no pumping action - simply apply air pressure and adjust height with the control handle. The heavy-duty airbag construction is more durable than hybrid systems and provides smoother operation for frame machine applications.
What happens if I exceed the 4,000 lb capacity?
Exceeding capacity risks rupturing the airbags, damaging the safety valve system, and potentially dropping the load. The 2-ton rating is absolute and non-negotiable for safety. Always verify the weight of items being lifted and use only this jack for loads within its 4,000 lb capacity. Use a larger capacity jack for heavier loads.
Is the 3-inch extension removable?
Yes. The included 3-inch extension can be removed if you need to reduce the maximum height or when working in spaces with height restrictions. Simply disconnect the extension from the top of the jack to use it at 9.25-inch maximum height instead of 17 inches.
Can multiple ESCO 92040 jacks be used together?
Yes. Multiple 2-ton jacks can be deployed simultaneously to distribute load across multiple lift points, effectively multiplying capacity. When using multiple jacks, maintain equal air pressure and height on all units to ensure even load distribution and prevent tipping. Synchronize inflation and deflation to prevent load shift.
California Proposition 65 Warning
WARNING: This product can expose you to chemicals including styrene and vinyl chloride, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.p65warnings.ca.gov.
