ESCO 12521 Cribbing System, Bottom Stability Plate (23" x 23" x 1.5")
- Authorized Online Dealer direct manufacturer relationship
- No Sales Tax outside PA where applicable
- Authorized Dealer Price Match verification required
- Fast Delivery some products may have lead times
- Manufacturer Warranty included with purchase
- Questions? +1 (855) 498-2147

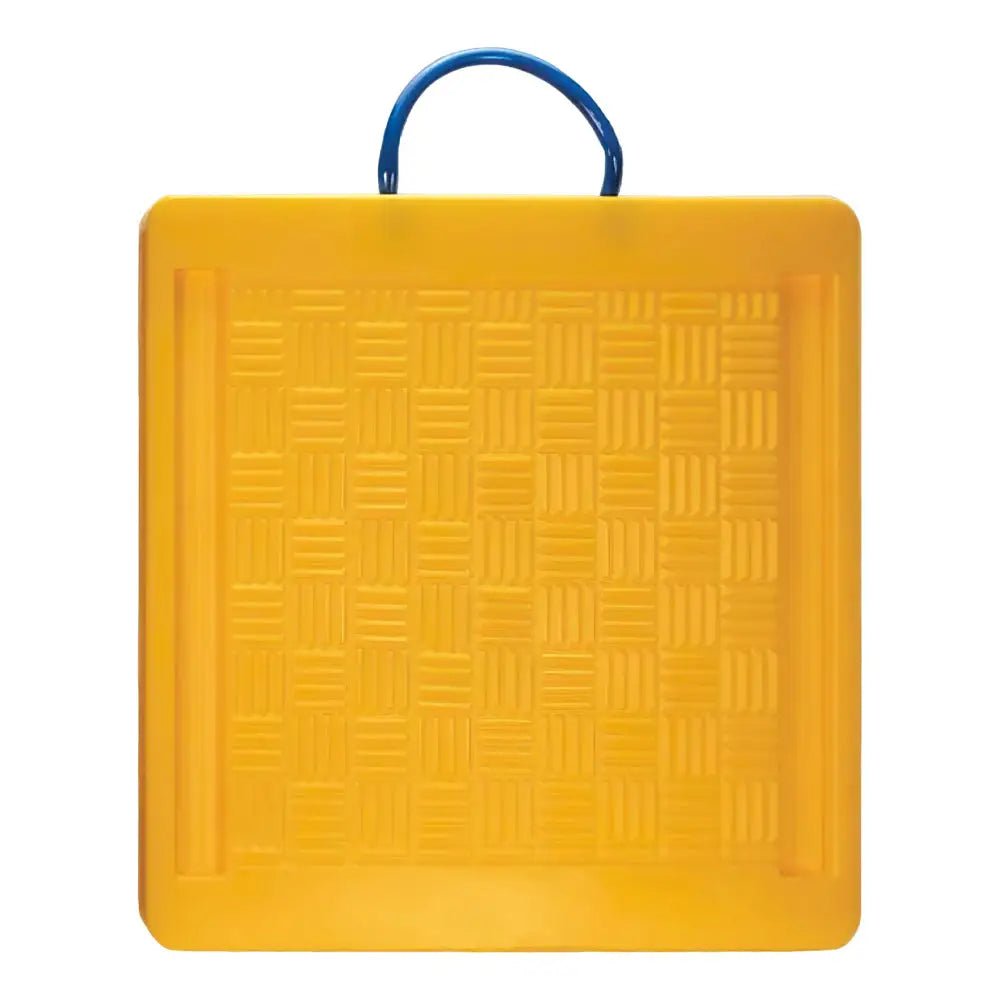

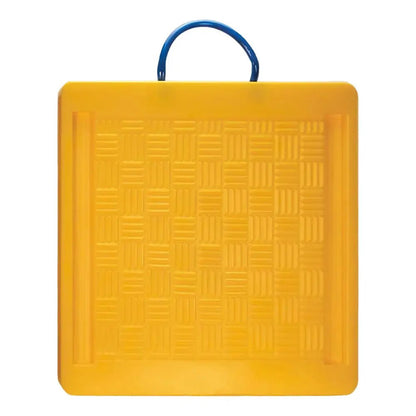

ESCO 12521 Cribbing System Bottom Stability Plate
The ESCO 12521 is a heavy-duty bottom stability plate (23" x 23" x 1.5") designed for the ESCO cribbing system, which safely supports loads up to 100 US tons (200,000 lbs.). This patented inner-locking bottom plate pairs with cribbing blocks to create a secure, stable foundation for any load. Made from durable, waterproof material that outlasts wood and composite alternatives, the ESCO 12521 is ideal for professional shops, heavy equipment operations, and job sites requiring reliable cribbing solutions.
ESCO 12521 Features

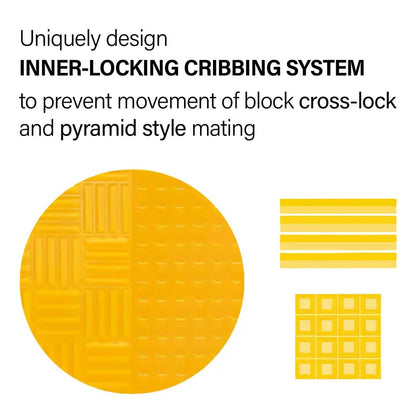

Patented Inner-Locking Design
The ESCO 12521 uses a unique patented inner-locking system that prevents blocks from shifting or moving under heavy loads. Unlike traditional cribbing, this design delivers solid contact points with no voids, creating a completely secure foundation. The inner-locking mechanism works with both cross-lock and pyramid-style mating for maximum stability.
Extreme Load Capacity
Designed to safely support loads up to 100 US tons (200,000 lbs.), the ESCO 12521 has been successfully tested to 400,000 lbs. in independent testing facilities. This proven capacity makes it suitable for the heaviest industrial and automotive applications, from lifting heavy trucks to supporting equipment on job sites.
Durable, Long-Life Construction
The ESCO 12521 is manufactured from materials that will not get brittle, crack, or deteriorate over time. Unlike wood cribbing that splinters and degrades, or composite materials that break down in UV light, this stability plate outlasts all competitive alternatives for decades of reliable service.
Waterproof and Chemical Resistant
Designed for both indoor and outdoor use, the ESCO 12521 is waterproof, insect-proof, rot-proof, and resistant to oil and other chemicals. This makes it ideal for shops, outdoor job sites, and environments where moisture and chemical exposure would damage wood or composite cribbing.
High-Visibility Safety Design
The plate features high-visibility color on top and bottom surfaces to promote safety and enable better visual inspection of cribbing systems. The bright coloring helps personnel quickly identify cribbing components on the job site and ensures proper orientation during setup.
Compact, Lightweight Design
The 23" x 23" footprint is 10% lighter than competitive brands while maintaining full load capacity. The compact size reduces storage footprint in shops and trucks, making it easier to transport and handle compared to bulkier wood or metal alternatives.
ESCO 12521 Applications
- Heavy-Duty Automotive Service: Provides a stable foundation for lifting and cribbing heavy trucks, commercial vehicles, and large equipment in professional repair shops and dealerships.
- Manufacturing and Industrial Operations: Supports equipment, machinery, and heavy components in manufacturing plants, warehouses, and industrial facilities requiring secure load support.
- Job Site and Construction: Stabilizes heavy equipment, vehicles, and loads on construction sites, outdoor job sites, and temporary work areas where durability and weather resistance are essential.
- Equipment Rental and Fleet Services: Ideal for heavy equipment rental companies, fleet maintenance operations, and service centers that require reliable, reusable cribbing for multiple applications.
- Roadside and Emergency Services: Used by towing services, emergency response teams, and roadside assistance providers to safely stabilize vehicles and equipment during recovery and repair operations.
ESCO 12521 Specifications
| Specification | Value |
|---|---|
| Load Capacity | 100 US tons (200,000 lbs.) |
| Tested Capacity | 400,000 lbs. (verified in independent testing) |
| Specification | Value |
|---|---|
| Bottom Plate Dimensions | 23" x 23" x 1.5" |
| Bottom Plate Dimensions (Metric) | 58.4 x 58.4 x 3.8 cm |
| Surface Area | 18" x 18" contact surface (45.7 x 45.7 cm) |
| Footprint | Compact 23" x 23" for reduced storage and transport space |
| Specification | Value |
|---|---|
| Compatible Cribbing Blocks | ESCO models 12520, 12523 (100 ton capacity blocks) |
| Inner-Locking System | Patented cross-lock and pyramid-style mating design |
| Minimum Support Height | 7.75" (19.69 cm) with single bottom and top plate |
| Material Type | Durable composite (waterproof, rot-proof, chemical-resistant) |
| Color | High-visibility with contrast top and bottom surfaces |
What's Included with the ESCO 12521
- 1x ESCO 12521 Bottom Stability Plate (23" x 23" x 1.5")
- Patented inner-locking bottom plate with high-visibility coloring
- Ready to pair with ESCO cribbing blocks for complete system assembly
Sold As: Individual bottom stability plate. This is a component of the ESCO cribbing system. Cribbing blocks (ESCO 12520, 12523) and top plate (ESCO 12521 or 12531/12532) sold separately.
Optional Accessories: ESCO cribbing blocks (100 ton capacity), top stability plates, and complete cribbing system kits available.
Not Included: Cribbing blocks, top stability plates, installation labor, or specialized lifting equipment.
ESCO 12521 Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: 7-10 business days from order. International: Contact sales for international shipping quote.
Delivery Requirements
Delivery Type: LTL (Less Than Truckload) freight to your location. Unloading: Standard curbside delivery; forklift or loading dock recommended for ease of unloading. Inspection: Inspect package for damage before signing Bill of Lading. Note any damage on delivery receipt immediately.
Returns
Returns accepted within 30 days of delivery for unopened, undamaged products in original packaging with receipt. Restocking fee of 20% applies. Buyer is responsible for return freight costs. Contact customer service to initiate return process.
ESCO 12521 Warranty
Manufacturer's Limited Warranty
The ESCO 12521 is backed by ESCO's manufacturer limited warranty covering defects in materials and workmanship.
- Defects: Manufacturing defects in materials and workmanship are covered during the warranty period
- Coverage Exclusions: Normal wear and tear, damage from improper use, unauthorized modifications, and damage from environmental exposure beyond normal indoor/outdoor use
- Warranty Claim Process: Contact Garage Supply Guys or ESCO directly with proof of purchase and description of defect
Requirements: Warranty coverage requires proper use according to ESCO instructions, appropriate maintenance, and operation within specified load limits. Alterations, modifications, or use beyond design specifications void warranty coverage.
Documents
Click to open in a new tab.
Questions About the ESCO 12521 Cribbing System?
Our equipment specialists can help with system configuration, load calculations, and selecting the right cribbing components for your shop or operation.
ESCO 12521 FAQ
What load capacity does the ESCO 12521 bottom plate support?
The ESCO 12521 bottom stability plate is part of a cribbing system designed to safely support loads up to 100 US tons (200,000 lbs.). The plate has been tested to 400,000 lbs. in independent testing facilities, providing exceptional safety margins for professional automotive and industrial applications. Always use the bottom plate paired with compatible ESCO cribbing blocks and top plates for rated capacity.
What are the dimensions and footprint of the ESCO 12521?
The ESCO 12521 bottom stability plate measures 23" x 23" x 1.5" (58.4 x 58.4 x 3.8 cm) with an 18" x 18" contact surface. The compact 23" x 23" footprint is designed to reduce storage space compared to larger competitive cribbing plates. This smaller footprint is ideal for shops and trucks where storage space is limited, while still providing a stable base for 100 ton capacity cribbing systems.
How does the ESCO patented inner-locking design work?
The ESCO 12521 uses a patented inner-locking system that prevents cribbing blocks from shifting or moving under load. The design features both cross-lock and pyramid-style mating surfaces that create solid contact points with no voids between cribbing components. This means the entire load is supported on a completely solid foundation without gaps or weak points that could allow shifting or collapse.
What material is the ESCO 12521 made from?
The ESCO 12521 is manufactured from durable composite materials that are waterproof, rot-proof, insect-proof, and resistant to oil and other chemicals. This material construction means the plate will not get brittle, crack, or deteriorate over time, outlasting wood and composite cribbing alternatives for decades of reliable service in both indoor and outdoor environments.
Can the ESCO 12521 be used outdoors?
Yes. The ESCO 12521 is specifically designed for both indoor and outdoor use. The waterproof, rot-proof, and chemical-resistant construction allows it to withstand moisture, UV light, oil, and other environmental conditions without degradation. This makes it ideal for job sites, outdoor equipment operations, and facilities where weather exposure is a factor in cribbing selection.
What cribbing blocks are compatible with the ESCO 12521?
The ESCO 12521 bottom stability plate is compatible with ESCO 100 ton capacity cribbing blocks, including models 12520 and 12523. The inner-locking design ensures secure mating between the plate and compatible ESCO blocks. Always verify compatibility with your specific cribbing blocks before assembly, and refer to ESCO documentation for proper system configuration for your load capacity requirements.

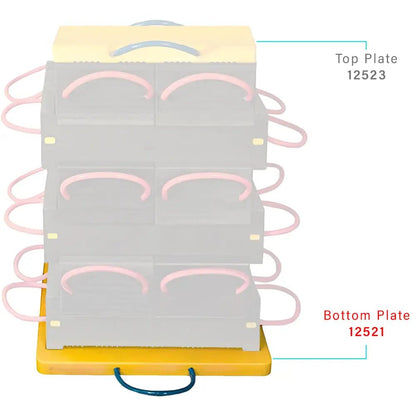

Do I need both a top and bottom stability plate?
Yes. The ESCO cribbing system includes both bottom and top stability plates to create a completely secure cribbing foundation. The bottom plate (ESCO 12521) distributes load across the ground, while the top plate stabilizes the cribbing blocks. Together, they provide the minimum 7.75" support height required for safe load support. Using both plates ensures the patented inner-locking system functions as designed.
How do I maintain the ESCO 12521 bottom plate?
The ESCO 12521 requires minimal maintenance. Periodically inspect the plate for dirt or debris that could affect cribbing block seating, and clean with a dry brush or cloth as needed. The waterproof, rot-proof construction eliminates the need for treating or sealing. After use, ensure the plate is dry before storage. Avoid dragging or impact damage, and inspect regularly for cracks or deterioration.
What is the shipping weight and how is it shipped?
The ESCO 12521 is shipped via LTL (Less Than Truckload) freight to commercial addresses in the 48 contiguous United States with free freight included. Typical lead time is 7-10 business days from order. The plate is packaged to protect against damage during transit. Inspect the package upon delivery and note any damage on the Bill of Lading before accepting the shipment.
Is the ESCO 12521 lighter or heavier than competitive cribbing plates?
The ESCO 12521 is 10% lighter than competitive brands in the market while maintaining full 100 ton load capacity. This lightweight design reduces handling effort and makes transport and storage easier without sacrificing durability or load rating. The material composition delivers strength without the weight of heavier alternatives.
Can I use the ESCO 12521 for stacking or pyramid-style cribbing?
The ESCO 12521 bottom plate includes a pyramid-style mating surface (reverse side) that allows for pyramid-style cribbing configurations if required. The patented inner-locking design works with both cross-lock and pyramid mating styles. Refer to ESCO documentation for proper configuration based on your specific load shape and weight distribution requirements.
What is the warranty on the ESCO 12521?
The ESCO 12521 is backed by ESCO's manufacturer limited warranty covering defects in materials and workmanship. The warranty covers manufacturing defects but excludes normal wear and tear, improper use, unauthorized modifications, and damage from environmental exposure beyond normal use. For warranty coverage, use the product according to ESCO instructions, maintain it properly, and operate within specified load limits. Contact customer service with proof of purchase to initiate a warranty claim.
California Proposition 65 Warning
WARNING: This product can expose you to chemicals including styrene and vinyl chloride, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.p65warnings.ca.gov.
