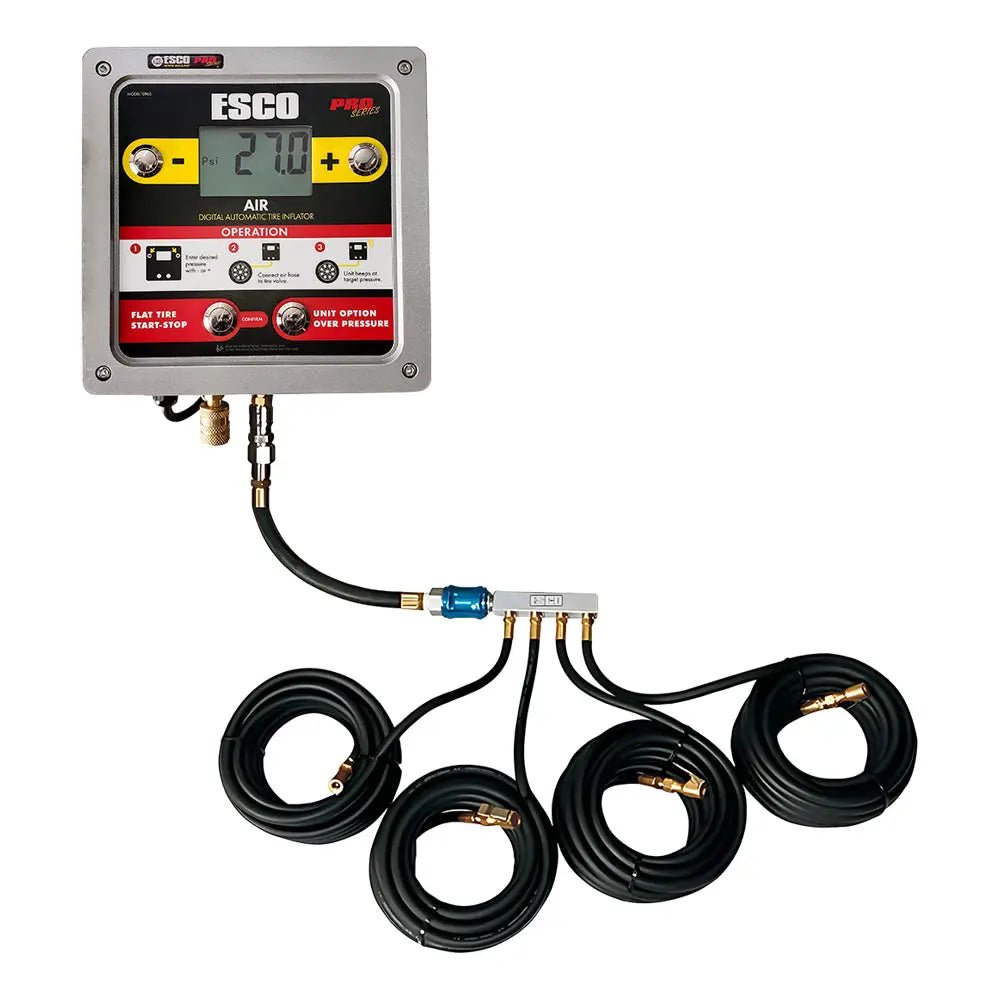

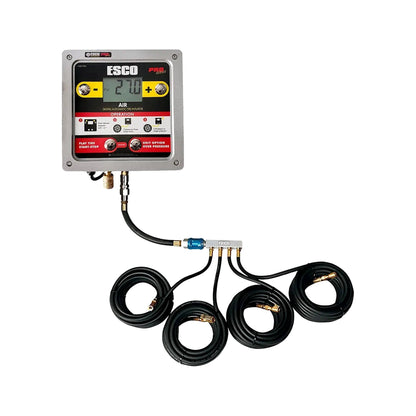

ESCO 10965-K Digital Tire Inflator System with 4-Hose Manifold
Wall-mounted auto inflate/deflate with four hoses for simultaneous tire service

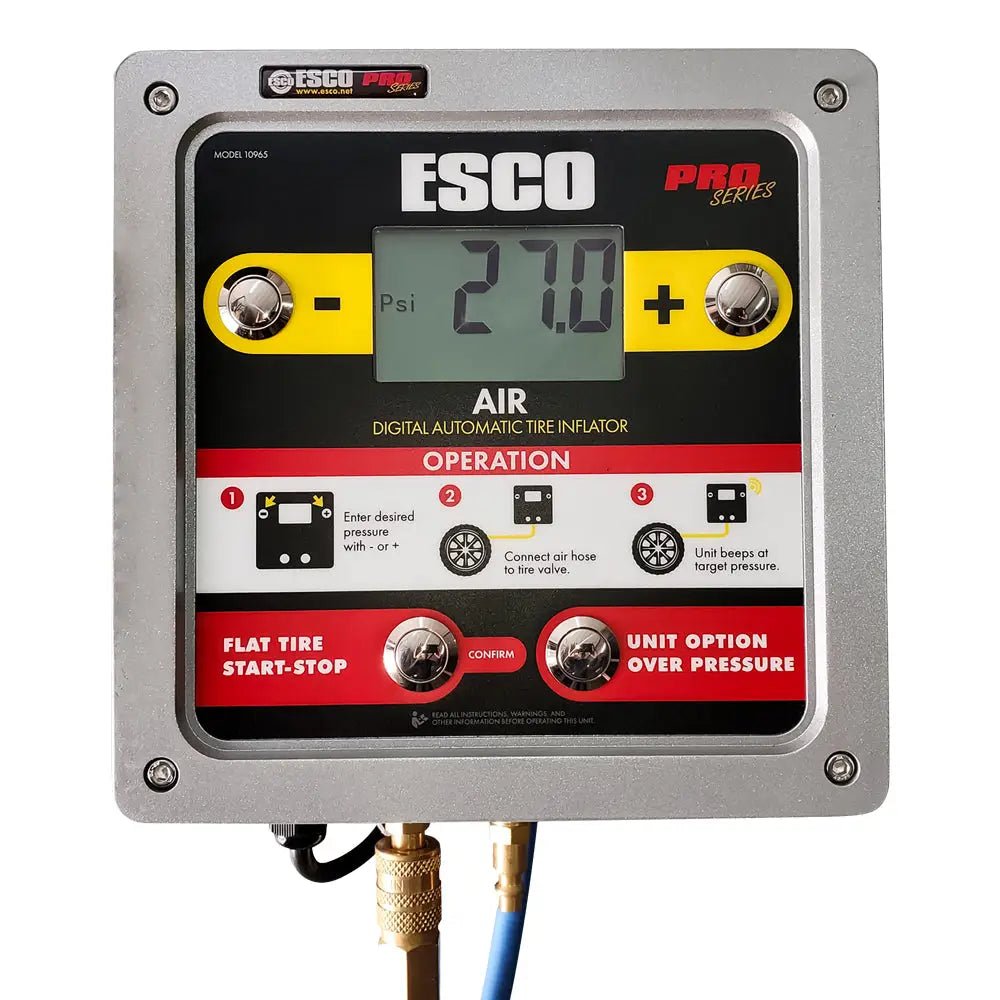

The ESCO 10965-K is a professional-grade digital tire inflator system designed for automotive repair shops, fleet service yards, and high-volume tire bays. With a 4-way manifold and four 25-foot hoses, this wall-mounted system inflates up to four tires simultaneously with precision accuracy of +/- 0.3 PSI. The robust aluminum die-cast housing features mechanical anti-vandal buttons and an IP56 rating for indoor and outdoor use in any weather condition.
Key Features
4-Hose Manifold for Simultaneous Inflation
Wall-mounted 4-way manifold with four 25 ft. hoses enables simultaneous inflation of up to four tires. Reduces service time dramatically while maintaining precise pressure control across all hoses at once.

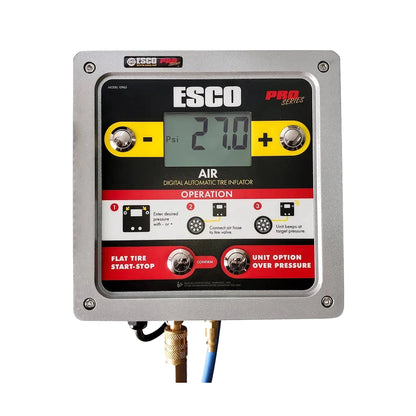

Auto Inflate/Deflate with Precision
Preset desired pressure and the system automatically inflates or deflates to exact specifications with +/- 0.3 PSI accuracy. Manual override handles completely flat tires without waiting for residual pressure.
Industrial-Duty Aluminum Construction
Heavy-duty die-cast aluminum housing with mechanical anti-vandal buttons withstands demanding daily use in professional shops. IP56 rating ensures reliable operation indoors and outdoors in harsh conditions.
Extended Reach Up to 164 Feet
Four 25 ft. hoses provide 100 ft. total reach. Optional hose extensions enable up to 164 ft. of total hose length for reaching vehicles at any position in the service bay or yard.
What's Included

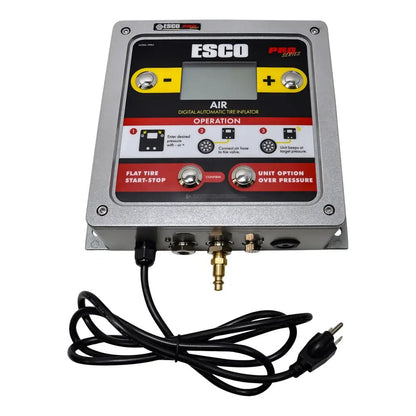

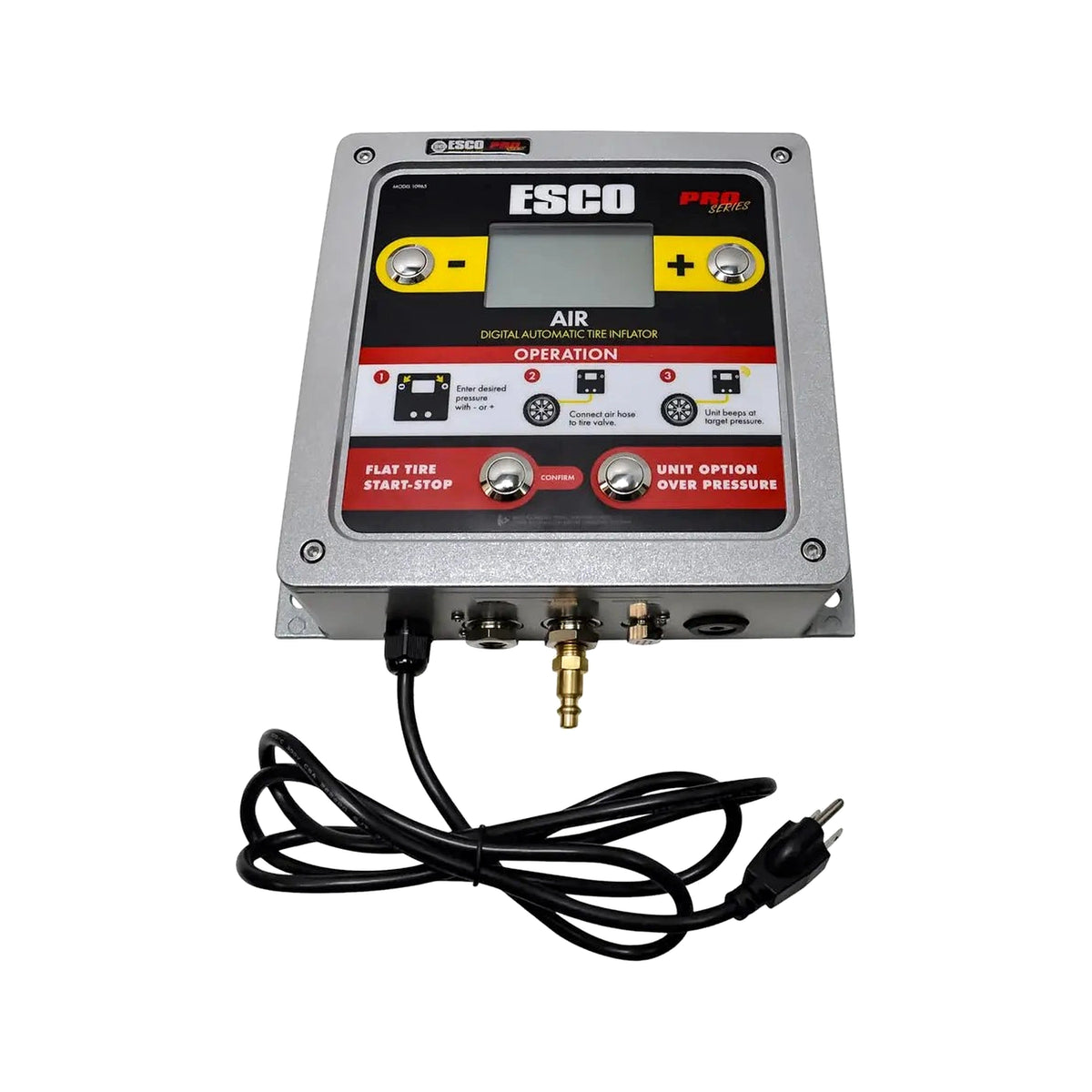

- ESCO 10965 Digital Wall Mounted Tire Inflator unit

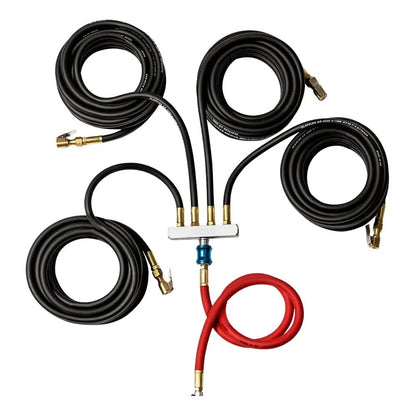

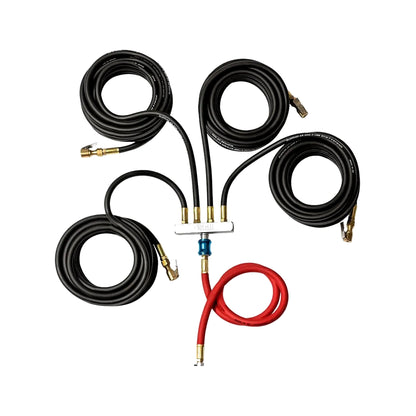

- ESCO 10967 Four-Way Manifold assembly

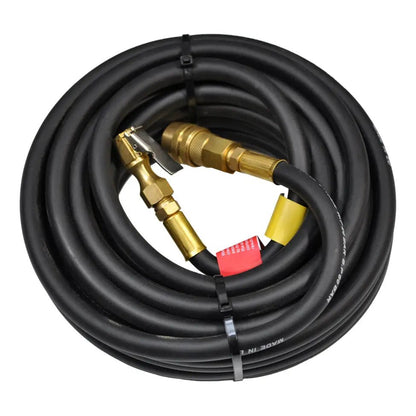

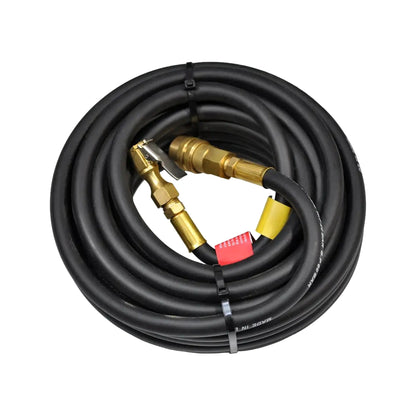

- Four 25 ft. air hoses with clip-on chucks
- Wall mounting hardware
- Digital display with PSI/bar/kPa scales
| Specification | Value |
|---|---|
| Brand | ESCO |
| Model | 10965-K |
| Inflation Range | 0-145 PSI |
| Accuracy | +/- 0.3 PSI at 25-75 PSI |
| Max Supply Pressure | 182 PSI |
| Hose Length | Four 25 ft. hoses (100 ft. total) |
| Max Reach Extended | Up to 164 ft. with optional extensions |
| Housing Material | Die-cast aluminum |
| Protection Rating | IP56 (weather-resistant) |
| Display Unit | 3" x 2" reader with digital display |
| Scale Options | PSI, bar, kPa |
| Chuck Type | Clip-on style, single straight |
| Inlet Size | 1/4 in. NPT female |
| Inflation Speed | 106 CFM at 182 PSI |
| Power Supply | 110-240V AC (50-60 Hz) |
| Wattage | 12 W |
| Dimensions | 12" L x 12" W x 8.5" H |
| Weight | 26 lbs. (with manifold and hoses) |
| Operation | Auto inflate/deflate with manual override |
| Features | OPS audible warning, mechanical anti-vandal buttons, diagnostics |
| Warranty | 1 year manufacturer |
Perfect For
- Automotive repair shops requiring precise inflation for new tire installations
- Fleet maintenance facilities servicing multiple vehicles daily
- High-volume tire service bays and dealership tire departments
- Commercial shop environments where speed and accuracy are critical
- Indoor and outdoor service locations in any weather condition
