Product highlights
- Preset Automatic Inflation
- Multi-Scale Digital Display
- 25 Ft. Hose Included
ESCO 10965 Digital Wall Mounted Tire Inflator, Aluminum
SKU: ESC-10965
$829.95
Save 2% with ACH / Wire Payment. Call for details
Financing options available
Financing estimates are based on the product price; selected add-ons and delivery services are excluded.
Talk to a parts specialistFit and compatibility help before you order855-498-2147
- Price Match Guaranteefind it lower and we will beat it
- No Sales Tax Collected Outside PAPA orders include sales tax

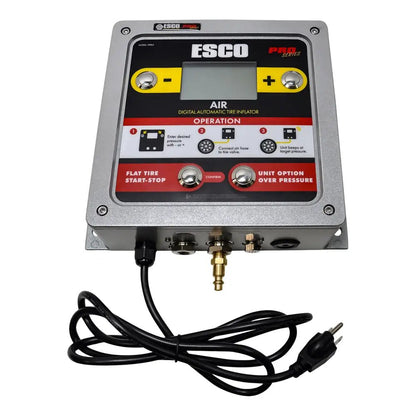

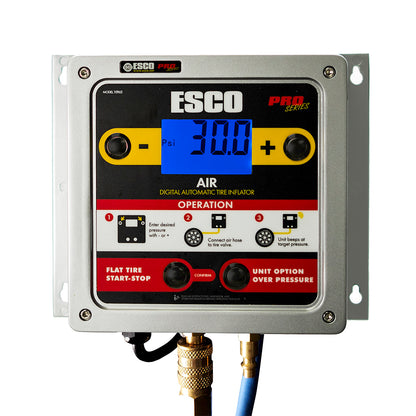

The ESCO 10965 is a single-hose digital wall mounted tire inflator for industrial and workshop air systems. Set the target pressure, connect the single straight clip-on chuck, and built-in auto start inflates or deflates the tire to the selected pressure. The die-cast aluminum unit uses shop compressed air and 110-240V AC power.
It includes a 25 ft. (7.5 m) hose and can maintain accurate inflation through hose runs up to 164 ft. (50 m). ESCO's operating manual requires an upstream air pre-filter to protect the unit from water and oil in the compressed-air supply; the pre-filter is not included.
Features
Preset Automatic Inflation
Set the target pressure and connect the chuck. Built-in auto start inflates or deflates the tire to the selected pressure, with an audible completion signal.

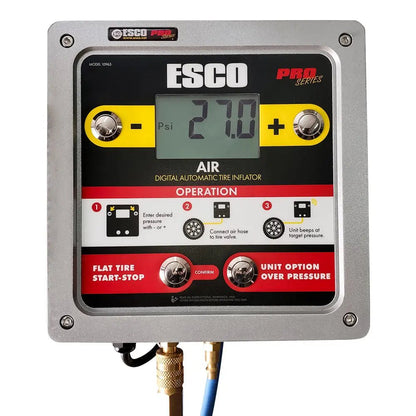

Multi-Scale Digital Display
The 3 x 2 in. reader displays pressure in psi, bar, or kPa across the published 0-145 psi, 0.5-10 bar, and 0-1000 kPa scale.

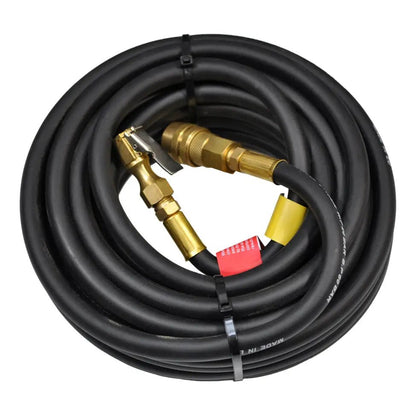

25 Ft. Hose Included
Ships with a 25 ft. (7.5 m) air hose. ESCO states the unit will inflate accurately with total hose lengths up to 164 ft. (50 m).

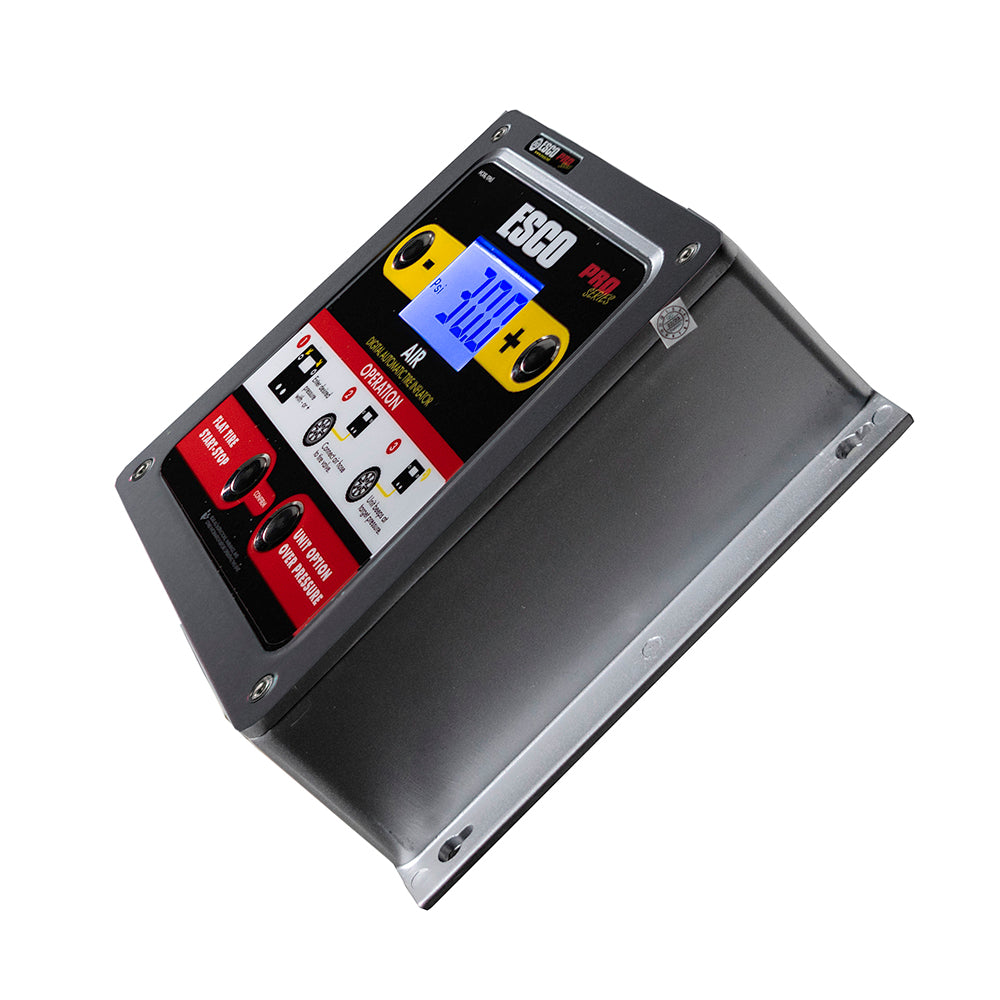

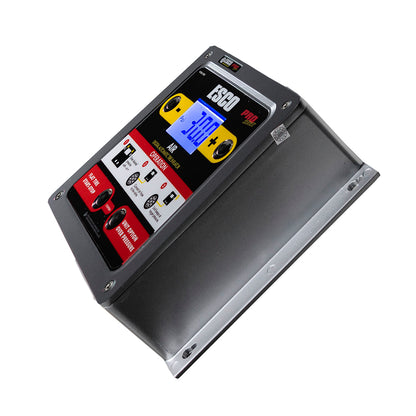

Die-Cast Aluminum Housing

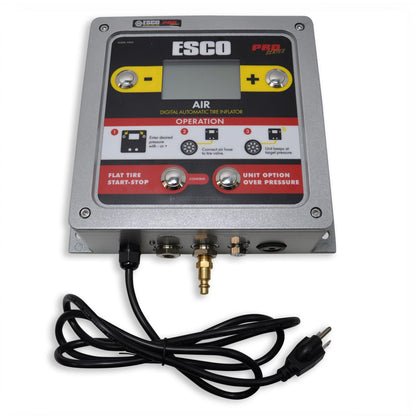

The wall-mounted enclosure uses die-cast aluminum with mechanical anti-vandal buttons and built-in diagnostic and error reporting.
Specifications
| Product Type | Automatic digital wall mounted tire inflator |
|---|---|
| Configuration | Single hose |
| Housing | Die-cast aluminum |
| Advised Application | Industrial, Workshops |
| Operation | Auto inflate, deflate |
| Flat-Tire Function | Manual start below approximately 3 psi |
| Warranty | 1 year |
| Air Inlet | 1/4 in. NPT |
|---|---|
| Air Supply | External compressed-air supply required |
| Air Preparation | Upstream air pre-filter required |

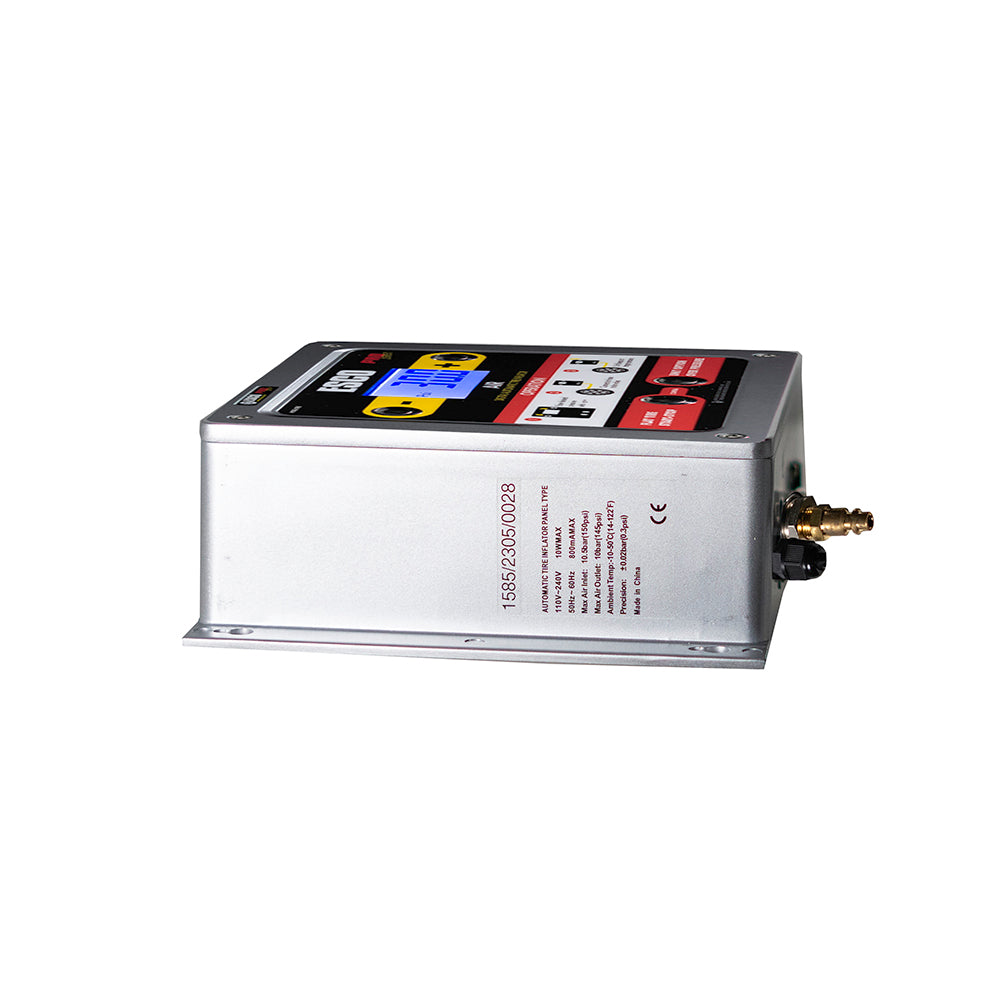

| Supply Voltage | 110-240V AC, 50-60 Hz |
| ESCO Model | 10965 |
|---|---|
| Supplier SKU | ESC-10965 |
| UPC | 816904024475 |
| Pressure Scale | 0-145 psi / 0.5-10 bar / 0-1000 kPa |
|---|---|
| Accuracy | +/- 0.3 psi at 25-75 psi |
| Included Hose Length | 25 ft. (7.5 m) |
| Maximum Supported Hose Length | Up to 164 ft. (50 m) |
| Chuck Type | Clip-On |
| Chuck Style | Single Straight |
| Reader Unit | 3 x 2 in. (76 x 51 mm) |
|---|---|
| Overall Dimensions | 12 L x 12 W x 8.5 H in. (305 x 305 x 216 mm) |
| Weight | 13 lb. (5.9 kg) |

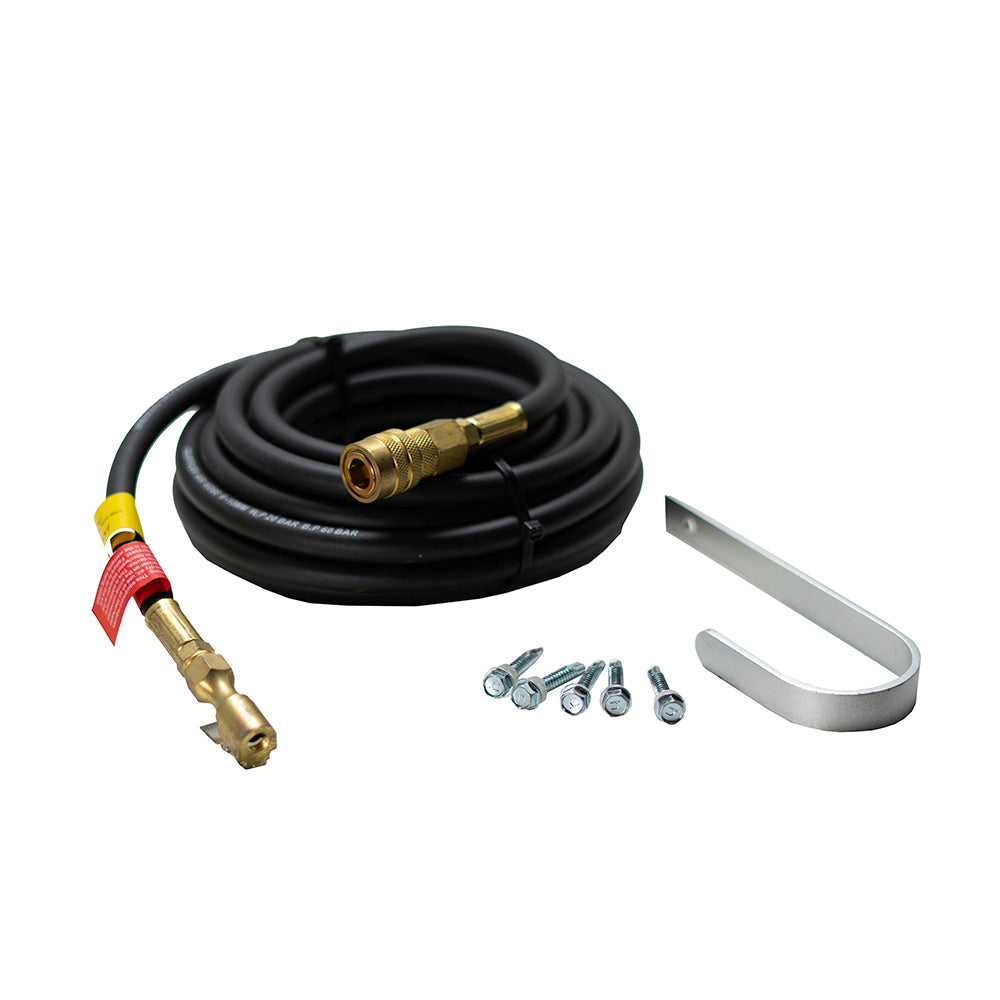

What's Included
- ESCO 10965 automatic tire inflator with power cord x1
- 25 ft. air hose x1
- Hook and M6 x 38 screw kit x1
- User manual x1
- M6 x 38 wall-mounting screws x4
Not Included
- Upstream air pre-filter, required
Installation Requirements
Air Supply Preparation
Install an air pre-filter upstream of the inflator before use. ESCO's operating manual states that the pre-filter is essential to protect the unit from water and oil carried by the compressed-air supply.
Mounting and Connections

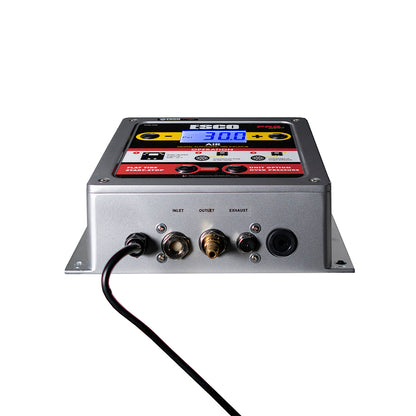

Wall mount the unit with the included mounting hardware, connect the compressed-air supply to the 1/4 in. NPT inlet, and provide 110-240V AC, 50-60 Hz power.
