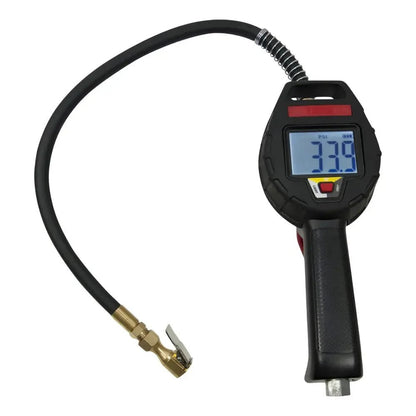

ESCO 10961 Digital Tire Inflator - 20 inch Hose Euro Chuck
The ESCO 10961 is a professional handheld digital tire inflator featuring a large backlit LCD display with multi-scale readings in psi, bar, kPa, and kgF. Built with a lightweight aluminum die-cast body and protective rubber sleeve, this inflator delivers fast accurate pressure readings within 2 psi and handles inflation, deflation, and measurement operations. The 20 inch hose with Euro chuck and wire sheath protection eliminates kinking, while individual calibration and a 1-year warranty ensure reliability for workshops, service trucks, and professional applications.
ESCO 10961 Features
Multi-Scale Digital Display - Four Units of Measurement
The backlit LCD screen displays pressure readings in psi, bar, kPa, and kgF with a single button press. This multi-scale capability makes the 10961 ideal for global markets, shops serving diverse customers, and applications requiring measurement flexibility across different pressure standards.
Tested and Calibrated with Certificate of Accuracy
Each ESCO 10961 is individually tested and calibrated before shipment, ensuring accuracy within 2 psi at 25-75 psi range. Included calibration certificate verifies professional-grade accuracy. This precision makes it suitable for critical tire inflation applications where accuracy matters for safety and vehicle performance.
20 Inch Hose with Wire Sheath Protection and Euro Chuck
The 20 inch (500mm) hose with wire sheath on the flex area eliminates kinking and extends hose life. Euro chuck clip-on connection provides reliable valve stem grip. 1/4 inch NPT female inlet accommodates standard shop air systems. Swivel design allows flexible positioning during tire inflation.
Compact and Durable Construction
Constructed with lightweight aluminum die-cast body and protective rubber shock-resistant sleeve, the 10961 withstands daily workshop use. Dimensions are 11 inches long by 6 inches wide by 4 inches high, weighing just 2.6 pounds. Rugged construction protects the unit from accidental drops and impacts during service operations.
Three-Function Operation - Inflate, Deflate, Measure
The easy-to-use On/Light/Unit button controls inflation, deflation, and pressure measurement functions. Auto-ON triggers upon air pressure sensing, and the 90 second auto-OFF feature conserves battery life. Design allows one-handed operation for convenience in tight spaces or overhead tire work.
High Supply Pressure Capacity - 200 PSI Maximum
The ESCO 10961 handles maximum supply pressure of 200 psi (13.79 bar) with inflation capability up to 174 psi (12 bar). Inflation flow rate reaches 42 CFM at 200 psi, enabling fast tire pressurization in busy shop environments. Complies with EN 12645 tire pressure gauge standards.
ESCO 10961 Applications
- Professional Tire Service Shops: Quickly inflate and measure tire pressure during tire changes, balancing, and maintenance. Multi-scale display accommodates customer vehicle requirements across different standards and markets.
- Automotive Dealerships: Verify tire pressure during vehicle preparation, delivery inspections, and routine service. Calibrated accuracy ensures precise inflation matching manufacturer specifications for each vehicle.
- Fleet Service Operations: Handle high-volume tire inflation on multiple vehicles daily. Durable construction and fast 42 CFM inflation flow minimize service time in busy fleet maintenance facilities.
- Service Trucks and Mobile Technicians: Lightweight portable design fits in tool bags for roadside tire service, emergency repairs, and field maintenance. 20 inch hose provides adequate reach on various vehicle types and positions.
- Industrial and Workshop Settings: Use for general pneumatic equipment and tool pressure verification. Multi-scale capability serves workshops using both imperial and metric pressure standards.
ESCO 10961 Specifications
| Specification | Value |
|---|---|
| Maximum Inflation Pressure | 174 psi / 12 bar |
| Maximum Supply Pressure | 200 psi / 13.79 bar |
| Pressure Scale Range | 0-174 psi, 0-12 bar, 0-1200 kPa, 0-12 kgF |
| Inflation Flow Rate | 42 CFM at 200 psi / 1200L/min |
| Accuracy | +/- 2 psi at 25-75 psi |
| Specification | Value |
|---|---|
| Hose Length | 20 inches / 500mm |
| Hose Type | Wire sheath flex area protection |
| Chuck Type | Clip-On Euro Chuck |
| Chuck Style | Single Straight |
| Inlet Size | 1/4 inch NPT Female |
| Hose Swivel | Yes |
| Specification | Value |
|---|---|
| Length | 11 inches / 279mm |
| Width | 6 inches / 152mm |
| Height | 4 inches / 101mm |
| Display Size | 3 inches / 75mm |
| Weight | 2.6 pounds / 1.2 kg |
| Material | Aluminum die-cast body with rubber protective sleeve |
| Display Type | Backlit LCD with 90 second auto-off |
| Power | Two AAA batteries included (65 hour battery life) |
| Operation Modes | Inflate, Deflate, Measure |
| Standard Compliance | EN 12645:2014 |
What's Included with the ESCO 10961
- ESCO 10961 Digital Tire Inflator with aluminum die-cast body and rubber protective sleeve
- 20 inch hose with Euro chuck and wire sheath protection
- Two AAA batteries (pre-installed, 65 hour battery life)
- Official calibration certificate verifying +/- 2 psi accuracy
- Operating instructions and user manual
Optional Accessories: Replacement hose kits and alternative chuck styles are available for specialized applications or extended reach requirements.
Not Included: Air compressor, air line/hose to compressor connection, additional batteries, external pressure regulator, or wall mount bracket.
ESCO 10961 Shipping and Delivery
Standard Shipping
Coverage: Free shipping on orders over $50 to the 48 contiguous United States. Lead Time: 1-2 business days for in-stock orders. International: Contact sales for shipping quote and availability.
Delivery Requirements
Packaging: Ships in protective packaging ensuring product arrives in perfect condition. Delivery Type: Standard ground shipping. Inspection: Inspect package for damage before opening. The unit should arrive fully calibrated and tested with calibration certificate included.
Returns
Returns accepted within 30 days of delivery. Product must be unopened in original packaging with receipt. 20% restocking fee applies. Buyer responsible for return freight costs. Contact customer service for return authorization before shipping.
ESCO 10961 Warranty
ESCO 1-Year Limited Warranty
The ESCO 10961 is covered by a 1-year limited warranty against defects in materials and workmanship under normal use and service conditions for the original purchaser.
- 1 Year: Full coverage for defects in aluminum die-cast body, LCD display, pressure sensor, and all internal components
- Coverage Includes: Manufacturing defects, faulty display operation, pressure sensor accuracy issues, and internal mechanism failures
- Coverage Excludes: Normal wear on hose and chuck, battery replacement, calibration drift beyond +/- 2 psi after extended use, and damage from improper storage or contaminated air lines
Requirements: Keep the included calibration certificate as proof of testing. Product accuracy covered only within the +/- 2 psi specification at 25-75 psi range. Air pre-filters must be used to prevent moisture damage and maintain warranty validity. Unit must be connected only to clean dry air lines to preserve warranty coverage.
Documents
Click to open in a new tab.
Questions About the ESCO 10961?
Our equipment specialists can help with specifications, compatibility with your shop air system, pressure measurement requirements, and product recommendations for tire service operations.
ESCO 10961 FAQ
What pressure scales does the ESCO 10961 display?
The ESCO 10961 features a multi-scale backlit LCD display showing pressure in four different units: psi, bar, kPa, and kgF. Simply press the Unit button to switch between scales. This multi-scale capability makes the 10961 ideal for shops serving global markets and applications requiring measurement flexibility across different pressure standards and international specifications.
How accurate is the ESCO 10961 tire inflator?
The ESCO 10961 is individually tested and calibrated before shipment with accuracy within +/- 2 psi at 25-75 psi range. Each unit includes an official calibration certificate verifying this precision. This accuracy is suitable for automotive tire inflation, where precise pressure matching manufacturer specifications is important for vehicle safety and tire performance.
What is the hose length and connection type?
The ESCO 10961 comes with a 20 inch (500mm) hose with a swivel Euro chuck for reliable tire valve stem connection. The hose features wire sheath protection on the flex area to eliminate kinking and extend hose life. The 1/4 inch NPT female inlet fits standard shop air system connectors, and the swivel design allows flexible positioning during tire inflation work.
How long do the batteries last in the ESCO 10961?
The ESCO 10961 uses two AAA batteries (included) with a battery life of 65 hours of operation. The backlit LCD display features a 90 second automatic shut-off to conserve battery life when the unit is not in active use. Typical daily use in a shop environment means batteries will last several months before replacement is needed.
What is the maximum inflation pressure for the ESCO 10961?
The ESCO 10961 handles maximum inflation pressure of 174 psi (12 bar). Supply pressure capacity reaches 200 psi (13.79 bar), providing fast inflation with flow rate of 42 CFM at 200 psi. This capacity covers all standard automotive tire inflation, light truck applications, and general industrial pneumatic equipment pressure measurement.
Can I use the ESCO 10961 to deflate tires?
Yes. The ESCO 10961 features three operational modes: inflate, deflate, and measure. The easy-to-use On/Light/Unit button controls all functions. This multi-function capability makes it suitable for tire service operations where both inflation and pressure release are necessary, such as tire pressure balancing and seasonal pressure adjustments.
What does the included calibration certificate mean?
Each ESCO 10961 is individually tested and calibrated before shipment. The included calibration certificate verifies that your unit meets the +/- 2 psi accuracy specification. Keep this certificate as proof of calibration accuracy. The certificate also helps establish warranty coverage and validates professional-grade accuracy for regulatory or quality assurance documentation.
Is the ESCO 10961 suitable for professional shop use?
Yes. The ESCO 10961 is designed specifically for professional applications including tire service shops, automotive dealerships, fleet maintenance facilities, and service trucks. Its durable aluminum die-cast body with protective rubber sleeve, calibrated accuracy, and fast inflation flow make it ideal for daily workshop use and high-volume tire service operations.
What air line requirements does the ESCO 10961 need?
The ESCO 10961 requires connection to clean dry compressed air lines. The inlet uses a standard 1/4 inch NPT female connection. Air pre-filters must be used to remove moisture and contaminants from the air supply. Moisture in the air line system may cause damage to internal components and void the warranty, so ensure your compressor air system includes proper filtration and drying equipment.
What is the difference between the ESCO 10961 and other digital tire inflators?
The ESCO 10961 provides multi-scale capability (psi, bar, kPa, kgF), 20 inch hose with wire sheath protection, individual calibration with certificate, and 65 hour battery life. The accurate +/- 2 psi specification and three-function operation (inflate, deflate, measure) make it suitable for professional service environments where precision and durability are priorities.
How do I maintain the ESCO 10961 inflator?
Keep the unit clean and dry when not in use. Store in a cool, dry location away from dust and moisture. Inspect the hose regularly for cracks or kinks. Use air pre-filters on your compressor to prevent moisture and contamination from reaching the inflator. Do not expose to extreme heat or cold. Battery replacement with AAA batteries is simple - no special tools required. Refer to the user manual for detailed care instructions.
Does the ESCO 10961 come with a warranty?
Yes. The ESCO 10961 includes a 1-year limited warranty covering defects in materials and workmanship for the original purchaser. The warranty covers the aluminum die-cast body, LCD display, pressure sensor, and internal components. Coverage excludes normal wear on the hose and chuck, battery replacement, and damage from moisture or contaminated air lines. Keep your calibration certificate and original packaging for warranty claims.
California Proposition 65 Warning
WARNING: This product can expose you to chemicals including styrene and vinyl chloride, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.p65warnings.ca.gov.
