Product highlights
- Complete Coupler Kit
- 10,000 PSI Hydraulic Service
- Braided Steel Reinforcement

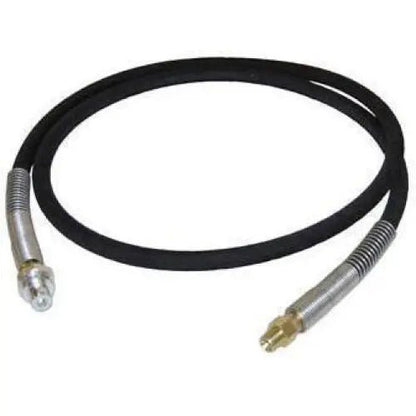

ESCO 10603 8 ft Hydraulic Hose Assembly with Complete Coupler Kit
SKU: ESC-10603
$114.95
Save 2% with ACH / Wire Payment. Call for details
Financing options available
Financing estimates are based on the product price; selected add-ons and delivery services are excluded.
Talk to a parts specialistFit and compatibility help before you order855-498-2147
- Price Match Guaranteefind it lower and we will beat it
- No Sales Tax Collected Outside PAPA orders include sales tax
The ESCO 10603 is an 8 ft hydraulic hose assembly for 10,000 PSI pumps, rams, and bead breakers. It includes the complete ESCO Model 10600 coupler kit with both the hose-side Model 10605 half and ram-side Model 10606 half, so this is the complete-coupler version rather than a hose supplied with only one half coupler.
The hose uses a swivel fitting, two layers of braided steel reinforcement, and is specified for temperatures down to -40°F (-40°C). ESCO specifies 3/8" 18 male ends on both ends of the hose. The included Model 10600 coupler kit is rated for 10,000 PSI hydraulic service.
Features
Complete Coupler Kit
Includes the complete ESCO Model 10600 kit with Model 10605 on the hose side and Model 10606 on the ram side.
10,000 PSI Hydraulic Service
Built for use with 10,000 PSI hydraulic pumps, rams, and bead breakers.
Braided Steel Reinforcement
Two layers of braided steel reinforce the hose for high-pressure hydraulic service, with cold-temperature capability down to -40°F (-40°C).
Swivel Fitting
A swivel fitting supports ESCO's kink-resistant hose design.
Specifications
| Brand | ESCO |
|---|---|
| Product Type | Hydraulic hose assembly with complete coupler kit |
| Hose Length | 8 ft / 96 in. |
| Pressure Rating | 10,000 PSI |
| Hose Ends | 3/8" 18 male ends, both ends |
| Fitting | Swivel fitting |
| Reinforcement | 2 layers of braided steel |
| Cold Temperature Capability | Down to -40°F / -40°C |
| Weight | 6 lb / 3 kg |
| ESCO Model / MPN | 10603 |
|---|---|
| Supplier SKU | ESC-10603 |
| UPC | 816904021986 |
| Use With | 10,000 PSI pumps, rams, and bead breakers |
|---|---|
| Coupler Compatibility | ESCO states the included Model 10600 coupler kit is interchangeable with OTC, Power Team, Enerpac, and ESCO hydraulic products. |
What's Included
- ESCO Model 10600 complete coupler kit, including Model 10605 hose-side male half and Model 10606 ram-side female half x1
