ESCO 10601K Air Reducer with 6 inch Whip-Hose for Hydraulic Tools
The ESCO 10601K Air Reducer with 6 inch Whip-Hose is an essential accessory for air-hydraulic pump systems. This regulator reduces incoming air pressure to the optimal 110 PSI working pressure, protecting hydraulic pumps and extending equipment life. The kit includes both the precision air reducer and a 6 inch flexible whip-hose with convenient quick-connect fittings. Designed for compatibility with all ESCO hydraulic tools and pumps operating at 10,000 PSI maximum pressure, the 10601K maintains proper air delivery and prevents pump damage from over-pressurization.
ESCO 10601K Features
Precision Air Pressure Reduction to 110 PSI
The ESCO 10601K regulates incoming air pressure to 110 PSI working pressure, which is the optimal level for reliable operation of ESCO hydraulic pumps and tools. This precise regulation prevents over-pressurization that can damage internal pump components and seals. The reducer maintains consistent pressure delivery to hydraulic systems.
6 Inch Whip-Hose with 1/4 inch NPT Connections
The kit includes a 6 inch flexible whip-hose that connects the air supply to the hydraulic pump. The 1/4 inch NPT male connections provide standard compatibility with most air lines and ESCO pump inlet ports. The flexible whip-hose design prevents kinking and enables convenient positioning of the reducer during operation.
Easy Installation and Quick-Connect Design
The 10601K features simple threaded connections and quick-connect fittings that enable fast installation without special tools beyond a standard wrench. The directional arrow on the reducer indicates proper flow direction. Installation takes minutes, and the system is immediately ready for operation with existing ESCO hydraulic equipment.
Compatible with All ESCO Hydraulic Tools and Pumps
The reducer is designed for use with all ESCO air-hydraulic pumps and tools operating at 10,000 PSI maximum pressure. This includes bead breakers, hydraulic jacks, clamping tools, and all pump systems in the ESCO catalog. The universal design enables use across mixed equipment inventories.
Lightweight and Portable 1 Pound Design
At just 1 pound total weight, the complete kit is lightweight and portable. Technicians can easily move the reducer between multiple ESCO systems or carry it for mobile service operations. The compact 15/16 inch diameter reduces bulk while delivering precise pressure control.
Protects Against Pump Over-Pressurization and Damage
Excessive inlet air pressure damages internal pump components including seals, bearings, and the air motor. The reducer protects pump life and reduces maintenance by maintaining safe 110 PSI pressure delivery. This prevention of damage extends hydraulic equipment lifespan and reduces costly repairs.
ESCO 10601K Applications
- Air-Hydraulic Pump Systems: Use with all ESCO air-hydraulic pumps including 2.5 quart, 3.5 quart, and 5 quart models to maintain optimal inlet air pressure and extend pump life.
- Bead Breaker Systems: Protect bead breaker hydraulic systems from over-pressurization during tire service operations by regulating inlet air pressure.
- Portable Hydraulic Equipment: Enable safe operation of portable hydraulic tools, clamping systems, and fluid power equipment requiring regulated air inlet pressure.
- Tire Service Shop Operations: Connect to shop air supplies serving multiple hydraulic tools and bead breaker systems simultaneously while maintaining safe pressure levels.
- Mobile Service Vehicles: Provide reliable air pressure regulation for hydraulic pumps and tools on service trucks, field operations, and remote worksites using vehicle-mounted air supplies.
ESCO 10601K Specifications
| Specification | Value |
|---|---|
| Diameter | 15/16 inch / 24 millimeters |
| Working Air Pressure | 110 PSI |
| Air Inlet Size | 1/4 inch NPT Female |
| Weight | 1 pound / 0.5 kilogram |
| Specification | Value |
|---|---|
| Length | 6 inches / 152.4 millimeters |
| Connection Type | 1/4 inch NPT Male threads on both ends |
| Hose Construction | Flexible reinforced for air delivery |
| Specification | Value |
|---|---|
| Maximum Hydraulic Pressure | 10,000 PSI |
| Compatible Pumps | All ESCO air-hydraulic pump models |
| Kit Contents | Model 10601 air reducer and Model 10601H 6 inch whip-hose |
| Total Kit Weight | Approximately 1 pound / 0.5 kilogram |
What's Included with the ESCO 10601K

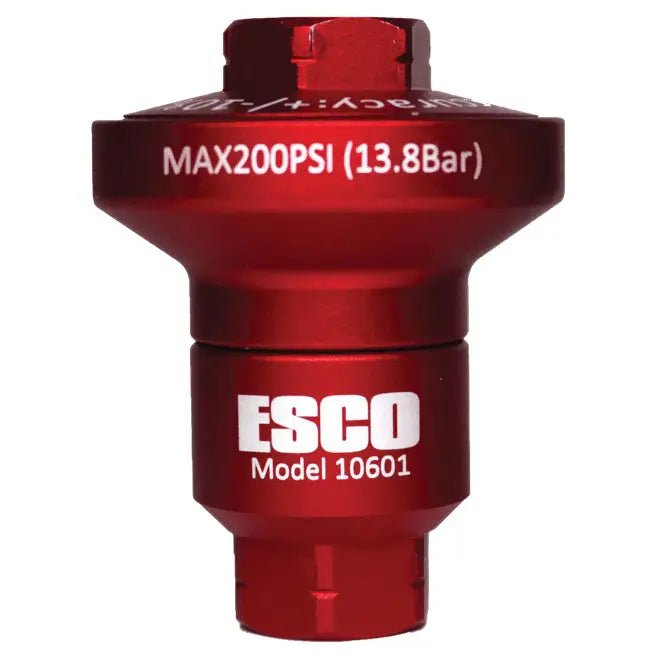

- Model 10601 Air Reducer with 110 PSI working pressure setting and 1/4 inch NPT inlet connection
- Model 10601H 6 inch Whip-Hose with 1/4 inch NPT male connections on both ends
- Reducer assembly with precision pressure regulation ready for immediate operation
Optional Accessories: Additional whip-hose assemblies and quick-disconnect fittings are available separately for customizing air delivery configurations.
Not Included: Main air compressor or air supply line, hydraulic pump, hydraulic tools, wrenches for installation, or thread seal tape.
ESCO 10601K Shipping and Delivery
Standard Shipping
Coverage: Free shipping on orders over $25 to the 48 contiguous United States. Lead Time: 1-2 business days for in-stock orders. International: Contact sales for shipping quote and availability.
Delivery Requirements
Packaging: Ships in protective packaging ensuring the reducer and hose arrive in perfect condition. Weight: Lightweight 1-pound package enables standard ground shipping. Inspection: Inspect package for damage upon receipt. The reducer should be clean and ready for installation.
Returns
Returns accepted within 30 days of delivery. Product must be unused in original packaging with receipt. 20% restocking fee applies. Buyer responsible for return freight costs. Contact customer service for return authorization.
ESCO 10601K Warranty
ESCO 1-Year Limited Warranty
The ESCO 10601K Air Reducer with Whip-Hose is covered by a 1-year limited warranty against defects in materials and workmanship from the date of delivery.
- 1 Year: Full coverage for the air reducer unit and whip-hose against manufacturing defects
- Coverage Includes: Defects in the pressure regulator mechanism, hose integrity, connection fittings, and assembly quality
- Coverage Excludes: Normal wear from extended use, damage from improper installation or connection, over-pressurization damage, and water or contamination damage from air line system issues
Requirements: Equipment must be properly installed according to ESCO instructions with correct directional arrow alignment. Warranty applies to normal operation with ESCO air-hydraulic pump systems. ESCO's obligation is limited to repair or replacement at ESCO's discretion of parts proven defective within 90 days of claim submission.
Questions About the ESCO 10601K?
Our equipment specialists can help with air system compatibility, pressure regulation requirements, pump integration, and product recommendations for your tire service equipment.
ESCO 10601K FAQ
What is the purpose of the ESCO 10601K air reducer?
The ESCO 10601K reduces incoming air pressure from a shop air compressor to 110 PSI, which is the optimal working pressure for ESCO air-hydraulic pump systems. This protects the pump's internal motor and seals from damage caused by over-pressurization. Maintaining the correct inlet air pressure extends pump life and ensures reliable hydraulic tool operation.
What is the 6 inch whip-hose connection size?
The 10601H whip-hose includes 1/4 inch NPT male threads on both ends, which connect to standard shop air lines and ESCO pump inlet ports. The 6 inch length provides flexible positioning and enables convenient routing of the air supply line without kinking or binding.
Is the 10601K compatible with all ESCO hydraulic pumps?
Yes. The 10601K is designed for compatibility with all ESCO air-hydraulic pump models including 2.5 quart, 3.5 quart, and 5 quart units, as well as all ESCO hydraulic tools operating at 10,000 PSI maximum pressure. The universal design makes it suitable for use across mixed ESCO equipment inventories.
How much does the 10601K weigh?
The complete ESCO 10601K kit weighs just 1 pound (0.5 kilogram), including the air reducer and 6 inch whip-hose. This lightweight design enables portability and easy transport between multiple ESCO systems or service vehicles.
What wrench sizes are needed for installation?
Installation requires a 3/4 inch wrench for the air reducer unit and a 9/16 inch wrench for the whip-hose connections. These standard wrenches enable proper tightening of the threaded connections. Thread seal tape is recommended for secure leak-free connections at all NPT threads.
Can the 10601K be used with other brand hydraulic pumps?
The 10601K is specifically designed for ESCO air-hydraulic pump systems. While the 1/4 inch NPT connections may be compatible with other equipment, ESCO recommends using it exclusively with ESCO pumps to ensure proper pressure regulation and equipment protection. Other pump systems may have different inlet pressure requirements.
What is the maximum hydraulic pressure rating?
The 10601K regulates air inlet pressure to 110 PSI for use with ESCO hydraulic systems operating at 10,000 PSI maximum output pressure. The inlet pressure regulation protects the air-hydraulic pump motor, not the hydraulic output circuit. The pump itself generates the higher 10,000 PSI hydraulic pressure.
How does the air reducer protect the hydraulic pump?
The reducer prevents damage by limiting inlet air pressure to 110 PSI. Without this regulation, excessive air pressure can damage the pump's internal air motor components including seals, bearings, and valve mechanisms. This protection extends pump service life and reduces costly repairs from over-pressurization damage.
Is the 10601K included in ESCO pump kits?
Many ESCO air-hydraulic pump kits include the 10601K as a standard component. Kits like the 2.5 Quart (10591), 2 Gallon (10595), 3.5 Quart Turbo II (10501), and Bead Breaker Kits all include the 10601K reducer and whip-hose. The kit may also be purchased separately as an upgrade for existing ESCO pumps.
What is included in the 10601K kit?

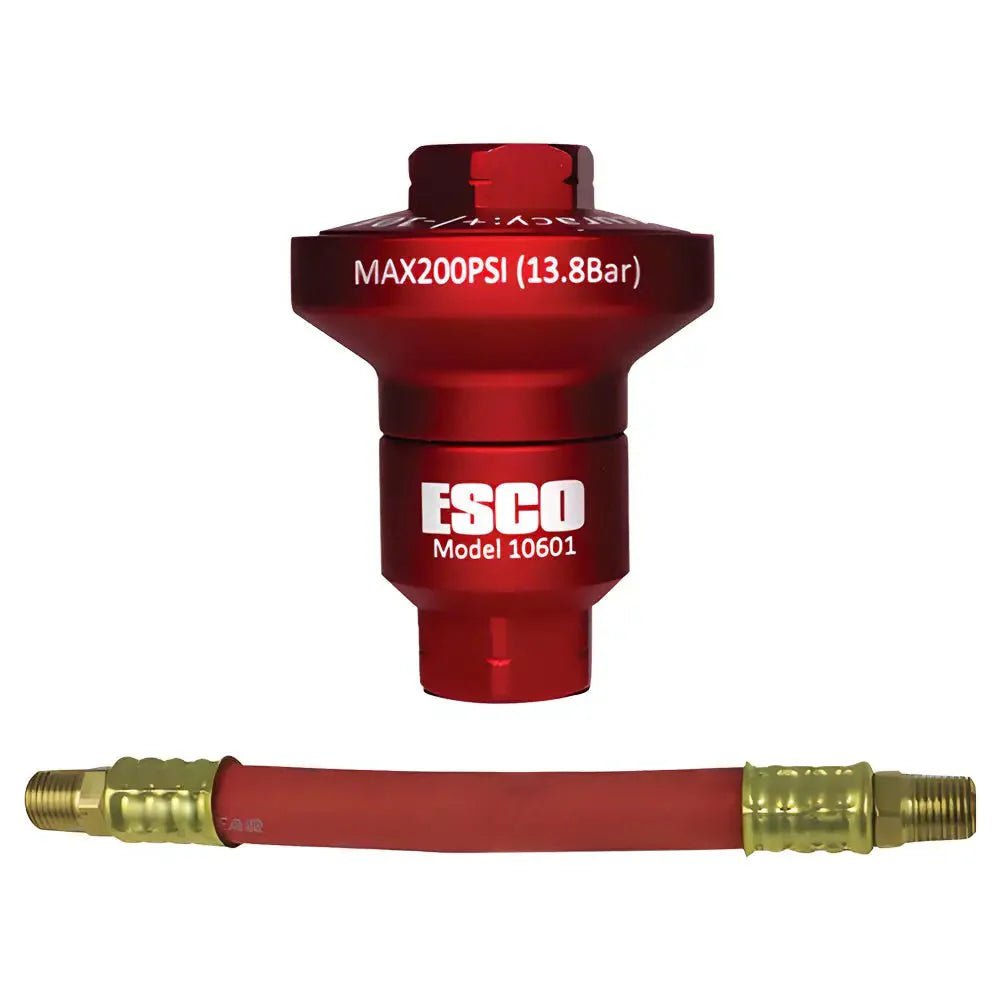

The ESCO 10601K kit includes two components: Model 10601 air reducer unit with precision 110 PSI pressure setting and 1/4 inch NPT inlet connection, and Model 10601H 6 inch whip-hose with 1/4 inch NPT male connections on both ends. Both components arrive assembled and ready for installation.
How do I install the 10601K on my existing ESCO pump?

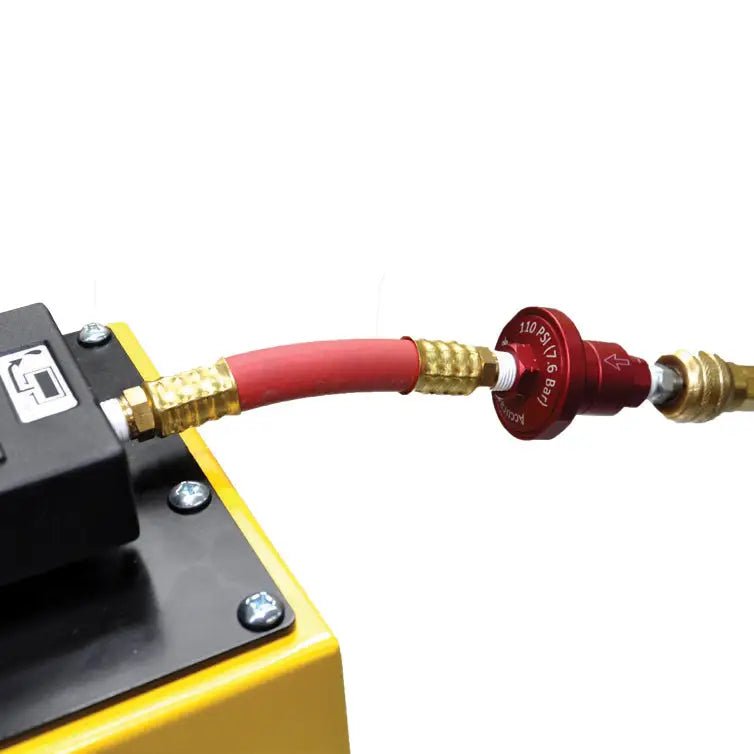

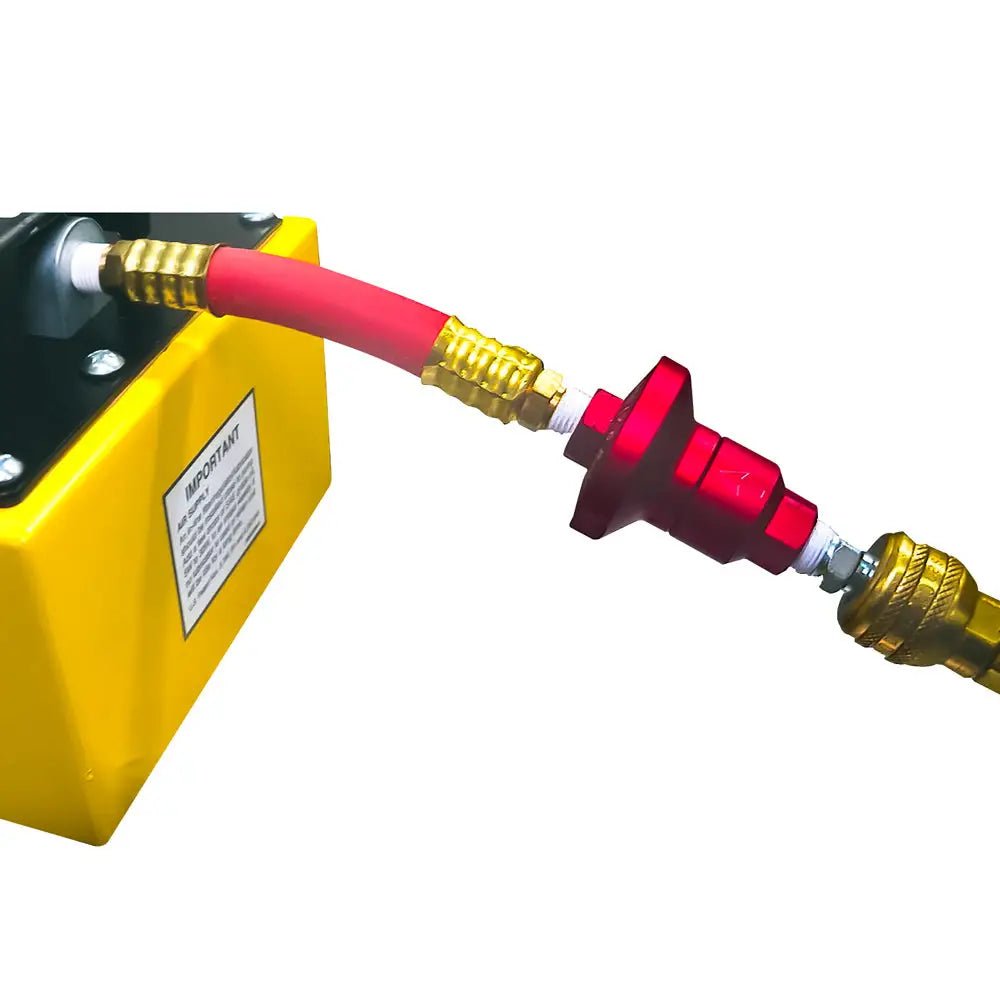

Installation instructions are included with the kit. The basic process involves connecting the whip-hose to the shop air line, then connecting the air reducer to the pump inlet port. Proper thread direction is indicated by the arrow on the reducer unit. Follow the instruction manual for specific wrench sizes and tightening procedures.
Can I use the 10601K reducer with multiple pumps on one air line?
Yes. The 10601K can be used in conjunction with multiple ESCO products as specified in the feature list. Connect the reducer to the main shop air supply, then branch to multiple pumps if needed. The reducer ensures all connected pumps receive optimal 110 PSI inlet pressure, protecting each system independently.
