ESCO 10493 HD 10 Ton High Lift Jack Stand for Professional Shop Support
The ESCO 10493 HD Heavy Duty High-Lift Jack Stand delivers professional-grade vehicle support with extended lift capabilities. Featuring a 10 ton (20,000 lb) capacity, 43 to 69.25 inch adjustable height range with 11 pin positions, and spring-assisted shaft technology, this stand handles extended undercarriage work on trucks, buses, and heavy equipment. The foldable tripod design with three spring-loaded caster wheels ensures easy mobility and compact storage, while the adjustable lifting pad and 200 lb weight provide exceptional stability. Engineered for heavy-duty service work, this stand is backed by professional-grade construction and specifications.
ESCO 10493 HD Jack Stand Features
Spring-Assisted Lifting Shaft
The innovative spring-assisted shaft provides safe and effortless height positioning. This design reduces operator strain during adjustment and enables precise, controlled movements when positioning the stand under vehicles. The spring mechanism assists in both raising and lowering the support column smoothly.
11 Adjustable Pin Positions
With 11 total adjustable pin positions spanning the full 43 to 69.25 inch height range, this stand offers unprecedented flexibility for different vehicle types and maintenance requirements. Each position locks securely to provide stable support at the selected height without drift or shifting under load.

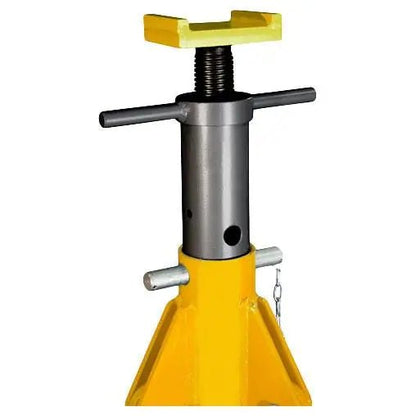

Adjustable Lifting Pad
The adjustable lifting pad accommodates various undercarriage shapes and contact points. The pad angles to match the vehicle's frame, distributing load evenly and preventing marring or slipping. This precision positioning ensures safe, stable contact with delicate vehicle components.

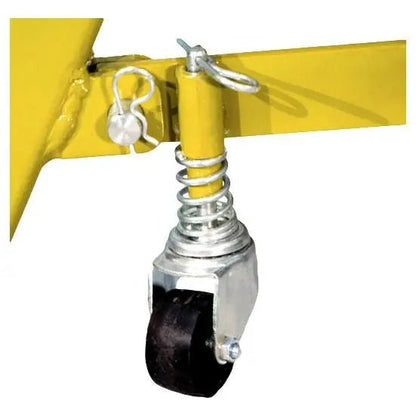

Spring-Loaded Caster Wheels
Three heavy-duty spring-loaded caster wheels provide smooth mobility across shop floors. The spring-loaded design allows the stand to navigate uneven surfaces and settle firmly on the ground once positioned. Wheels lock securely to prevent movement during vehicle support.

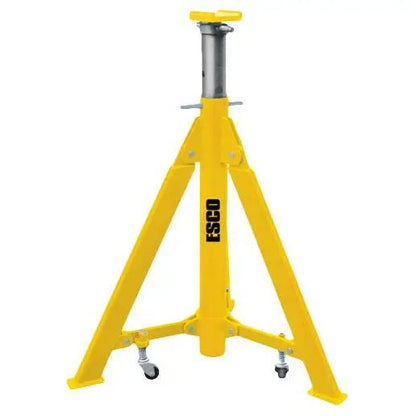

Foldable Tripod Design
The ingenious foldable tripod design collapses for compact storage without sacrificing stability during use. When extended, the tripod legs provide a wide, stable stance. When folded, the entire stand compacts dramatically, making it ideal for mobile service units and shops with limited storage space.
Heavy-Duty Construction and Stability
Weighing 200 lbs, the ESCO 10493 combines substantial mass with engineered weight distribution for maximum stability. The tripod design and wide stance prevent tipping even with off-center loads. Purpose-built for demanding professional service shops that require reliable support throughout the day.
ESCO 10493 HD Jack Stand Applications
- Extended Commercial Truck Service: Perfect for major undercarriage work on commercial trucks requiring extended support height and precise positioning for complex repairs.
- Bus and Transit Vehicle Maintenance: Ideal for public transit maintenance facilities working on large buses and articulated vehicles requiring high lift and stability.
- Heavy Equipment Repair and Repositioning: Suitable for farm equipment, construction vehicles, and specialized machinery that require elevated support and precision positioning.
- Frame and Structural Work: Excellent for frame straightening, suspension work, and other tasks requiring stable, adjustable support at multiple heights.
- Mobile Service and Fleet Operations: The foldable design makes this stand ideal for mobile tire service units and fleet maintenance operations requiring portability and storage efficiency.

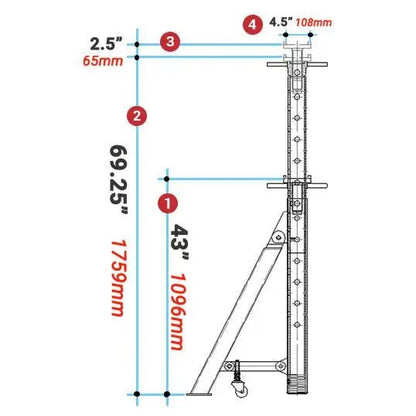

ESCO 10493 HD Jack Stand Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 10 Ton (20,000 lbs) |
| Minimum Height | 43 in (1,096 mm) |
| Maximum Height | 69.25 in (1,759 mm) |
| Total Height Range | 26.25 in (667 mm) |
| Adjustable Pin Positions | 11 positions |
| Specification | Value |
|---|---|
| Saddle Width | 4.5 in (108 mm) |
| Saddle Height | 2.75 in (70 mm) |
| Overall Stand Width | 38.4 in (975 mm) |
| Weight | 200 lbs (90 kg) |
| Caster Wheels | 3 spring-loaded wheels |
| Specification | Value |
|---|---|
| Design Type | Foldable tripod with casters |
| Lifting Mechanism | Spring-assisted shaft |
| Pad Type | Adjustable lifting pad |
| Mobility | Three spring-loaded caster wheels |
| Storage | Compact foldable design |
ESCO 10493 HD Jack Stand Installation and Setup
Floor Preparation and Positioning
Position the stand on clean, level flooring capable of supporting the full load (20,000 lbs). The tripod legs should rest firmly on the ground with the caster wheels released and locked in position. For extended work sessions, ensure the floor is dry and free from oil or grease that could affect wheel traction.
Height Adjustment and Pin Selection
Select the appropriate pin position from the 11 available options to match your vehicle's suspension height and work requirements. The spring-assisted shaft assists in moving between positions. Always verify the pin is fully seated in both the main column and the tripod leg before lowering the vehicle onto the stand.
Pad Positioning and Load Distribution
Adjust the lifting pad to match your vehicle's frame contact point. The pad should angle slightly to create maximum surface contact and prevent slipping. Position the stand directly under structural support points, not on suspension components or brackets that could flex under load.
Safe Vehicle Support Procedures
Use a properly functioning hydraulic or pneumatic jack to raise the vehicle. Position the stand beneath the vehicle before lowering it onto the pad. Never work under a vehicle supported only by a jack. Always use the stand as backup support in addition to the primary lifting device. Lock the caster wheels firmly to prevent any stand movement during work.
What's Included with the ESCO 10493 HD Jack Stand
- ESCO 10493 HD 10 Ton High-Lift Jack Stand with foldable tripod design
- Spring-assisted lifting shaft with 11 adjustable pin positions
- Adjustable lifting pad for precise load positioning
- Three spring-loaded caster wheels for mobility
- Complete product documentation and warranty information
Optional Accessories: Additional jack stands for matched pairs, supplemental safety blocking, and specialized lifting pads available through ESCO authorized distributors.
Not Included: Hydraulic or pneumatic jacks, primary lifting equipment, wheel chocks, or supplemental blocking materials. Buyers are responsible for providing proper lifting devices and safety equipment during installation and use.
ESCO 10493 HD Jack Stand Shipping and Delivery
Freight Shipping
Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: 5-7 business days for in-stock orders. International: Contact sales for international shipping quotes and delivery timeframes.
Delivery and Handling
Package Weight: 200 lbs requires freight carrier handling. Delivery Type: Standard ground delivery to commercial or residential addresses. Signature: Signature may be required upon delivery. Inspect the stand before accepting delivery to confirm it arrived in good condition and all components are present.
Damage Claims and Inspection
Examine the jack stand carefully before accepting delivery and note any visible damage on the delivery receipt. Contact the carrier and seller immediately if damage is apparent. Photograph damaged items and retain packaging materials for damage claims. Report damage within 24 hours to ensure proper claim processing.
ESCO 10493 HD Jack Stand Warranty
Limited Manufacturer Warranty
ESCO backs the 10493 HD with a limited manufacturer warranty covering defects in materials and workmanship under normal use conditions.
- Coverage: Structural integrity, welded joints, spring mechanisms, caster wheels, and mechanical components under normal service use
- Exclusions: Damage from misuse, overloading beyond 10 tons, lack of maintenance, intentional modification, or normal wear from extended service
- Support: Contact your ESCO distributor or ESCO directly for warranty service, repair, or replacement
Requirements: Warranty is valid only when the stand is operated within manufacturer specifications (10 ton maximum capacity, proper floor surface, appropriate lifting points). Keep proof of purchase for warranty claims. Regular inspection and maintenance are the owner's responsibility.
Documents
Click to open in a new tab.
Questions About the ESCO 10493 HD Jack Stand?
Our equipment specialists can help with installation planning, height calculations, specifications, and product selection for your maintenance facility or fleet service operation.
ESCO 10493 HD Jack Stand FAQ
What is the maximum capacity of the ESCO 10493 HD jack stand?
The ESCO 10493 HD has a maximum capacity of 10 tons or 20,000 pounds. This capacity is suitable for most commercial trucks, heavy buses, and specialized equipment. Never exceed the 10 ton per stand limit as this creates serious safety hazards. Always verify the total vehicle weight before using the stand. For heavier vehicles exceeding 10 tons, ESCO manufactures higher-capacity stands.
What is the height adjustment range of the ESCO 10493?
The ESCO 10493 HD features an exceptional height range from a minimum of 43 inches to a maximum of 69.25 inches, providing 26.25 inches of total adjustment range. The 11 adjustable pin positions allow precise height selection for different vehicle types and maintenance requirements. This extended range accommodates extended undercarriage access for major service work.
How do I adjust the height on the ESCO 10493?
The ESCO 10493 features a spring-assisted shaft that makes height adjustment easy. Simply select the desired pin position from the 11 available options and insert the pin into both the main lifting column and the tripod leg. The spring-assisted mechanism helps guide the pin into place. Always verify the pin is fully seated before lowering any vehicle onto the stand to ensure safe, stable support.
Does the ESCO 10493 include caster wheels?
Yes, the ESCO 10493 is equipped with three heavy-duty spring-loaded caster wheels that provide smooth mobility across shop floors. The wheels allow easy repositioning of the stand to different work areas. For safety during vehicle support, the wheels lock firmly to prevent any movement. The spring-loaded design helps the stand settle and lock securely on uneven shop floors.
Can the ESCO 10493 be stored in a compact space?
Yes, the ESCO 10493 features an ingenious foldable tripod design that collapses for compact storage. When folded, the stand occupies minimal floor space, making it ideal for mobile service units and shops with limited storage areas. When extended for use, the tripod design provides a wide, stable stance. This combination of portability and stability makes the 10493 an excellent choice for fleet operations.
What flooring is required for safe use of the ESCO 10493?
The ESCO 10493 requires clean, level, and solid flooring capable of supporting the full 10 ton load (20,000 lbs). Concrete, asphalt, or similar hard surfaces are appropriate. Avoid soft surfaces like dirt or gravel that could compress or shift under load. The stand should never be used on ramps, inclined surfaces, or uneven floors that could cause tipping. Always verify the floor is dry and free of oil or grease.
Should I use supplemental support in addition to the ESCO 10493?
Yes, best practices require using a properly functioning hydraulic or pneumatic jack in addition to the jack stand. The jack raises the vehicle to the desired height, while the stand serves as backup support. Never work under a vehicle supported only by a jack or only by a stand. Always use wheel chocks to prevent accidental vehicle movement. Use blocking and supplemental safety equipment for extra protection during extended work on complex repairs.
What maintenance does the ESCO 10493 require?
The ESCO 10493 requires minimal maintenance. Periodically inspect the tripod legs and joints for visible damage or cracks, the pin holes for wear, and the caster wheels for proper operation. Wipe away dirt, grease, or moisture that could affect stability or wheel function. Do not store the stand in wet environments as this can cause rust. Keep the stand clean and dry when not in use, and verify all pins and mechanisms function freely before each use.
How much does the ESCO 10493 weigh?
The ESCO 10493 weighs 200 pounds (90 kg), providing substantial mass that contributes to overall stability and load distribution. Despite its weight, the foldable tripod design and spring-loaded caster wheels make it surprisingly portable. The weight ensures the stand remains firmly planted during work without tipping, even when supporting off-center loads typical in vehicle service work.
What is the warranty coverage for the ESCO 10493?
ESCO provides a limited manufacturer warranty covering defects in materials and workmanship under normal use conditions. This includes coverage for structural integrity, welded joints, spring mechanisms, caster wheels, and mechanical components. The warranty excludes damage from misuse, overloading beyond 10 tons, lack of maintenance, or normal wear from extended service. Keep proof of purchase and contact your ESCO distributor for warranty claims or service needs.
Can the ESCO 10493 be used for vehicles heavier than 10 tons?
No, the ESCO 10493 must never be used beyond its 10 ton capacity rating. Overloading the stand creates serious safety hazards including structural failure, tipping, and potential injury or death. Before using the stand, determine your vehicle's total weight and verify it is appropriate for the 10 ton capacity. For heavier vehicles exceeding 10 tons, ESCO manufactures higher-capacity stands suitable for the heaviest equipment and vehicles.
Is the adjustable lifting pad included with the ESCO 10493?
Yes, the adjustable lifting pad is included as a standard feature on the ESCO 10493. The pad angles to match various undercarriage shapes and contact points, distributing load evenly and preventing marring or slipping. The adjustable design accommodates different vehicle types from trucks to buses to specialized equipment, making the stand versatile for diverse maintenance applications and vehicle types.
