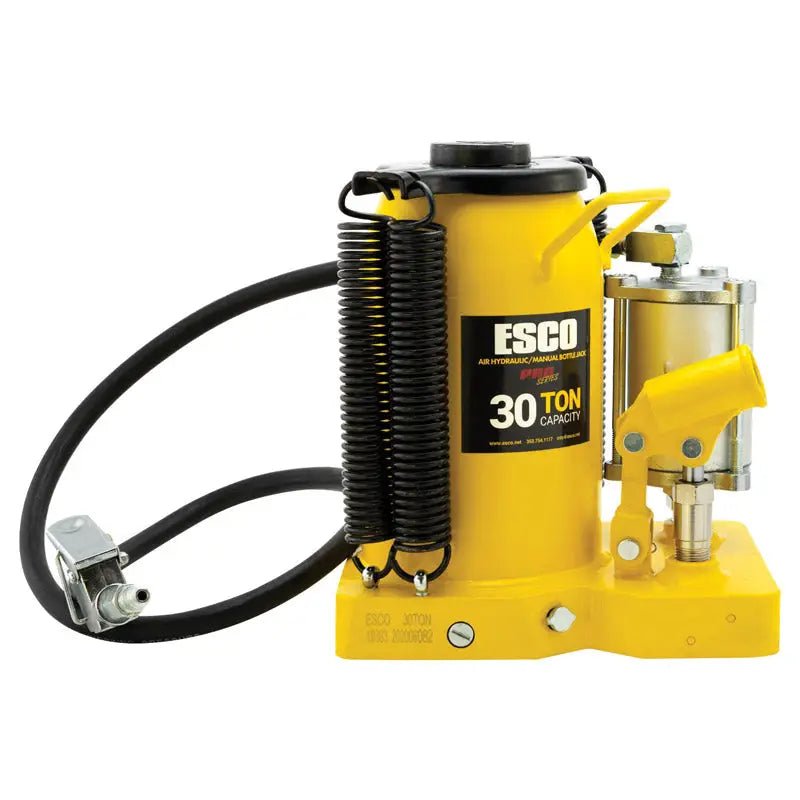

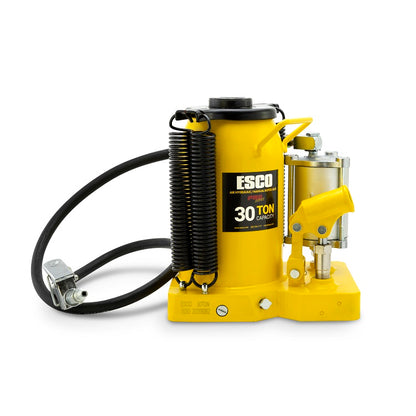

ESCO 10383 Pro Series 30 Ton Air Hydraulic Bottle Jack
The ESCO Pro Series 30 Ton Air Hydraulic Bottle Jack delivers professional-grade lifting capacity for heavy-duty tire service, commercial trucks, buses, tractors, and farm equipment. Engineered with a fully welded cylinder and frame and chrome-plated piston for maximum durability, this jack lifts loads up to 60,000 lbs using either pneumatic air power or manual control. Operating at 110-125 PSI with an included 4-foot swivel air hose and push-button trigger, the ESCO 10383 combines hands-free automation with the flexibility of manual backup, making it ideal for high-volume service environments where reliability cannot be compromised.
ESCO 10383 Features
Fully Welded Cylinder and Frame
The fully welded construction provides superior structural strength and eliminates weak points found in bolted assemblies. This welded design extends service life and maintains precision alignment even after thousands of lifting cycles in commercial tire service bays, ensuring consistent performance year after year.
Chrome-Plated Piston Rod
The chrome-plated piston resists rust, corrosion, and contamination from moisture and road salt exposure. This protective coating extends equipment life in harsh shop environments and maintains smooth operation even when stored outdoors or in high-humidity conditions.
Extra Thick Jack Base
The oversized base platform provides exceptional support and stability when lifting loaded trucks on uneven concrete or rough shop floors. The thick base distributes weight evenly, preventing tipping and ensuring safe operation even when used on slightly canted surfaces.
Dual Operation - Air and Manual Control
Operates on 110-125 PSI air pressure using the included push-button trigger, or manually via the built-in pump handle for backup operation when pneumatic supply is unavailable. This dual-mode design ensures the jack never becomes useless due to air system failure.
Double Spring Controlled Descent
The double spring design delivers slow, controlled lowering while pressure is released from the hydraulic cylinder. This prevents sudden drops or uncontrolled descent that could shift loads or damage vehicles, protecting both equipment and personnel.
Safety Valve and Inline Air Filter
Built-in safety valve prevents overloading and protects the hydraulic system from pressure spikes. The inline air filter on the 4-foot swivel hose keeps contamination out of the air motor, extending equipment life and improving reliability in dusty shop environments.
ESCO 10383 Applications
- Commercial Truck Tire Service: Lift medium-to-heavy duty trucks for tire changes, repairs, and under-vehicle inspections in high-volume service centers and fleet maintenance facilities.
- Bus and Heavy Vehicle Service: Designed for buses, motor coaches, and commercial vehicles where lifting precision and load capacity are essential to daily operations.
- Agricultural Equipment Maintenance: Support tractors, farm equipment, and large machinery during tire service, frame repair, and undercarriage work in agricultural service shops.
- Industrial Lifting Operations: Lift heavy equipment, machinery, and structural components in manufacturing plants, warehouses, and construction sites where hydraulic power is preferred over manual effort.
- Backup and Emergency Lifting: Serve as a reliable backup to stationary lift systems, providing manual operation capability when primary pneumatic systems fail or require maintenance.
ESCO 10383 Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 30 tons (60,000 lbs) |
| Saddle Width | 1.75 inches |
| Minimum Height (Collapsed) | 10.8 inches |
| Specification | Value |
|---|---|
| Air Pressure Range | 110-125 PSI |
| Air Inlet Fitting | 1/4 inch NPT |
| Operation | Pneumatic or manual pump handle |
| Descent Control | Double spring design with safety valve |
| Specification | Value |
|---|---|
| Weight | 64 lbs |
| Material | Welded steel frame with chrome-plated piston |
| Air Hose Included | 4 feet with swivel end and push-button trigger |
| Air Hose Features | Inline filter, airflow latch for continuous operation |
What's Included with the ESCO 10383
- ESCO 10383 Pro Series 30 Ton Air Hydraulic Bottle Jack
- 4-foot swivel end air hose with 1/4 inch NPT fitting
- Push-button air trigger with integral on-off control
- Inline air filter to protect air motor from contamination
- Airflow latch for continuous lift operation without holding trigger

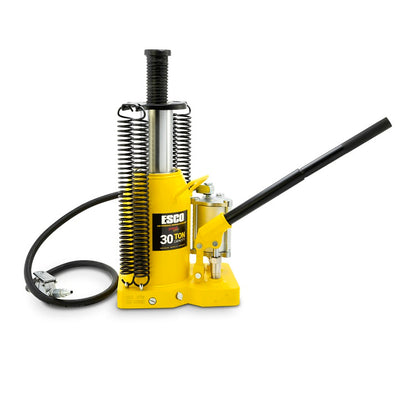

- Manual pump handle for backup manual operation
- Safety valve pre-installed to prevent overloading
Optional Accessories: Extended length air hoses, quick-connect coupler kits, and jack stands available separately for enhanced flexibility and safety.
Not Included: Air compressor, additional hoses, storage base, or mounting brackets. Professional installation or training is recommended for first-time operators.
ESCO 10383 Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: 5-7 business days. International: Contact sales for international shipping rates and availability.
Delivery Requirements
Unloading: Standard truck delivery - commercial address with loading dock or forklift access preferred. Delivery Type: Curbside delivery standard; unit requires forklift unloading due to 64 lb weight. Inspection: Inspect packaging and jack for visible damage before signing delivery receipt. Test pressure relief and manual operation before putting into service.
Returns
Returns accepted within 30 days of delivery if unused and in original packaging with receipt. 20% restocking fee applies. Buyer responsible for return freight costs. Equipment that has been pressurized or operated is not returnable.
ESCO 10383 Warranty
Standard Manufacturer Warranty
The ESCO Pro Series 10383 Bottle Jack includes a standard limited warranty protecting your investment in professional lifting equipment.
- 1 Year: Defects in materials and workmanship under normal commercial use and proper maintenance
Coverage Details: Covers manufacturing defects in the welded frame, cylinder, piston rod, and hydraulic seals. Excludes damage from misuse, overloading beyond rated capacity, lack of maintenance, or impact damage. Warranty is non-transferable and applies only to the original end-user purchaser. Proof of purchase required for warranty claims. Regular maintenance and inspection are required to maintain warranty coverage.
Questions About the ESCO 10383?
Our equipment specialists can help with capacity verification, air system compatibility, and training recommendations for your specific heavy-duty lifting needs.
ESCO 10383 FAQ
What is the maximum load capacity of the ESCO 10383?
The ESCO 10383 has a 30-ton lifting capacity, which equals 60,000 pounds maximum load. Never exceed this rated capacity. Always verify the weight of the object being lifted and distribute the load evenly on the saddle. For loads near the maximum capacity, use additional support stands or secondary jacks for safety redundancy.
Does this jack require an air compressor?
The jack includes a manual pump handle for backup operation without air power. However, for automatic pneumatic operation, an air compressor capable of 110-125 PSI is required. The included 4-foot swivel hose connects to standard 1/4-inch NPT air outlets. A compressor with at least 3-5 CFM output is recommended for convenient automatic operation.
What is the minimum height when the jack is fully collapsed?
The ESCO 10383 has a minimum collapsed height of 10.8 inches. This is the distance from the floor to the saddle when the jack is fully retracted. For vehicles with very low ground clearance, verify sufficient clearance between the vehicle frame and shop floor before attempting to position the jack saddle.
How do I safely operate the air hydraulic functions?
Connect the 4-foot air hose to a clean 110-125 PSI air supply. Press the push-button trigger to raise the load automatically. The built-in airflow latch allows continuous operation without holding the trigger. To lower, slowly release air pressure using the controlled descent valve. The double spring design ensures slow, safe lowering. Never leave a jack under load unattended.
Can I use this jack without air power?
Yes. The included manual pump handle allows full operation without an air compressor. Use manual mode for backup if pneumatic supply fails, or in locations without air systems. Manual operation is slower but equally effective and does not reduce the 30-ton capacity or safety of the jack.
What maintenance does this jack require?
Check the hydraulic fluid level monthly and top off with ISO 32 hydraulic oil if needed. Inspect the welded frame for cracks before each use. Keep the air inlet fitting clean and the inline filter clear of contamination. Wipe the chrome piston rod occasionally to prevent corrosion. Exercise the manual pump handle monthly to keep seals lubricated during periods of air-only operation.
Is the air hose replaceable if damaged?
Yes. The 4-foot swivel end air hose is replaceable using standard 1/4-inch NPT fittings. If the included hose becomes damaged or worn, replacement hoses with equivalent swivel ends and push-button triggers are available separately. Always use compatible NPT-threaded hoses rated for at least 125 PSI.
What pressure should the air compressor be set to?
Set the air compressor regulator to 110-125 PSI, which is the optimal operating range for this jack. Pressures below 110 PSI will reduce lift speed significantly. Pressures above 125 PSI may cause the safety valve to vent or create excessive strain on the air motor. Use a regulator with a pressure gauge for accurate adjustment.
How do I know when the load is safely centered on the saddle?
The 1.75-inch wide saddle should contact the vehicle frame or lift point directly under the load's center of gravity. Position the jack so the saddle is perpendicular to the load direction. Before raising, verify the saddle is fully seated against a solid mounting surface. Never attempt to lift if the saddle is angled or if contact is unstable.
Can this jack be used on uneven shop floors?
The extra thick base is designed for stable operation on typical shop concrete. If the floor slopes more than a few degrees, use shims or adjust the jack position. Never lift a load on severely sloped, cracked, or poorly supported surfaces. The jack must remain perpendicular and stable during the entire lift cycle. When in doubt, use secondary support stands for safety.
What is the warranty coverage?
The ESCO 10383 includes a 1-year limited warranty against manufacturing defects in materials and workmanship. The warranty covers the welded frame, cylinder, piston rod, and hydraulic seals under normal use and proper maintenance. It excludes damage from overloading, misuse, impact, or lack of maintenance. Proof of purchase is required for warranty claims.
How does this compare to manual-only bottle jacks?
The ESCO 10383 combines air power for fast, hands-free operation with manual backup capability - advantages that pure manual jacks cannot offer. Air operation reduces technician effort in high-volume shops where dozens of vehicles are serviced daily. The dual-mode design ensures productivity even if the air system is temporarily unavailable. For shops running consistent pneumatic systems, air hydraulic jacks significantly outperform manual-only equipment.
California Proposition 65 Warning
WARNING: This product can expose you to chemicals including styrene and vinyl chloride, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.p65warnings.ca.gov.
