Product highlights
- Air or Manual Operation
- Low-Profile Shorty Design
- Welded Construction

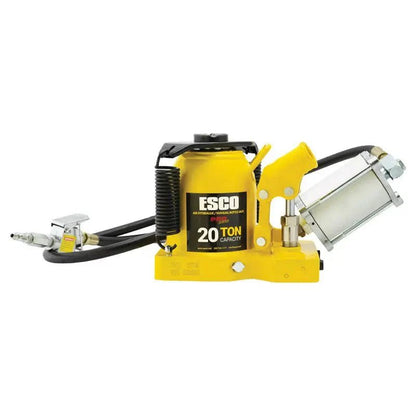

ESCO Pro Series 20 Ton Shorty Air Hydraulic Bottle Jack, Model 10382
SKU: ESC-10382
$364.95
Save 2% with ACH / Wire Payment. Call for details
Financing options available
Financing estimates are based on the product price; selected add-ons and delivery services are excluded.
Talk to a parts specialistFit and compatibility help before you order855-498-2147
- Price Match Guaranteefind it lower and we will beat it
- No Sales Tax Collected Outside PAPA orders include sales tax
The ESCO Pro Series 10382 is a 20-ton air hydraulic bottle jack with the Shorty low-profile configuration and a 7.125 in. minimum height for low-clearance lifting. It raises to a stated 12.625 in. maximum height and operates pneumatically at 110-125 psi or manually with the included two-piece handle.
ESCO lists this model for heavy-duty tire service involving commercial trucks, buses, tractors, and farm equipment. The jack uses a fully welded cylinder and frame, a 1.25 in. thick base, a chrome-plated piston, and a heat-treated extension screw with 2.5 in. of adjustment. The included 4 ft. swivel-end air hose has a push-button trigger, in-line filter, and airflow latch.
Features
Air or Manual Operation

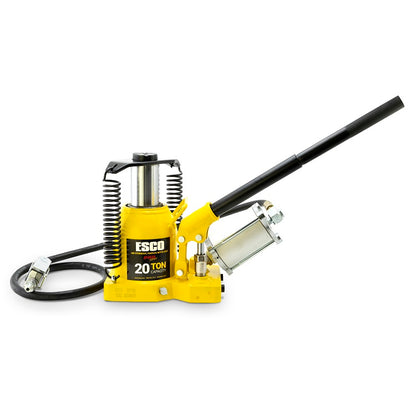

Use 110-125 psi compressed air for pneumatic operation, or raise and lower the jack manually with the included two-piece handle.
Low-Profile Shorty Design
The Shorty configuration starts at 7.125 in. and reaches a stated 12.625 in. maximum height.
Welded Construction
A fully welded cylinder and frame, 1.25 in. thick base, chrome-plated piston, and heat-treated adjustable extension screw make up the main lifting structure.
Air Control Setup

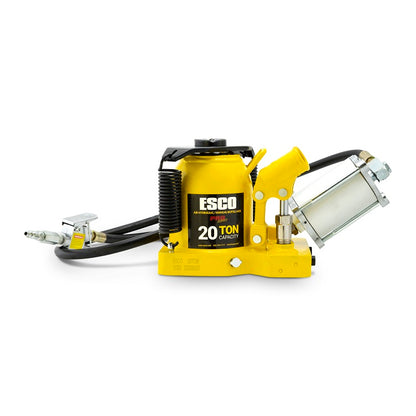

The included 4 ft. swivel-end hose uses a push-button trigger with an in-line air filter and airflow latch for continuous airflow while raising.
Best For
Heavy-Duty Tire Service
For commercial truck, bus, tractor, and farm equipment lifting applications within the jack's 20-ton capacity and stated height range.
Specifications
| Brand | ESCO |
|---|---|
| Model | 10382 |
| SKU | ESC-10382 |
| Product Type | Air Hydraulic Bottle Jack |
| Series | Pro Series |
| Style | Shorty / Low Profile |
| Capacity | 20 Ton (40,000 lbs.) |
| Operating Modes | Air or Manual |
| UPC | 816904024864 |
| Warranty | 1 Year |
| Base Size (L x W) | 8.25 x 5.75 in. |
|---|---|
| Base Thickness | 1.25 in. |
| Air Inlet Fitting | 1/4 in. NPT |
| Air Pressure | 110-125 psi |
| Air Hose | 4 ft. swivel-end hose |
| Net Weight | 34 lbs. |
| Gross Weight | 35 lbs. |
| Inner Package | 15.125 x 7.875 x 8.125 in. |
|---|---|
| Outer Package | 15 x 8 x 8 in. |
| Minimum Height | 7.125 in. |
|---|---|
| Maximum Height | 12.625 in. |
| Ram Travel | 3.25 in. |
| Screw Adjustment | 2.5 in. |
| Saddle Width | 1.75 in. |
| Cylinder and Frame | Fully welded |
|---|---|
| Piston | Chrome-plated |
| Extension Screw | Heat-treated, adjustable |
| Air Motor | Chrome-plated with wear-resistant parts |
| Overload Protection | Safety valve |
| Return Design | Double spring |
| Air Trigger | Push-button with in-line air filter and airflow latch |
What's Included
- 20 Ton Shorty Air Hydraulic Bottle Jack x1
- 4 ft. Swivel-End Air Hose and Trigger Assembly x1
- Two-Piece Manual Lifting and Lowering Handle x1
