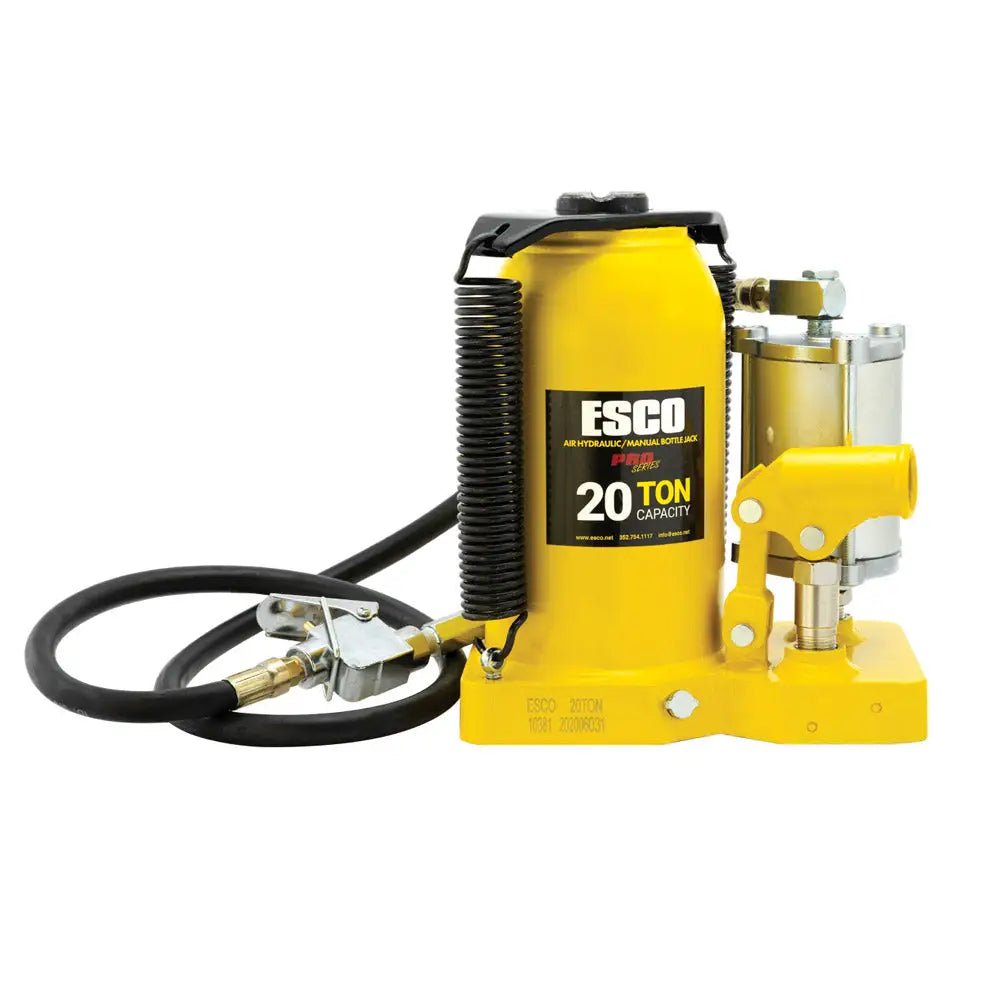

ESCO 10381 Pro Series 20 Ton Air Hydraulic Bottle Jack
20 Ton Air Hydraulic Bottle Jack - ESCO Pro Series (Model 10381)
Best Hydraulic Bottle Jack for Heavy Equipment Service
Which hydraulic bottle jack is best for commercial trucks and heavy equipment? You'll love how this professional-grade air hydraulic bottle jack combines lightning-fast air operation with reliable manual backup. The ESCO 10381 delivers 40,000 lbs lifting capacity with dual operation modes that save time and reduce strain on demanding jobsites.
Key Features and Benefits - Professional Air Hydraulic Bottle Jack
1. Fast Air Operation with Manual Backup
Dual Operation Modes: Switch between 110-125 PSI air operation for quick lifts and manual pumping when compressed air isn't available. The included 4-foot swivel air hose with push-button trigger makes positioning easy in tight spaces.
- Air assist reduces lifting time by 75%
- Manual backup works anywhere without power
2. Built-In Safety and Overload Protection
Professional Safety Features: Safety valve prevents dangerous overloading while the double spring design ensures controlled descent. Chrome-plated piston resists corrosion and extends service life in harsh working conditions.
- Overload valve prevents equipment damage
- Controlled descent prevents accidents
3. Portable Yet Stable Design
Heavy-Duty Construction: At 41 lbs, it's compact enough for service trucks but features a thick steel base for exceptional stability. The fully welded cylinder and frame construction handles the toughest lifting jobs without flexing or failure.
- Compact design fits in service vehicles
- Stable base prevents tipping on uneven surfaces
Best Hydraulic Bottle Jack Applications
Perfect for professionals who need reliable lifting power in demanding environments:
- Perfect for commercial truck and bus fleet maintenance
- Ideal when you need agricultural equipment repair and service
- Perfect for construction equipment field repairs
- Ideal when you need heavy-duty automotive shop operations
- Perfect for mobile service truck applications
- Ideal when you need industrial equipment maintenance
Installation and Requirements - Air Hydraulic Setup
Getting your air hydraulic bottle jack ready for operation is straightforward:
- Air Connection: Attach the included 4-foot air hose to your shop's 1/4" NPT air fitting
- Pressure Check: Ensure your air compressor delivers 110-125 PSI for optimal performance
- Manual Operation: Insert the two-piece handle for manual pumping when air isn't available
- Safety Positioning: Place jack on stable, level surface with proper base support
- Load Contact: Ensure the 1.75" saddle makes solid contact with lift point
Requirements: Shop air (110-125 PSI recommended), level surface, proper lifting points on vehicle or equipment.
Air Hydraulic vs Manual Bottle Jack Comparison
| Feature | ESCO 10381 Air Hydraulic | Manual Only Jacks |
|---|---|---|
| Lifting Speed | Fast with air assist | Slow manual pumping only |
| Physical Effort | Minimal with air operation | High physical strain |
| Backup Operation | Manual mode when no air | Manual only - no alternatives |
| Professional Use | Ideal for high-volume shops | Limited to occasional use |
| Price Point | Higher initial investment | Lower upfront cost |
Complete Specifications - ESCO 10381
| Model Number | ESCO 10381 |
|---|---|
| Lifting Capacity | 20 Ton (40,000 lbs) |
| Minimum Height | 10 inches |
| Maximum Height | 20 inches |
| Ram Travel | 6 inches |
| Screw Adjustment | 4 inches |
| Air Pressure Range | 110-125 PSI |
| Air Inlet Fitting | 1/4" NPT |
| Saddle Diameter | 1.75 inches |
| Base Dimensions | 8.875" x 5.75" |
| Weight | 41 lbs |
| Construction | Fully welded steel frame |
| Warranty | 1 Year Manufacturer |
Get Professional Lifting Power for Your Heavy Equipment
This 20 ton air hydraulic bottle jack combines the speed you need with the reliability you demand. Whether you're running a fleet operation or handling field repairs, the ESCO 10381 Pro Series delivers consistent performance when it matters most.
Order your professional bottle jack today and experience the difference quality engineering makes.
Warranty and Shipping - ESCO Quality Guarantee
Your ESCO 10381 Pro Series air hydraulic bottle jack includes a comprehensive 1-year manufacturer warranty covering defects in materials and workmanship. This professional-grade bottle jack is built to withstand demanding commercial use with confidence.
Quality Assurance: Each jack undergoes rigorous testing before shipping to ensure it meets ESCO's professional standards for safety and performance.
Frequently Asked Questions
How does this compare to manual hydraulic bottle jacks?
The air assist feature dramatically reduces pumping effort and speeds up lifting operations. When air pressure is available, you can lift heavy loads with minimal physical effort. The manual backup ensures you can still operate the jack in remote locations without compressed air, giving you the best of both worlds.
What air pressure do I need for optimal performance?
This bottle jack operates efficiently between 110-125 PSI, which is standard shop air pressure. The included air filter helps protect the internal air motor from contamination, extending service life even in dusty work environments.
Can this jack handle uneven or soft ground conditions?
The thick steel base (8.875" x 5.75") provides excellent stability on various surfaces. For soft ground, we recommend using a solid base plate underneath for additional support and to prevent sinking during lifting operations.
What maintenance does this air hydraulic bottle jack require?
Regular maintenance includes checking hydraulic fluid levels, cleaning the air filter, and inspecting seals for wear. The chrome-plated piston requires minimal maintenance but should be kept clean and lightly lubricated to prevent corrosion in harsh environments.
