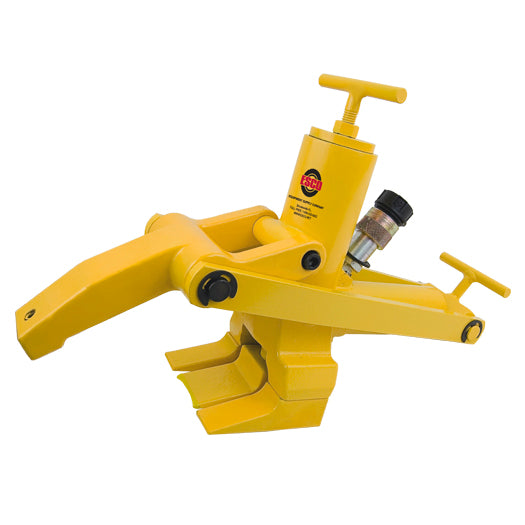

ESCO 10102 Maxi Bead Breaker hydraulic tool for 3-piece wheels with extended flanges

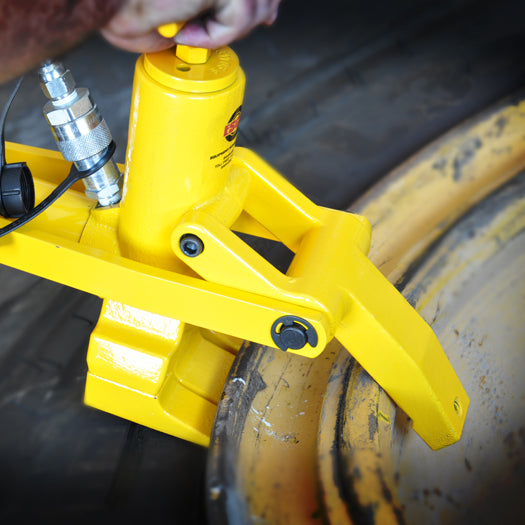

ESCO 10102 Maxi Bead Breaker clamped onto a 3-piece wheel breaking the tire bead

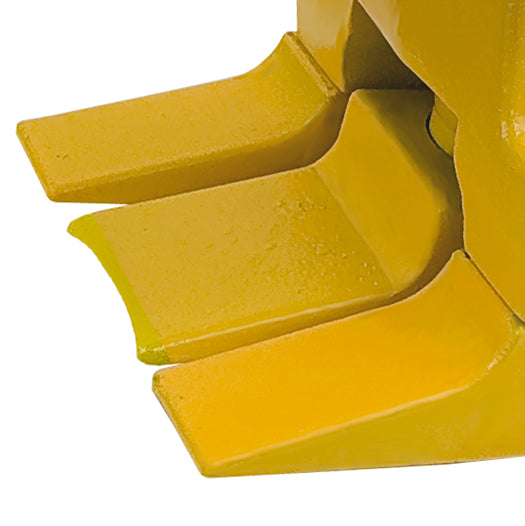

ESCO 10102 Maxi Bead Breaker extended jaw and replaceable teeth detail

ESCO 10102 Maxi Bead Breaker for 3-Piece Wheels

Esco

SKU: ESC-10102

$949.95

Product variants

$ Save 2% with ACH / Wire Payment. Call for details

Financing options available

Financing estimates are based on the product price; selected add-ons and delivery services are excluded.

Talk to a parts specialistFit and compatibility help before you order855-498-2147

Price Match Guaranteefind it lower and we will beat it
No Sales Tax Collected Outside PAPA orders include sales tax

ESCO 10102 Maxi Bead Breaker for 3-Piece Wheels

Hydraulic bead breaker for 3-piece wheels with extended flanges

The ESCO 10102 Maxi Bead Breaker is a hydraulic bead breaker for 3-piece wheels with extended flanges. Its extended jaw and replaceable teeth are designed for deep-dished wheel profiles, with teeth 1.25 in. longer than those on the ESCO 10101 Combi model. It clamps to the wheel and works from the front or back without added wheel-side attachments or setup.

The 10102 delivers 13.8 tons of bead-breaking force through a 4 in. (102 mm) stroke at up to 10,000 PSI. A compatible 10,000 PSI hydraulic pump is required and sold separately.

Key Features

13.8-Ton Hydraulic Force

Delivers 13.8 tons of bead-breaking force through a 4 in. (102 mm) stroke at up to 10,000 PSI.

For Extended-Flange 3-Piece Wheels

Designed for 3-piece wheels with extended flanges, including deep-dished wheel profiles.

Longer Maxi Jaw Geometry

The extended jaw, feet, claw, and replaceable teeth reach farther than the ESCO 10101 Combi design, with teeth 1.25 in. longer.

Front or Back Operation

Clamps to the wheel and works from the front or back without extra wheel-side attachments or setup.

What's Included

ESCO 10102 Maxi Bead Breaker

Requires (Not Included)

10,000 PSI hydraulic pump

Part Details
Specification	Value
Brand	ESCO
Model	10102
Product Type	Hydraulic tire bead breaker
Wheel Application	3-piece wheels with extended flanges
Operation	Front or back of wheel
UPC	816904021238

Hydraulic Specifications
Specification	Value
Ram Tonnage	13.8 tons
Stroke	4 in. (102 mm)
Maximum Pressure	10,000 PSI
Required Hydraulic Pump	10,000 PSI hydraulic pump, sold separately

Dimensions
Specification	Value
Length	18 in. (457 mm)
Height	12 in. (305 mm)
Weight	38 lb. (17 kg)

Perfect For

Heavy-duty truck tire service
Commercial tire shops
Fleet service bays
Shops upgrading from 5-piece to 3-piece wheel systems

California Proposition 65 Warning

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.p65warnings.ca.gov.
