ESCO 10 Ton "Stak-Able" Hydraulic Ram Kit, 1" Stroke w/ 3 Extensions - 10317
Professional Wheel Removal Made Easy - 10 Ton Hydraulic Ram Kit (Model 10317)
Stackable Extension System for Maximum Versatility
When seized wheels and rusted parts bring your work to a halt, this 10 ton hydraulic ram kit delivers the controlled force you need to get the job done. Built for professional tire shops, fleet maintenance, and mobile service techs, this stak-able hydraulic ram system eliminates the guesswork and danger of hammering or torching stuck components. The snap-in extension design lets you customize your setup in seconds, giving you precise reach for everything from tight wheel wells to extended push applications.
Key Benefits That Make the Difference
Snap-Together Extensions for Any Job
Three modular extensions (1", 2", and 3") connect instantly to give you working heights from 3.5" to 11.25". Use them individually for low-clearance work or stack them together for maximum reach. No tools required - just snap and push.
Controlled 10-Ton Force Application
Delivers precise hydraulic pressure up to 20,000 lbs without the shock or unpredictability of impact tools. Your hydraulic pump provides smooth, controlled force that won't damage surrounding components or create safety hazards.
Compact Design for Tight Spaces
Low-profile ram body fits where other tools can't reach. Perfect for working around brake lines, suspension components, and in cramped wheel wells where space is at a premium.
Perfect for These Applications
This hydraulic ram kit excels in situations where traditional tools fall short:
- Removing seized 22.5" and 24.5" commercial truck wheels
- Breaking loose corroded dual wheels from hubs
- Pushing rusted parts during suspension and brake work
- Low-clearance lifting and positioning tasks
- Mobile tire service and roadside repairs
- Heavy equipment maintenance and assembly work
Complete Specifications
| Capacity | 10 tons (20,000 lbs) |
|---|---|
| Stroke Length | 1" working stroke |
| Retracted Height | 3.5 inches |
| Maximum Height | 11.25 inches (with all extensions) |

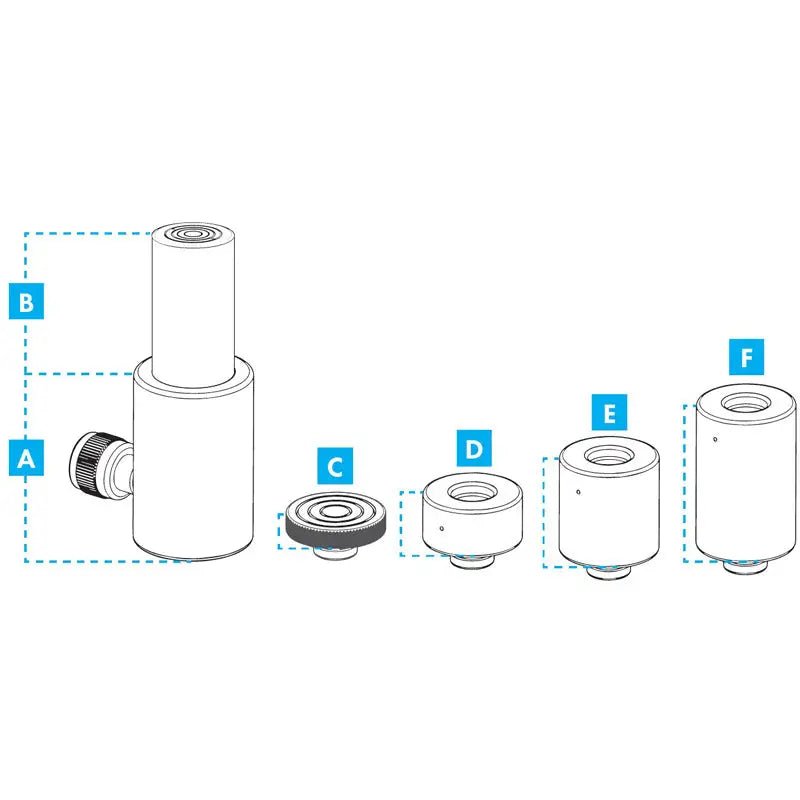

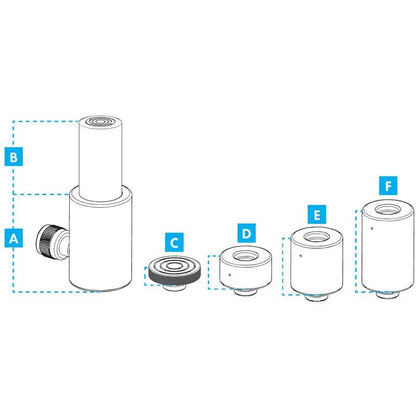

| Extension Sizes | 1", 2", and 3" snap-in extensions |
| Maximum Pressure | 10,000 PSI |
| Weight | 10 pounds |
| Case Dimensions | 12" x 5" x 5" |
| Compatibility | 22.5" and 24.5" wheels, standard hydraulic pumps |
Get Your Professional Hydraulic Ram Kit Today

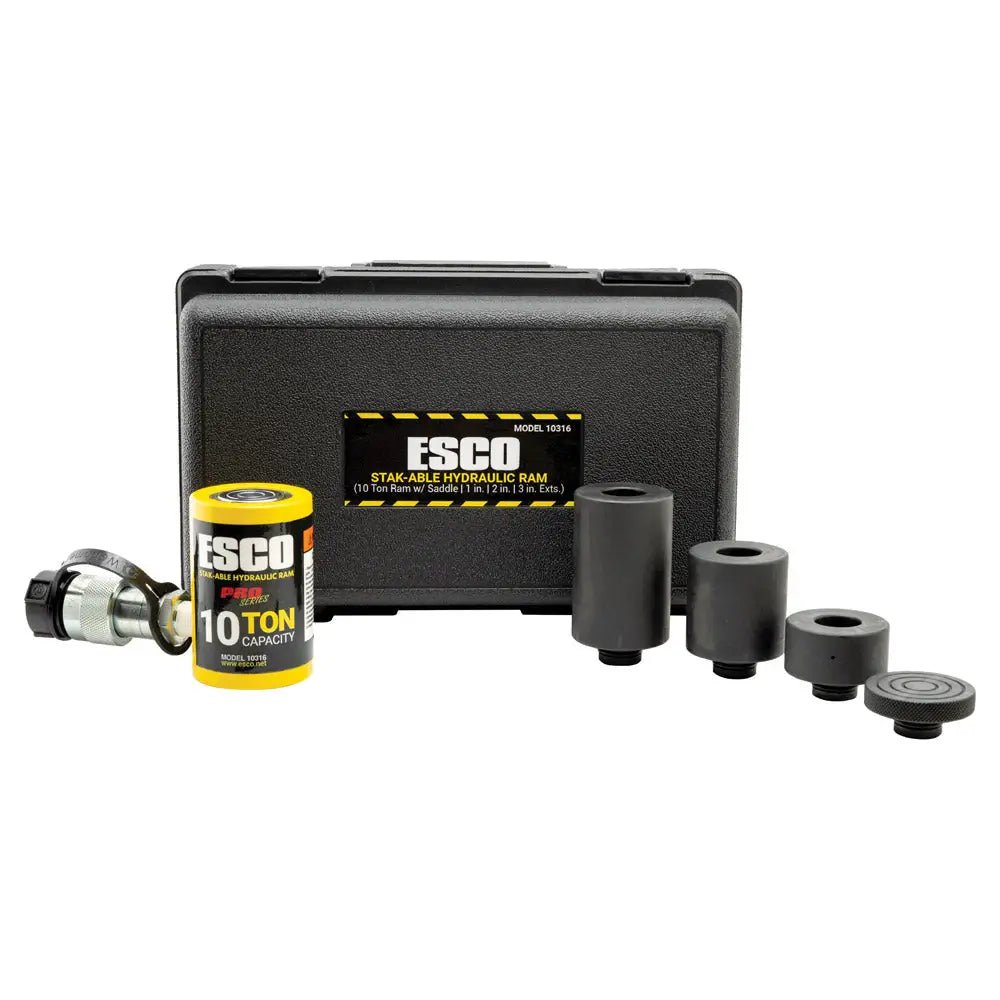

Stop fighting with seized wheels and rusted parts. This portable hydraulic ram kit gives you the controlled force and flexibility to handle any stuck component professionally and safely. Complete with carrying case and three extension sizes for maximum versatility.
Order now and tackle your toughest wheel removal jobs with confidence.
Frequently Asked Questions
How does this compare to using a sledgehammer or prybar?
This hydraulic ram kit provides controlled, consistent force without the shock damage or safety risks of impact tools. Unlike hammers or prybars, it applies steady pressure that won't damage brake lines, suspension components, or wheel studs. The controlled application also eliminates the risk of injury from slipping tools or flying debris.
What hydraulic pump do I need to operate this ram?
Any standard hydraulic pump capable of 10,000 PSI will operate this ram kit effectively. Most shops already have compatible pumps for other hydraulic tools. The ram connects with standard hydraulic fittings and doesn't require special adapters or modifications.
Can the extensions be used separately or must they be stacked?
The extensions are completely modular - use any single extension for specific height requirements, or stack multiple extensions together for maximum reach. Each extension snaps securely into place and can handle the full 10-ton capacity whether used alone or in combination.
Is this ram kit suitable for mobile tire service work?

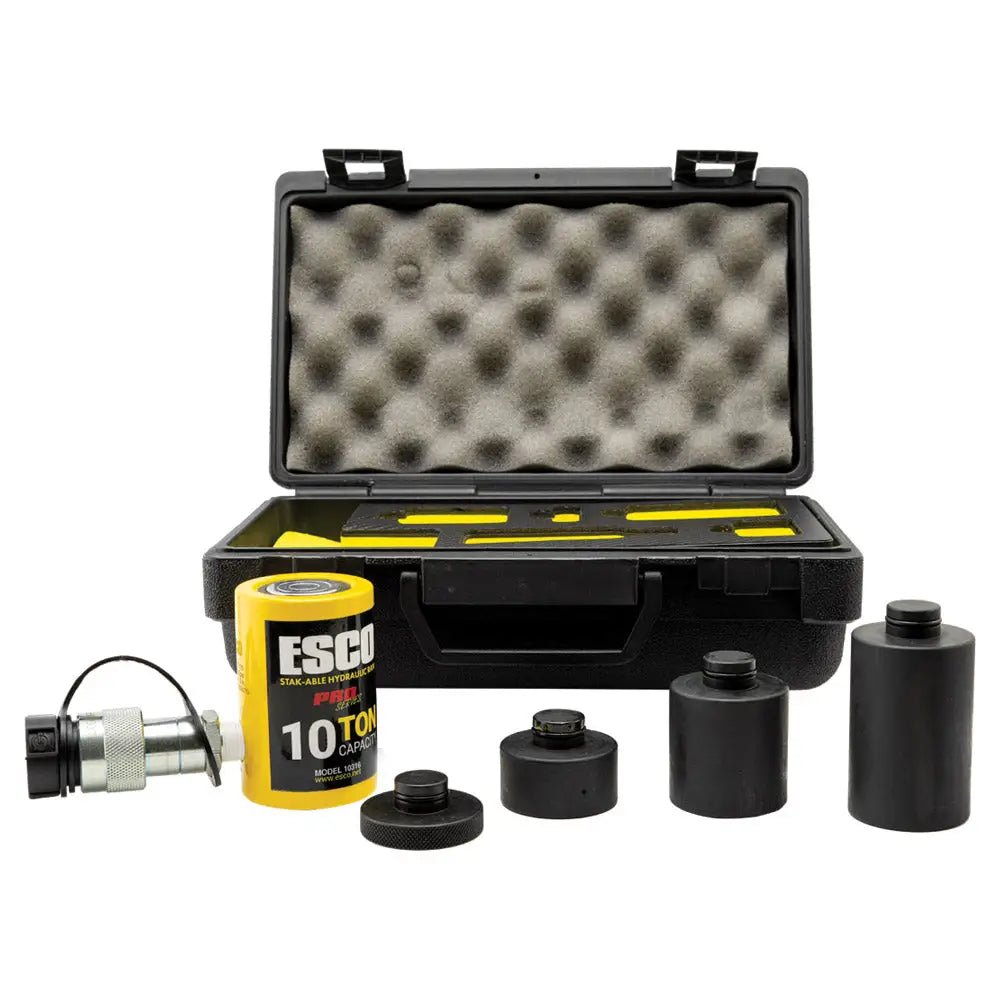

Absolutely. The complete kit weighs just 10 pounds and includes a heavy-duty carrying case with foam inserts for each component. The compact design and quick-setup extensions make it ideal for mobile service trucks and roadside repairs where space and setup time are critical.
