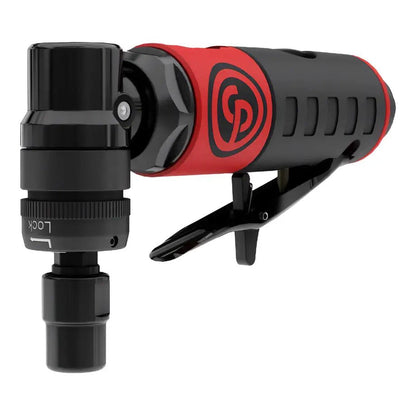

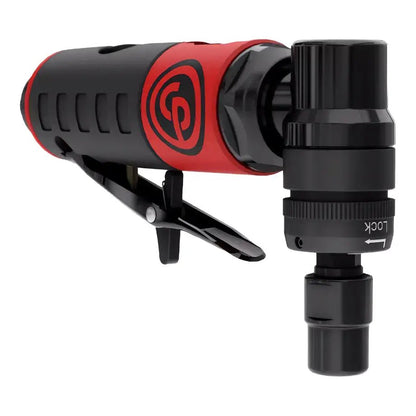

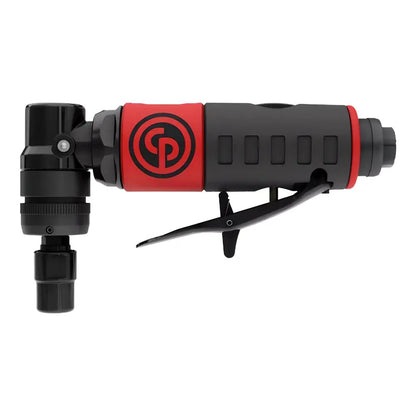

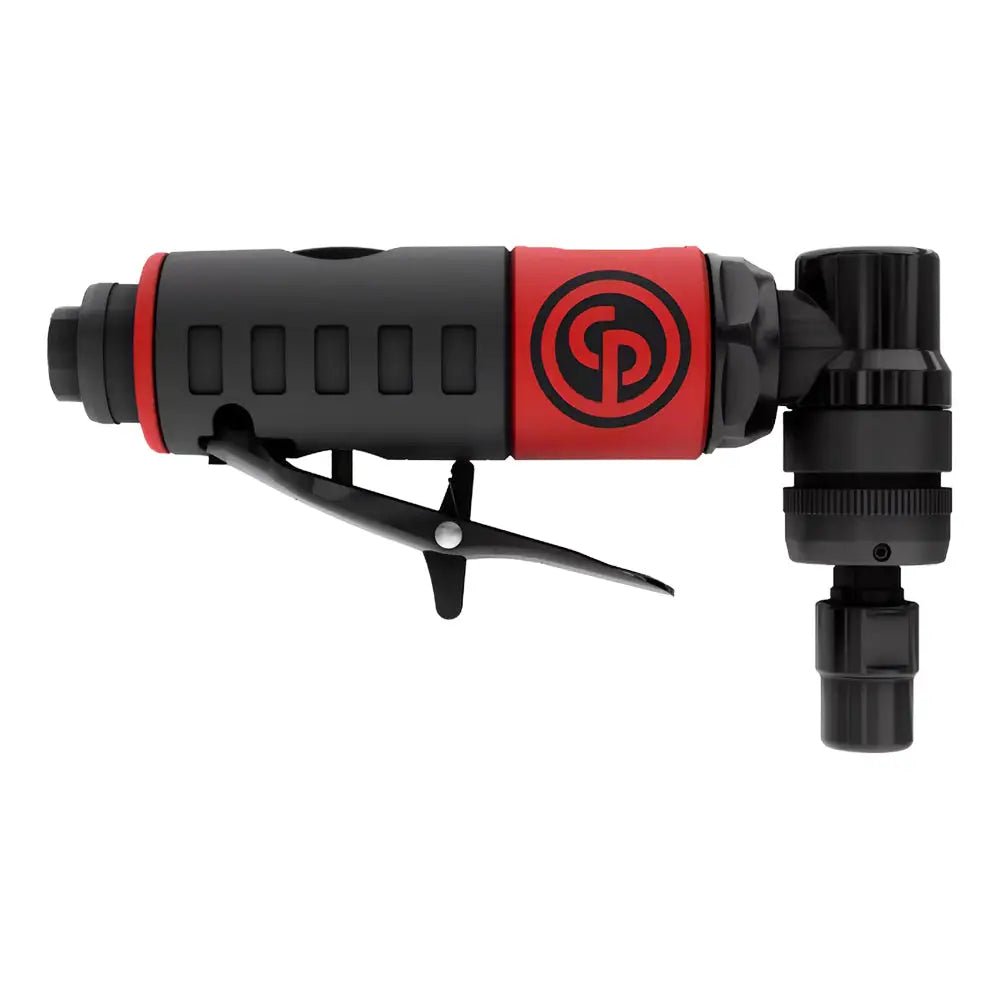

CP CP7406 90 Deg. Die Grinder, 0.3HP, 23000 RPM, 1/4" Inlet
90 Degree Die Grinder for Tight Space Solution - Chicago Pneumatic (CP7406)
Professional angled grinder tool with 0.3HP power for automotive and metalworking
When straight die grinders can't reach, this 90 degree angle die grinder gets the job done. The CP7406 delivers 0.3HP of power at 23,000 RPM, making it perfect for grinding welds in engine bays, deburring tight corners, and finishing work where space is limited. The right angle head provides superior access and visibility compared to standard straight grinders.
Key Features and Benefits
Superior Access in Confined Spaces
The 90-degree head design reaches into tight corners, between surfaces, and inside engine compartments where straight grinders fail. Perfect for automotive bodywork, welding cleanup, and maintenance in cramped quarters.
One-Wrench Accessory Changes
Spindle lock system lets you swap carbide burrs, cutting wheels, and grinding attachments using just one wrench. No more fumbling with multiple tools or struggling to hold the spindle while changing accessories.
Ergonomic Comfort for Extended Use
Composite housing with TPR grip material prevents slipping and reduces heat transfer. The low-profile throttle lever minimizes hand fatigue during repetitive grinding tasks and provides precise speed control.
Die Grinder for Tight Spaces Applications
This angled grinder tool excels in situations where precision and access matter most:
- Perfect for automotive repair and body shop work
- Perfect for weld cleaning and surface preparation
- Perfect for deburring and finishing in tight spaces
- Perfect for maintenance on confined equipment housings
- Perfect for metal fabrication and custom work
- Perfect for removing gaskets and rust in hard-to-reach areas
Specifications
| Specification | Detail |
|---|---|
| Model | CP7406 |
| Power Output | 0.3 HP (0.34 HP max) |
| Free Speed | 23,000 RPM |
| Collet Size | 1/4 inch (6mm) |
| Air Inlet | 1/4 inch NPT |
| Air Consumption | 2.1 CFM at load |
| Weight | 1.32 lbs |
| Length | 6.4 inches |
| Operating Pressure | 90 PSI max |
Get Professional Results in Tight Spaces
Stop struggling with bulky grinders that can't reach where you need them. This compact 90 degree die grinder delivers the power and precision you need for professional results in confined spaces.
Order your CP7406 angle die grinder today and tackle jobs that seemed impossible before.
Frequently Asked Questions
How does this compare to a straight die grinder vs 90 degree models?
The 90-degree angle head provides access to tight spaces where straight grinders can't reach. While straight grinders offer more power in some models, this angle design is specifically engineered for confined work areas like engine bays and inside frames where maneuverability matters more than raw power.
What CFM air compressor is required for the CP7406 die grinder?
You'll need a compressor that delivers at least 2.1 CFM at 90 PSI for optimal performance. A 3/8 inch minimum hose diameter is recommended for consistent air flow during extended use.
Can I use different grinding attachments?
Yes, the 1/4 inch collet works with standard carbide burrs, cutting wheels, sanding discs, and wire brushes designed for die grinders. The spindle lock makes accessory changes quick and easy.
Is this suitable for heavy-duty professional use?
Absolutely. The helical bevel gear design and composite housing are built for daily shop use. Many auto repair shops and fabrication businesses rely on this model for consistent performance in demanding applications.
