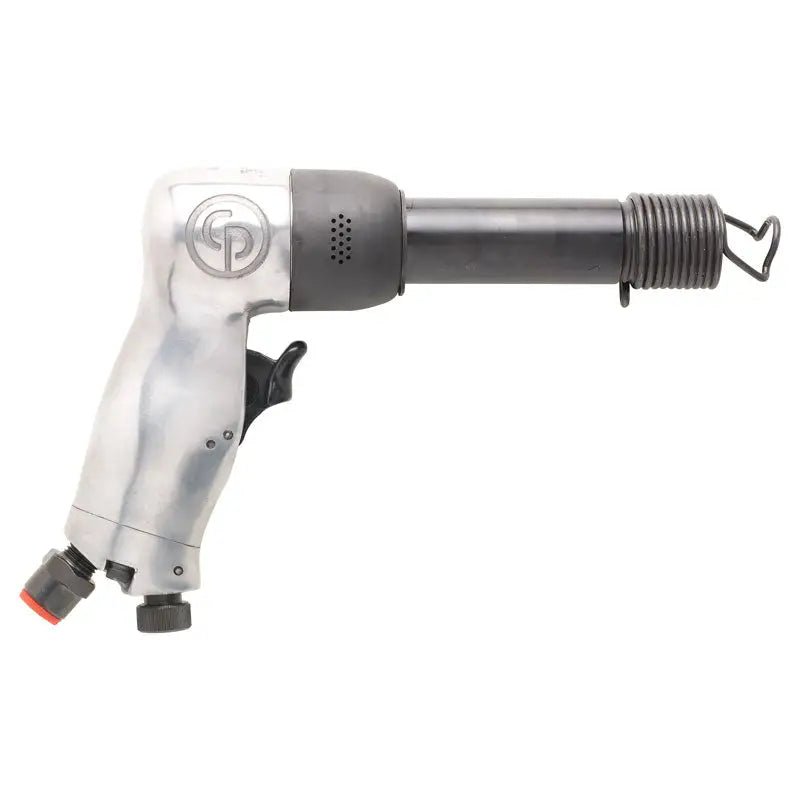

Precision Control Power - Chicago Pneumatic Air Hammer (CP714)
Air Hammer with Ultra-Sensitive Speed Control for Professional Use
Need an air hammer that delivers serious power without overwhelming delicate work? You'll love how the CP714 solves the common problem of pneumatic tools that either hit too hard or lack the control for precision tasks. With its advanced spool valve system, this heavy duty air hammer gives you the finesse to start slow on sensitive materials and ramp up to full 2000 BPM power when you need maximum impact force.
Key Features and Benefits
Unmatched Speed Control
Spool valve technology provides ultra-sensitive trigger response, letting you ease into tough jobs or deliver full power instantly. Perfect for switching between delicate gasket removal and heavy-duty rivet cutting without tool changes.
Reduced Operator Fatigue
Weighs just 3.33 pounds with ergonomic pistol grip design that minimizes hand strain during extended use. Low vibration operation means you can work longer without the numbness common with other pneumatic hammers.
Professional-Grade Durability
Built for daily shop use with heavy-duty construction that handles automotive, construction, and manufacturing environments. The 0.401" round shank accepts standard chisel attachments for maximum versatility.
Applications
This pneumatic air hammer excels in situations where you need both power and precision control:
- Automotive Work: Removing ball joints, bushings, rivets, and exhaust components
- Body Shop Tasks: Front-end work, frame repairs, and panel shaping
- Construction Projects: Concrete chipping, tile removal, and structural modifications
- Manufacturing: Production line chipping, cutting, and material removal
- Maintenance: King pin bushing removal, bolt shearing, and equipment repair
Installation/Requirements
Setting up your heavy duty air hammer for optimal performance requires proper air supply and accessories:
- Air Compressor: Minimum 2.13 CFM capacity with 90 PSI working pressure
- Air Hose: Use 3/8" minimum diameter hose to ensure adequate air flow
- Chisel Selection: Compatible with standard 0.401" (10.2mm) round shank attachments
- Air Filter: Install inline air filter to protect internal components from moisture
- Quick Connect: 1/4" NPTF air inlet accepts standard quick-connect fittings
Specifications
| Blows Per Minute | 2,000 BPM |
|---|---|
| Stroke Length | 3.5 inches (89mm) |
| Tool Weight | 3.33 lbs (1.51 kg) |
| Overall Length | 7.5 inches (190mm) |
| Air Inlet Size | 1/4" NPTF |
| Average Air Consumption | 2.13 CFM (60 L/min) |
| Chisel Shank Size | 0.401" (10.2mm) Round |
| Minimum Hose Size | 3/8" (10mm) |
CP714 vs Standard Air Hammers Comparison
| Feature | CP714 | Standard Air Hammers |
|---|---|---|
| Speed Control | Spool valve precision | Basic on/off trigger |
| Weight | 3.33 lbs | 4-5 lbs typical |
| Vibration Level | Low fatigue design | High vibration |
| Professional Use | Daily shop rated | Occasional use |
Get Professional Results with the CP714 Heavy Duty Air Hammer
Stop struggling with air hammers that lack precision control or tire out your hands. The CP714 delivers the perfect balance of power and finesse that professional technicians demand for quality work.
Order now and experience the difference professional-grade pneumatic tools make in your daily work.
FAQ
Which air hammer is best for automotive work?
The CP714 is specifically designed for automotive applications with its precision control system. Unlike standard air hammers that can damage sensitive components, this tool's spool valve lets you start gentle and increase power as needed - perfect for ball joint removal, bushing work, and exhaust repairs without risking expensive damage.
How does this compare to Harbor Freight air hammers?
The CP714 offers professional-grade construction and precision control that budget alternatives can't match. While Harbor Freight models work for occasional use, this Chicago Pneumatic tool provides the reliability, comfort, and speed control needed for daily professional work. The spool valve system alone makes it worth the investment for serious users.
What air compressor size do I need for this air hammer?
You'll need a compressor that can deliver at least 2.13 CFM consistently, though having 4-5 CFM capacity ensures optimal performance during continuous use. Most shop compressors 20 gallons and larger will handle this tool without issues. Use a minimum 3/8" air hose for best results.
Are chisel bits included with this pneumatic tool?
The CP714 air hammer typically comes as the tool only. You'll need to purchase chisel sets separately, though many suppliers offer bundle deals. The tool accepts standard 0.401" (10.2mm) round shank chisels, punches, and other attachments available from most tool suppliers.
Warranty & Shipping
Note: Specific warranty and shipping information not provided in source data. Please check with supplier for current warranty terms and shipping policies.
