COUNTERACT CA-WCSC 100-Piece Wheel Centering Sleeve Bucket, 22mm for Hub-Piloted Wheels

Counteract

COUNTERACT CA-WCSC 100-Piece Wheel Centering Sleeve Bucket, 22mm for Hub-Piloted Wheels

$93.55

Product variants

Wheel Centering Sleeves - Counteract Professional System (CA-WCSC, 100-Piece Bucket)

Heavy Duty Truck Wheel Alignment for 22mm Hub Piloted Wheels

Counteract wheel centering sleeves 22mm bucket

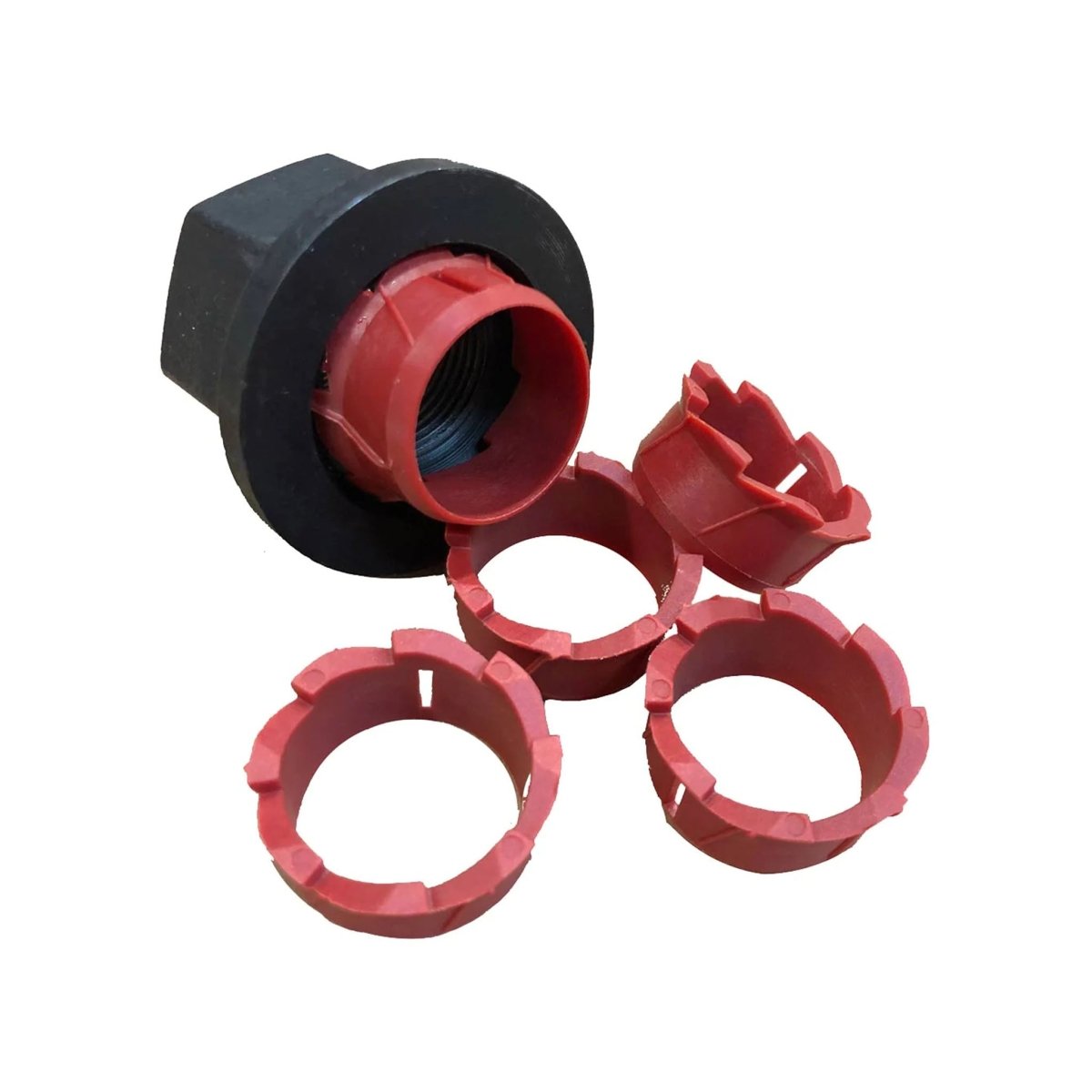

Wheel centering sleeves from Counteract stop dangerous wheel clocking and prevent costly wheel-off incidents. Perfect for fleet maintenance and tire shops, these patent-pending wheel centering sleeves eliminate the gap between 22mm wheel studs and 26mm wheel openings, restoring proper wheel-to-hub bearing alignment on all hub piloted wheels.

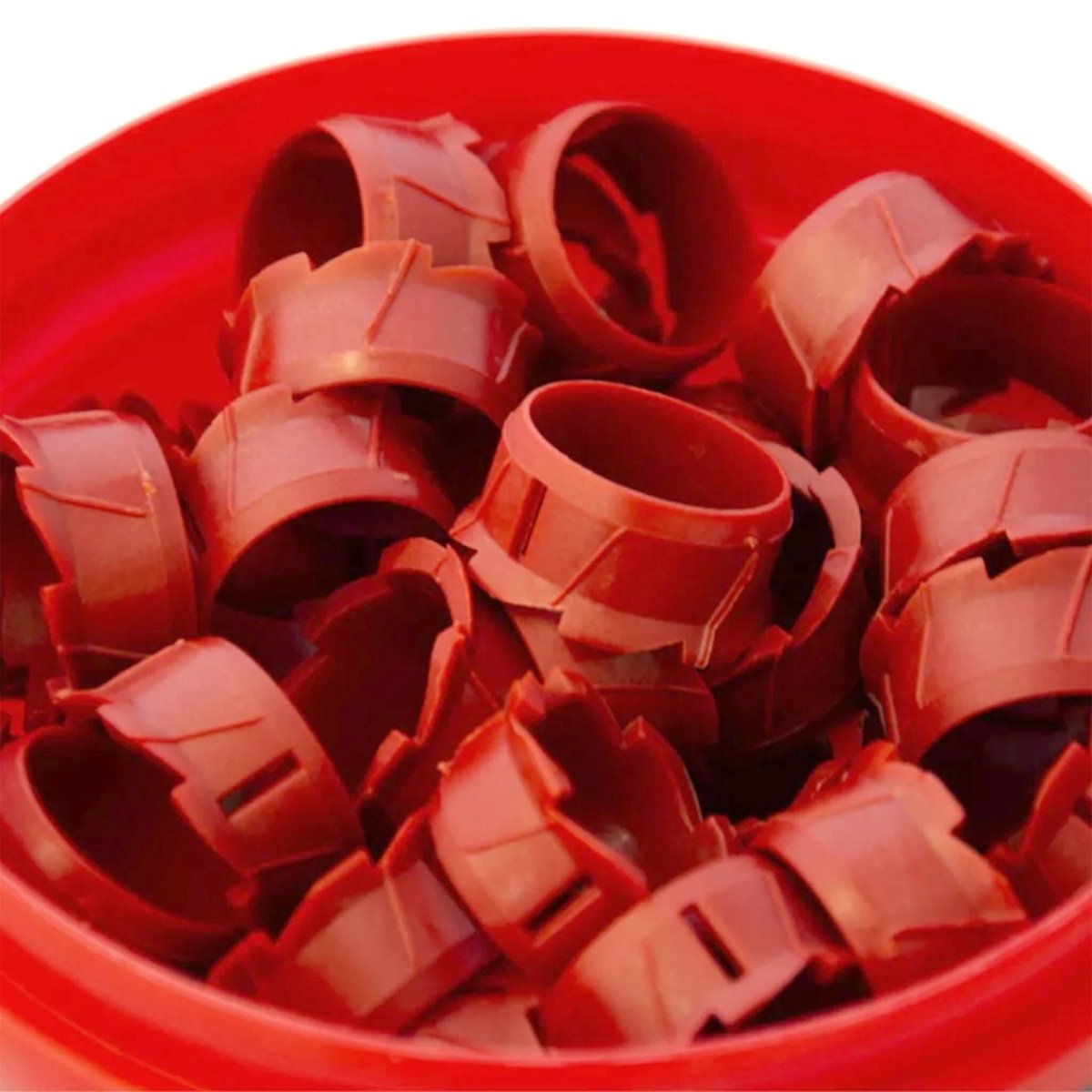

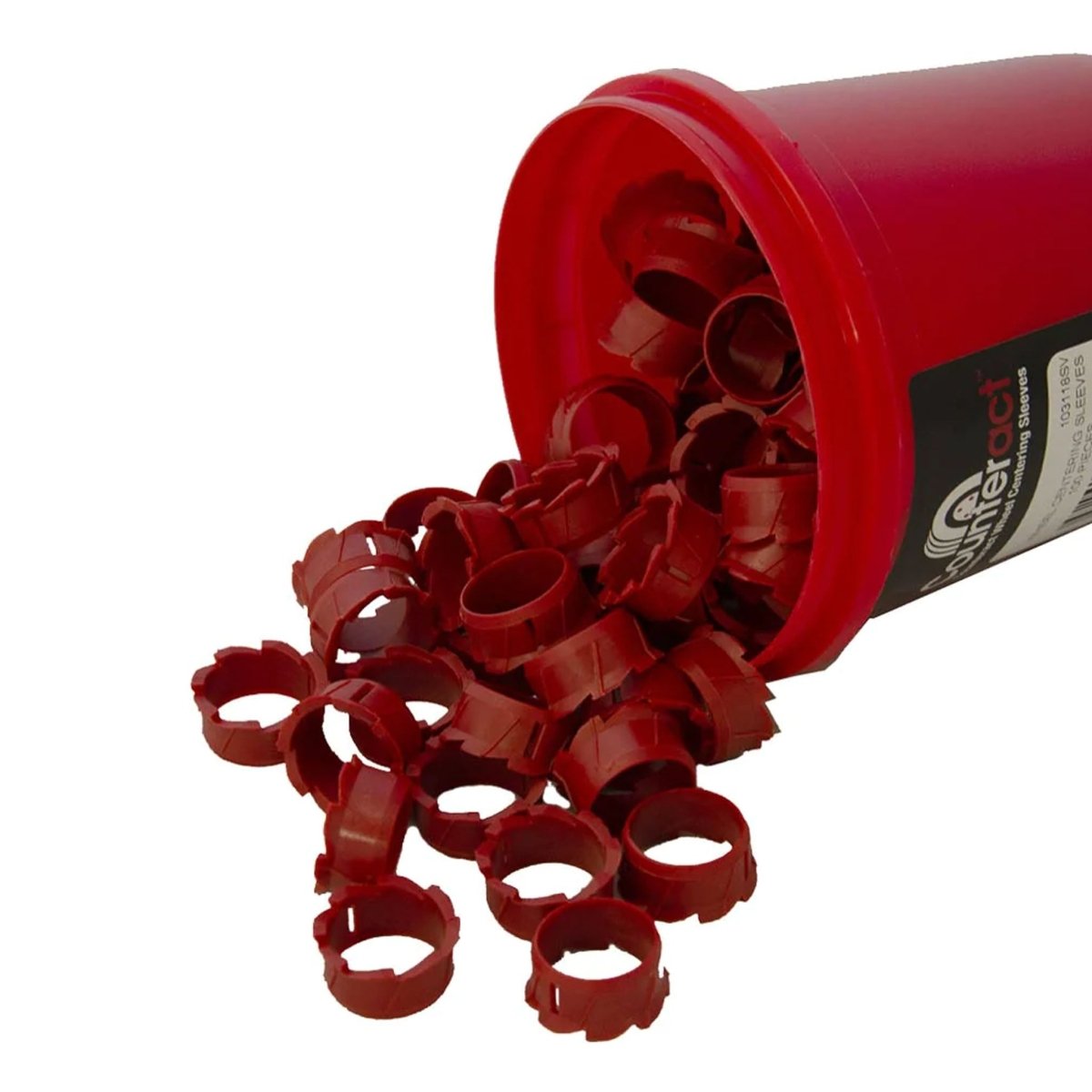

Each 100-piece bucket provides centering sleeves for 20-33 wheels (minimum 3 sleeves per wheel, 5 recommended for maximum safety). Perfect for fleet maintenance, tire shops, and heavy-duty truck operations requiring reliable wheel centering solutions.

Key Features and Benefits

Prevents Wheel-Off Incidents

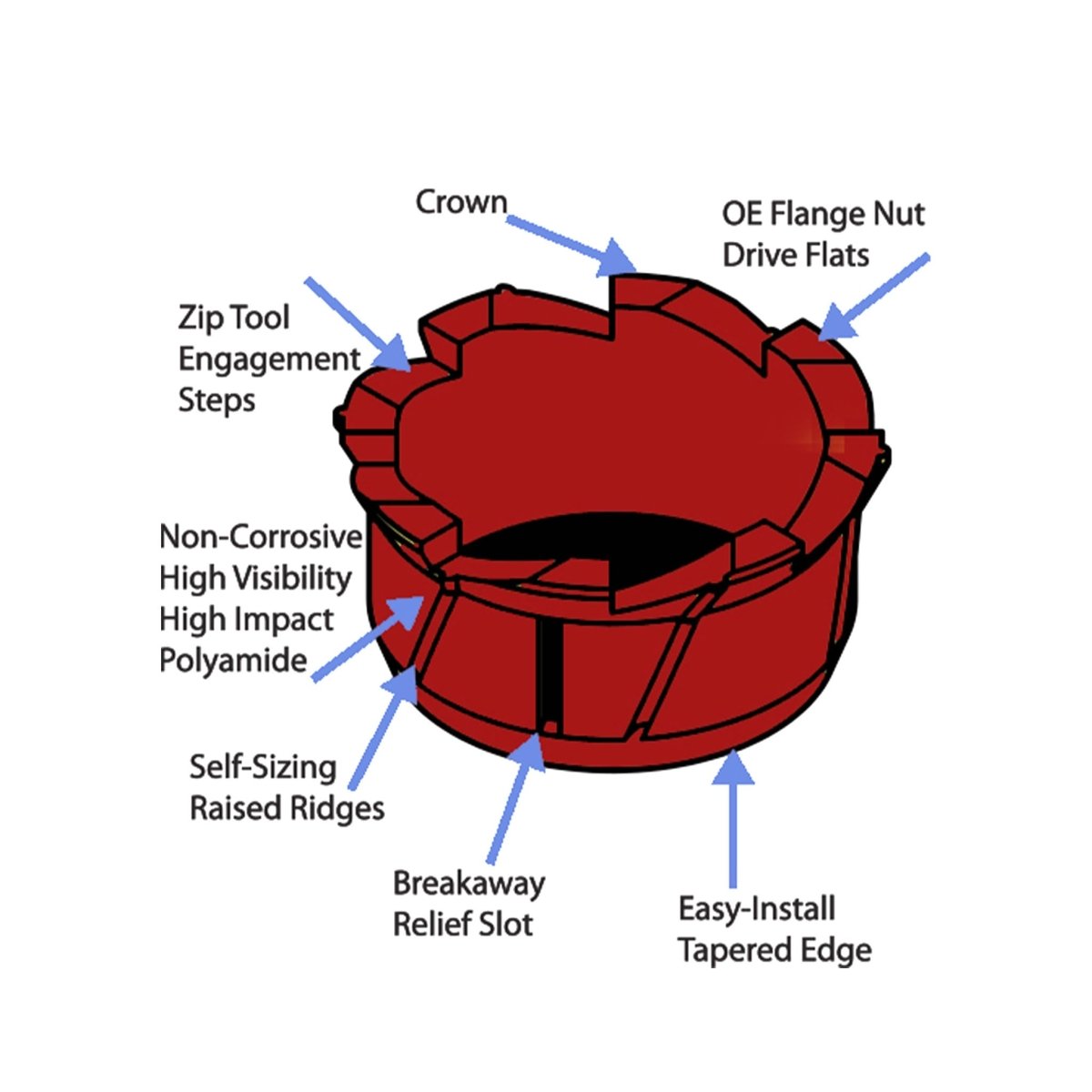

Self-sizing design fills the critical gap between wheel studs and openings, eliminating dangerous wheel clocking that can lead to catastrophic wheel separation during operation.

Restores True Wheel Centering

Re-aligns wheels to the exact center of hub bearings, compensating for factory tolerances and pilot pad wear that cause wheel offset and vibration issues.

Cost-Effective Fleet Solution

Fraction of the cost compared to competitive brands while maintaining full torque integrity and clamping force for secure wheel installation on all commercial vehicles.

Applications

Perfect for heavy-duty truck wheel balancing and alignment
Ideal when you need commercial fleet maintenance operations
Professional tire shop wheel services
Steel and aluminum wheel centering on 22mm stud systems
Ideal for steer wheel and drive wheel applications
Perfect for OEM and aftermarket wheel installations

Specifications

Counteract wheel centering sleeves detailed specifications for 22mm hub piloted wheels
Stud Size	22mm
Wheel Opening	26mm

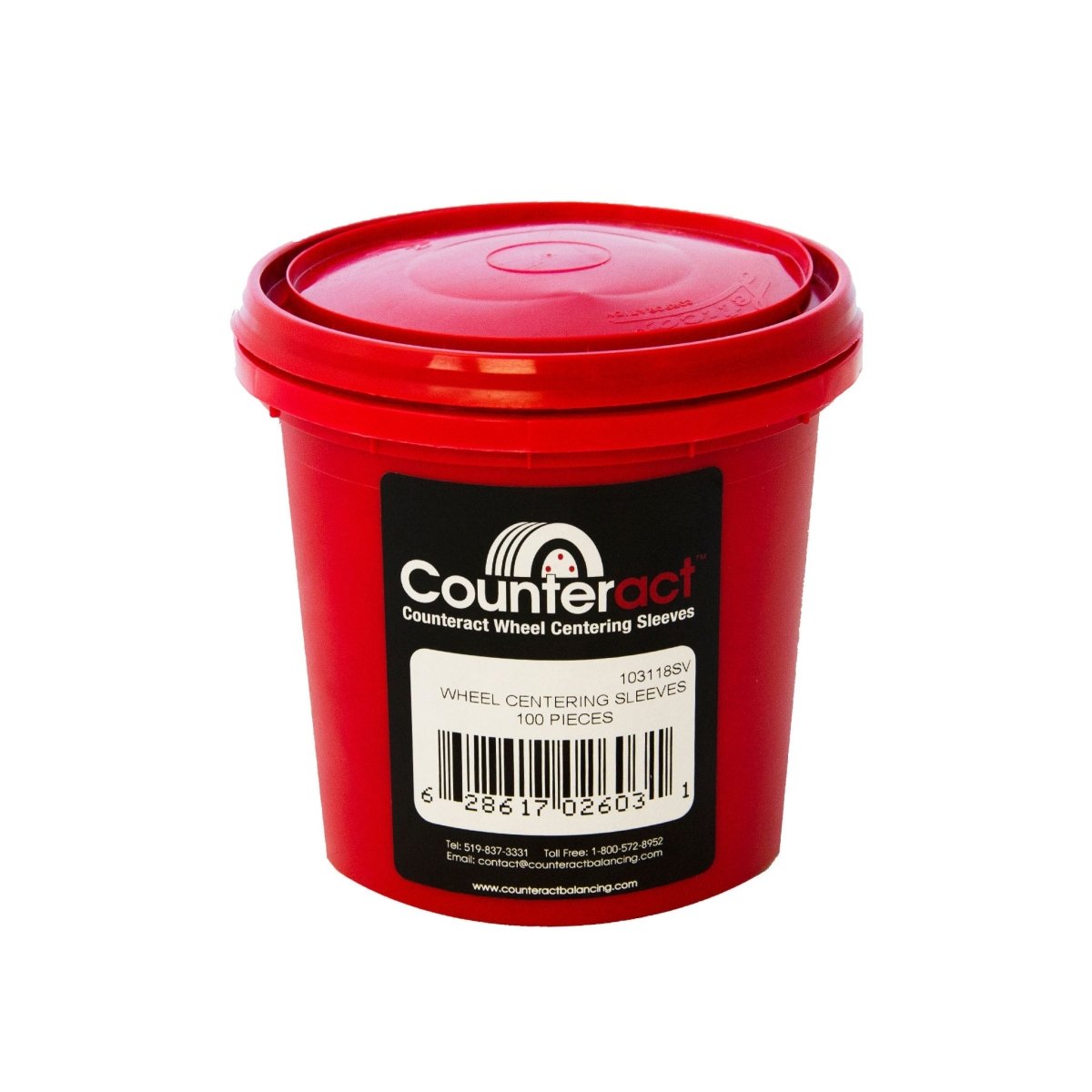

Quantity	100 pieces per bucket
Material	High-temp polyamide (450°F rating)
Compatibility	All hub-piloted wheels with 22mm studs
Usage	Single-use only (never reuse)
Part Numbers	WCS-C, 096WCS-C, 54ZW84, 7041450

Installation Guidelines

Mount tire and wheel assembly completely onto hub

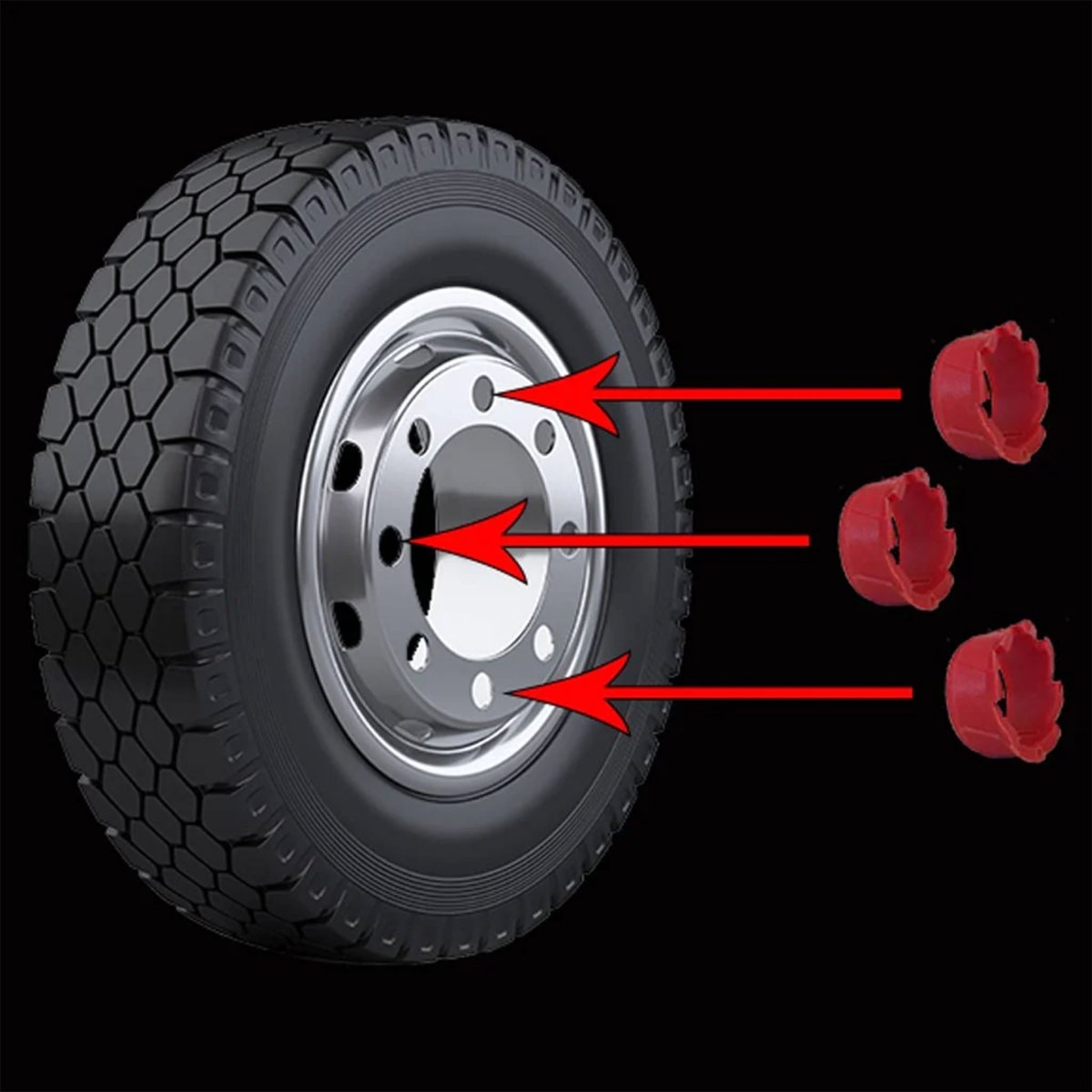

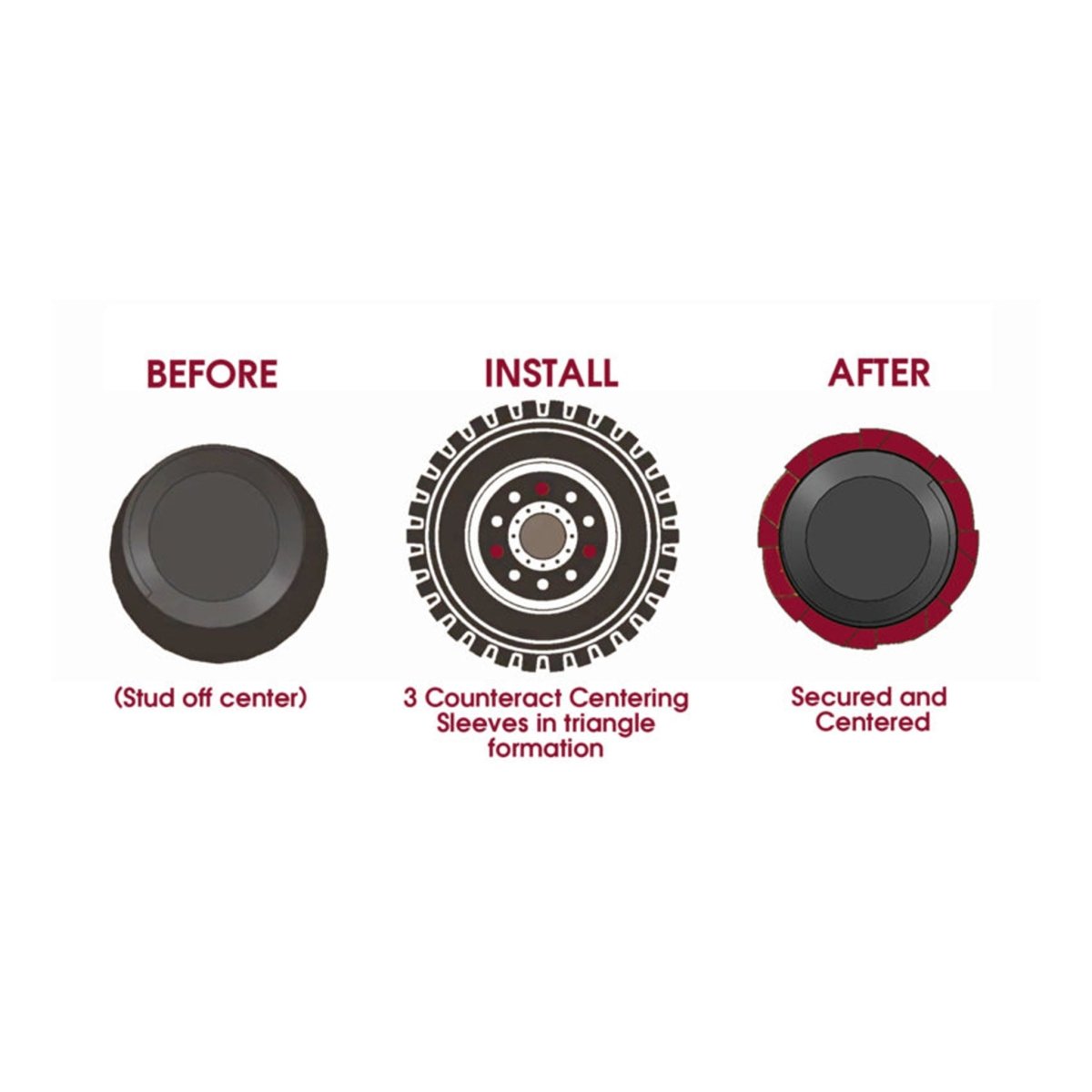

Install minimum 3 centering sleeves per wheel in triangular pattern on opposing studs

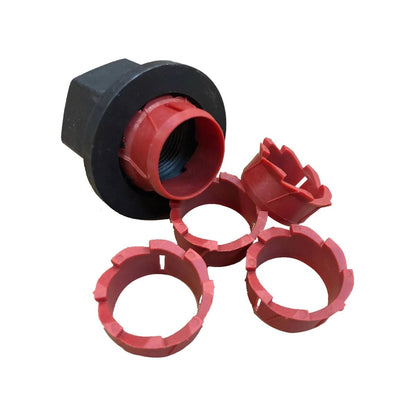

Drive sleeves into position using two-piece flange nuts or installation tool
Lightly torque flange nuts on sleeves first
Install remaining flange nuts and torque all to manufacturer specifications
Never reuse sleeves once installed (self-sizing ridges are permanently compromised)

Professional Tip: Use 5 sleeves per wheel for extreme conditions and added security against wheel clocking.

Get Professional Wheel Centering Results

Stop wheel vibration, prevent dangerous wheel-off conditions, and extend tire life with Counteract's proven wheel centering sleeves. Each bucket handles 20-33 wheels for complete fleet maintenance.

Order your 100-piece bucket today and ensure proper wheel alignment on every vehicle.

Frequently Asked Questions

Which wheel centering sleeves are best for commercial trucks?

Counteract wheel centering sleeves offer the same professional results as expensive competitive brands at a fraction of the cost. The patent-pending self-sizing design maintains full torque integrity while eliminating wheel clocking, making it the preferred choice for fleet operations and tire professionals.

How many sleeves do I need per wheel?

Install a minimum of 3 sleeves per wheel in a triangular pattern on opposing studs. For heavy-duty applications and maximum security, use 5 sleeves per wheel. Each 100-piece bucket provides sleeves for 20-33 wheels depending on usage pattern.

Can I reuse Counteract centering sleeves?

No, these are single-use only. The self-sizing raised ridges are permanently compromised during installation to create the perfect fit. Attempting to reuse sleeves will not provide proper centering and could create safety hazards.

What wheels are compatible with these centering sleeves?

Compatible with all hub-piloted wheels using 22mm studs, including steer wheels, drive wheels, steel wheels, and aluminum wheels. Perfect for commercial trucks, trailers, and heavy-duty vehicle applications requiring precise wheel-to-hub alignment.
