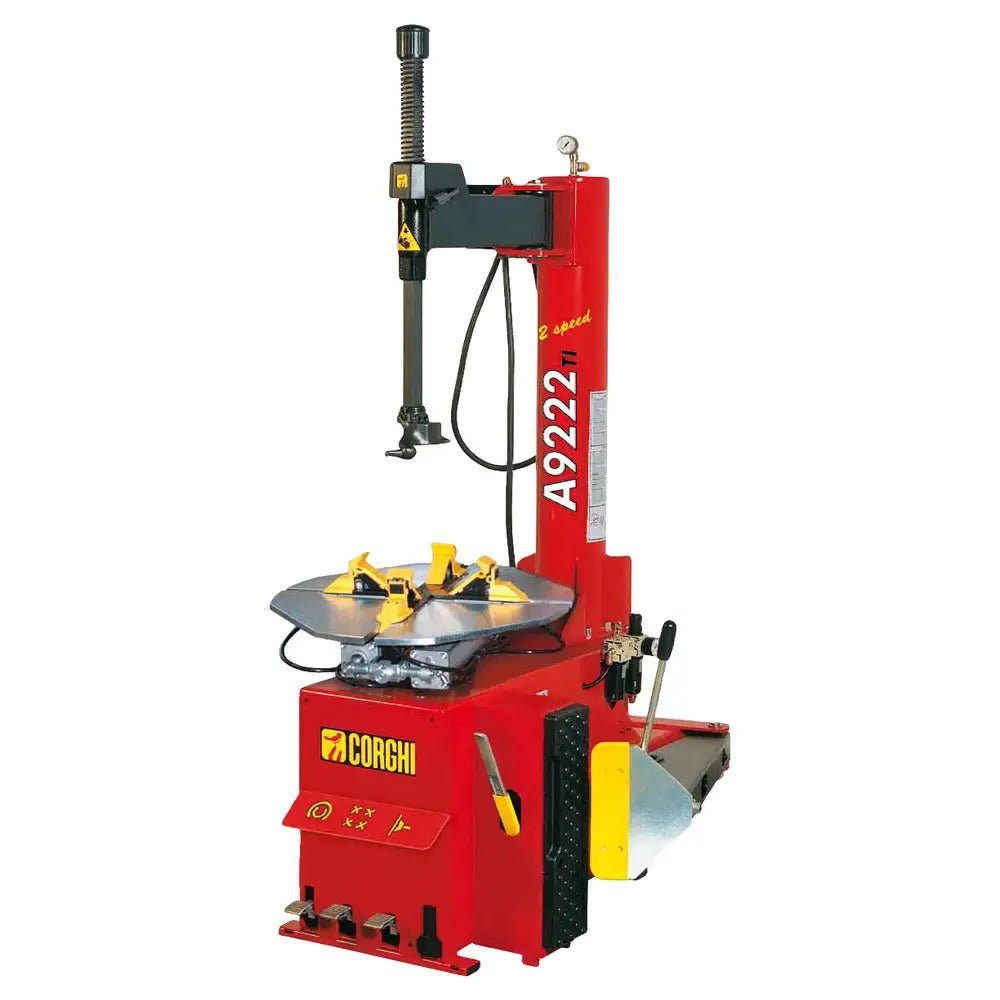

CORGHI A9222TI Swing Arm Tire Changer
- Authorized Online Dealer direct manufacturer relationship
- No Sales Tax outside PA where applicable
- Authorized Dealer Price Match verification required
- Fast Delivery some products may have lead times
- Manufacturer Warranty included with purchase
- Questions? +1 (855) 498-2147
Corghi Artiglio A9222 Swing Arm Tire Changer for Professional Shops
The Corghi Artiglio A9222 is a high-performance rim clamp tire changer combining state-of-the-art technology with reliability and user-friendliness at a competitive price. This versatile machine handles wheels from 10" to 22" standard configuration, expandable to 8" to 24" with optional adapters, and accommodates tire diameters up to 47". Featuring a semi-automatic operation with swinging arm, 22" turntable, 737 lb-ft torque, and 3,500 lbs bead-breaker force, the A9222 is ideal for high-volume professional shops. Add the optional Power Assist Unit for unmatched capability in its class.
Corghi Artiglio A9222 Features
Semi-Automatic Swinging Arm Design
The A9222 features semi-automatic operation with a swinging arm and 22" turntable that simplify mounting and demounting operations. The swing-arm design allows operators to easily position the machine for different wheel sizes and configurations. This user-friendly mechanical design ensures efficient tire changes on passenger cars, vans, and motorcycles without requiring complex programming or controls.
Powerful Bead-Breaker Blade
A powerful action bead-breaker blade delivers 3,500 lbs of force for reliable bead breaking across all tire types. The blade design ensures efficient bead separation on standard wheels, low-profile tires, and demanding applications. This powerful breaking force protects against rim damage while ensuring consistent, fast operation in high-volume service environments.
Two Pneumatic Cylinder Turntable
The 22" turntable features two pneumatic cylinders capable of clamping any type of rim securely. This robust clamping system with 737 lb-ft torque handles diverse wheel materials and designs safely, from standard steel wheels to alloy wheels and reverse drop-center configurations. The dual-cylinder design provides reliable, consistent operation.
Extractable Pedal Unit for Easy Maintenance
The removable pedal unit design allows easy inspection of the control area and provides simple maintenance access. This innovative feature keeps the operating area clean and reduces maintenance downtime. Extractable pedal controls make setup adjustments and routine maintenance straightforward for shop technicians.
Plastic Mount-Demount Head and Manual Bead Presser
The A9222 includes a plastic M/D tool head that protects valuable rims from damage during mounting and demounting operations. Combined with a manual bead presser for basic applications, this design provides reliable performance at competitive cost. Optional pneumatic bead pressing upgrades are available for enhanced capability on demanding tire applications.
Wide Rim and Tire Capacity
The machine handles external rim sizes 10" to 22" standard, expandable to 8" to 24" with optional adapters, with internal rim capacity 13" to 25". Rim width ranges from 3.5" to 12.5" and accommodates maximum tire diameter of 47". This versatility makes the A9222 suitable for diverse passenger vehicle, van, and motorcycle tire service applications.
Corghi Artiglio A9222 Applications
- Independent Tire Shops: The A9222 is designed for tire shops seeking reliable, affordable equipment that handles standard passenger vehicles and light trucks with excellent performance and easy operation at competitive cost.
- Multi-Service Auto Repair Shops: Perfect for general automotive repair facilities that need versatile tire changing capability for diverse customer vehicles, from sedans to vans, without major capital investment.
- Van and Light Truck Service: The 47" maximum tire diameter and capacity for rim sizes up to 24" make the A9222 ideal for shops specializing in van and light truck tire maintenance and replacements.
- Motorcycle and Motorsport Shops: The semi-automatic swinging arm design and compact footprint make this machine excellent for specialty shops handling motorcycle tires and small-wheel applications.
- Fleet Maintenance Centers: Professional fleet operations managing diverse vehicle types benefit from the A9222's versatility, reliability, and cost-effectiveness for high-volume tire service operations.
Corghi Artiglio A9222 Specifications
| Specification | Value |
|---|---|
| External Rim Size (Standard) | 10" - 22" |
| External Rim Size (With Adapter) | 8" - 24" |
| Internal Rim Size | 13" - 25" |
| Rim Width | 3.5" - 12.5" |
| Maximum Tire Diameter | 47" |
| Specification | Value |
|---|---|
| Turntable Torque | 737 lb-ft |
| Turntable Type | 22" diameter with two pneumatic cylinders |
| Bead-Breaker Force at Shoe | 3,500 lbs |
| Air Pressure | 150 PSI |
| Electrical Supply | 110V, 1-phase |
| Specification | Value |
|---|---|
| Overall Length | 73" |
| Overall Width | 49" |
| Overall Height | 36" |
| Shipping Weight (Standard) | Approximately 670 lbs |
| Shipping Weight (With Power Assist Unit) | 760 lbs |
Corghi Artiglio A9222 Installation Requirements
Electrical Requirements
Power Supply: Single-phase 110V electrical connection is required for the A9222. A dedicated electrical circuit with proper grounding is recommended for safe operation. A licensed electrician should verify that your shop's electrical supply meets all local codes and regulations before installation.
Pneumatic Supply
Air Pressure: 150 PSI compressed air supply is required for pneumatic operations including turntable clamping and bead-breaker function. Install a properly sized air compressor system with adequate capacity to support continuous operation of the machine. Air lines must include proper filtration and moisture removal for reliable performance.
Installation Space and Foundation
Floor Space: Minimum footprint of 73" length by 49" width required, with 36" height. Allow additional clearance around the machine for operator movement and wheel handling. A level, stable concrete floor or shop surface is recommended. The machine weighs approximately 670 lbs and should be positioned on a stable, even surface.
Professional Installation and Training
Professional installation is recommended to ensure proper machine setup, electrical and pneumatic connections, and comprehensive operator training on safety procedures and machine capabilities. Installation verification including test operation and operator training ensures optimal performance and maintains warranty coverage. Service arrangements with authorized Corghi dealers provide ongoing support and parts availability.
What's Included with the Corghi Artiglio A9222
- Corghi Artiglio A9222 tire changer base unit with swing arm
- 22" diameter turntable with two pneumatic cylinders
- Plastic mount-demount tool head
- Manual bead presser
- Powerful action bead-breaker blade
- Removable/extractable pedal unit with controls
- Lube brush
- Tire lever
- Air tank gauge assembly
- Set of jaw protectors
- Set of inserts
- Operation manual and parts diagrams (multiple languages)
- Warranty documentation
Optional Accessories: Power Assist Unit (BPL) with pneumatic-powered wheel and bead pressing arm, bead lifter, and one-person operation capability for handling difficult low-profile and high-performance tires. Optional rim adapters to expand rim capacity to 8"-24". Optional air motor conversion available for shops preferring pneumatic-only operation.
Not Included: Electrical installation labor, compressed air supply system, air compressor, air lines and fittings, floor preparation or concrete work, delivery or installation transportation, operator training beyond basic documentation, or maintenance items such as lubricants and replacement inserts.
Corghi Artiglio A9222 Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: 2-4 weeks for standard delivery depending on current production schedule. Shipping Method: Full-size freight truck with standard curbside delivery. International: Contact sales for international shipping quotes and delivery arrangements.
Delivery Requirements
Receiving: Commercial delivery address with accessible loading area. Machine arrives on wooden pallet and requires forklift or pallet jack for unloading. Inspection: Thoroughly inspect all packaging and the machine for damage before accepting delivery. Document any visible damage on the delivery receipt and contact customer service immediately with photos of damage.
Returns and Exchanges
Returns accepted within 30 days of delivery if product is unopened in original packaging with receipt. A 20% restocking fee applies to all returns. Buyer is responsible for all return freight costs. Equipment that has been assembled, tested, or used is not eligible for return. Contact sales for exchange options due to damage or defect.
Corghi Artiglio A9222 Warranty
Corghi Limited Warranty
The Corghi Artiglio A9222 is backed by Corghi's comprehensive warranty protecting your investment in professional tire service equipment.
- 2 Years: Complete coverage on all components including mechanical and electrical systems against defects in materials and workmanship
- 1 Year: Extended coverage on wear items and repairs related to normal operation
Warranty Requirements: Warranty coverage requires proper installation by a qualified technician, adherence to recommended maintenance schedules as outlined in the operation manual, use of quality pneumatic fluids, and operation within manufacturer specifications. The machine must be used only for its intended purpose as a professional tire changer. Warranty does not cover misuse, neglect, unauthorized repairs, normal wear items, or damage from improper maintenance.
Documents
Click to open in a new tab.
Questions About the Corghi Artiglio A9222?
Our tire equipment specialists can help with installation planning, electrical and pneumatic specifications, optional accessory selection, and professional setup guidance for your tire shop.
Corghi Artiglio A9222 FAQ
What rim sizes can the A9222 handle?
The A9222 handles external rim sizes from 10" to 22" in standard configuration. With optional adapter kits, the machine expands capacity to 8" to 24" external rims. Internal rim size ranges from 13" to 25", and rim width from 3.5" to 12.5". This versatility makes it ideal for standard passenger vehicles, vans, light trucks, and motorcycles.
What is the maximum tire diameter the A9222 can accommodate?
The A9222 accommodates a maximum tire diameter of 47", making it suitable for larger passenger car tires, van tires, and light truck applications. Combined with the rim capacity of up to 24" with adapters, this provides excellent versatility for diverse tire and wheel combinations in professional shop environments.
What is the bead-breaker power of the A9222?
The A9222 features a powerful action bead-breaker blade delivering 3,500 lbs of force at the shoe. This powerful breaking force ensures reliable bead separation across standard wheels, low-profile tires, and demanding applications. The blade design protects against rim damage while maintaining fast, consistent operation.
Is the A9222 suitable for low-profile and high-performance tires?
Yes, the A9222 is designed to handle low-profile and high-performance tires safely. The manual bead presser is effective for basic applications, and the optional Power Assist Unit (BPL) provides pneumatic-powered wheel and bead pressing for enhanced capability on the most challenging tire configurations, including one-person operation on difficult tires.
What electrical supply does the A9222 require?
The A9222 requires a single-phase 110V electrical connection with a dedicated circuit and proper grounding. A licensed electrician should verify that your shop's electrical supply meets all local codes and regulations before installation. The machine is also available with an optional air motor conversion for shops preferring pneumatic-only operation.
What is the pneumatic air pressure requirement?
The A9222 operates at 150 PSI compressed air pressure. You'll need a properly sized air compressor system with adequate capacity to support continuous operation of the machine's pneumatic functions including turntable clamping and bead-breaker operation. Ensure your air lines include proper filtration and moisture removal.
What is included with the A9222 and what are optional accessories?
The A9222 includes the tire changer unit, 22" turntable, plastic mount-demount head, manual bead presser, lube brush, tire lever, air tank gauge, jaw protectors, and inserts. Optional accessories include the Power Assist Unit (BPL) for pneumatic wheel and bead pressing, rim adapters to expand capacity to 8"-24", and an optional air motor conversion for pneumatic-only operation.
What does the optional Power Assist Unit (BPL) do?
The optional Power Assist Unit (BPL) adds pneumatic-powered wheel and bead pressing capability to the A9222. It includes a bead lifter that maintains the bead in the drop center, eliminates bead stress, prevents wheel damage, and enables one-person operation to change even the most difficult tires. This upgrade provides unmatched capability in its class.
How much installation space is required for the A9222?
The A9222 requires a minimum floor footprint of 73" length by 49" width, with 36" height. Allow additional clearance around the machine for operator movement and wheel handling. A level, stable concrete floor or shop surface is recommended. The machine weighs approximately 670 lbs and should be positioned on a stable, even surface.
Is the A9222 suitable for motorcycle tire service?
Yes, the A9222 is ideal for motorcycle tire service. The semi-automatic swinging arm design and 8"-24" rim capacity with adapters make it excellent for specialty shops handling motorcycle tires and small-wheel applications. The compact footprint and user-friendly operation are particularly suited for motorcycle service work.
What warranty coverage does the A9222 include?
The A9222 is backed by a 2-year comprehensive warranty covering all components against manufacturing defects, plus 1-year extended coverage on wear items. Warranty requires proper installation by a qualified technician, adherence to maintenance schedules, and operation within manufacturer specifications. Regular maintenance ensures optimal performance and warranty validity.
What is the difference between the A9222 standard version and the version with Power Assist Unit?
The standard A9222 comes with a manual bead presser suitable for routine tire changes on standard wheels. The version with Power Assist Unit (BPL) adds pneumatic-powered wheel and bead pressing, bead lifter function, and enables one-person operation on difficult low-profile and high-performance tires. The BPL version is ideal for shops handling challenging tire applications regularly.
California Proposition 65 Warning
WARNING: This product can expose you to chemicals including styrene and vinyl chloride, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.p65warnings.ca.gov.
