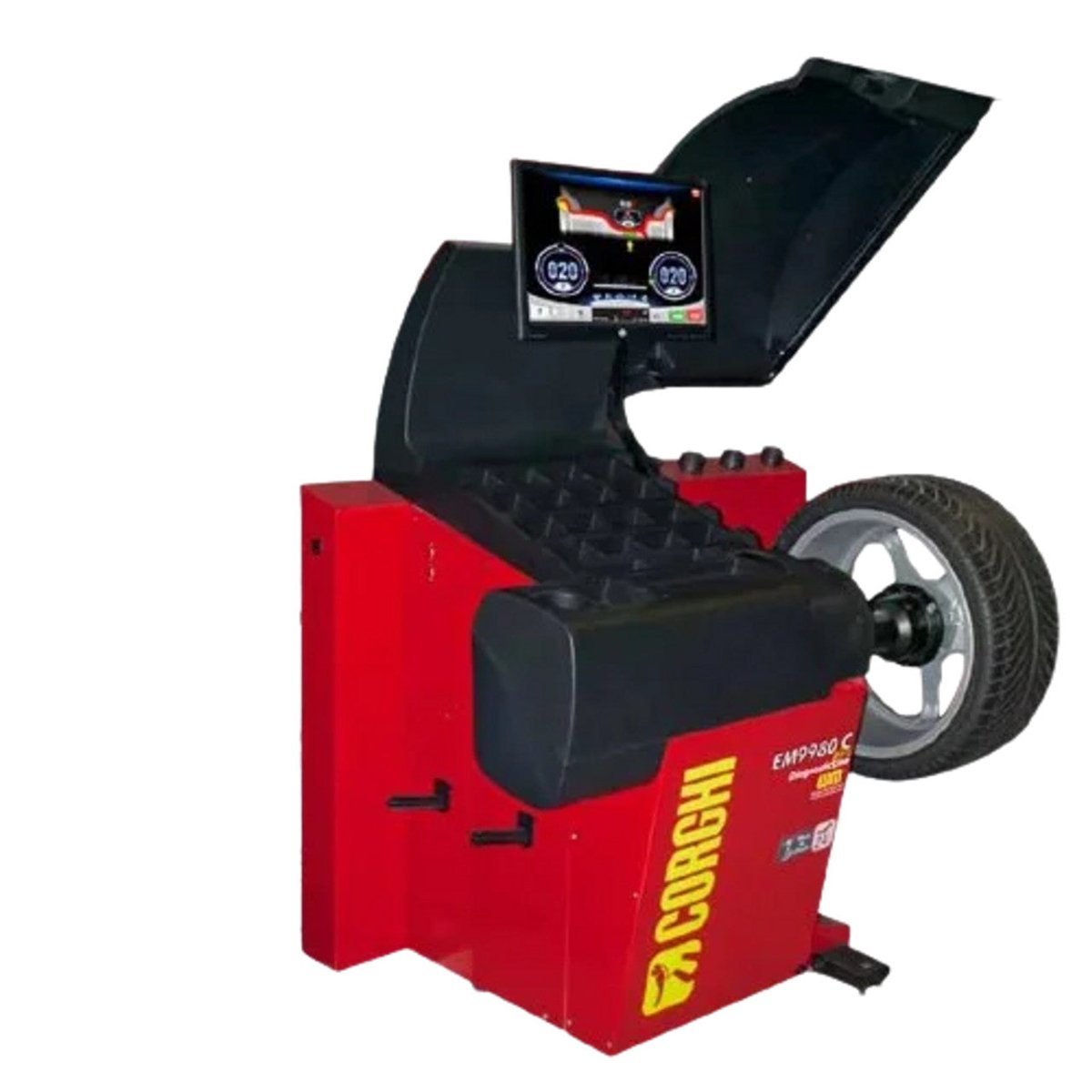

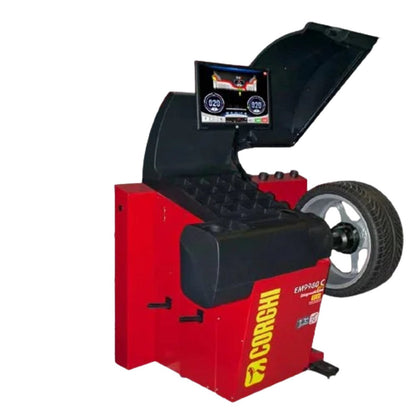

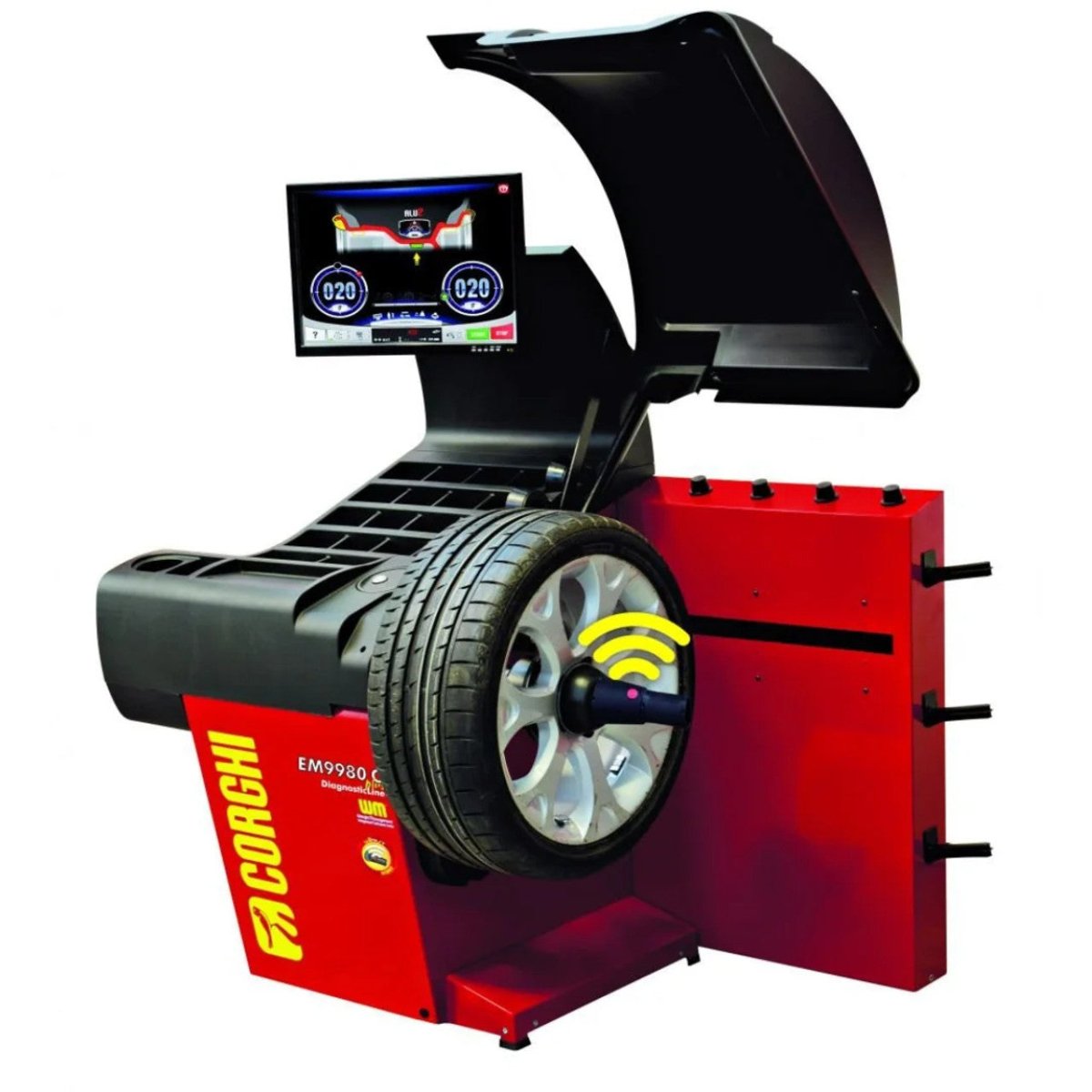

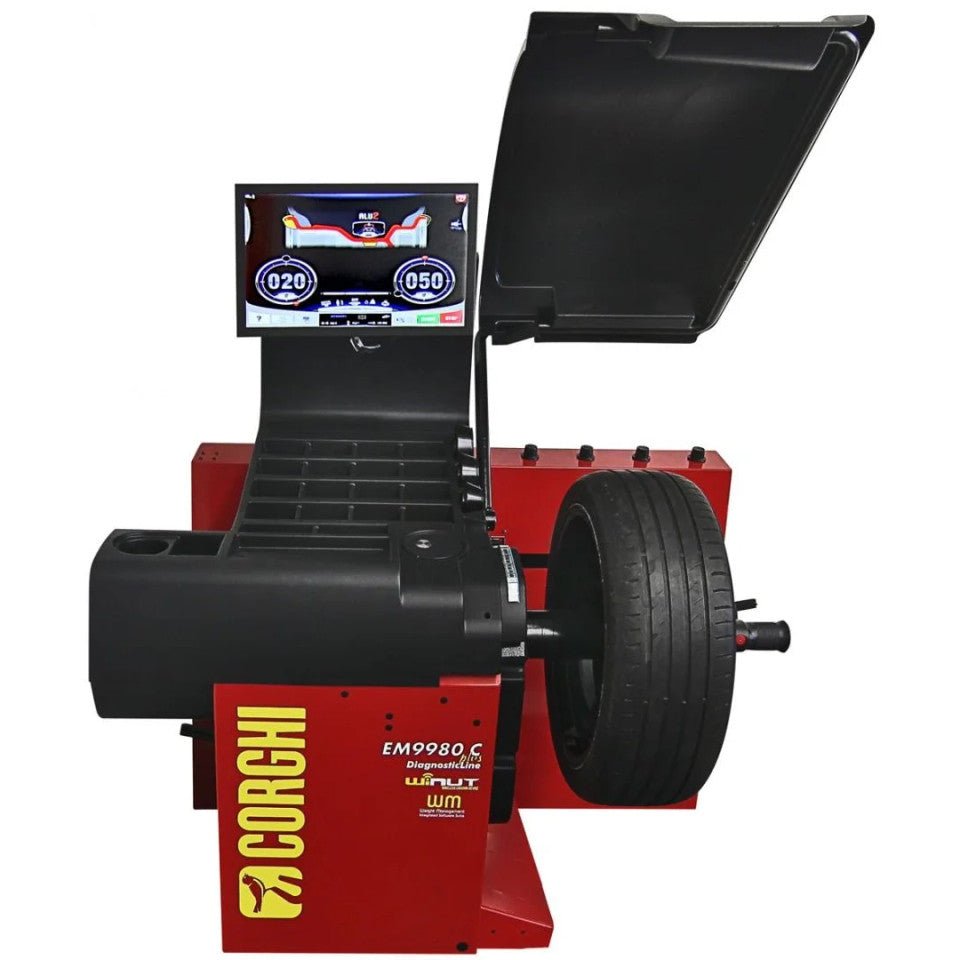

CORGHI EM9980C Plus DiagnosticLine Super-Automatic Wheel Balancer with Touchscreen Monitor
$17,240.00
Information
The CORGHI EM9980C Plus Diagnostic Line Super-Automatic Wheel Balancer offers a fully automatic, touchless wheel balancing experience, eliminating manual operations and enhancing efficiency. Its high-precision laser sensors automatically measure wheel dimensions within seconds, while the touchscreen interface streamlines operation. The integrated LED illuminator and internal laser ensure precise application of adhesive counterweights. Additionally, the laser run-out measurement accurately detects radial and lateral wheel run-out, addressing common road vibration issues. The compact design accommodates wheels up to 44 inches in diameter, making it suitable for various wheel sizes. Upgrade your wheel balancing capabilities with the EM9980C Plus and experience unparalleled precision and efficiency.
Features
| Features | |
|---|---|
| Operation | Fully automatic operation with no manual handling required. |
| User Interface | Touchscreen interface for easy control and program selection. |
| Dimension Measurement | Contactless high-precision laser dimension measurement. |
| Wheel Positioning | Automatic positioning with LED illuminator for easy weight application. |
| Hidden Weight Program | Precise weight placement behind spokes for clean aesthetics. |
| Run-Out Measurement | Laser run-out measurement for addressing road vibration issues. |
| Clamping Systems | Available electronic and WINUT clamping systems for increased precision. |
| Weight Management | System for reduced counterweight usage and enhanced efficiency. |
| Noise Minimization | Opt Flash feature for minimizing road noise. |
| Multifunction Button | One-touch button for simplified operation. |
| Connectivity | USB ports for peripheral connections and software updates. |
| Design | Compact wheel guard and slanted front for easier access. |
Specifications
| Specification | EM9980C |
|---|---|
| Corghi Part Number | 0-21109984/00 |
| Power Supply Voltage | 115-230 V, 1 PH, 50/60 Hz |
| Total Power Absorption | 550 W |
| Balancing Speed | 75-85-98 rpm |
| Maximum Imbalance Value | 35.3 oz (999 g) |
| Resolution | 0.0353 - 0.1764 oz (1-5 g) |
| Average Measurement Time | 7s (14 kg wheel) |
| Shaft Diameter | 40 mm (1.57″) |
| Rim Width Setting Range | 1.6″ - 23.6″ |
| Rim Diameter Setting Range | 2″ - 35″ |
| Rim Diameter Measurement Range | 10″ - 32″ |
| Wheel Maximum Width (with Guard) | 23.6″ (560 mm) |
| Wheel Maximum Diameter (with Guard) | 44″ (1118 mm) |
| Wheel/Machine Support Flange Distance | 10.82″ (275 mm) |
| WINUT Device Operation Frequency | 2.4 GHz |
| Maximum Power of the RF Signal | 100 mW |
| Maximum Wheel Weight | 187 lbs (85 kg) |
| Machine Weight | 404 lbs (183 kg) |
| Maximum Dimensions | 57.2″ x 35.2″ x 74.2″ (1453 x 894 x 1884 mm) |
