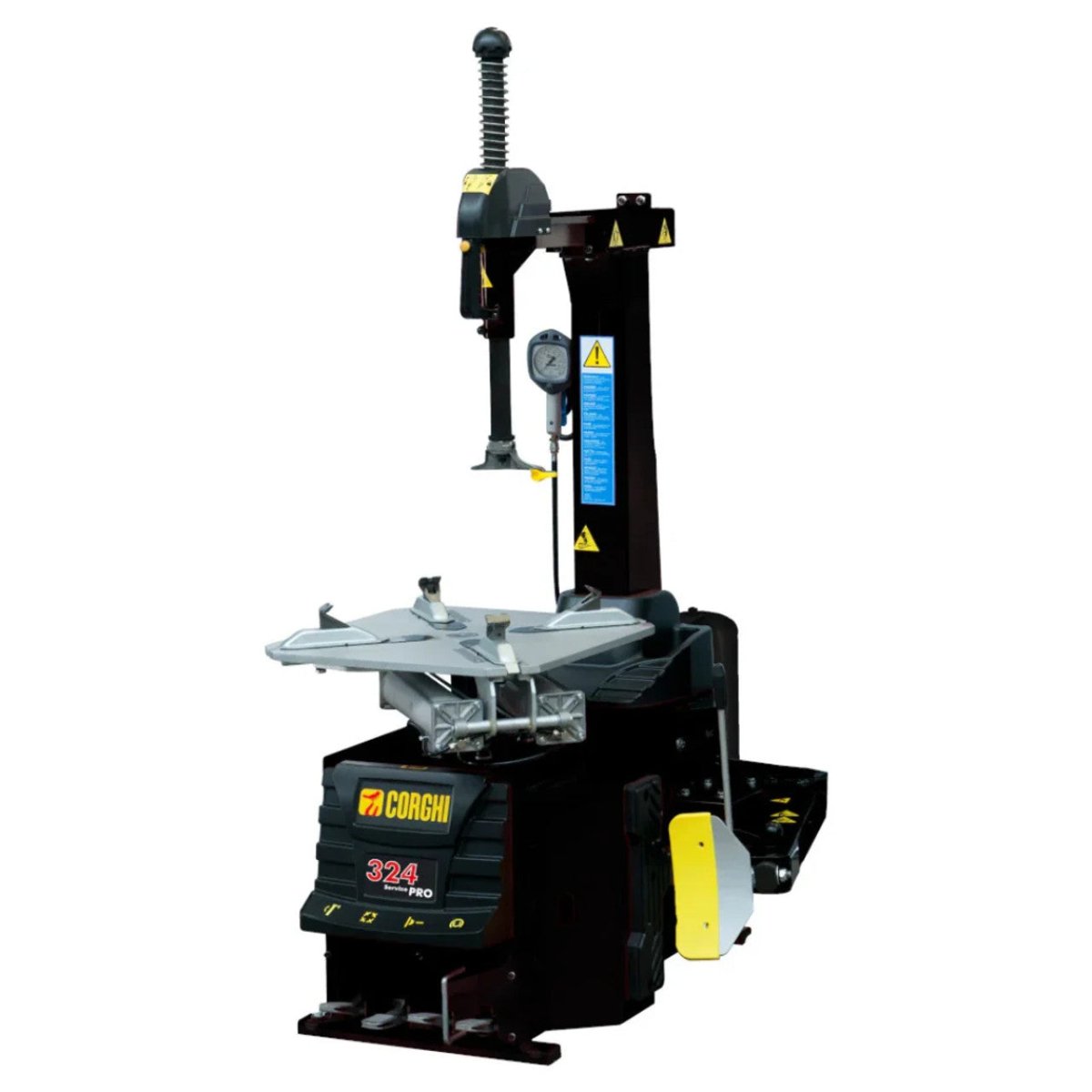

Corghi Service Pro 324 Electric Tire Changer for Cars and Light Vehicles
The Corghi Service Pro 324 is a professional automatic tire changer designed for car repair shops, tire retailers, and automotive service centers. This electric-powered changer handles wheels up to 26 inches with a dual-jaw system, featuring a powerful air-assisted bead breaker and 1.1 hp electric motor for fast, efficient tire service. Backed by comprehensive warranty coverage, the Service Pro 324 delivers reliable performance for high-volume tire operations.
Corghi Service Pro 324 Features
Powerful Air-Assisted Bead Breaker
The integrated bead breaker generates 15,000 Newtons (3,372 lbf) of breaking force, efficiently separating tire beads from the rim. This air-powered system operates at 8-10 bar (116-145 psi) working pressure, requiring standard shop air lines for quick, effective tire removal on all wheel sizes.
1.1 HP Electric Motor with Variable Speed
The dedicated electric motor delivers consistent power for chuck rotation at 7-13 rpm depending on operational mode. This variable speed system accommodates different tire sizes and rim materials, from lightweight alloy wheels to heavy-duty truck rims, with smooth, controlled rotation throughout the service cycle.
Dual Jaw Clamping System
The Service Pro 324 features both outer and inner clamps that secure wheels of varying diameters. The outer clamp handles 11-24 inch wheels while the inner adjustable jaw system manages 13-26 inch wheels, providing professional-grade flexibility for diverse shop requirements and vehicle types.
Wide Tire Compatibility
Service tire widths from 3 to 14 inches with maximum wheel diameter capacity of 1,100 mm (43.3 inches). The 15-inch bead-breaker opening accommodates larger tires and specialty wheels, making the Service Pro 324 suitable for standard passenger vehicles and light truck applications.
Compact Professional Design
At 71 inches wide and 52 inches tall, the Service Pro 324 fits efficiently into space-constrained service bays without sacrificing functionality. The machine weighs 562 lbs (255 kg) for the unit alone, with a total shipping weight of 650 lbs (295 kg), making it manageable for professional installation and relocation.
Low Noise Operation
Operating at less than 70 dB during normal use, the Service Pro 324 maintains a quieter work environment compared to many competing models. This noise level allows for comfortable operation in professional shops and customer waiting areas without excessive disruption to shop activities.
Corghi Service Pro 324 Applications
- Tire Retail Shops: The Service Pro 324 is ideal for dedicated tire retailers handling high volumes of tire changes across car and light vehicle segments throughout the day.
- Full-Service Automotive Repair: Professional repair facilities benefit from the efficient automatic operation and wide wheel compatibility for diverse customer vehicles.
- Dealership Service Departments: New car dealers can leverage the reliable performance and professional-grade features for factory-scheduled maintenance and tire service.
- Fleet Maintenance Facilities: Commercial fleet operators managing passenger vehicle fleets find the dual-jaw system and quick operation suitable for regular maintenance schedules.
- Independent Service Centers: Owner-operated shops appreciate the balance of professional capability, compact footprint, and straightforward operation without complex programming.
Corghi Service Pro 324 Specifications
| Specification | Value |
|---|---|
| Outer Clamp Range | 11-24 inches |
| Inner Clamp Range | 13-26 inches |
| Maximum Wheel Diameter | 1,100 mm (43.3 inches) |
| Tire Width Range | 3-14 inches |
| Bead-Breaker Opening | 380 mm (15 inches) |
| Bead-Breaking Power | 15,000 N (3,372 lbf) |
| Specification | Value |
|---|---|
| Maximum Width | 1,810 mm (71 inches) |
| Maximum Height | 2,050 mm (80 inches) |
| Maximum Depth | 1,320 mm (52 inches) |
| Net Weight | 255 kg (562 lbs) |
| Gross Weight (Packaged) | 295 kg (650 lbs) |
| Packing Dimensions | 1,150 x 920 x 1,000 mm (45 x 36 x 40 inches) |
| Specification | Value |
|---|---|
| Motor Power | 0.85-1.1 kW (1.1-1.47 hp) |
| Chuck Rotation Speed | 6.5-13 rpm (variable) |
| Working Air Pressure | 8-10 bar (116-145 psi) |
| Noise Level (Operating) | Less than 70 dB |
Corghi Service Pro 324 Installation Requirements
Electrical Supply
Power Requirements: The Service Pro 324 operates on standard single-phase electrical supply. Consult the detailed manual for specific voltage and amperage specifications. Installation should be completed by a licensed electrician to ensure compliance with local electrical codes and safety standards.
Pneumatic Supply
Air Pressure: The unit requires clean, dry compressed air supplied at 8-10 bar (116-145 psi). An air compressor with adequate capacity and proper filtration/drying equipment is essential. Ensure air lines are appropriately sized to maintain consistent pressure during operation.
Floor Space and Clearance
Installation Footprint: The machine requires a level work surface with dimensions of 71 inches wide by 52 inches deep. Provide minimum 2 feet of clearance on all sides for safe operation, maintenance access, and operator movement during tire service procedures.
Professional Installation Recommended
While the Service Pro 324 is designed for straightforward installation, professional setup is recommended to ensure proper electrical connections, pneumatic line integration, and operational verification. Proper installation supports warranty coverage and optimal equipment performance.
What's Included with the Corghi Service Pro 324
- Corghi Service Pro 324 automatic tire changer machine
- Dual jaw clamping system with outer and inner adjustable jaws
- Air-powered bead breaker assembly
- Electric chuck motor with variable speed control
- Bead-pressing clamp (plastic)
- Wheel head kit (plastic)
- Operation and maintenance manual
- Parts reference documentation

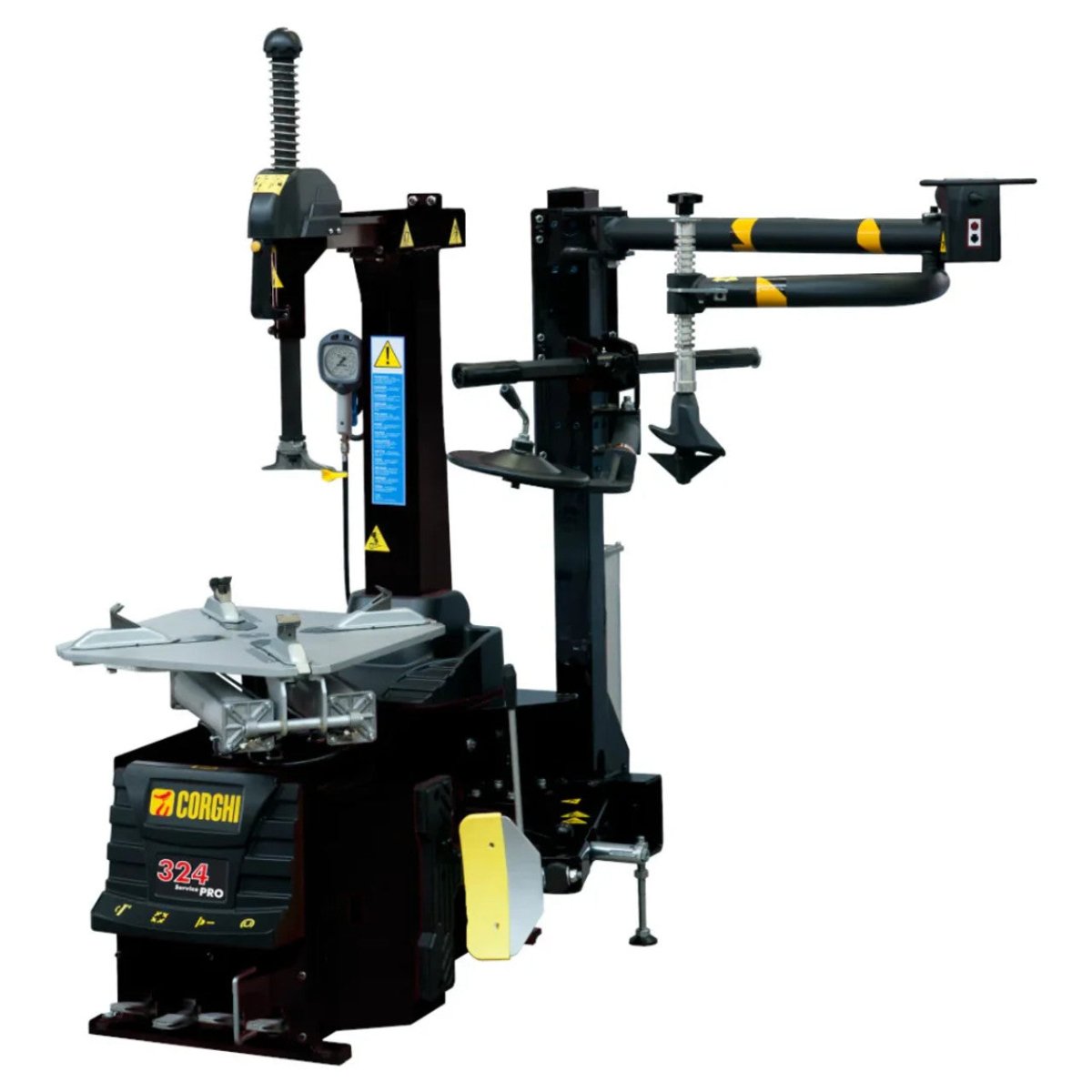

Optional Accessories: The HTB24 helper assembly is available (code 8-11900260) for enhanced operation. A motorcycle adapter in hand roller style is also available for shops servicing motorcycle wheels.
Not Included: Electrical installation and wiring, compressed air system and lines, installation labor, concrete work, delivery and unloading services, or customization features.
Corghi Service Pro 324 Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Gross Shipment Weight: 650 lbs (295 kg) in standard packaging dimensions of 45 x 36 x 40 inches. Lead Time: Contact sales for current lead times and international shipping quotes.
Delivery Requirements
Unloading: The Service Pro 324 requires forklift or equipment dolly unloading due to its 650 lb weight. Delivery Type: Standard curbside or dock delivery. Inspection: Carefully inspect all packaging upon arrival for any signs of damage. Note any damage on the delivery receipt before accepting the shipment.
Returns and Exchanges
Returns accepted within 30 days of delivery for unopened equipment in original packaging with receipt. A 20% restocking fee applies to returned items. The buyer is responsible for all return freight costs. Contact sales to arrange returns and receive return authorization details.
Corghi Service Pro 324 Warranty
Manufacturer Warranty Coverage
Corghi tire changers are backed by comprehensive warranty protection covering parts, labor, and select components against manufacturing defects.
- 6 Months: Parts and labor coverage for all components including the frame, clamps, and control systems
- 1 Year: Extended parts coverage for circuit boards, electronics, and control systems
- 3 Years: Motor coverage for the primary drive motor
- 5 Years: Transmission and power transmission component coverage
Requirements: The equipment must be properly installed by qualified personnel, operated according to the manual, and regularly maintained. The warranty covers manufacturing defects only and excludes damage from misuse, abuse, improper installation, or unauthorized repairs. This warranty applies to equipment installed and used within the United States.
Documents
Click to open in a new tab.
Corghi Service Pro 324 Video
Questions About the Corghi Service Pro 324?
Our equipment specialists can help with installation planning, specifications, and product selection for your tire service operation.
Corghi Service Pro 324 FAQ
What size wheels does the Corghi Service Pro 324 accommodate?
The Service Pro 324 handles wheels from 11 inches to 26 inches using its dual jaw system. The outer clamp manages 11-24 inch wheels, while the inner adjustable jaw system handles 13-26 inch wheels. Maximum wheel diameter capacity is 43.3 inches (1,100 mm), suitable for standard passenger vehicles and light trucks.
What is the tire width range for this machine?
The Service Pro 324 services tire widths ranging from 3 inches to 14 inches. The bead-breaker opening of 15 inches (380 mm) accommodates various tire profiles and specialty wheels commonly found in automotive service applications.
What are the electrical requirements for installation?
The Service Pro 324 operates on a standard single-phase electric motor rated at 0.85-1.1 kW (1.1-1.47 hp). Specific voltage and amperage requirements are detailed in the operation manual. A licensed electrician should handle all electrical installation and verification to ensure compliance with local codes.
What compressed air pressure does the machine require?
The Service Pro 324 operates on compressed air at 8-10 bar (116-145 psi) working pressure. You will need an air compressor with adequate capacity and proper filtration/drying equipment. Air lines should be appropriately sized to maintain consistent pressure during operation.
How much floor space does the Service Pro 324 require?
The machine measures 71 inches wide by 52 inches deep by 80 inches tall. Plan for a minimum of 2 feet of additional clearance on all sides for safe operation and maintenance access. The entire installation footprint should be level and capable of supporting the machine's 562 lb operating weight.
Is professional installation required for warranty coverage?
While the Service Pro 324 is designed for straightforward installation, professional setup is strongly recommended to ensure proper electrical connections, pneumatic integration, and operational verification. Professional installation supports warranty coverage by ensuring the equipment meets manufacturer specifications and installation standards.
What is the warranty coverage on the Service Pro 324?
The Service Pro 324 includes 6 months labor and parts coverage, extended to 1 year for electronics and circuit boards, 3 years for the electric motor, and 5 years for transmission components. Warranty requires proper installation, operation per manual, and regular maintenance. Full terms are detailed in the warranty documentation.
What optional accessories are available for the Service Pro 324?
The HTB24 helper assembly (code 8-11900260) is available as an optional accessory to enhance operational convenience. Additionally, a motorcycle adapter in hand roller style is available for shops that service motorcycle and scooter wheels, though this requires the inner adjustable jaw system.
How long does the bead-breaker take to separate tire beads?
The Service Pro 324's air-powered bead breaker delivers 15,000 Newtons (3,372 lbf) of force at 8-10 bar pressure for efficient bead separation. The actual time depends on tire size, rim type, and tire condition. Most standard passenger car tires separate quickly with the powerful breaker force available.
Can the Service Pro 324 handle motorcycle tires?
The Service Pro 324 is primarily designed for car and light vehicle tires. However, with the optional motorcycle adapter in hand roller style, the machine can accommodate motorcycle and scooter wheels within the minimum 3-inch tire width specification. Contact our team for details on motorcycle capability.
What is the noise level during operation?
The Service Pro 324 operates at less than 70 dB during normal use, making it one of the quieter tire changers available. This noise level supports a more comfortable working environment compared to many competing models and allows operation near customer waiting areas without significant disruption.
How is the Service Pro 324 shipped and what are delivery requirements?
The Service Pro 324 ships freight with free delivery to commercial addresses in the 48 contiguous states. The machine weighs 650 lbs (295 kg) when packaged and requires forklift or equipment dolly unloading. Inspect the shipment upon arrival for any damage and note issues on the delivery receipt before accepting delivery.
