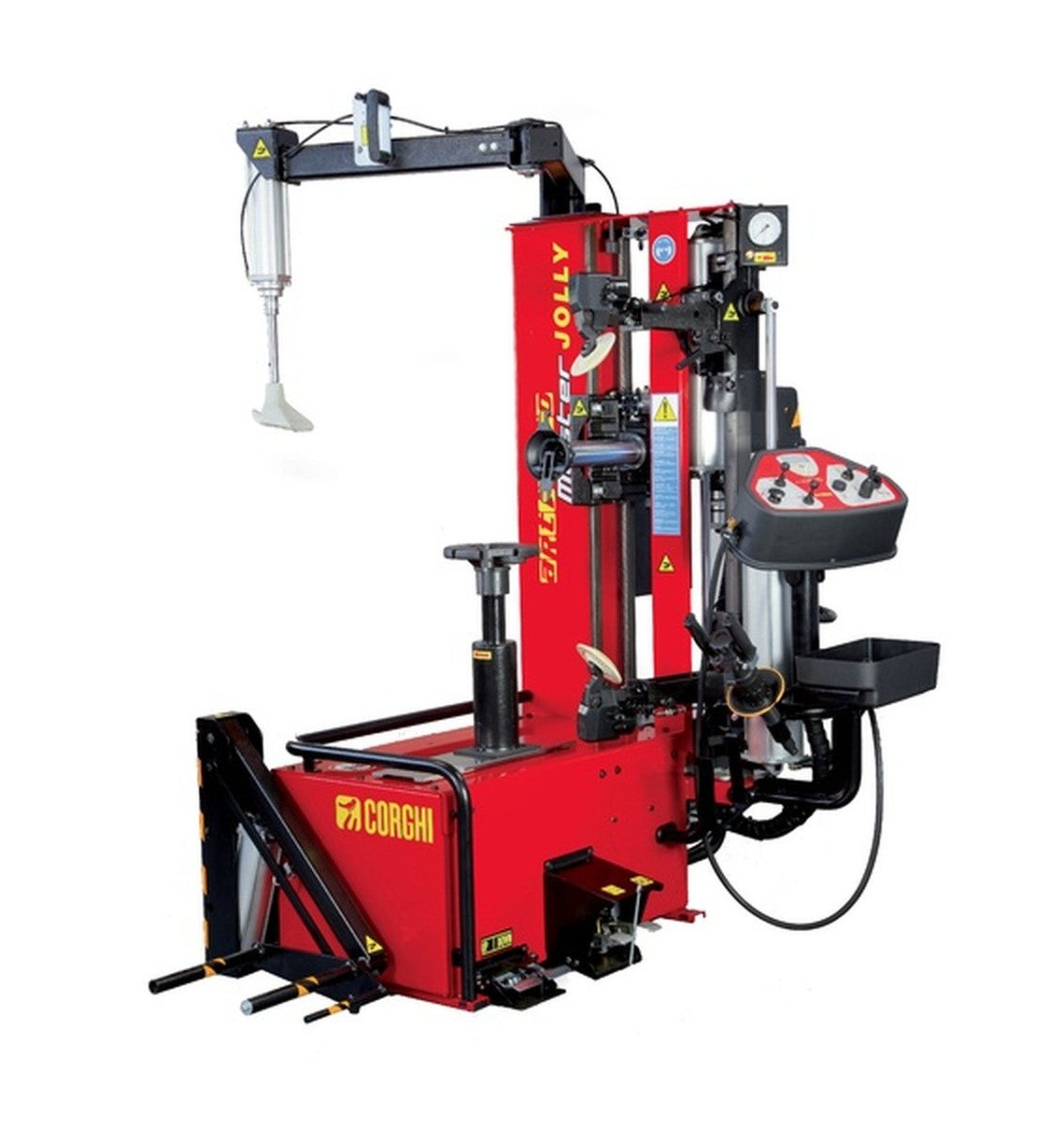

CORGHI MASTER-J Artiglio Master J Touchless Electric Tire Changer with BPT Helper Assist Arm
$19,045.99
Information
The CORGHI Artiglio Master J Touchless Electric Tire Changer with BPT Helper Assist Arm delivers unmatched precision and efficiency for professional tire service. Its advanced "Leva la leva" technology ensures damage-free mounting and demounting by eliminating rim contact. Equipped with a dual-disc bead breaker, automatic bead search, and an ergonomic electronic control console, this machine handles low-profile and run-flat tires effortlessly. The integrated BPT Helper Arm and wheel lifter streamline operations, reducing strain and increasing productivity. Upgrade your workshop with the Artiglio Master J today for superior performance and reliability!
Features
| Features | |
|---|---|
| Power Source | Available in electric only. |
| Ergonomic Consoles | Multifunctional consoles with a display for electronically setting rim diameter and tool positioning. |
| Work Areas | Divided into three distinct zones for quick and easy operation. |
| Dynamic Bead Breaking Device | Dual specular bead breaker discs with automatic radial positioning to eliminate manual adjustments. |
| Controlled Penetration | Patent-pending system ensures precision, rapidity, and repeatability with synchronized disc motions. |
| Bead Demounting and Mounting Tool | Automatic bead searching and Smart Corghi System reduce tire tension without touching the rim. |
| Automatic Bead Location | No contact with the rim, regardless of rim shape. |
| Safe Wheel Clamping | Axial mounting turntable allows rapid clamping and bead breaking on both sides without wheel flipping. |
| Rapid Bead Demounting | Efficient bottom bead demounting using the bead breaker disc, ideal for stiff sidewalls. |
| Bead Depressor | Adjustable height; optimized shape for RFT tires. Standard in all versions. |
| Fixed Work Position | Pedals, consoles, tray, and wheel loading on the same side with constant working height for ergonomics. |
| Effortless Operation | Includes a wheel lifter for easy placement of wheels onto the turntable. |
| Pick-Up Rim Kit | Allows handling of rims with thin or delicate edges. |
| Universal Flange | Suitable for closed rims and rims with central holes. |
| Reverse Wheel Flange | Enables secure clamping of reverse wheels. |
| TI System Kit | Included for additional versatility. |
Specifications
| Specification | MASTER-J |
|---|---|
| Corghi Part Number | 0-11116234/0000 |
| Rim Diameter | 12″ - 26″ |
| Maximum Tire Diameter | 43″ (1100 mm) |
| Maximum Tire Width | 14″ (360 mm) |
| Tire Types Processed | Conventional, Low Profile, and Run Flat |
| Clamping | Mechanical / Manual |
| Drive System | 2-Speed Moto-Inverter |
| Rotation Torque | 811 ft/lbs (1100 Nm) |
| Rotation Speed | 7 - 18 rpm |
| Maximum Bead Breaking Range | 18″ (457 mm) |
| Bead Breaker Stroke | 17.7″ (450 mm) |
| Bead Breaking Force | 1708 lbf (7600 N) |
| Operation | Pneumatic |
| Maximum Wheel Weight | 187 lbs (85 kg) |
| Electric 1 Ph | 230 V - 0.98 kW, 50 Hz |
| Electric 1 Ph (alternative) | 110 V - 0.98 kW, 60 Hz |
| Minimum Pneumatic Operating Pressure | 116 psi (8 bar) |
| Weight | 882 lbs (400 kg) (with bead depressor and wheel lifter) |
| Dimensions (L x D x H) | 49″ x 59″ x 72.5″ (1240 x 1500 x 1840 mm) |
