CORGHI EXACT LINEAR Camera Wheel Alignment System
CORGHI EXACT LINEAR Camera Wheel Alignment System

Not Available

CORGHI EXACT LINEAR Camera Wheel Alignment System

$20,641.99

Information

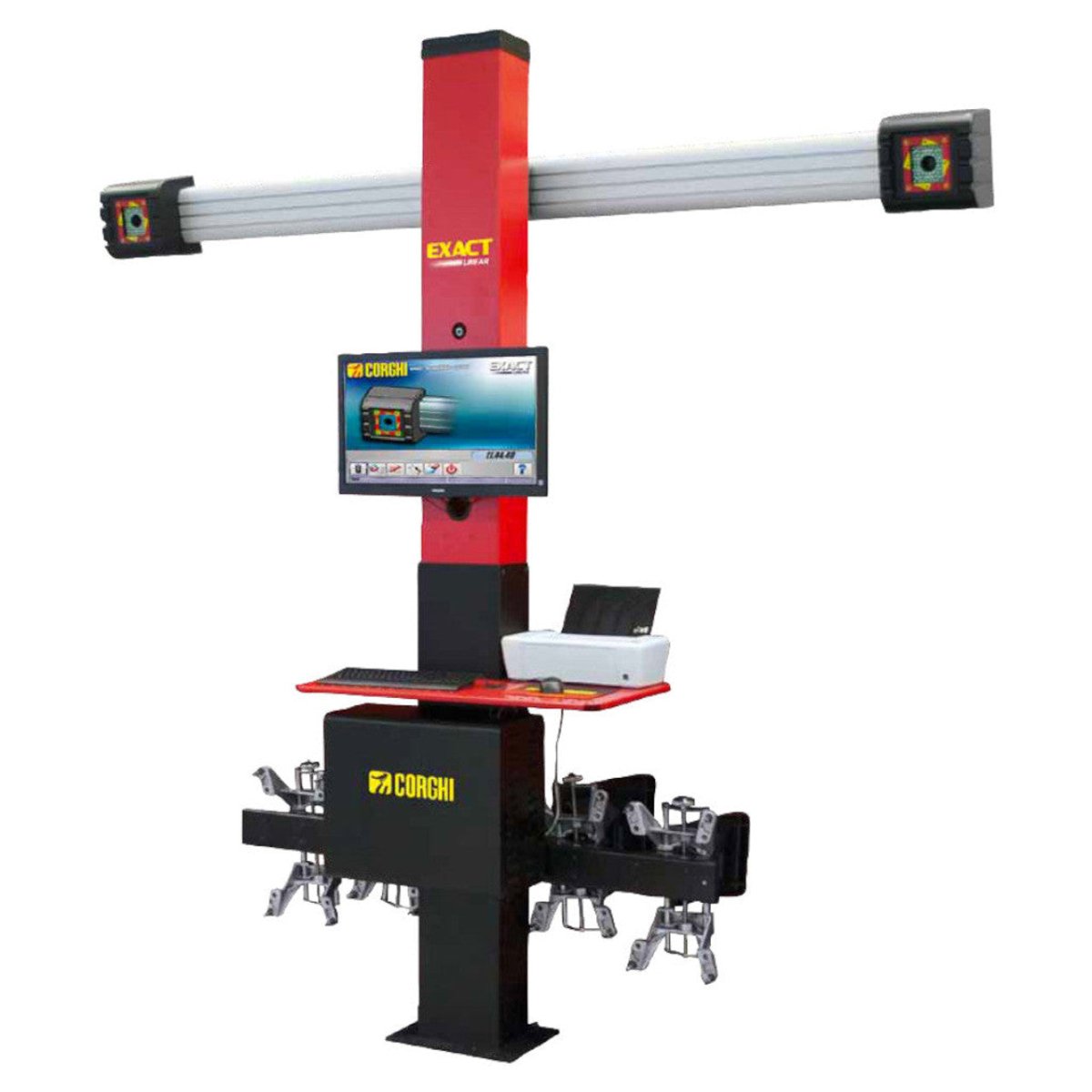

The CORGHI Exact Linear Camera Wheel Alignment System delivers precise and efficient wheel alignments with its high-resolution cameras and user-friendly interface. Its compact design and versatile installation options make it ideal for workshops of all sizes. The system's advanced technology ensures accurate measurements, enhancing service quality and customer satisfaction. Elevate your workshop's capabilities by investing in the CORGHI Exact Linear today.

Features

Features
Worktop Ergonomic worktop for comfortable operation.
Trolley Practical trolley for clamp and sensor holder (optional).
Target Board Unique high-resolution 80 x 80 and 80 x 90 target board.

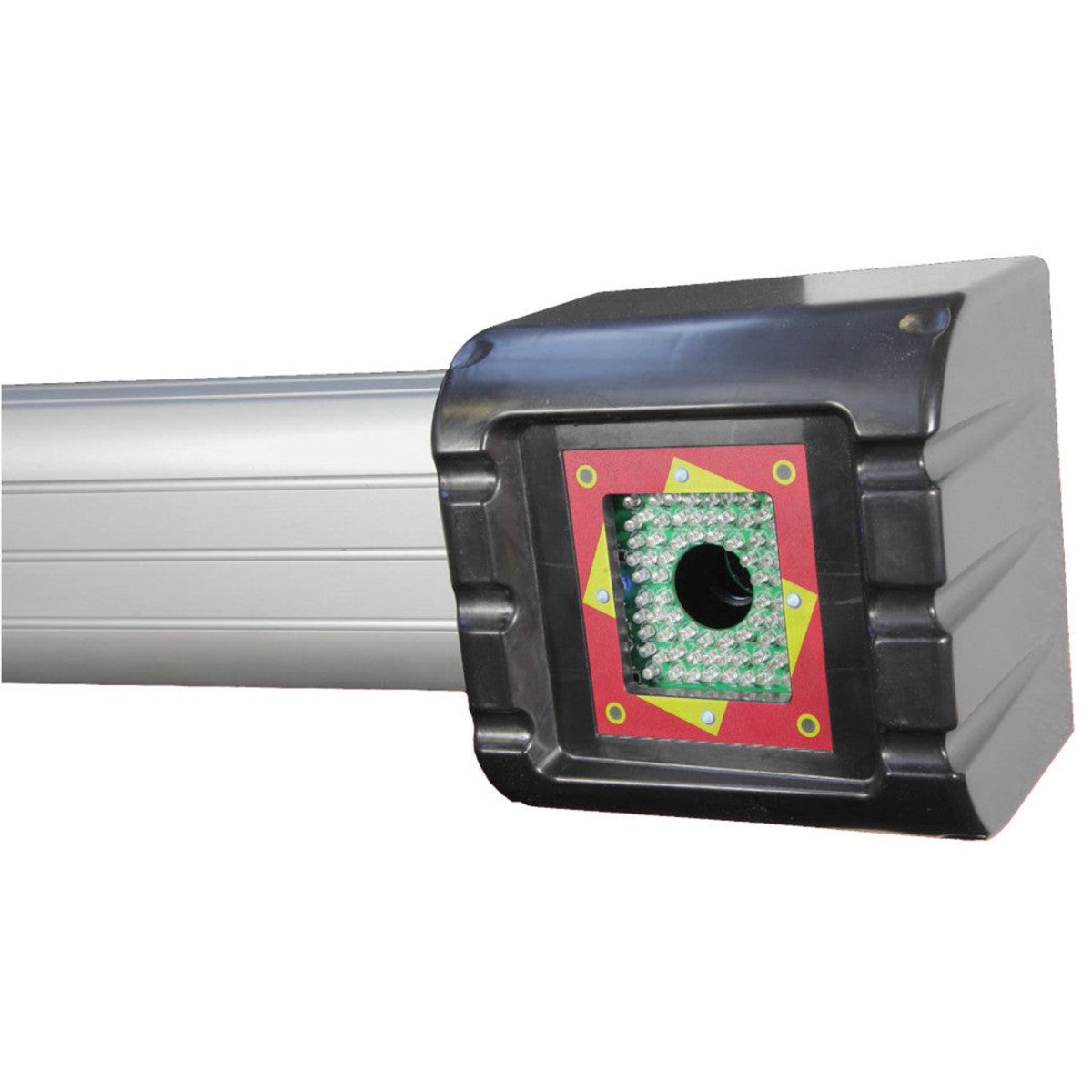

Camera Next-generation camera with high-resolution HiQ lenses.
Camera Movement Kit Allows operation from pit level to over 2.00 meters with a single key press (optional).
Drive-On Assistant Provides safe maneuvering assistance in the workshop.

Specifications

Specification EXACT LINEAR
Measured Angles Working Range
Total Alignment (Front & Rear) ±18°
Single Alignment (Front & Rear) ±9°
Camber ±10°
Thrust Angle ±3°
Caster Angle ±24°
Steering Angle Difference ±24°
Centre Distance 59"–196"
Compatible Lifts Corghi X5000, X4300, XT5000, and XT6500 (with optional automatic lift search)
Warranty 3 Year Parts
1 Year Labor
