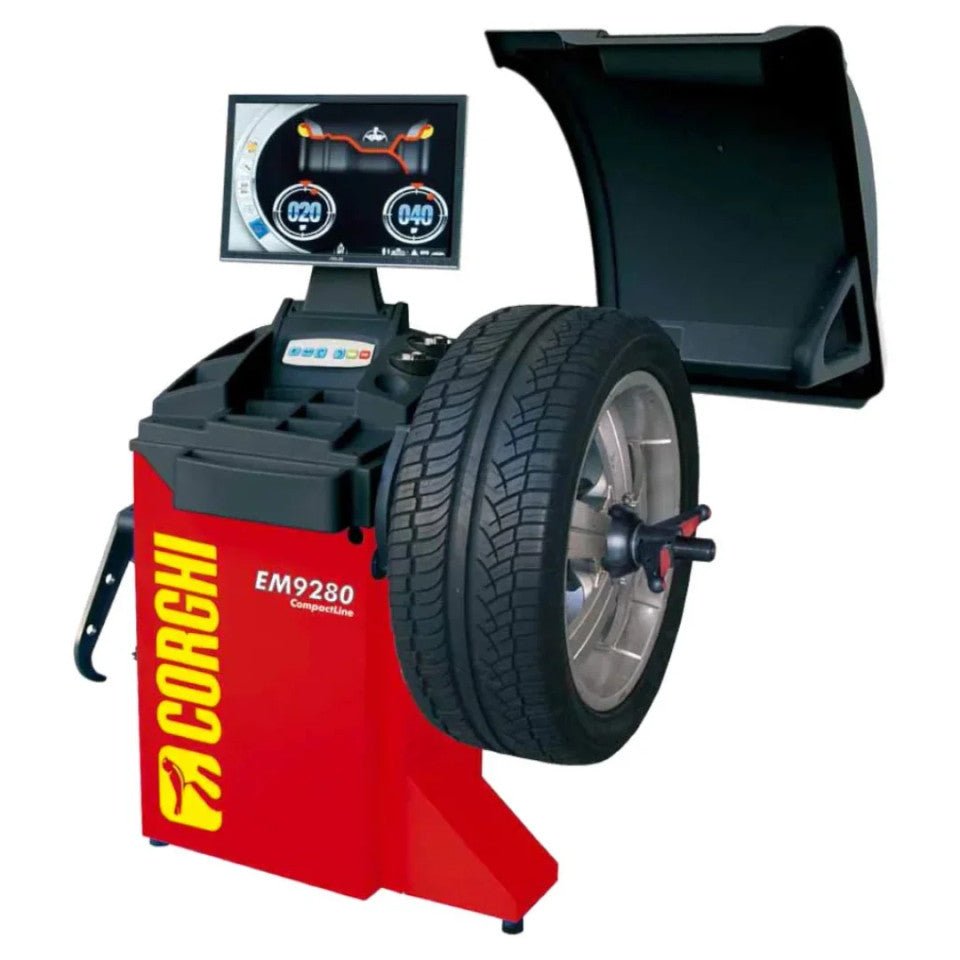

Corghi EM 9280 CompactLine Wheel Balancer with LCD Monitor
The Corghi EM 9280 CompactLine is a compact, professional-grade wheel balancer designed for shops with space constraints. This monitor-equipped balancer features an LCD display for high-resolution graphics, Smart-Arm wheel dimension detection with FSP automatic program selection, and laser pointer positioning at 6 o'clock. Measuring wheels up to 165 lbs with inside offset up to 10.8 inches, the EM 9280 delivers professional performance in a compact footprint with reduced power consumption at just 122 watts. Perfect for tire shops, small garages, and service centers seeking reliable balancing without complicated controls or excessive equipment footprint.
Corghi EM 9280 CompactLine Features

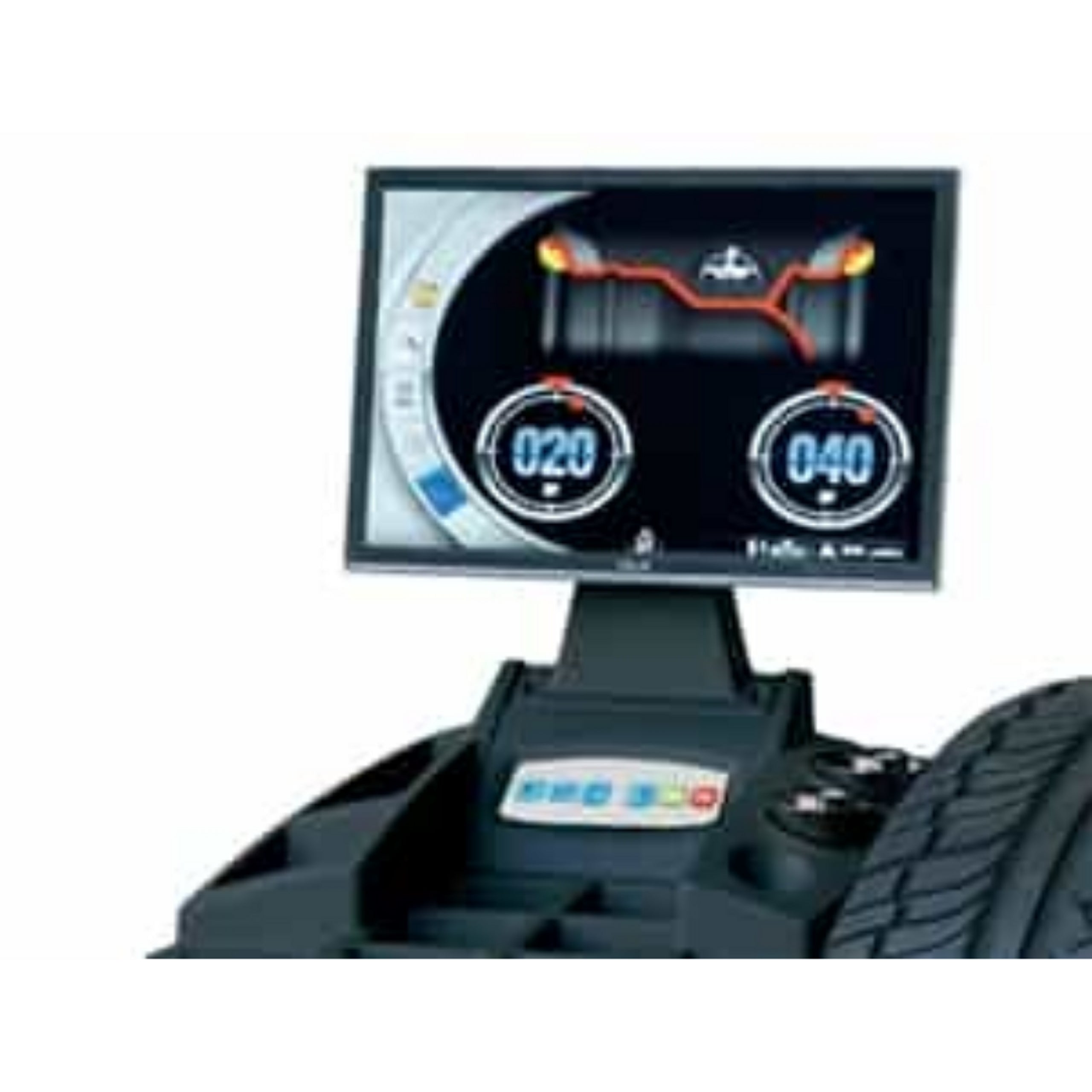

LCD Monitor Display with Intuitive Controls
High-resolution LCD monitor displays graphics and dedicated software for easy operation. The control keypad features a reduced number of keys, making the EM 9280 simple to learn and rapid to use. Perfect for shops seeking straightforward operation without complex menu navigation.
Smart-Arm Wheel Dimension Detection
Electronic Smart-Arm acquires wheel diameter and distance automatically. The Fast Selection Program (FSP) automatically activates optimal balancing programs, eliminating manual keypad selections. This smart feature reduces operator error and accelerates wheel processing.
Premium Spin Unit from B-Series
The spin unit derives from Corghi's superior B-Series models, providing reduced cycle time and professional-grade precision. Measures wheels up to 165 lbs and performs wheel balancing with inside offset up to 10.8 inches without additional spacers. Innovative zero-maintenance drive ensures maximum reliability.
Automatic Positioning and LED Illumination
Automatic wheel positioning (RPA) places the wheel precisely where balancing weight application occurs. The integrated LED spotlight illuminates the work area, making rim cleaning and weight application easier and faster. Electrical positioning brake ensures safe operation.
Laser Pointer System at 6 O'Clock
Standard laser pointer indicator at 6 o'clock position enables rapid, precise adhesive counterweight application. Optional weight holder clip or manual 12 o'clock positioning provide alternative application methods for operator preference.
Optional AWD Automatic Width Sensor
Optional AWD (Auto Width Device) provides contactless sonar measurement of wheel width. AWC (Auto Width Calculation) automatically calculates width even without the external sensor, reducing operational time and improving workflow efficiency.
Corghi EM 9280 CompactLine Applications
- Small Tire Shops: Compact design fits limited space while delivering professional balancing performance for high-volume tire services.
- Independent Repair Facilities: Intuitive LCD interface and simple controls reduce training requirements for automotive service technicians.
- Motorcycle and ATV Services: Handles diverse wheel sizes and weights with precision suitable for specialty vehicle tire balancing.
- Fleet Service Centers: Low power consumption and efficient operation reduce operating costs in multi-unit service environments.
- Car Dealership Service Departments: Professional-grade diagnostics and consistent operation support OEM service standards and customer satisfaction.
Corghi EM 9280 CompactLine Specifications
| Specification | Value |
|---|---|
| Maximum Imbalance Value | 999 grams |
| Resolution | 1 gram (0.0353 oz) |
| Spinning Speed | 90-130 RPM |
| Average Measurement Time | 7 seconds |
| Maximum Wheel Weight | 165 lbs (75 kg) |
| Maximum Inside Offset | 10.8 inches without additional spacer |
| Specification | Value |
|---|---|
| Measurable Wheel Diameter Range | 10 inches - 28 inches |
| Settable Wheel Diameter Range | 1 inch - 35 inches |
| Settable Wheel Width Range | 1.5 inches - 20 inches |
| Maximum Wheel Width (with guard) | 600 mm (23.6 inches) |
| Maximum Wheel Diameter (with guard) | 1,117 mm (44 inches) |
| Wheel/Machine Support Distance | 275 mm (10.82 inches) |
| Shaft Diameter | 40 mm (1.57 inches) |
| Specification | Value |
|---|---|
| Length | 1,667 mm (65.7 inches) |
| Width | 1,372 mm (54 inches) |
| Height | 1,288 mm (50.8 inches) |
| Machine Weight | 82 kg (180.7 lb) |
| Specification | Value |
|---|---|
| Mains Power Voltage | 115-230V, Single Phase, 50/60 Hz |
| Total Power Consumption | 122 watts |
| Compressed Air Pressure (EM9280C) | 7-10 bar (105-165 psi) |
Corghi EM 9280 CompactLine Installation Requirements
Electrical Requirements
Power Supply: Single-phase 115-230V AC, 50/60 Hz mains connection with minimal 122 watts power consumption. This extremely low power draw makes installation straightforward in most shop environments without requiring dedicated electrical circuits. Standard outlet connection with proper grounding is recommended.
Space and Clearance Requirements
Floor Space: Compact footprint of 1,667 mm length (65.7 inches) and 1,372 mm width (54 inches). Height: 1,288 mm (50.8 inches). The compact design makes this balancer ideal for shops with limited floor space. The front support base allows balancing wheels up to 110.2 lbs without fastening the machine to the ground, providing flexibility in placement.
Weight Considerations
Machine Weight: 82 kg (180.7 lb). The lightweight, compact design simplifies installation and repositioning. The balancer can be placed on a level floor without special foundation requirements for wheel weights up to 110.2 lbs using the front support base. Proper electrical grounding ensures safe operation.
Professional Installation
Professional installation is recommended to ensure proper electrical connection, equipment leveling, and operator training on the LCD interface and balancing programs. For EM9280C models with air operation, compressed air system setup at 7-10 bar (105-165 psi) must be properly configured. Proper installation ensures optimal performance and protects warranty coverage.
What's Included with the Corghi EM 9280 CompactLine
- Corghi EM 9280 CompactLine wheel balancer with LCD monitor
- Smart-Arm electronic wheel dimension detection system
- Laser pointer indicator at 6 o'clock position (standard)
- Automatic positioning system (RPA) with electrical brake
- Integrated LED illuminator for work area lighting

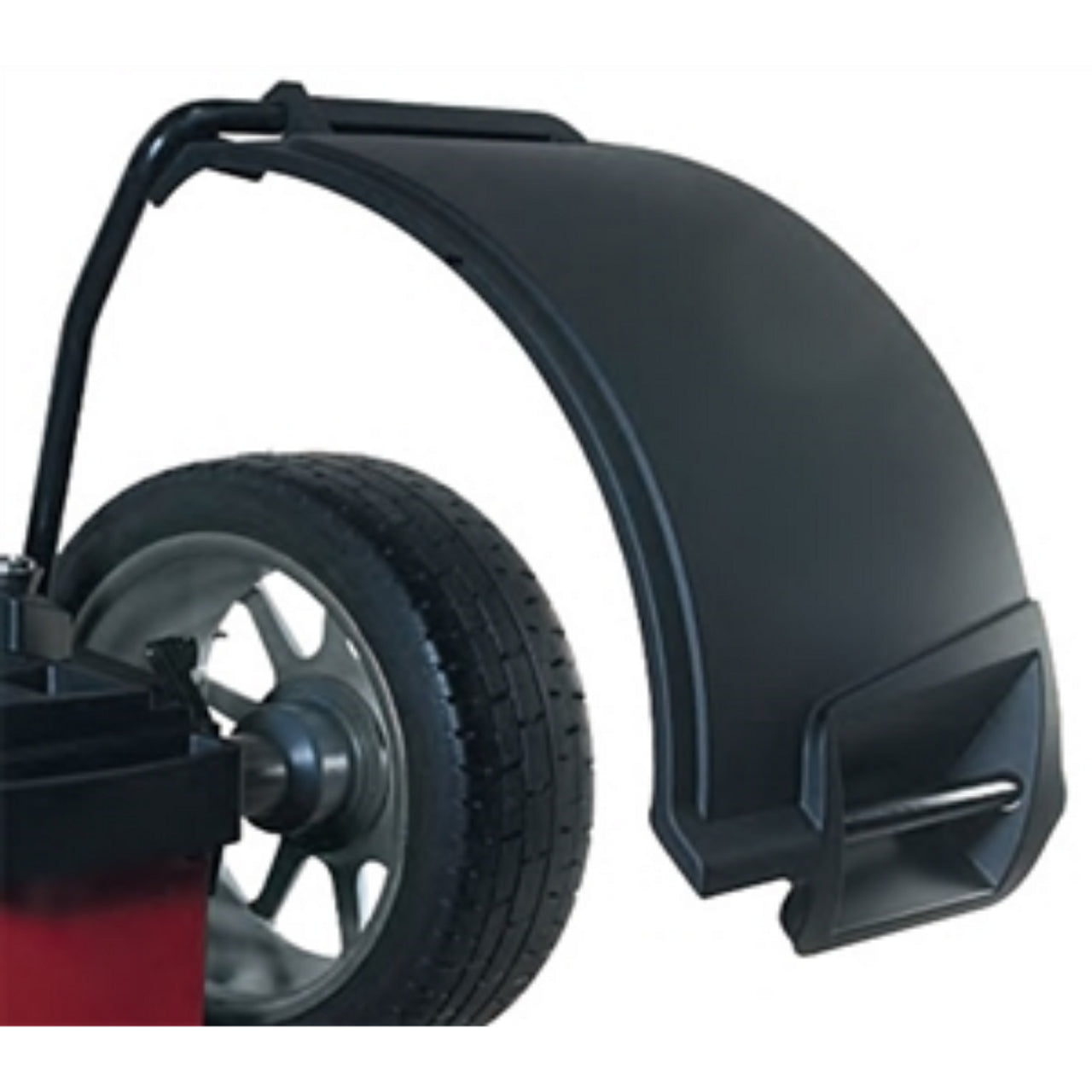

- Updated wheel guard for wheels up to 44 inches diameter
- Control keypad with reduced number of keys for simple operation
- Weight Management program suite including LessWeight
- AWC automatic width calculation function
- Sample weight for quick calibration and setup
- Front support base for wheels up to 110.2 lbs
- Four cone adapters (17", 19", 23", 27")
Optional Accessories Available: 19-inch widescreen LCD monitor upgrade, AWD automatic width sensor for contactless measurement, weight holder clip terminal, DX/CBF centering accessory for vans and off-road vehicles, FRU universal self-centering flange, TT-Zero Gravity wheel lifter, and bike kit for motorcycle/scooter wheels.
Not Included: Electrical installation labor, professional installation services, optional wheel lifter equipment, optional measuring sensors, optional accessories, wheel balancing consumables, or compressed air system setup for EM9280C models.
Corghi EM 9280 CompactLine Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States for orders shipped to facilities with standard loading access. Lead Time: 5-7 business days from order confirmation. International Shipping: Contact our sales team for quote and delivery options to Canada and international destinations.
Delivery Requirements
Receiving Equipment: The lightweight compact design (82 kg) can be unloaded by hand or with a dolly. Standard curbside delivery is available. Inspection: Inspect the unit for visible damage before accepting delivery. Note any damage on the bill of lading and contact the freight carrier immediately with photographic evidence.
Returns and Restocking
Returns accepted within 30 days of delivery for unopened products in original packaging with proof of purchase. A 20% restocking fee applies. Buyer is responsible for return freight charges. Contact customer service before initiating returns to arrange authorization and return procedures.
Corghi EM 9280 CompactLine Warranty
Corghi Manufacturer's Warranty
The Corghi EM 9280 CompactLine is backed by Corghi's standard warranty program covering equipment defects and manufacturing quality.
- 2 Years: Full parts coverage on all components including motor, LCD display, Smart-Arm dimension detection, clamping systems, and control electronics
- 1 Year: Labor coverage for warranty repairs at authorized Corghi service centers
- Extended Coverage: Optional extended warranty plans available upon request
Warranty Requirements: Equipment must be properly installed and operated according to manufacturer specifications. Regular maintenance and calibration per the manual are required. Warranty covers manufacturing defects but excludes damage from misuse, accidents, improper electrical supply, or normal wear of consumable items such as cones and bushings.
Documents
Click to open in a new tab.
Corghi EM 9280 CompactLine Video
Questions About the Corghi EM 9280 CompactLine?
Our equipment specialists can help with installation planning, technical specifications, comparison with other compact balancers, and product selection for your shop.
Corghi EM 9280 CompactLine FAQ
What wheel sizes can the EM 9280 balance?
The Corghi EM 9280 measures wheels from 10 to 28 inches in diameter, accommodating most sedan, crossover, and light truck applications. The settable range extends to 35 inches diameter. Maximum wheel width is 600 mm (23.6 inches) with the protective guard, and the balancer handles wheels up to 165 lbs.
How fast is the measurement cycle?
Average measurement time is 7 seconds, making the EM 9280 efficient for high-volume operations. Combined with automatic positioning and LED illumination, total job time from wheel placement to completed balancing is significantly faster than older manual balancers.
What is the Smart-Arm feature?
Smart-Arm is an electronic input system that automatically acquires wheel diameter and distance measurements. The integrated FSP (Fast Selection Program) automatically activates optimal balancing programs based on wheel size, eliminating manual keypad selection and reducing operator error.
What are the electrical requirements for the EM 9280?
The balancer requires a single-phase 115-230V AC, 50/60 Hz mains connection with only 122 watts total power consumption. This extremely low power draw is one of the EM 9280's key advantages, allowing installation without requiring dedicated electrical circuits in most shops.
Is the EM 9280 covered by warranty?
Yes, the Corghi EM 9280 CompactLine includes 2 years of full parts coverage on all components and 1 year of labor coverage through authorized Corghi service centers. Optional extended warranty plans are available. Professional installation is recommended to maintain warranty coverage.
What makes the EM 9280 compact yet professional?
The EM 9280 derives its spin unit from Corghi's superior B-Series models, providing professional-grade performance in a compact footprint. It measures wheels up to 165 lbs and handles inside offsets up to 10.8 inches without additional spacers, all while consuming minimal power and floor space.
How does the laser pointer system work?
The standard laser pointer indicator at 6 o'clock position provides precise guidance for adhesive counterweight application. Optional weight holder clip or manual 12 o'clock positioning offer alternative methods. The integrated LED illuminator brightens the work area for faster, more accurate weight placement.
What optional sensors and accessories are available?
Optional accessories include the AWD automatic width sensor for contactless sonar measurement, weight holder clip, 19-inch widescreen LCD monitor upgrade, DX/CBF centering accessory for vans, FRU universal self-centering flange, TT-Zero Gravity wheel lifter, and bike kit for motorcycle wheels. Contact our team for complete accessory details.
Can the EM 9280 balance motorcycle and ATV wheels?
Yes, the optional bike kit with universal self-centering flange for 14 mm diameter motorcycle and scooter wheels allows the EM 9280 to service specialty vehicles. The 10-28 inch measurement range and flexible programming make it suitable for diverse wheel balancing applications.
What is the Weight Management program suite?
The standard Weight Management program suite includes LessWeight, which significantly reduces the quantity of balancing counterweights used while maintaining accuracy. This environmentally friendly approach lowers operating costs and appeals to customers seeking sustainable service practices.
Does the EM 9280 have automatic positioning?
Yes, the EM 9280 features RPA (automatic positioning) that brings the wheel to the exact point where balancing weight application occurs. Combined with the electrical positioning brake and LED illumination, this feature accelerates the work process and improves operator ergonomics.
How does the EM 9280 compare to other compact balancers?
The EM 9280 offers professional B-Series spin unit performance in a compact form factor with exceptionally low power consumption at 122 watts. The Smart-Arm automatic dimension detection, laser pointer positioning, and intuitive LCD interface make it accessible to operators while delivering professional results. Contact our team for detailed model comparisons and specific recommendations for your application.
