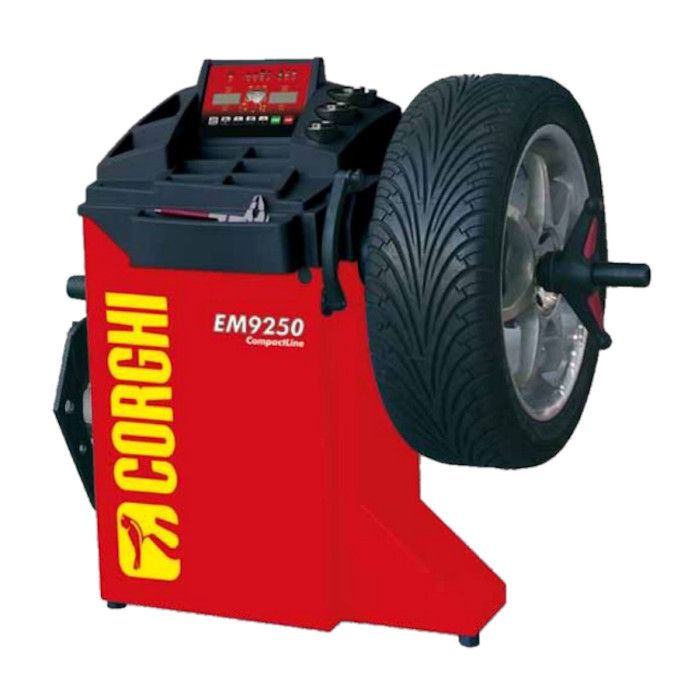

CORGHI EM9250 CompactLine Digital Display Wheel Balancer

$5,499.00

Product variants

Information

The CORGHI EM9250 CompactLine Digital Display Wheel Balancer is a high-performance solution designed for precision and efficiency in automotive workshops. Its dual-display control panel allows for intuitive selection of balancing modes and immediate access to essential functions. The ergonomic weight tray features multiple compartments to accommodate various weights and tools, enhancing operational convenience. The spin unit, derived from CORGHI's superior B-Series models, offers reduced cycle times and can handle wheels weighing up to 165 lbs, with an internal offset capability of up to 10.8 inches without requiring additional spacers. This ensures compatibility with a wide range of wheel sizes and types. The innovative drive system requires zero maintenance, ensuring maximum reliability. The EM9250 also features electronic input of wheel diameter and distance, with the FSP function automatically activating the appropriate balancing programs, streamlining the process and reducing the need for manual selections. Additionally, the machine offers three modes for positioning adhesive weights: using the weight holder clip, the 6 o'clock laser indicator, or manually at the 12 o'clock position.

Features

Features
Control Panel	Double display control panel for quick and intuitive selection of balancing modes.
Ergonomic Weight Tray	Multiple compartments for various weights and tools.
Spin Unit	Derived from B-Series models; supports wheels up to 1165 lbs and inside offset up to 10.8".
Drive System	Innovative design ensuring maximum reliability with zero maintenance.
Electronic Input	Wheel diameter and distance input with FSP function for automatic program activation (optional).
Adhesive Weight Modes	Three modes: weight holder clip, 6 o'clock laser indicator, or manual at 12 o'clock.
Automatic Positioning (RPA)	Auto positioning for weight application and electrical positioning brake (optional).
LED Spotlight	Illuminates work area for rim cleaning and weight application.
Auto Width Sensor (AWD)	Contactless wheel measurement; auto width calculation (AWC) even without AWD sensor.
Pedal Wheel Locking Brake	Easier clamping, unclamping, and weight application (optional).
Front Support Base	Balances wheels up to 110 lbs without fastening the machine to the ground.
Weight Splitting Feature	Divides external adhesive weights into two equal weights behind the spokes to preserve rim look.

Specifications

Specification	EM9250
Max Wheel Weight	1165 lbs
Wheel Diameter Range	12" - 32"
Balancing Modes	Premium, Professional, Basic
Drive System	Latest generation inverter motor
