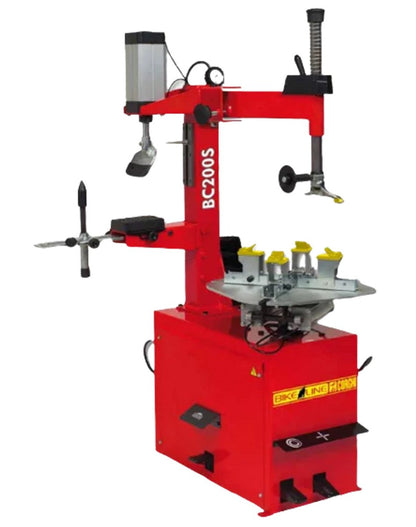

CORGHI BC200S Motorcycle/ATV Tire Changer, Wheel Support Kit, Small Wheel Mounting Roller
$4,278.00
Information
The CORGHI BC200S Motorcycle/ATV Tire Changer is a versatile, semi-automatic machine designed for professional use on motorcycles, scooters, go-karts, garden equipment, and quad bikes. It features an adjustable-height bead-breaking unit for ergonomic operation and a horizontal side-tilting arm with manual clamping for secure handling. The turntable accommodates wheels ranging from 5" to 23" in diameter, with an optional ATV kit extending the clamping capacity to 6" – 16". The included Wheel Support Kit and Small Wheel Mounting Roller enhance its adaptability, allowing it to manage particularly high-profile tires up to 14.5" (370 mm) wide. With a maximum wheel diameter capacity of 39.37" (1000 mm) and a bead-breaking blade force of 750 kg, the BC200S ensures efficient and damage-free tire changes. Upgrade your workshop with this reliable tire changer to boost productivity and provide superior service to your customers.
Features
| Features | |
|---|---|
| Clamping | Horizontal side tilting arm with manual clamping of the vertical tool arm. |
| Turntable | Three different clamping positions easily selectable without tools, accommodates wheels from 5” to 23”. |
| Bead Breaking | Horizontal bead breaking system. |
| 3 Positions Wheel Support | Movable wheel support in three positions with a maximum opening of 14.5" (370 mm), designed for high-profile tires such as ATV/quad tires. |
Specifications
| Specification | BC200S |
|---|---|
| Max. Wheel Diameter | 39.37" (1000 mm) |
| Std Clamping Capacity w/ATV kit | 6" - 16" |
| Bead-Breaking Blade Force | 750 kg |
| Maximum Wheel Width w/Bead Breaker Support |
Pos 1 - 7.5" (190 mm) Pos 2 - 11" (280 mm) Pos 3 - 14.5" (370 mm) |
