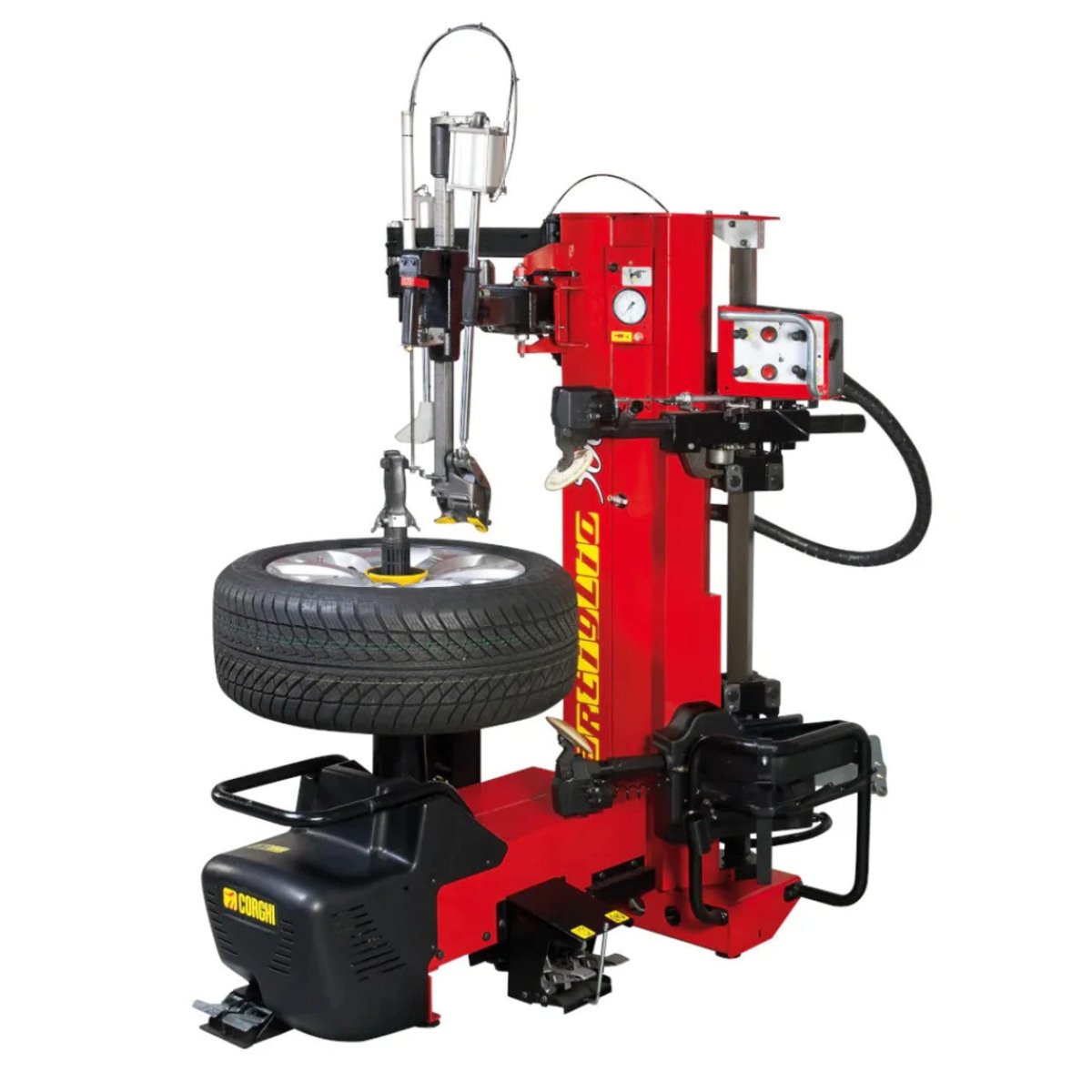

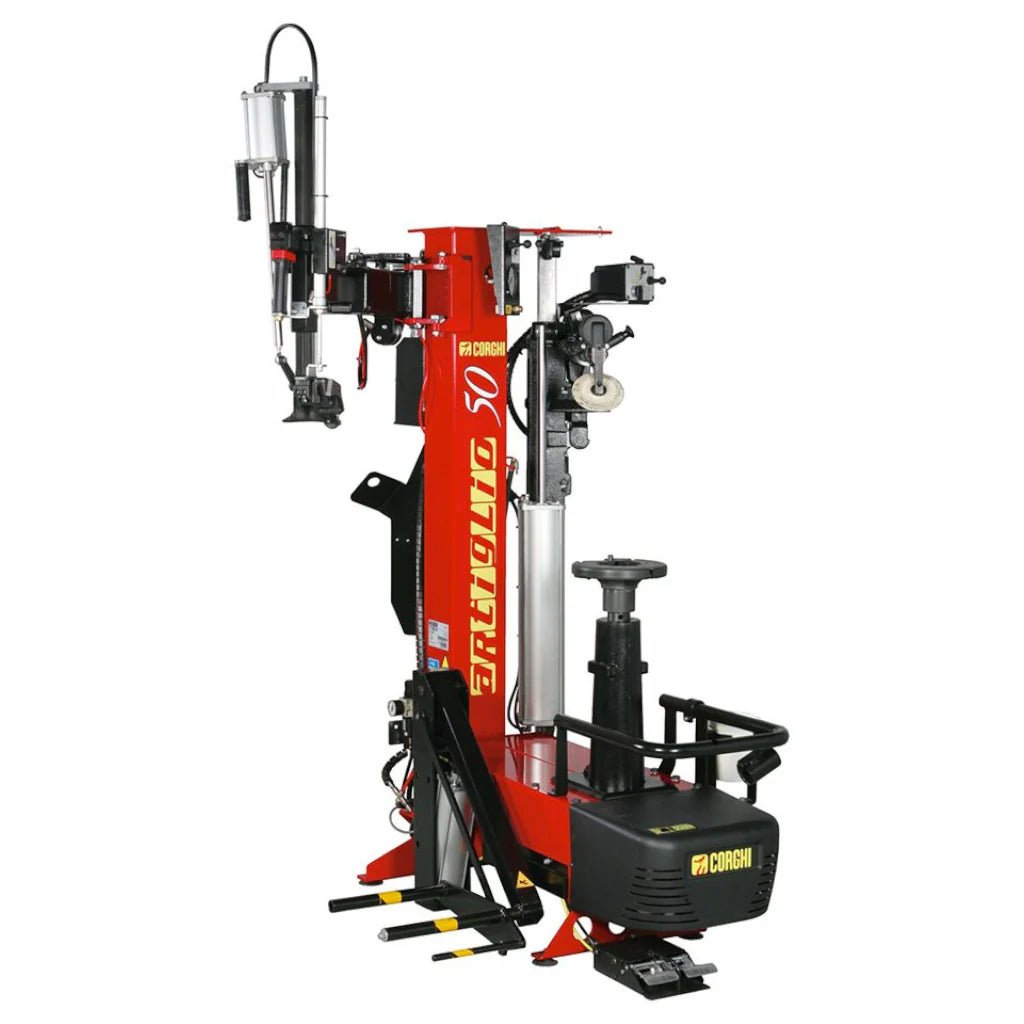

CORGHI AM500 Artiglio 500 Electric Leverless Tire Changer with BPT Helper Assist Arm

$17,374.99

Product variants

Information

The CORGHI AM500 Artiglio 500 Electric Leverless Tire Changer with BPT Helper Assist Arm is a state-of-the-art solution for automotive workshops, designed to handle vehicle, SUV, and commercial wheels up to 32 inches in diameter.Its second-generation "Leva la leva" technology eliminates the need for traditional tire levers, ensuring efficient and damage-free tire mounting and demounting. The dynamic bead-breaking system, featuring dual specular bead breaker discs, provides precise and rapid bead loosening without manual adjustments. The integrated BPT (Bead Pressing Tool) Helper Assist Arm facilitates the handling of low-profile and run-flat tires, enhancing operational efficiency. Additionally, the machine's motoinverter drive system offers adjustable speeds for optimal performance, and the pneumatic wheel lifter allows for effortless wheel positioning on the turntable. Upgrade your workshop with the AM500 to experience cutting-edge tire-changing technology that prioritizes efficiency and wheel protection.

Features

EFFORTLESS OPERATION
A wheel lifter is fitted as standard, for effortlessly placing wheels of any type onto the turntable.

HEAD UNIT
mounting procedure uses the same working movements but absolutely no effort is required from the operator thanks to the “Leva la leva” (Without lever) technology incorporated in the head (Patent Pending) - The mounting procedure doesn’t change: it is just as quick and convenient as before.

SAFE AND UNIVERSAL WHEEL CLAMPING
The axial mounting turntable ensures rapid clamping while permitting bead breaking on both sides without having to turn the wheel itself. The constant working height (reverse rims excluded) has been optimised for ideal operator ergonomics with all wheel types.

Specifications

Specification	AM500
Wheel Rim Diameter	12" - 32"
Max Tire Diameter	47"
Max Tire Width	15"
Tire Types Processed	Conventional, low profile, and run flat
Rotation Torque	811 ft-lbs
Rotation Speed	7 - 18 rpm
Max Bead Breaker Range	670 mm
Bead Breaker Stroke	540 mm
Bead Breaker Force	7600 N
Max Wheel Weight	187 lbs
Power Supply	230 V - 1 Ph - 0.98 kW - 50/60 Hz
Operating Pressure	10 bar
Pneumatic Operating Pressure	8 bar
