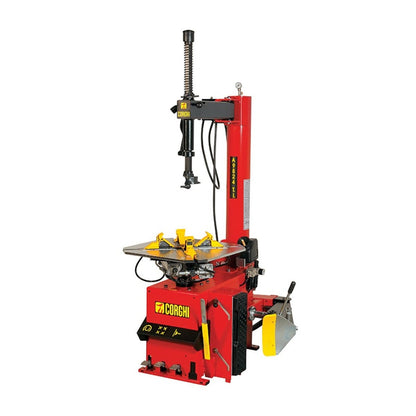

CORGHI A9824TI Swing Arm Tire Changer, Choose Electric or Air Motor
- Authorized Online Dealer direct manufacturer relationship
- No Sales Tax outside PA where applicable
- Authorized Dealer Price Match verification required
- Fast Delivery some products may have lead times
- Manufacturer Warranty included with purchase
- Questions? +1 (855) 498-2147
Corghi Artiglio A9824TI Swing Arm Tire Changer for Professional Shops
The Corghi Artiglio A9824TI is a high-performance swing-arm tire changer delivering speeds up to 50 percent faster than comparable machines in its price range. This ISO 9001 certified machine features superior quality engineering, sleek design, and innovative features including a unique non-contact mount-demount head, built-in table inflator with jaws jets, and a powerful bead-breaker blade. Handles rim sizes 10" to 24" standard (8" to 28" with adapters), accommodates 47" tire diameters, and delivers 737 lb-ft torque with 3,500 lbs bead-breaker force. Run-flat certified by all major tire manufacturers, available with optional air motor or Power Assist Unit.
Corghi Artiglio A9824TI Features
Non-Contact Mount-Demount Head Design
The A9824TI features a unique mount-demount head that never touches the rim during operation. This innovative engineering eliminates rim damage risk on expensive customer wheels and reduces liability. The locking handle secures the head away from the rim, providing complete safety and protection throughout mounting and demounting operations.
Built-In Table Inflator with Jaws Jets
The A9824TI includes a built-in table inflator featuring jets in the jaws for efficient, direct tire inflation on the turntable. This integrated feature eliminates the need to remove tires for inflation, improving workflow efficiency and reducing handling. The jets provide precise air flow for controlled inflation across all tire types.
Powerful Bead-Breaker Blade
A powerful action bead-breaker blade delivers 3,500 lbs of force and follows the bead contour to the inside rim profile. This precision design ensures safe, consistent bead breaking across standard wheels, low-profile tires, and demanding applications. The powerful breaking force prevents rim damage while maintaining fast, reliable operation in high-volume shops.
Heavy-Duty Stainless Steel Construction
Built for durability and long service life, the A9824TI features rebuildable stainless steel cylinders and a heavy-duty stainless steel turntable that rotates in either direction. Stainless steel construction resists corrosion and reduces maintenance requirements, ensuring reliable performance and extended equipment life in professional shop environments.
Swing-Out Upper Arm Assembly
The upper arm assembly swings out-of-way for easy access to the turntable and wheel positioning. This clever mechanical design simplifies operations and allows operators to handle diverse wheel sizes with precision. The swing-out design also improves operator ergonomics and reduces fatigue during high-volume tire changes.
Bead-Pressing Lever and Fast Operation
The A9824TI includes a bead-pressing lever for manual control of bead pressing operations on standard tire applications. Combined with 737 lb-ft of turntable torque, this machine achieves speeds up to 50 percent faster than comparable machines in its price range, making it ideal for high-volume professional shops seeking productivity and profitability.
Corghi Artiglio A9824TI Applications
- Full-Service Tire Shops: The A9824TI is ideal for high-volume tire shops seeking superior speed, quality, and durability with ISO 9001 certified reliability and run-flat tire manufacturer certification.
- Dealership Service Departments: Dealer service facilities benefit from the machine's speed, safety features including non-contact rim design, and ability to handle diverse wheel and tire configurations efficiently.
- Independent Auto Repair Shops: Perfect for general automotive service facilities managing diverse tire change needs with the flexibility to handle rim sizes 10"-24" and expandable to 28" with adapters.
- Low-Profile and Run-Flat Tire Service: Certified for low-profile and run-flat tire mounting and demounting across all major manufacturer certifications, making it ideal for shops specializing in performance vehicle maintenance.
- Fleet Maintenance Centers: Professional fleet operations rely on the A9824TI's proven speed, durability, consistent performance, and cost-effectiveness for high-volume tire service requirements across diverse fleet vehicles.
Corghi Artiglio A9824TI Specifications
| Specification | Value |
|---|---|
| External Rim Size (Standard) | 10" - 24" |
| External Rim Size (With Adapter) | 8" - 28" |
| Internal Rim Size | 13" - 26" |
| Rim Width | 3.5" - 14" |
| Maximum Tire Diameter | 47" |
| Specification | Value |
|---|---|
| Turntable Torque | 737 lb-ft |
| Turntable Operation | 2-speed with dual-direction rotation |
| Bead-Breaker Force at Shoe | 3,500 lbs |
| Air Pressure | 150 PSI |
| Electrical Supply | 110V, 1-phase or air motor option |
| Specification | Value |
|---|---|
| Shipping Weight (Standard) | 608 lbs |
| Shipping Weight (With Power Assist Unit) | 829 lbs |
| Specification | Value |
|---|---|
| ISO Quality Certification | ISO 9001 |
| Run-Flat Certified | All major tire manufacturers |
| Low-Profile Tire Capable | Yes |
| PAX Capable | Yes, with PAX kit |
Corghi Artiglio A9824TI Video
Corghi Artiglio A9824TI Installation Requirements
Electrical Requirements
Power Supply: Single-phase 110V electrical connection is required for the standard A9824TI, or compressed air supply for the optional air motor version. A dedicated electrical circuit with proper grounding is recommended for safe operation. A licensed electrician should verify that your shop's electrical supply meets all local codes and regulations before installation.
Pneumatic Supply
Air Pressure: 150 PSI compressed air supply is required for pneumatic functions including bead-breaker operation and optional equipment. Install a properly sized air compressor system with adequate capacity to support continuous operation. Air lines must include proper filtration and moisture removal for reliable machine performance and service life.
Installation Space and Foundation
Floor Space: Level, stable concrete floor or shop surface recommended. Allow adequate clearance around the machine for operator movement and wheel handling. The base machine weighs approximately 608 lbs and requires a stable, even surface. Ensure sufficient overhead clearance for swing-out arm operation and wheel positioning.
Professional Installation and Training
Professional installation is strongly recommended to ensure proper machine setup, electrical and pneumatic connections, and comprehensive operator training on safety procedures and machine capabilities. Installation verification including test operation and operator training ensures optimal performance and protects your warranty coverage. Service arrangements with authorized Corghi dealers provide ongoing support and parts availability.
What's Included with the Corghi Artiglio A9824TI
- Corghi Artiglio A9824TI tire changer base unit with swing arm
- Non-contact mount-demount head with locking handle
- Built-in table inflator with jaws jets
- Powerful action bead-breaker blade assembly
- Heavy-duty stainless steel turntable
- Rebuildable stainless steel cylinders
- Bead-pressing lever
- Upper arm assembly with swing-out mechanism
- Lube bucket
- Lube brush
- Tire lever and tire lever covers
- Set of jaw protectors
- Mount-demount head bottom inserts
- Set of inserts
- Air tank gauge assembly
- Bead-breaker blade protector
- Operation manual and parts diagrams (multiple languages)
- Warranty documentation
Optional Accessories and Upgrades: Power Assist Unit (PU1500) with pneumatic-powered wheel and bead pressing arm, bead lifter, and one-person operation capability for handling low-profile and high-performance tires. Rim adapters to expand rim capacity to 8"-28". Optional air motor conversion for shops preferring pneumatic-only operation. PAX tire kit for PAX-capable configurations.
Not Included: Electrical installation labor, compressed air supply system, air compressor, air lines and fittings, floor preparation or concrete work, delivery or installation transportation, operator training beyond basic documentation, or maintenance items such as lubricants and replacement inserts.
Corghi Artiglio A9824TI Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: 2-4 weeks for standard delivery depending on current production schedule. Shipping Method: Full-size freight truck with standard curbside delivery. International: Contact sales for international shipping quotes and delivery arrangements.
Delivery Requirements
Receiving: Commercial delivery address with accessible loading area. Machine arrives on wooden pallet and requires forklift or pallet jack for unloading. Inspection: Thoroughly inspect all packaging and the machine for damage before accepting delivery. Document any visible damage on the delivery receipt and contact customer service immediately with photos of damage.
Returns and Exchanges
Returns accepted within 30 days of delivery if product is unopened in original packaging with receipt. A 20% restocking fee applies to all returns. Buyer is responsible for all return freight costs. Equipment that has been assembled, tested, or used is not eligible for return. Contact sales for exchange options due to damage or defect.
Corghi Artiglio A9824TI Warranty
Corghi Limited Warranty
The Corghi Artiglio A9824TI is backed by Corghi's comprehensive warranty, protecting your investment in professional tire service equipment.
- 10 Years: Complete coverage on transmission and drive system against defects in materials and workmanship
- 1 Year: Full coverage on all parts and labor for manufacturing defects and repairs
Warranty Requirements: Warranty coverage requires proper installation by a qualified technician, adherence to recommended maintenance schedules as outlined in the operation manual, use of quality pneumatic fluids, and operation within manufacturer specifications. The machine must be used only for its intended purpose as a professional tire changer. Warranty does not cover misuse, neglect, unauthorized repairs, normal wear items, or damage from improper maintenance.
Documents
Click to open in a new tab.
Questions About the Corghi Artiglio A9824TI?
Our tire equipment specialists can help with installation planning, electrical and pneumatic specifications, optional accessory selection, and professional setup guidance for your tire shop.
Corghi Artiglio A9824TI FAQ
What rim sizes can the A9824TI handle?
The A9824TI handles external rim sizes from 10" to 24" in standard configuration. With optional adapter kits, the machine expands capacity to 8" to 28" external rims. Internal rim size ranges from 13" to 26", and rim width from 3.5" to 14". This versatility makes it ideal for standard passenger vehicles, light trucks, vans, and specialty wheel applications.
Why is the A9824TI 50 percent faster than comparable machines?
The A9824TI combines superior quality engineering with a sleek design and innovative features that reduce operational time. The non-contact mount-demount head, powerful 737 lb-ft torque, 2-speed turntable operation, and precision bead-breaker blade design all contribute to faster tire changes. This speed advantage, combined with ISO 9001 quality certification, makes the A9824TI ideal for high-volume professional shops seeking productivity.
Is the A9824TI suitable for low-profile and run-flat tires?
Yes, the A9824TI is specifically designed and certified for low-profile and run-flat tire mounting and demounting by all major tire manufacturers. The powerful 3,500 lbs bead-breaker force and precise bead-breaking design make it excellent for challenging tire profiles. The optional Power Assist Unit (PU1500) provides pneumatic wheel and bead pressing for enhanced capability on the most demanding tire applications.
What is the bead-breaker power of the A9824TI?
The A9824TI features a powerful action bead-breaker blade with 3,500 lbs of force at the shoe. The blade design follows the bead contour to the inside rim profile, providing consistent, safe bead breaking across all tire types and rim designs. This powerful breaking force prevents rim damage while ensuring efficient operation on both standard and challenging tire applications.
What electrical supply does the A9824TI require?
The standard A9824TI requires single-phase 110V electrical connection with a dedicated circuit and proper grounding. A licensed electrician should verify that your shop's electrical supply meets all local codes before installation. The machine is also available with an optional air motor conversion for shops preferring pneumatic-only operation, eliminating electrical requirements.
What is the pneumatic air pressure requirement?
The A9824TI operates at 150 PSI compressed air pressure for bead-breaker and optional equipment functions. You'll need a properly sized air compressor system with adequate capacity to support continuous operation. Ensure your air lines include proper filtration and moisture removal for reliable machine function and extended service life.
What does the built-in table inflator do?
The A9824TI features a built-in table inflator with jets in the jaws that allows operators to inflate tires directly on the turntable without removing them. This integrated design streamlines the tire service process, eliminating the need for external inflation equipment. The jaws jets provide precise, controlled air flow for safe inflation of all tire types.
What optional accessories are available for the A9824TI?
Optional accessories include the Power Assist Unit (PU1500) with pneumatic-powered wheel and bead pressing, bead lifter, and one-person operation capability for difficult tires. Rim adapters expand capacity to 8"-28". Optional air motor conversion is available for pneumatic-only operation. PAX tire kit enables PAX-capable configurations for vehicles with run-flat tire systems.
How much space is required to install the A9824TI?
The A9824TI requires a level, stable concrete floor or shop surface. Allow adequate clearance around the machine for operator movement and wheel handling. The base machine weighs approximately 608 lbs and should be positioned on a stable, even surface. Ensure sufficient overhead clearance for swing-out arm operation and wheel positioning.
What is the warranty coverage for the A9824TI?
The A9824TI is backed by a 10-year warranty on the transmission and drive system against manufacturing defects, plus 1-year coverage on all parts and labor for repairs. Warranty requires proper installation by a qualified technician, adherence to maintenance schedules, and operation within manufacturer specifications. Regular maintenance ensures optimal performance and warranty validity.
What is the difference between the standard A9824TI and the version with Power Assist Unit?
The standard A9824TI comes with a bead-pressing lever suitable for routine tire changes on standard wheels. The version with Power Assist Unit (PU1500) adds pneumatic-powered wheel and bead pressing, bead lifter function, rim clamping assist, and enables one-person operation on difficult low-profile and high-performance tires. The PU1500 version is ideal for shops handling challenging tire applications regularly.
Is the non-contact mount-demount head really important?
Yes, the non-contact mount-demount head design is a critical safety and profitability feature. Because the head never touches the rim during operation, it eliminates risk of rim damage, protects high-value customer wheels, and reduces shop liability. This unique design is combined with a locking handle that secures the head away from the rim for complete operator safety and peace of mind.
