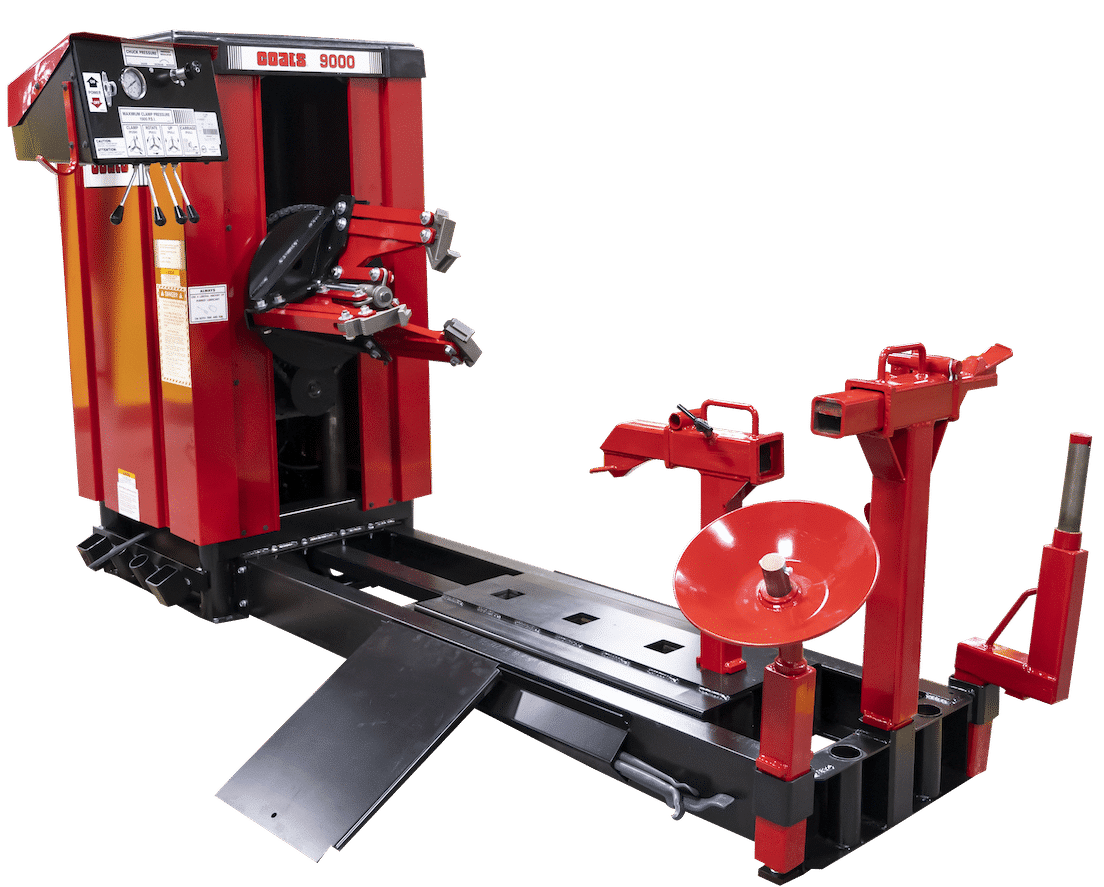

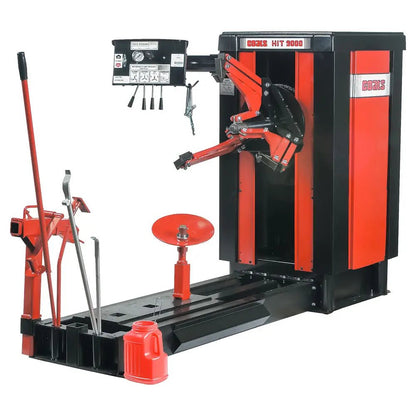

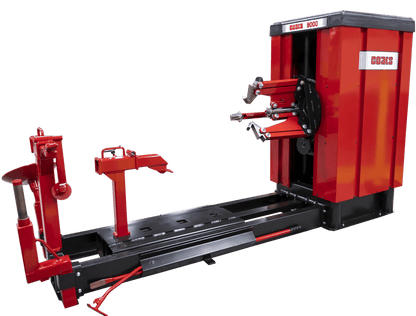

COATS HIT 9000 HD Tire Changer
Coats HIT 9000 Heavy Duty Tire Changer for Mega and Off-Road Tires
The Coats HIT 9000 is the ultimate heavy-duty industrial tire changer, engineered for the most extreme and demanding tire service applications. This flagship model tackles the largest mining, earth moving, and agricultural assemblies with maximum tire capacity up to 44 inches diameter and 25 inches width. Built to deliver unmatched reliability and performance, the HIT 9000 features easy-to-use swing arm design with integrated hydraulic controls and 4,400 ft-lbs maximum chuck torque for exceptional gripping power. Power: 220V 1-phase or 3-phase, 60Hz. Warranty: 1 year parts, 90 days labor. No air supply required.
Coats HIT 9000 Features
Maximum Tire Handling Capacity
Engineered to handle tires up to 44 inches in diameter and 25 inches in width with exceptional capability. The HIT 9000 tackles the largest mining excavators, haul trucks, earthmovers, and agricultural equipment with tire fitments no other machine can match.
Extended Rim Range Coverage
Accommodates rim diameters from 15 inches to 44 inches, providing unmatched flexibility for the most challenging applications. This exceptional range ensures the HIT 9000 can service virtually any mega-tire application encountered in mining, construction, and heavy industrial environments.

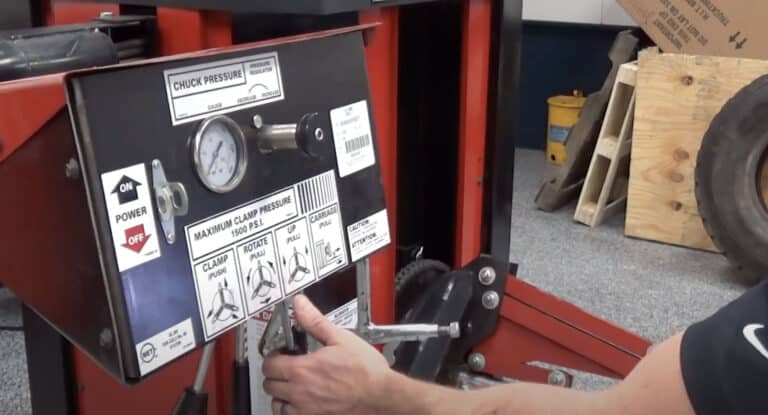

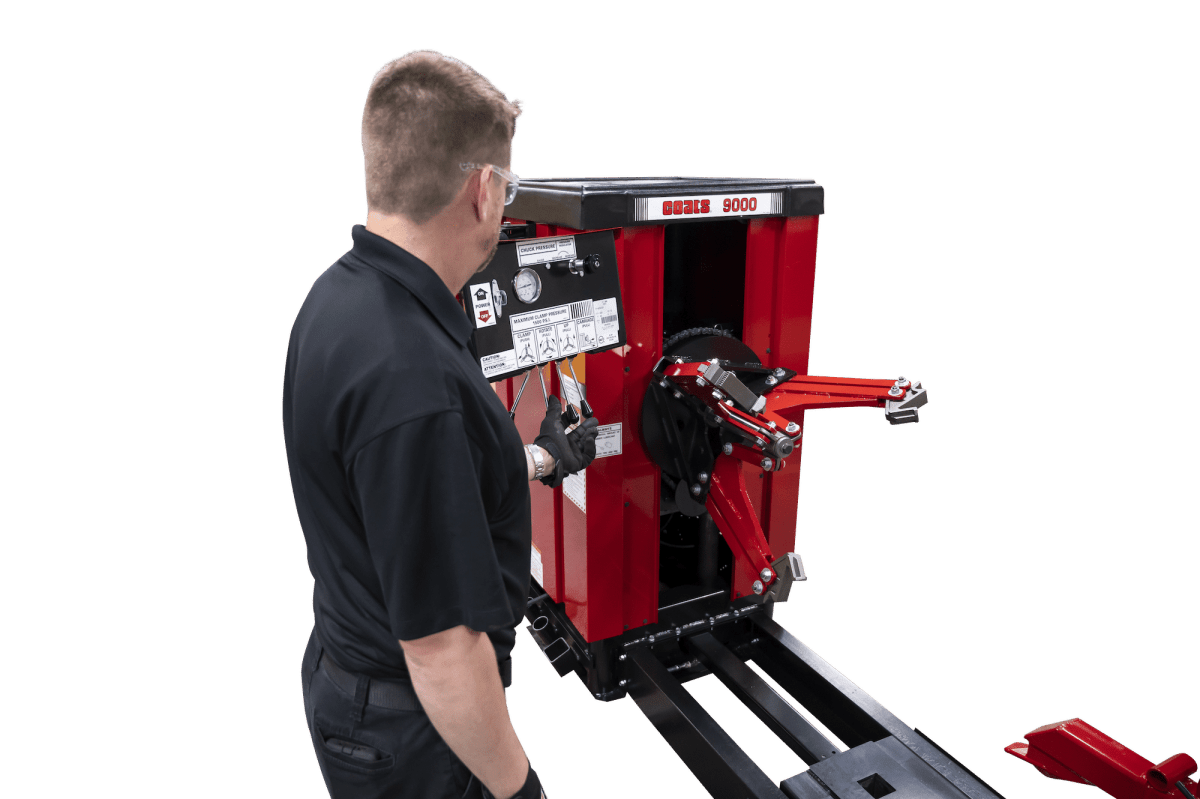

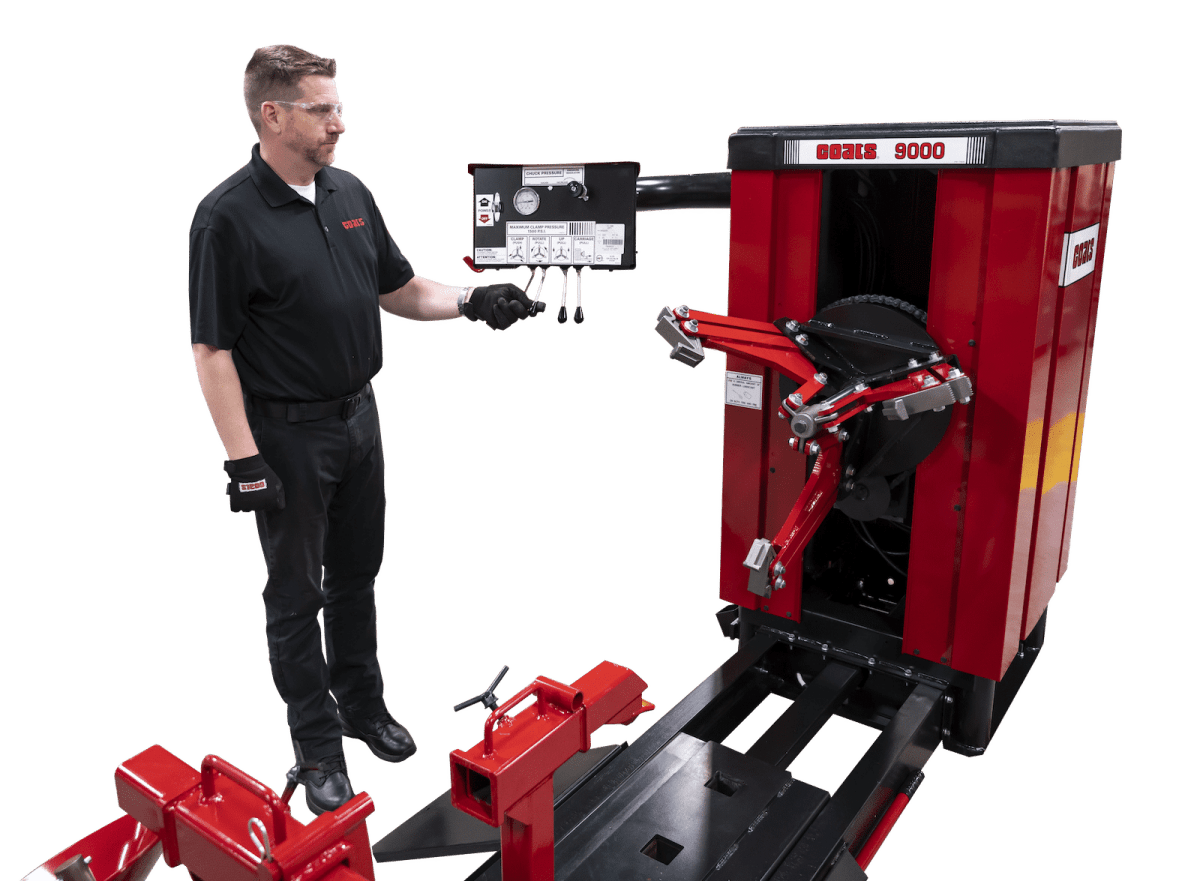

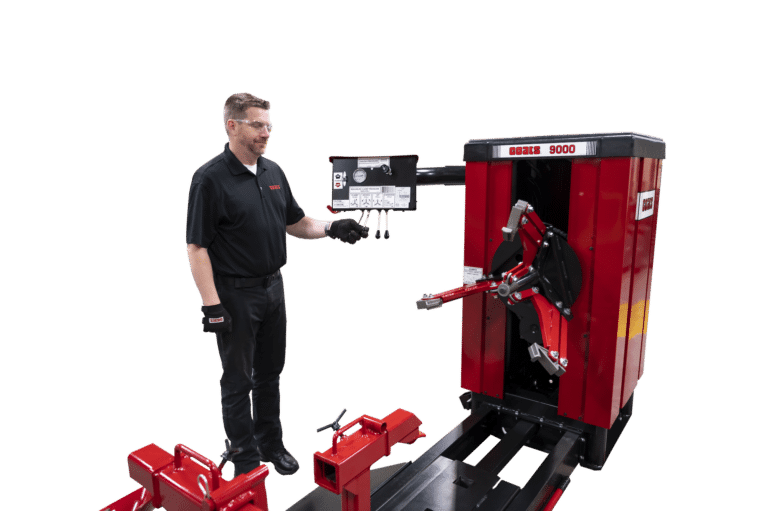

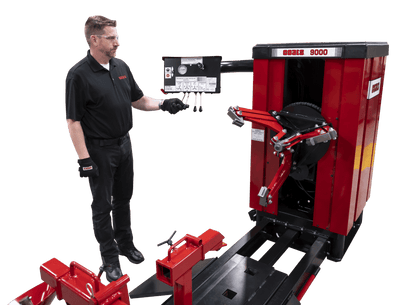

Easy-to-Use Swing Arm Design
All hydraulic controls are housed in a convenient swing arm with dedicated levers for each powered function. This ergonomic design keeps operators in comfortable working positions while maintaining complete control of all machine operations throughout extended tire service sessions.

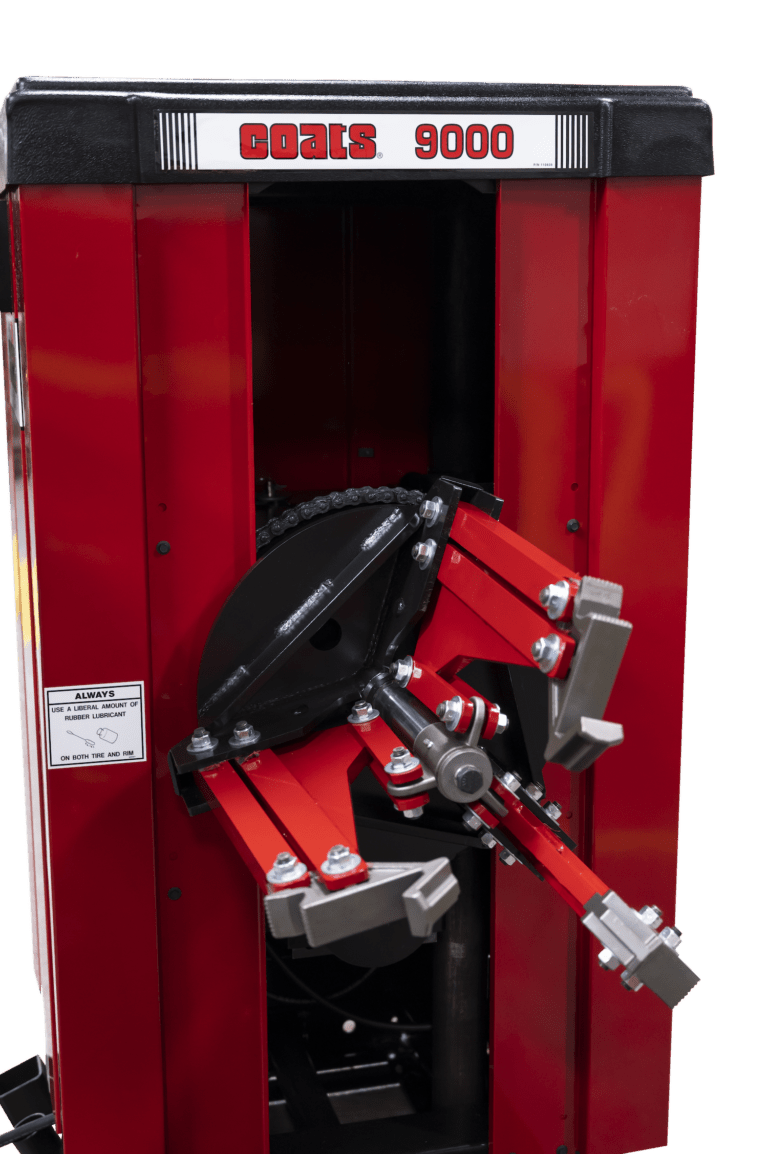

Superior Hydraulic Chuck Torque
4,400 ft-lbs maximum chuck torque provides exceptional gripping power for the largest and most demanding tires. The self-centering hydraulic clamping chuck with adjustable pressure regulator ensures secure handling while protecting specialized wheels from damage.
No Air Supply Required
Unlike many competitive models, the HIT 9000 does not require compressed air supply, simplifying installation and reducing operational costs. This advantage eliminates the need for air system setup, verification, and maintenance, streamlining facility requirements.
Heavy Tapered Roller Bearings and Dual-Direction Motor
Heavy tapered roller bearings and dual-direction hydraulic motor deliver smooth, consistent torque even under extreme conditions. Built with Coats' proven reliability principles tested over 75 years in the industry, the HIT 9000 represents the pinnacle of heavy-duty tire service engineering.
Coats HIT 9000 Applications
- Mining Equipment Tire Service: Purpose-engineered for the massive tires found on mining excavators, haul trucks, and specialized mining equipment where reliability and uptime are absolutely critical to operations.
- Earth-Moving Equipment: Ideal for tire shops and equipment dealerships servicing dozers, graders, wheel loaders, and other heavy construction equipment with mega-tire fitments requiring extreme capacity.
- Agricultural Mega-Tires: Perfect for servicing the largest agricultural equipment including massive tractors and specialized farm machinery with tire sizes and weights most equipment cannot handle.
- Specialty Off-Road Applications: Engineered for shops specializing in extreme off-road vehicles, prototype equipment, and custom machinery requiring the ultimate in tire service capability and versatility.
- Maximum-Capacity Industrial Operations: Essential equipment for large industrial tire service centers and major equipment dealerships requiring the capability to handle any tire challenge without equipment limitations.
Coats HIT 9000 Specifications
| Specification | Value |
|---|---|
| Maximum Tire Diameter | 44" |
| Maximum Tire Width | 25"+ |
| Rim Diameter Range | 15" to 44" |
| Maximum Chuck Torque | 4,400 ft-lbs |
| Specification | Value |
|---|---|
| Overall Width | 96" |
| Overall Depth | 108" |
| Overall Height | 66" |
| Weight with Standard Accessories | 1,600 lbs (shipping) |
| Specification | Value |
|---|---|
| Voltage Supply | 220V 1-phase or 3-phase |
| Frequency | 60Hz |
| Air Required | No |
| Specification | Value |
|---|---|
| Tire Types Handled | Tube and tubeless, Dayton, agricultural, industrial, mining |
| Wheel Clamping Method | Center carriage with 3-jaw chuck |
| Mount/Demount Method | Center post independent |
| Tool Head Design | Offset independent removable mount in table |
Coats HIT 9000 Video
Coats HIT 9000 Installation Requirements
Electrical Requirements
Power Supply: 220V, 1-phase or 3-phase, 60Hz. The HIT 9000 offers flexible power options to accommodate various shop electrical service configurations. A licensed electrician must install and verify the electrical supply meets all code requirements and equipment specifications.
Shop Floor and Space Requirements
Installation Surface: Install on level, stable shop floor with adequate drainage. The machine dimensions are 96" wide by 108" deep by 66" high, requiring substantial floor space appropriate for major industrial and mining tire service operations. Ensure surrounding area permits safe mega-tire positioning and operator movement.
No Air Supply Required
Significant Advantage: The HIT 9000 does not require compressed air supply, simplifying installation and reducing operational costs. This eliminates complex air system requirements and provides operational cost savings compared to air-dependent equipment.
Professional Installation and Training
Professional installation is strongly recommended for this flagship equipment. Proper electrical hookup, machine leveling, swing arm adjustment, and operator training are critical for warranty coverage and safe operation with mega-tires. Coats factory-trained technicians provide comprehensive installation support and personnel training.
What's Included with the Coats HIT 9000
- Coats HIT 9000 Heavy Duty Tire Changer with center carriage and 3-jaw chuck
- Easy-to-use swing arm with integrated hydraulic controls and dedicated levers
- Offset independent removable tool head for mounting and demounting
- Standard roller-type tire spreader for all applications

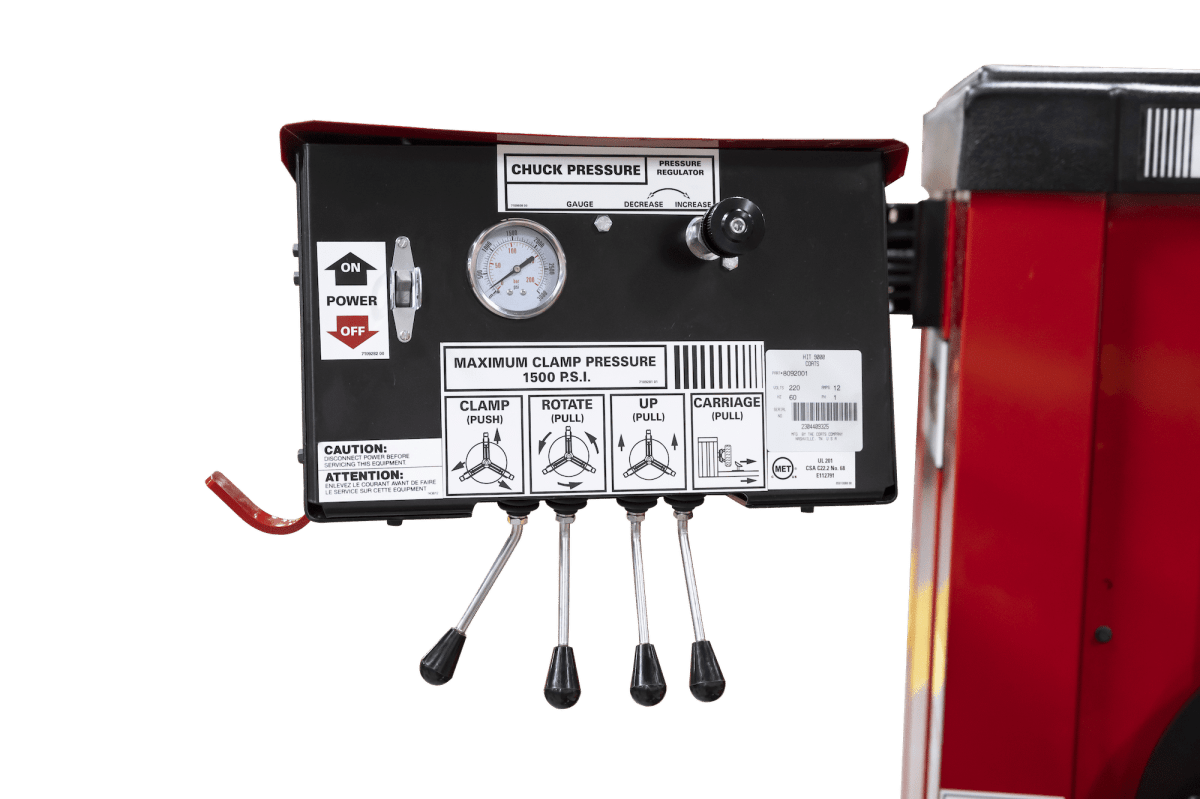

- Adjustable pressure regulator for chuck control optimization
- Center carriage lifting and positioning system
- Heavy tapered roller bearings and dual-direction hydraulic motor
- Self-centering hydraulic clamping chuck with exceptional torque capacity
- Operating and Maintenance Manual with comprehensive service instructions
- Warranty documentation and technical support information

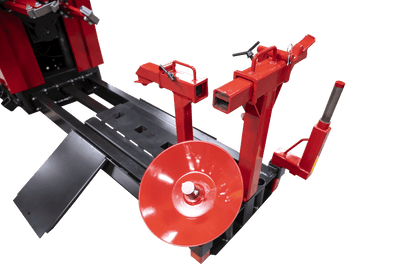

Optional Accessories: Jaw extensions for specialized rim diameters, earth mover bead loosener rollers, lock ring tools for multi-piece wheels, drop center irons, bead starting tools, vise grip clamps, stud piloted wheel plates, hub piloted wheel plates, offset roller assemblies, nylon head combo tools, and duplex combo tool heads.
Not Included: Electrical installation labor, floor preparation, delivery and unloading services (available through freight carrier), forklift or loading dock equipment, or comprehensive operator training programs.
Coats HIT 9000 Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: 4-6 weeks from order. Crating: Shipped via freight carrier in protective packaging. International: Contact sales team for international shipping quotes and availability.
Delivery Requirements
Unloading: The HIT 9000 weighs 1,600 lbs and requires forklift assistance for unloading. Ensure loading dock or adequate forklift capacity is available. Standard delivery is curbside to commercial addresses. Inspection: Inspect all shipments for visible damage before accepting. Note any damage on the bill of lading immediately.
Returns and Damage Claims
Returns accepted within 30 days of delivery if product is unopened in original factory packaging with proof of purchase. A 20 percent restocking fee applies to all returns. Buyer is responsible for all return freight costs. Damage claims must be reported to the freight carrier within the specified timeframe. Document damage with photographs.
Coats HIT 9000 Warranty
Coats Heavy-Duty Industrial Tire Changer Limited Warranty
The Coats Company warrants all HIT Series Heavy-Duty Industrial Tire Changers to be fit for normal use and free from defects in materials and workmanship when delivered to the original purchaser.
- 1 Year: Full warranty coverage on all parts and components including hydraulic system, motors, chuck assembly, controls, and mechanical components
- 90 Days: Labor coverage for on-site service and repairs at authorized Coats service centers
Coverage Requirements: Warranty applies only to defects in materials and workmanship discovered and reported within the warranty period. Machine must be installed by qualified technician, operated by trained personnel, and maintained according to manufacturer specifications. Warranty does not apply to misuse, abuse, neglect, tampering, unauthorized alterations, accidents, or exposure to elements. Wear items and consumables are not covered.
Warranty Service: Contact Coats customer service at 1-800-688-6359 (United States) or sales team at 855-876-3864 to arrange warranty repairs. Exclusive remedy for warranty claims is repair or replacement at Coats discretion. Warranty extends only to the original purchasing entity and is not transferable.
Documents
Click to open in a new tab.
Questions About the Coats HIT 9000?
Our automotive equipment specialists can help with installation planning, electrical requirements, operator training recommendations, and all technical questions about the industry's most capable heavy-duty tire service equipment.
Coats HIT 9000 FAQ
What is the maximum tire diameter the HIT 9000 can handle?
The Coats HIT 9000 handles tires up to 44 inches in diameter and 25 inches in width, representing the maximum capacity available in industrial tire changer equipment. This exceptional capacity makes it the only solution for the largest mining excavators, haul trucks, and mega-tire applications.
What rim sizes does the HIT 9000 accommodate?
The HIT 9000 handles rim diameters from 15 inches to 44 inches. Optional jaw extensions and specialized accessories expand this capability even further for extreme applications. This range covers virtually any mega-tire application in mining, construction, and heavy industrial environments.
What are the electrical power requirements for the HIT 9000?
The HIT 9000 operates on 220V power supply available in either 1-phase or 3-phase configurations at 60Hz. The flexible power options allow installation in various facility electrical configurations. A licensed electrician should verify your facility has adequate service capacity before installation.
Does the HIT 9000 require compressed air?
No, the HIT 9000 does not require compressed air supply, which is a major advantage. This simplifies installation, reduces operational costs, and eliminates the need for air system verification and maintenance compared to air-dependent equipment.
How does the HIT 9000 compare to the HIT 5000?
The HIT 9000 is the flagship model with maximum tire capacity (44 inches diameter, 25 inches wide) versus the HIT 5000 (76 inches diameter, 22 inches wide). Wait, let me correct that: the HIT 5000 handles 76 inches diameter. The HIT 9000 handles smaller diameter but much wider tires (25 inches) and has 4,400 ft-lbs torque versus HIT 5000's 2,900 ft-lbs, making it superior for mega-width tires.
What makes the HIT 9000 different from other tire changers?
The HIT 9000 represents the ultimate in industrial tire service capability with the highest chuck torque (4,400 ft-lbs) and maximum tire width handling (25 inches). The swing arm design with integrated controls, no air requirement, and heavy-duty construction make it the choice for the most demanding applications.
Can the HIT 9000 handle both tube-type and tubeless tires?
Yes. The HIT 9000 accommodates both tube and tubeless tires including Dayton style wheels, agricultural wheels, industrial wheels, and mining equipment tires. This versatility makes it ideal for diverse heavy-duty operations with varied tire requirements.
What warranty is provided with the HIT 9000?
The Coats HIT 9000 is covered by a 1-year parts warranty and 90-day labor warranty from the date of delivery. Warranty applies only to defects in materials and workmanship under normal use. Contact Coats customer service at 1-800-688-6359 for warranty support.
Is professional installation recommended for the HIT 9000?
Yes, professional installation is strongly recommended for this flagship equipment. Proper electrical hookup, machine leveling, swing arm adjustment, and operator training are critical for warranty coverage and safe operation with mega-tires. Coats factory-trained technicians provide comprehensive installation support.
How is the HIT 9000 shipped and what are the unloading requirements?
The HIT 9000 weighs 1,600 lbs in shipping configuration and is delivered via freight carrier to your commercial address. Forklift assistance is required for unloading. Free freight is included to 48 contiguous U.S. states with 4-6 week lead time. Inspect for damage upon delivery and note any issues on the bill of lading.
What is the footprint and space requirement for the HIT 9000?
The HIT 9000 measures 96 inches wide by 108 inches deep by 66 inches high, representing a substantial footprint appropriate for major industrial operations. Ensure adequate surrounding space for safe mega-tire positioning and operator movement around this flagship equipment.
What are the available optional accessories for the HIT 9000?
Optional accessories include jaw extensions, earth mover bead loosener rollers, lock ring tools, drop center irons, bead starting tools, vise grip clamps, stud piloted wheel plates, hub piloted wheel plates, offset roller assemblies, nylon head combo tools, and duplex combo tool heads. Consult your Coats representative for application-specific recommendations.
California Proposition 65 Warning
WARNING: This product can expose you to chemicals including styrene and vinyl chloride, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.p65warnings.ca.gov.
