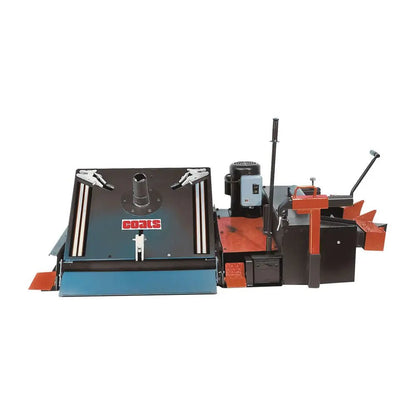

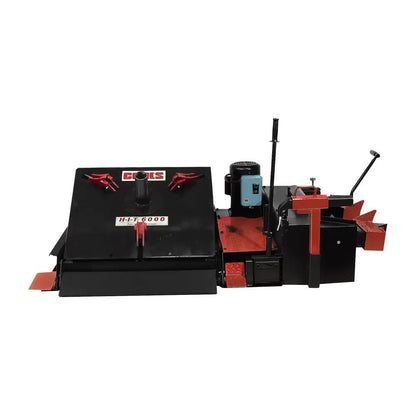

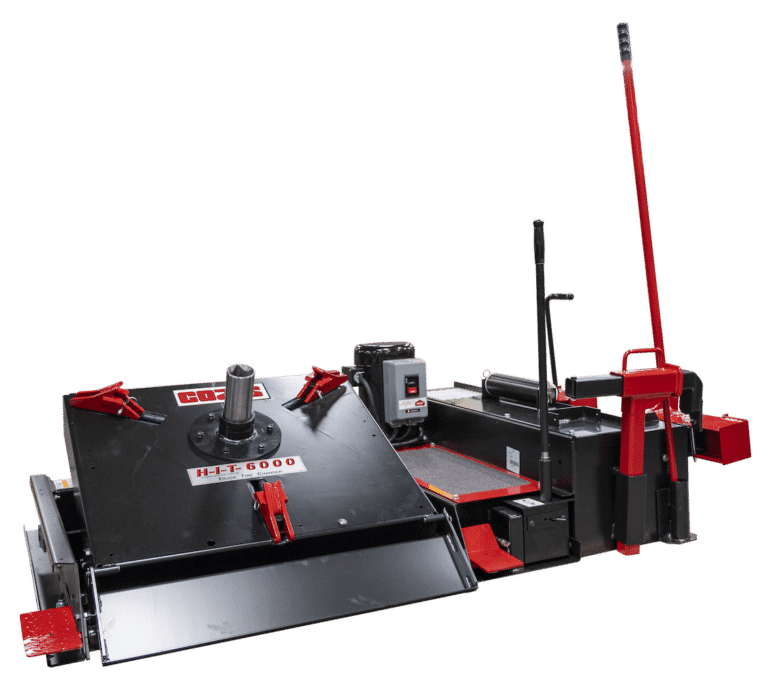

COATS HIT 6000 Heavy Duty Tire Changer for Commercial Trucks
Coats HIT 6000 Heavy Duty Tire Changer for Commercial Trucks
The Coats HIT 6000 is purpose-built for quick, efficient servicing of tubeless truck tires and heavy-duty commercial vehicles. Designed and manufactured in the U.S., this robust tire changer simplifies operations with intuitive single control stick design and dedicated two-way pedals for all bead loosening, mounting, and demounting tasks. The HIT 6000 accommodates wheel widths from 6" to 15" and diameters from 16.5" to 24.5", handling all 15-degree single-piece highway rims including Dayton, reverse disc, and standard disc wheels. Power: 220V 1-phase or 3-phase, 60Hz. Warranty: 1 year parts, 90 days labor.
Coats HIT 6000 Features

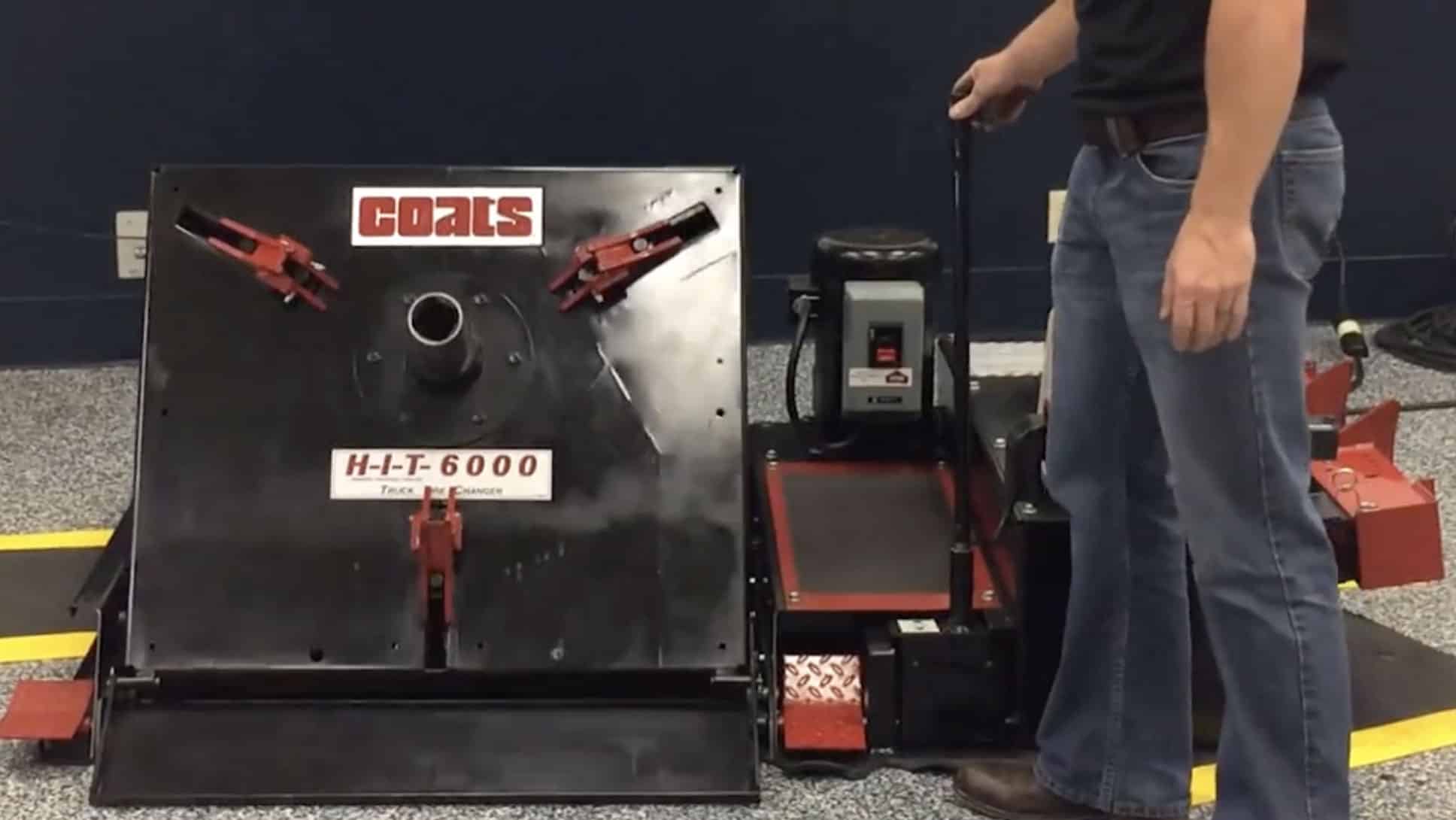

Single Control Stick Design
The intuitive single control stick simplifies operation by handling both pivoting the tabletop and clamping the rim chuck from one location. This streamlined design reduces operator fatigue and training time while improving workflow efficiency for busy commercial shops.
Dedicated Two-Way Pedals
Specialized two-way pedals provide precise control for bead loosening, mounting, and demounting tasks. This dedicated control method eliminates confusion and enables experienced technicians to work faster and more confidently through repetitive tire service operations.
Tubeless Tire Optimization
Purpose-built for quick, hassle-free servicing of tubeless tires, the HIT 6000 also efficiently handles tube-type bead loosening. This versatility makes it ideal for mixed-fleet shops serving both modern tubeless and older tube-type commercial vehicles.

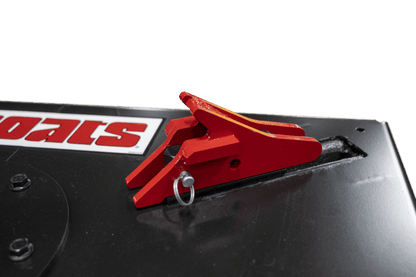

Self-Centering Hydraulic Clamping Chuck
The self-centering hydraulic clamping chuck ensures secure and precise handling of varied rim styles. Adjustable pressure regulator matches chuck pressure to rim strength for optimal performance while preventing damage to delicate or specialty wheels.
Heavy Tapered Roller Bearings and Dual-Direction Motor
Heavy tapered roller bearings and dual-direction hydraulic motor deliver smooth, consistent torque throughout all operations. This robust design ensures reliability even in high-volume shops running multiple tire services daily.
Compact, Durable U.S. Construction
Engineered and built in the U.S. by Coats, the HIT 6000 combines maximum usability with easy serviceability. The compact footprint (78" width x 48" depth) fits efficiently in space-constrained shops while maintaining the durability standards Coats has delivered for over 75 years.
Coats HIT 6000 Applications
- Commercial Truck Tire Service: Purpose-designed for fleet maintenance facilities and truck dealerships servicing 15-degree single-piece highway wheels on medium and heavy-duty commercial vehicles.
- Tubeless Tire Specialization: Optimized for modern tubeless truck tire servicing while maintaining capability for tube-type bead work on mixed fleets with vehicles of varying ages.
- Dayton and Reverse Disc Wheels: Handles the full range of specialty commercial wheel styles including Dayton wheels, reverse disc wheels, and standard disc configurations.
- High-Volume Shops: Ideal for busy commercial tire shops where intuitive controls and efficient operation are essential for moving multiple tire services through the workday.
- Mixed Fleet Operations: Perfect for shops serving diverse commercial customers with varying wheel types and tire configurations requiring flexible, reliable equipment.
Coats HIT 6000 Specifications
| Specification | Value |
|---|---|
| Maximum Tire Diameter | 44" |
| Maximum Tire Width | 16" |
| Wheel Width Range | 6" to 15" |
| Rim Diameter Range | 16.5" to 24.5" |
| Maximum Chuck Torque | 2,900 ft-lbs |
| Specification | Value |
|---|---|
| Overall Width | 78" |
| Overall Depth | 48" |
| Weight with Standard Accessories | 1,150 lbs (shipping) |
| Specification | Value |
|---|---|
| Voltage Supply | 220V 1-phase or 3-phase |
| Frequency | 60Hz |
| Air Required | Yes |
| Specification | Value |
|---|---|
| Tire Types Handled | Tubeless, tube-type, stud/hub-piloted, Dayton |
| Wheel Clamping Method | Center mount with 3-jaw chuck |
| Mount/Demount Method | Center post independent |
| Tool Head Design | Hook and roller |
Coats HIT 6000 Video
Coats HIT 6000 Installation Requirements
Electrical Requirements
Power Supply: 220V, 1-phase or 3-phase, 60Hz. The HIT 6000 offers flexibility with single or three-phase power options to match available shop electrical service. A licensed electrician must install and verify the electrical supply meets all code requirements and equipment specifications.
Shop Floor and Foundation
Installation Surface: Install on level, stable shop floor with adequate drainage. The machine is 78" wide by 48" deep, making it suitable for compact shop spaces while maintaining operational efficiency. Ensure surrounding area is clear for safe wheel positioning and operator movement.
Air Supply Requirements
Compressed Air: The HIT 6000 requires compressed air supply for auxiliary functions. Verify your shop has adequate air compressor capacity and clean, dry air system. Contaminated air can damage hydraulic seals and control components, so proper air filtration is essential.
Professional Installation
Professional installation is recommended. Proper electrical hookup, air line connections, and machine leveling are critical for warranty coverage and safe operation. Coats factory-trained technicians can provide installation support and operator training for your staff.
What's Included with the Coats HIT 6000
- Coats HIT 6000 Heavy Duty Tire Changer with 3-jaw center mount clamping chuck
- Single control stick for pivoting and clamping operations
- Dedicated two-way pedal controls
- Hook and roller tool head for mounting and demounting
- Standard roller-type tire spreader
- Adjustable pressure regulator for chuck control
- Tilt-back clamp arm for wheel lift and positioning
- Swing arm housing with hydraulic controls
- Operating and Maintenance Manual with service instructions
- Warranty documentation
Optional Accessories: Jaw extensions for larger applications, lock ring tools for multi-piece wheels, drop center irons, bead starting tools, offset roller assemblies for specialized applications, nylon head combo tools with replacements, duplex combo tool heads, bolt circle adapters for hub-piloted wheels, and earth mover bead looseners.
Not Included: Electrical installation labor, compressed air supply system, air line installation, floor preparation, delivery and unloading services (available through freight carrier), or operator training.
Coats HIT 6000 Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: 4-6 weeks from order. Crating: Shipped via freight carrier in protective packaging. International: Contact sales team for international shipping quotes and availability.
Delivery Requirements
Unloading: The HIT 6000 weighs 1,150 lbs and can be unloaded using standard forklift. Delivery is curbside to commercial addresses. Inspection: Inspect all shipments for visible damage before accepting. Note any damage on the bill of lading. Retain all packaging materials for protection during storage or future transport.
Returns and Damage Claims
Returns accepted within 30 days of delivery if product is unopened in original factory packaging with proof of purchase. A 20 percent restocking fee applies to all returns. Buyer is responsible for all return freight costs. Damage claims must be reported to the freight carrier within the specified timeframe. Document all damage with photographs.
Coats HIT 6000 Warranty
Coats Heavy-Duty Industrial Tire Changer Limited Warranty
The Coats Company warrants all HIT Series Heavy-Duty Industrial Tire Changers to be fit for normal use and free from defects in materials and workmanship when delivered to the original purchaser.
- 1 Year: Full warranty coverage on all parts and components including hydraulic system, motors, chuck assembly, controls, and mechanical components
- 90 Days: Labor coverage for on-site service and repairs at authorized Coats service centers
Coverage Requirements: Warranty applies only to defects in materials and workmanship discovered and reported within the warranty period. Machine must be installed by qualified technician, operated by trained personnel, and maintained according to manufacturer specifications. Warranty does not apply to misuse, abuse, neglect, tampering, unauthorized alterations, accidents, or exposure to elements. Wear items and consumables are not covered.
Warranty Service: Contact Coats customer service at 1-800-688-6359 (United States) or sales team at 855-876-3864 to arrange warranty repairs. Exclusive remedy for warranty claims is repair or replacement at Coats discretion. Warranty extends only to the original purchasing entity and is not transferable.
Documents
Click to open in a new tab.
Questions About the Coats HIT 6000?
Our automotive equipment specialists can help with installation planning, electrical requirements verification, operator training recommendations, and all technical questions about commercial tire service equipment.
Coats HIT 6000 FAQ
What is the maximum tire diameter the HIT 6000 can handle?
The Coats HIT 6000 handles tires up to 44 inches in diameter and 16 inches in width. This capacity is ideal for commercial truck tires and heavy-duty highway applications. For larger tire applications, consider the Coats HIT 5000 or HIT 9000 models.
What wheel sizes does the HIT 6000 accommodate?
The HIT 6000 handles wheel widths from 6 inches to 15 inches with rim diameters from 16.5 inches to 24.5 inches. This range covers the vast majority of commercial truck wheels including Dayton, reverse disc, and standard disc configurations used in fleet applications.
What are the electrical power requirements for the HIT 6000?
The HIT 6000 operates on 220V power supply available in either 1-phase or 3-phase configurations at 60Hz. The flexible power options allow installation in shops with different electrical service availability. A licensed electrician should verify your facility has adequate service capacity before installation.
Does the HIT 6000 require compressed air?
Yes, the HIT 6000 requires compressed air supply for auxiliary functions. Verify your shop has an adequate air compressor and clean, dry air system. Proper air filtration is essential to prevent contamination of hydraulic seals and control components.
What makes the HIT 6000 different from the CHD series tire changers?
The HIT 6000 is designed specifically for commercial truck tire service with an intuitive single control stick design and dedicated two-way pedals. The HIT series is optimized for tubeless truck tires and represents Coats' U.S.-built industrial tire changer line, distinct from the CHD heavy-duty series.
Can the HIT 6000 handle both tubeless and tube-type tires?
Yes. The HIT 6000 is purpose-built for tubeless tire servicing while also efficiently handling tube-type bead loosening. This versatility makes it ideal for shops serving mixed fleets with both modern tubeless and older tube-type commercial vehicles.
What warranty is provided with the HIT 6000?
The Coats HIT 6000 is covered by a 1-year parts warranty and 90-day labor warranty from the date of delivery. Warranty applies only to defects in materials and workmanship under normal use. Contact Coats customer service at 1-800-688-6359 for warranty support.
Is professional installation recommended for the HIT 6000?
Yes, professional installation is strongly recommended. Proper electrical hookup, air line connections, and machine leveling are critical for warranty coverage and safe operation. Coats factory-trained technicians can provide installation support and operator training for your staff.
How is the HIT 6000 shipped and what are the unloading requirements?
The HIT 6000 weighs 1,150 lbs in shipping configuration and is delivered via freight carrier to your commercial address. Standard forklift unloading is sufficient. Free freight is included to 48 contiguous U.S. states. Inspect for damage upon delivery and note any issues on the bill of lading.
What foot print does the HIT 6000 require on the shop floor?
The HIT 6000 measures 78 inches wide by 48 inches deep, making it suitable for space-constrained commercial shops while maintaining full operational efficiency. The compact footprint allows placement against walls or in shop corners with only the operational area needed for wheel positioning and operator movement.
Can the HIT 6000 handle Dayton wheels and specialty commercial rims?
Yes. The HIT 6000 is specifically designed to handle all 15-degree single-piece highway rims including Dayton style wheels, reverse disc wheels, and standard disc wheels. Optional accessories like jaw extensions and offset disc holders expand capability for specialty applications.
What are the available optional accessories for the HIT 6000?
Optional accessories include jaw extensions for larger applications, lock ring tools, drop center irons, bead starting tools, offset roller assemblies, nylon head combo tools with replacements, duplex combo tool heads, bolt circle adapters for hub-piloted wheels, and earth mover bead looseners. Consult your Coats representative for application-specific recommendations.
