Coats HIT 5000 Heavy Duty Truck & Agricultural Tire Changer
- Authorized Online Dealer direct manufacturer relationship
- No Sales Tax outside PA where applicable
- Authorized Dealer Price Match verification required
- Fast Delivery some products may have lead times
- Manufacturer Warranty included with purchase
- Questions? +1 (855) 498-2147

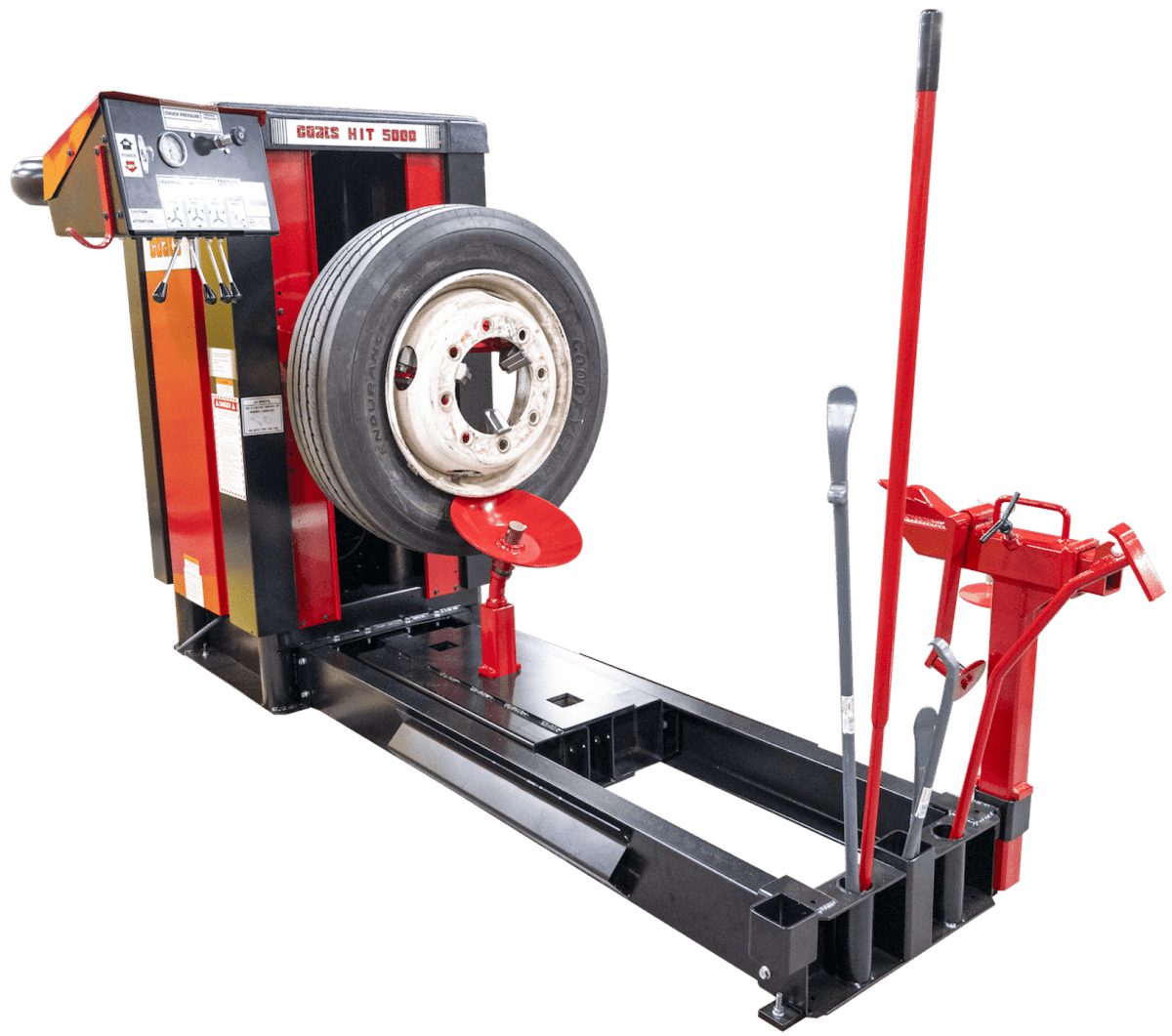

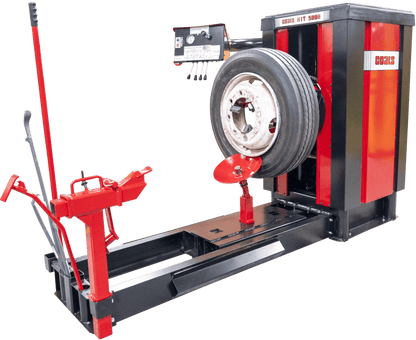

Coats HIT 5000 Heavy Duty Tire Changer for Industrial and Agricultural Tires
The Coats HIT 5000 is engineered for heavy-duty and oversized applications, making it the ideal solution for industrial, agricultural, and off-road vehicle tire service. Built for durability with easy-to-use swing arm design housing all hydraulic controls and dedicated levers for each powered function, this U.S.-built machine delivers reliable performance in the most demanding tire service environments. The HIT 5000 accommodates rims from 15" to 38" and tires up to 76" diameter and 22" width with self-centering hydraulic clamping chuck and 2,900 ft-lbs maximum chuck torque. Power: 220V 1-phase or 3-phase, 60Hz. Warranty: 1 year parts, 90 days labor.
Coats HIT 5000 Features

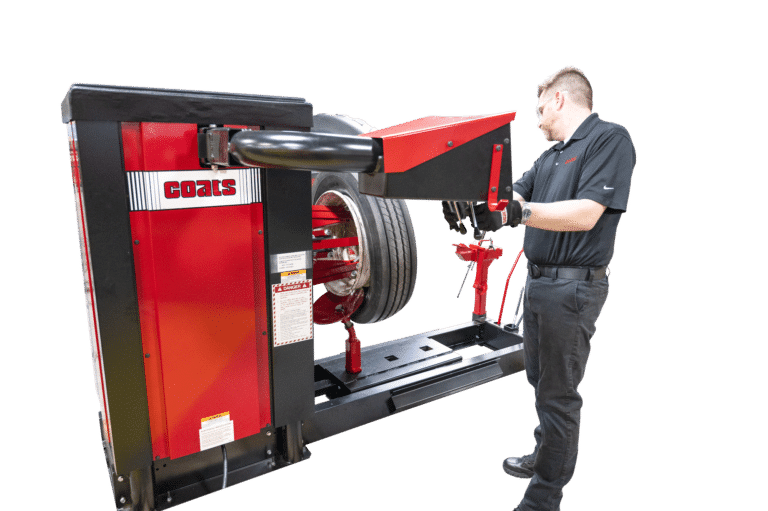

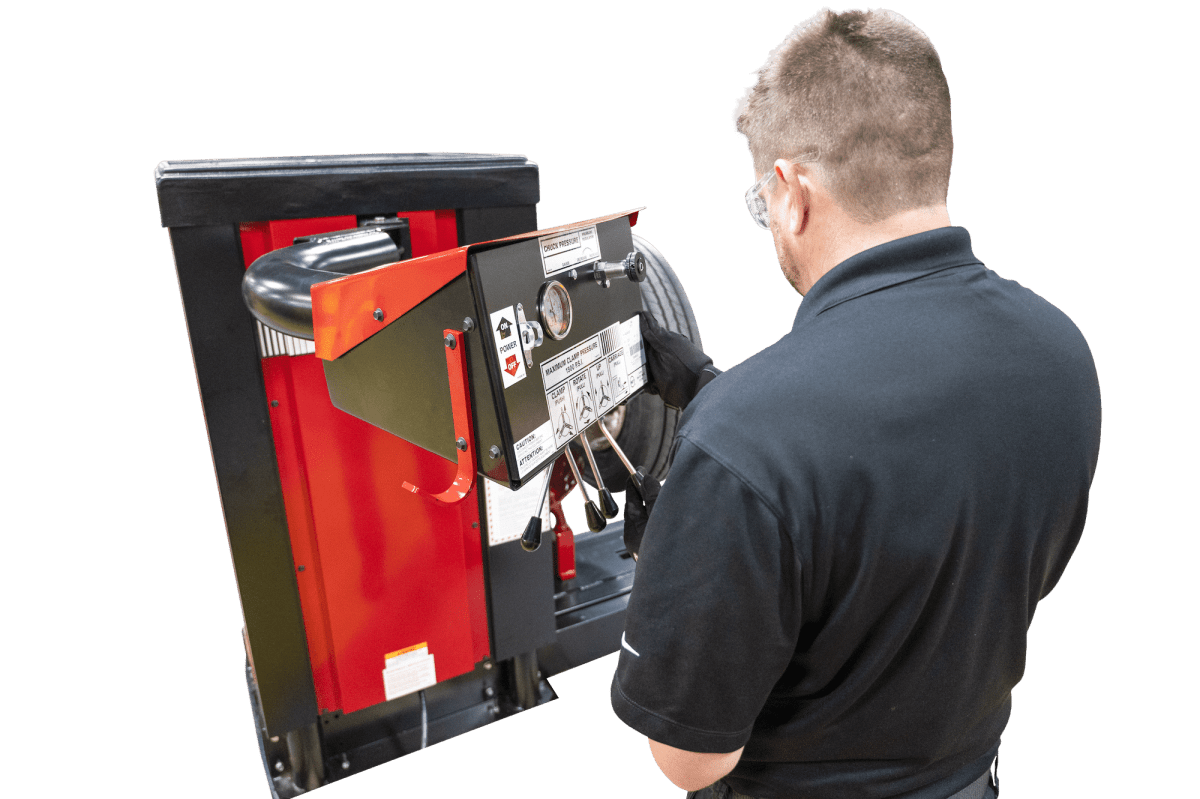

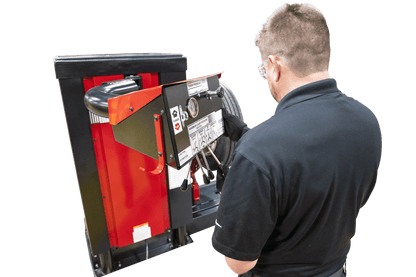

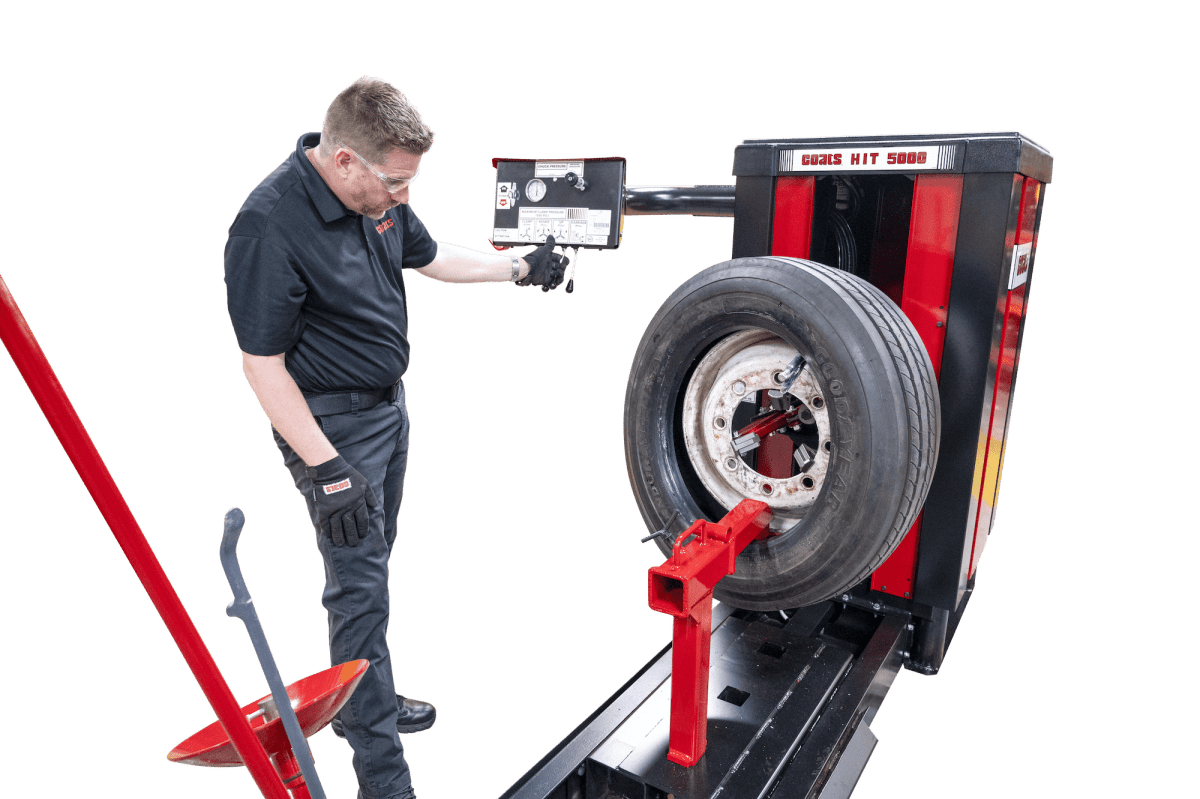

Easy-to-Use Swing Arm Design
All hydraulic controls are housed in a convenient swing arm with dedicated levers for each powered function. This thoughtful design keeps operators in ergonomic working positions while maintaining full control of all machine operations, reducing fatigue during extended tire service sessions.
Oversized Tire Capacity
Handles tires up to 76 inches in diameter and 22 inches in width with exceptional capability. The HIT 5000 tackles industrial earthmovers, agricultural equipment, and specialty vehicles where tire size and weight demand robust, reliable equipment.
Extended Rim Range Coverage
Accommodates rim diameters from 15 inches to 38 inches, providing flexibility for diverse applications including agricultural equipment, industrial machinery, and off-road vehicles. Optional jaw extensions expand capability even further for specialized fitments.

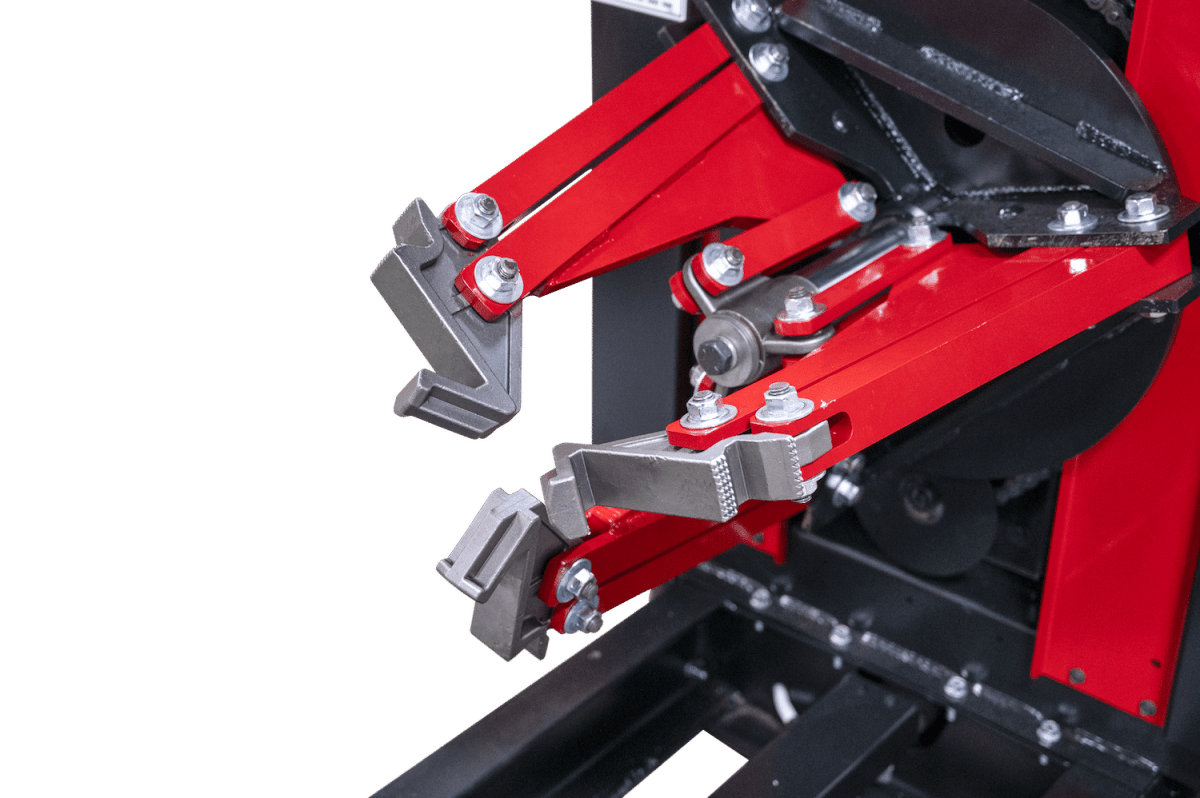

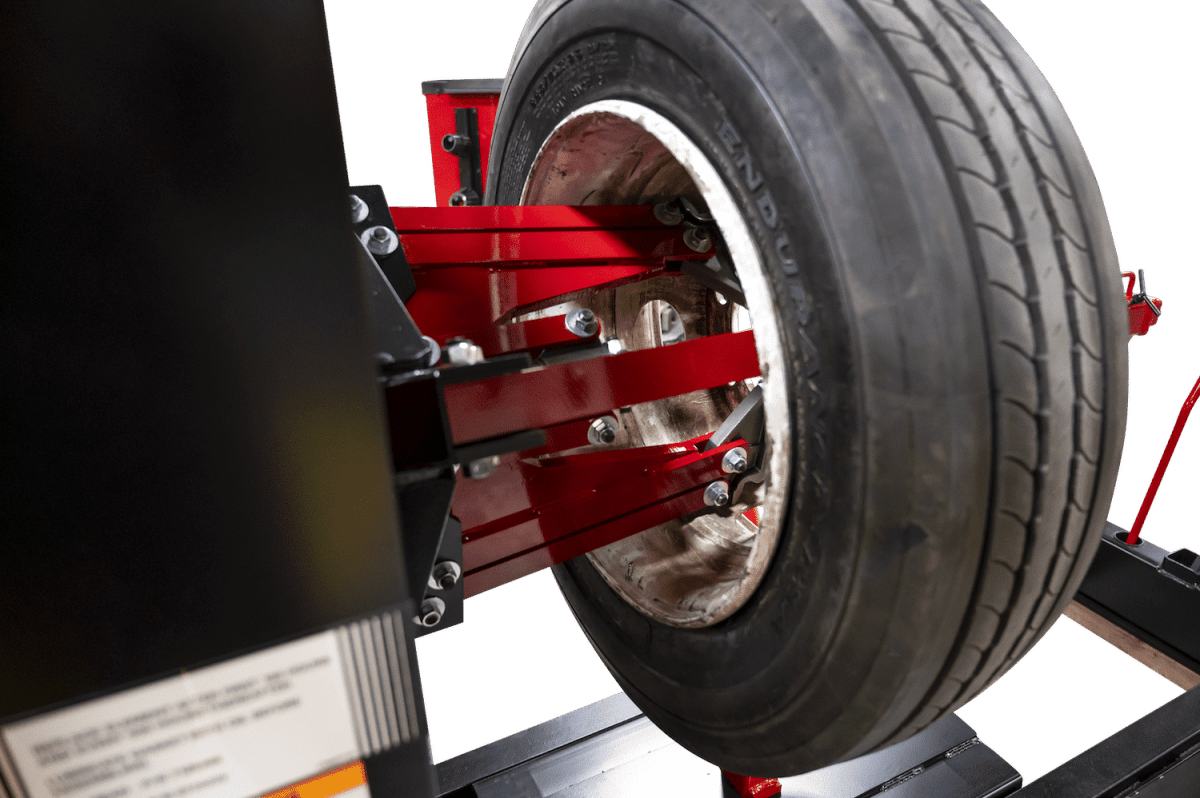

Self-Centering Hydraulic Clamping Chuck
The self-centering hydraulic clamping chuck ensures secure, precise handling of varied rim styles and sizes. Adjustable pressure regulator matches chuck pressure to rim strength, protecting delicate wheels while providing the grip needed for massive industrial tires.
Powerful Hydraulic System
2,900 ft-lbs maximum chuck torque delivers the power needed for heavy-duty tire service. Heavy tapered roller bearings and dual-direction hydraulic motor ensure smooth, consistent operation even under extreme conditions experienced in industrial and agricultural environments.
Robust U.S. Construction
Engineered and built in the U.S. by Coats, the HIT 5000 combines maximum durability with easy serviceability. Backed by over 75 years of Coats manufacturing heritage, this machine represents proven reliability for the most demanding industrial tire service applications.
Coats HIT 5000 Applications
- Industrial Tire Service: Purpose-designed for tire shops, dealerships, and fleet operations servicing industrial, construction, and earthmoving equipment with oversized tires and specialized fitments.
- Agricultural Equipment: Ideal for farm equipment dealers and service centers maintaining tires on tractors, combines, and other agricultural machinery requiring robust tire service equipment.
- Heavy Construction Equipment: Engineered for servicing tires on dozers, graders, wheel loaders, and other construction equipment where tire capacity and reliability are critical.
- Off-Road Vehicle Service: Perfect for shops specializing in off-road and specialty vehicles requiring flexible, durable tire service equipment capable of handling unusual rim and tire combinations.
- Mixed Fleet Operations: Ideal for large operations serving multiple customer bases with diverse tire fitments and applications requiring maximum versatility and reliability.
Coats HIT 5000 Specifications
| Specification | Value |
|---|---|
| Maximum Tire Diameter | 76" |
| Maximum Tire Width | 22" |
| Rim Diameter Range | 15" to 38" |
| Maximum Chuck Torque | 2,900 ft-lbs |
| Specification | Value |
|---|---|
| Overall Width | 96" |
| Overall Depth | 108" |
| Overall Height | 66" |
| Weight with Standard Accessories | 1,400 lbs (shipping) |
| Specification | Value |
|---|---|
| Voltage Supply | 220V 1-phase or 3-phase |
| Frequency | 60Hz |
| Air Required | No |
| Specification | Value |
|---|---|
| Tire Types Handled | Tube and tubeless, Dayton, agricultural, industrial |
| Wheel Clamping Method | Center carriage with 3-jaw chuck |
| Mount/Demount Method | Center post independent |
| Tool Head Design | Offset independent removable |
Coats HIT 5000 Video
Coats HIT 5000 Installation Requirements
Electrical Requirements
Power Supply: 220V, 1-phase or 3-phase, 60Hz. The HIT 5000 offers flexible power options to match available shop electrical service. A licensed electrician must install and verify the electrical supply meets all code requirements and equipment specifications.
Shop Floor and Space Requirements
Installation Surface: Install on level, stable shop floor with adequate drainage. The machine dimensions are 96" wide by 108" deep by 66" high, requiring substantial floor space appropriate for industrial and agricultural tire service operations. Ensure surrounding area permits safe wheel positioning and operator movement.
No Air Supply Required
Advantage: Unlike some tire changers, the HIT 5000 does not require compressed air supply, simplifying installation and reducing operational costs. Verify electrical supply is adequate; no air compressor capacity verification is needed.
Professional Installation
Professional installation is recommended. Proper electrical hookup, machine leveling, and swing arm adjustment are critical for warranty coverage and safe operation. Coats factory-trained technicians can provide installation support and comprehensive operator training for your maintenance staff.
What's Included with the Coats HIT 5000
- Coats HIT 5000 Heavy Duty Tire Changer with center carriage and 3-jaw chuck
- Easy-to-use swing arm with integrated hydraulic controls
- Dedicated levers for each powered function
- Offset independent removable tool head for mounting and demounting

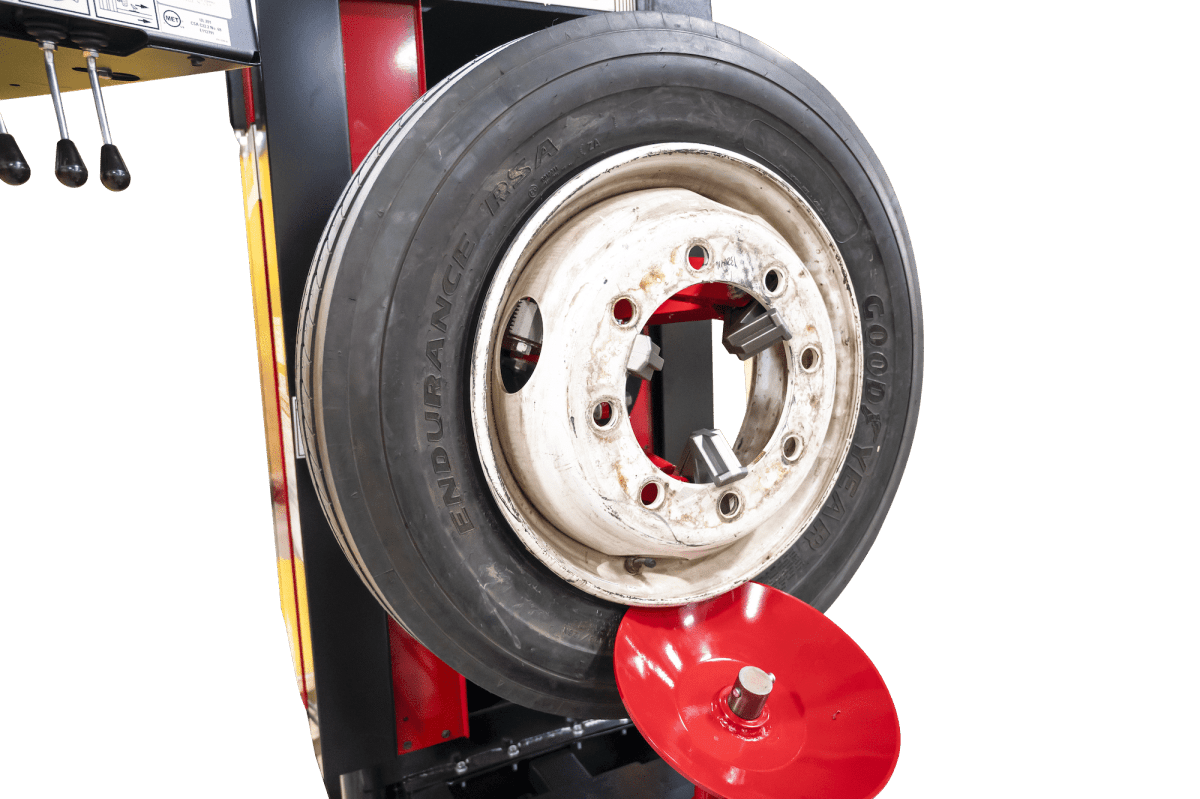

- Standard roller-type tire spreader
- Adjustable pressure regulator for chuck control
- Center carriage lifting and positioning system
- Heavy tapered roller bearings and hydraulic motor
- Operating and Maintenance Manual with service instructions
- Warranty documentation
Optional Accessories: Jaw extensions for larger rim diameters, earth mover bead loosener rollers, lock ring tools for multi-piece wheels, drop center irons, bead starting tools, vise grip clamps, stud piloted wheel plates, hub piloted wheel plates, offset roller assemblies, and nylon head combo tools.
Not Included: Electrical installation labor, floor preparation, delivery and unloading services (available through freight carrier), forklift or loading dock equipment, or operator training.
Coats HIT 5000 Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: 4-6 weeks from order. Crating: Shipped via freight carrier in protective packaging. International: Contact sales team for international shipping quotes and availability.
Delivery Requirements
Unloading: The HIT 5000 weighs 1,400 lbs and requires forklift assistance for unloading. Ensure loading dock or adequate forklift capacity is available. Standard delivery is curbside to commercial addresses. Inspection: Inspect all shipments for visible damage before accepting. Note any damage on the bill of lading immediately.
Returns and Damage Claims
Returns accepted within 30 days of delivery if product is unopened in original factory packaging with proof of purchase. A 20 percent restocking fee applies to all returns. Buyer is responsible for all return freight costs. Damage claims must be reported to the freight carrier within the specified timeframe. Document damage with photographs.
Coats HIT 5000 Warranty
Coats Heavy-Duty Industrial Tire Changer Limited Warranty
The Coats Company warrants all HIT Series Heavy-Duty Industrial Tire Changers to be fit for normal use and free from defects in materials and workmanship when delivered to the original purchaser.
- 1 Year: Full warranty coverage on all parts and components including hydraulic system, motors, chuck assembly, controls, and mechanical components
- 90 Days: Labor coverage for on-site service and repairs at authorized Coats service centers
Coverage Requirements: Warranty applies only to defects in materials and workmanship discovered and reported within the warranty period. Machine must be installed by qualified technician, operated by trained personnel, and maintained according to manufacturer specifications. Warranty does not apply to misuse, abuse, neglect, tampering, unauthorized alterations, accidents, or exposure to elements. Wear items and consumables are not covered.
Warranty Service: Contact Coats customer service at 1-800-688-6359 (United States) or sales team at 855-876-3864 to arrange warranty repairs. Exclusive remedy for warranty claims is repair or replacement at Coats discretion. Warranty extends only to the original purchasing entity and is not transferable.
Documents
Click to open in a new tab.
Questions About the Coats HIT 5000?
Our automotive equipment specialists can help with installation planning, electrical requirements verification, operator training recommendations, and all technical questions about heavy-duty industrial tire service equipment.
Coats HIT 5000 FAQ
What is the maximum tire diameter the HIT 5000 can handle?
The Coats HIT 5000 handles tires up to 76 inches in diameter and 22 inches in width. This exceptional capacity makes it ideal for industrial, agricultural, and earthmoving equipment. For even larger tire applications, consider the Coats HIT 9000 model.
What rim sizes does the HIT 5000 accommodate?
The HIT 5000 handles rim diameters from 15 inches to 38 inches. Optional jaw extensions expand this capability even further for specialized applications. This range covers most agricultural, industrial, and off-road vehicle wheels used in modern fleets.
What are the electrical power requirements for the HIT 5000?
The HIT 5000 operates on 220V power supply available in either 1-phase or 3-phase configurations at 60Hz. The flexible power options allow installation in shops with different electrical service availability. A licensed electrician should verify your facility has adequate service capacity before installation.
Does the HIT 5000 require compressed air supply?
No, the HIT 5000 does not require compressed air supply, which is a significant advantage over many competitive models. This simplifies installation, reduces operational costs, and eliminates the need for air system verification and maintenance.
What makes the HIT 5000 different from the HIT 6000?
The HIT 5000 is engineered for oversized industrial and agricultural tires (up to 76 inches diameter), while the HIT 6000 is optimized for commercial truck tire service (up to 44 inches diameter). The HIT 5000 features a swing arm design with integrated controls and handles larger rims (15-38 inches vs 16.5-24.5 inches).
What is the swing arm design advantage?
The easy-to-use swing arm houses all hydraulic controls with dedicated levers for each powered function. This design keeps operators in ergonomic working positions while maintaining full control, reducing fatigue during extended tire service operations and improving overall operator safety and efficiency.
Can the HIT 5000 handle both tube-type and tubeless tires?
Yes. The HIT 5000 accommodates both tube and tubeless tires of all types including Dayton style wheels, agricultural wheels, and specialty industrial tires. This versatility makes it ideal for shops serving diverse customer bases with varied equipment.
What warranty is provided with the HIT 5000?
The Coats HIT 5000 is covered by a 1-year parts warranty and 90-day labor warranty from the date of delivery. Warranty applies only to defects in materials and workmanship under normal use. Contact Coats customer service at 1-800-688-6359 for warranty support.
Is professional installation recommended for the HIT 5000?
Yes, professional installation is strongly recommended. Proper electrical hookup, machine leveling, and swing arm adjustment are critical for warranty coverage and safe operation. Coats factory-trained technicians can provide installation support and comprehensive operator training for your staff.
How is the HIT 5000 shipped and what are the unloading requirements?
The HIT 5000 weighs 1,400 lbs in shipping configuration and is delivered via freight carrier to your commercial address. Forklift assistance is required for unloading. Free freight is included to 48 contiguous U.S. states. Inspect for damage upon delivery and note any issues on the bill of lading.
What is the footprint and space requirement for the HIT 5000?
The HIT 5000 measures 96 inches wide by 108 inches deep by 66 inches high. This substantial footprint is typical for industrial tire service equipment and should be planned for during facility layout. Ensure adequate surrounding space for safe wheel positioning and operator movement around the machine.
What are the available optional accessories for the HIT 5000?
Optional accessories include jaw extensions for larger rim diameters, earth mover bead loosener rollers, lock ring tools for multi-piece wheels, drop center irons, bead starting tools, vise grip clamps, stud piloted wheel plates, hub piloted wheel plates, offset roller assemblies, and nylon head combo tools. Consult your Coats representative for application-specific recommendations.
California Proposition 65 Warning
WARNING: This product can expose you to chemicals including styrene and vinyl chloride, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.p65warnings.ca.gov.
