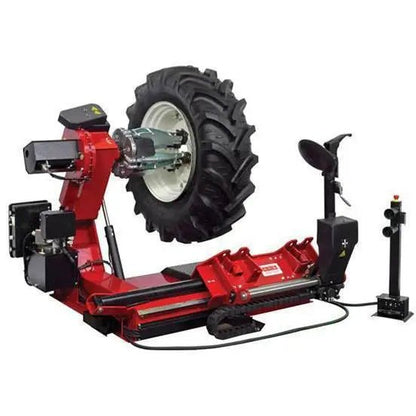

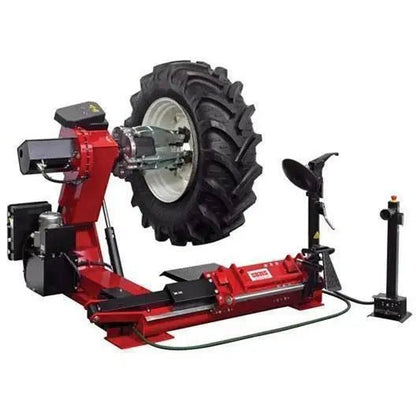

Coats CHD 9041 Heavy Duty Tire Changer for Trucks and Agricultural Tires
The Coats CHD 9041 is a professional-grade tire changer engineered for shops handling medium to high volume applications with diverse tire fitments. Built on over 75 years of industry-leading tire service equipment expertise, this machine delivers reliable performance for agricultural, commercial truck, and earth-moving tire applications. Featuring an extended capacity four-jaw chuck with rim diameter range from 14" to 46" (up to 56" with clamp extensions) and tire handling capacity up to 90.5" diameter by 42" width, the CHD 9041 combines robust construction with user-friendly operation. Power: 208-230VAC, 3-phase, 60Hz, 15Amp. Warranty: 1 year parts, 90 days labor.
Coats CHD 9041 Features

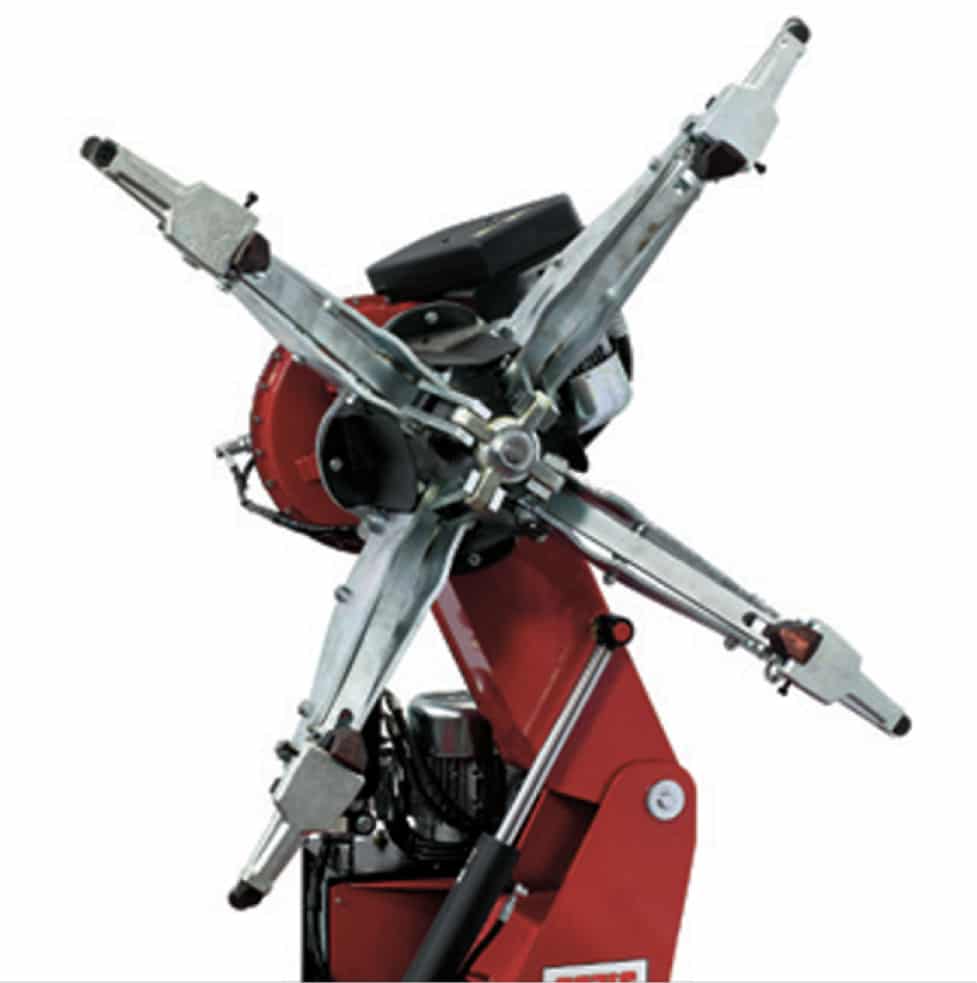

Extended Capacity Four-Jaw Chuck
The advanced four-jaw chuck design accommodates an exceptional range of rim styles including demountable, Dayton-style, reverse disc, standard disc, and off-road style wheels. Floating jaws match wheel contours for excellent grip, safety, and worry-free clamping of your most demanding applications.
Wide Rim Range Coverage
With standard rim handling from 14" to 46" and expandable to 56" diameter with optional clamp extensions, the CHD 9041 tackles everything from light truck rims to massive agricultural wheels without requiring multiple machines.
Substantial Tire Capacity
Handles tires up to 90.5" in diameter and 42" in width, making it ideal for commercial truck tires, agricultural applications, and earth-moving equipment. Maximum wheel weight capacity is 3,300 lbs for safe, confident operation.

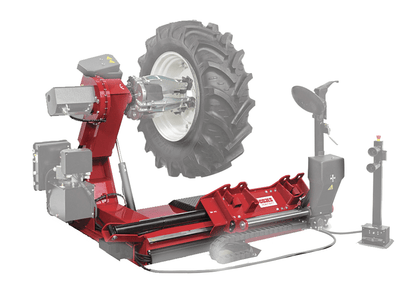

Open Frame Design
The machine's thoughtful open frame construction provides excellent visibility and accessibility during all phases of operation. Easy wheel positioning and smooth material flow minimize fatigue and boost shop efficiency throughout the workday.
Proven Hydraulic System
2.0 HP hydraulic motor and 1.7-2.4 HP chuck rotation motor deliver reliable power with factory-set 1,885 PSI pressure relief valve protecting the system. Pressure check valve on spindle prevents wheel drop in case of hydraulic line failure.
Professional Coats Build Quality
Manufactured by The Coats Company, a trusted leader in automotive service equipment for over 75 years. Built to professional standards with attention to durability, reliability, and operator safety that shops depend on in demanding production environments.
Coats CHD 9041 Applications
- Commercial Truck Tire Service: Perfect for shops servicing medium to heavy-duty commercial fleet vehicles with diverse tire fitments and rim sizes requiring quick changeover capability.
- Agricultural Tire Work: Engineered specifically for agricultural and farm equipment tires, including super-single applications common in modern farming operations.
- Earth-Moving Equipment: Handles specialized tires for construction, mining, and earth-moving machinery where tire size variability demands equipment flexibility.
- Moderate to High-Volume Shops: Ideal for shops with consistent workflow needing robust equipment that can process diverse applications throughout the business day without requiring machine setup changes.
- Fleet Maintenance Operations: Designed for dealership and commercial fleet facilities managing diverse tire inventory and serving multiple vehicle platforms simultaneously.
Coats CHD 9041 Specifications
| Specification | Value |
|---|---|
| Maximum Tire Diameter | 90.5" (2,300mm) |
| Maximum Tire Width | 42" (1,065mm) |
| Rim Diameter Range | 14" to 46" (56" with optional clamp extensions) |
| Maximum Wheel Weight | 3,300 lbs (1,500kg) |
| Specification | Value |
|---|---|
| Overall Width | 88" (2,240mm) |
| Overall Depth | 79" (2,000mm) |
| Overall Height | 59" (1,500mm) |
| Weight with Standard Accessories | 1,698 lbs (770kg) |
| Specification | Value |
|---|---|
| Voltage Supply | 208-230VAC, 3-phase |
| Frequency | 60Hz |
| Electrical Service | 15 Ampere |
| Hydraulic Motor Power | 2.0 HP (1.5kW) |
| Chuck Rotation Motor Power | 1.7-2.4 HP (1.3-1.8 kW) |
| Chuck Rotation Speed | 5-11 rpm |
| Operating Noise Level | Less than 70 dB (A) |
| Specification | Value |
|---|---|
| System Pressure Relief Setting | 1,885 PSI (130 bar) at 10 percent tolerance |
| Hydraulic Fluid Type | ISO VG 46 (Esso Nuto H46 or equivalent) |
| Safety Valve Protection | Spindle check valve prevents wheel drop on line rupture |
Coats CHD 9041 Installation Requirements
Electrical Requirements
Power Supply: 208-230VAC, 3-phase, 60Hz, 15 Ampere service. A licensed electrician must install and verify the electrical supply meets all code requirements. Ensure the shop electrical circuit is properly sized to carry the current draw specified on the machine nameplate. Proper grounding is absolutely essential.
Concrete Foundation
Foundation Specifications: Installation requires a level concrete floor minimum 8" thick with concrete quality of B25 (minimum 937 lbs/sq ft pressure resistance). Anchor bolts must extend at least 4.9" into the concrete slab. If floor thickness is less than specified, fastening points of the required concrete quality are acceptable. Inclinations up to 0.25 percent relative to horizontal may be compensated with shims or wedges.
Space and Clearance Requirements
Machine Footprint: 88" width by 79" depth by 59" height. Working Range: Maximum clearance area is 98.4" x 64.5" (2,500mm x 1,640mm). Maintain minimum 39.3" clearance from walls on all working sides. Unauthorized personnel must be kept clear of the complete working area during operation.
Environmental and Workplace Requirements
Operating Environment: Machine must not operate in explosive atmospheres. Relative humidity range 30-95 percent without condensation. Temperature range 32-131 degrees F (0-55 degrees C). The machine must be installed on a level, stable surface with adequate lighting for safe operation. If installed outdoors, roof protection from rain is required.
What's Included with the Coats CHD 9041
- CHD 9041 Heavy Duty Tire Changer with four-jaw chuck assembly
- Portable wired control unit with arm lever, chuck switch, pedal controls, and emergency stop button

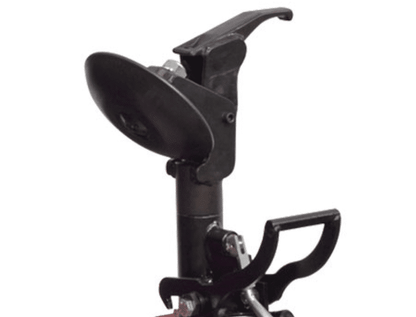

- Bead loosening disk tool for demounting operations
- Hooked tool for specialized demounting and mounting applications
- Tool holding arm with sliding carriage and ramp platform
- G-clamp (standard) for tire mounting operations
- Operating and Maintenance Manual with complete service instructions
- Warranty documentation and parts reference information
Optional Accessories: Small double tool, alloy tubeless roller, tubeless roller, set of four clamping extensions (47" to 56"), wireless remote control, G-clamp for alloy wheels, lock ring holder for multi-piece wheels, skidder clamp, bead lifting guide bar for agricultural tires, and clamping protector set for alloy wheels.
Not Included: Electrical installation labor, concrete work and floor anchoring, delivery and unloading services (available through freight carrier), forklift or loading dock equipment, shop air supply system, hydraulic fluid for initial fill, or operator training.
Coats CHD 9041 Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: 4-6 weeks from order. Crating: Shipped in heavy-duty wooden pallet crate with protective materials. International: Contact sales team for international shipping quotes and availability.
Delivery Requirements
Unloading: Requires forklift with forks positioned through designated fork pockets on base frame (see documentation). Standard delivery is curbside to commercial addresses. Inspection: Inspect all shipping crates for visible damage before accepting delivery. Note any damage on the bill of lading. Retain all packaging materials for protection during storage or future transport.
Returns and Damage Claims
Returns accepted within 30 days of delivery if product is unopened in original factory packaging with proof of purchase. A 20 percent restocking fee applies to all returns. Buyer is responsible for all return freight costs. Damage claims must be reported to the freight carrier within the specified timeframe. Retain all packaging and photographic documentation of damage for claim processing.
Coats CHD 9041 Warranty
Coats Heavy Duty Tire Changer Limited Warranty
The Coats Company warrants all CHD Series Heavy Duty Tire Changers to be fit for normal use and free from defects in materials and workmanship when delivered to the original purchaser. This limited warranty provides comprehensive coverage and peace of mind backed by decades of industry reputation.
- 1 Year: Full warranty coverage on all parts and components including motor, hydraulic system, chuck assembly, and control systems
- 90 Days: Labor coverage for on-site service and repairs at authorized Coats service centers
- 5 Years (Pro-rated): Transmission warranty with special terms: customer pays 60 percent of current list price for parts between year 3-4, and 80 percent between year 4-5
Coverage Requirements: Warranty applies only to defects in materials and workmanship discovered and reported within the warranty period. Machine must be installed on proper concrete foundation, operated by trained personnel, and maintained according to manufacturer specifications. Warranty does not apply to misuse, abuse, neglect, tampering, unauthorized alterations, accidents, or exposure to elements. Failures due to air system contamination are excluded. Wear items such as clamp inserts and bead loosener pads are consumables and not covered.
Warranty Service: Contact Coats customer service at 1-800-688-9240 (United States) or 1-877-801-1405 (Canada) to arrange warranty repairs. Exclusive remedy for warranty claims is repair or replacement at Coats discretion. Warranty extends only to the original purchasing entity and is not transferable. Applies to equipment sold and used in Canada and the United States.
Documents
Click to open in a new tab.
Questions About the Coats CHD 9041?
Our automotive equipment specialists can help with installation planning, configuration options, operator training recommendations, and answers to all of your technical questions about tire changer selection and setup.
Coats CHD 9041 FAQ
What is the maximum tire diameter the CHD 9041 can handle?
The Coats CHD 9041 handles tires up to 90.5 inches in diameter and 42 inches in width. This capacity covers commercial truck tires, agricultural tires, and earth-moving equipment tires with excellent coverage for most professional applications. For exceptionally large tires, consider the Coats CHD 9551 model.
What rim sizes does the CHD 9041 accommodate?
The CHD 9041 handles rim diameters from 14 inches to 46 inches in standard configuration. With optional clamping extensions (part number 89235049), the machine can accommodate rims up to 56 inches in diameter, providing exceptional flexibility for diverse fitments and applications.
What are the electrical power requirements for the CHD 9041?
The CHD 9041 requires 208-230VAC, 3-phase, 60Hz, 15 Ampere electrical service. Your facility must have sufficient capacity on the main electrical panel to support this draw. A licensed electrician should install and verify the electrical supply before the machine is placed into service.
What type of concrete foundation does the CHD 9041 require?
The machine requires installation on a level concrete floor minimum 8 inches thick with concrete quality of B25 (minimum 937 lbs per square foot pressure resistance according to DIN 1045). Anchor bolts must extend at least 4.9 inches into the concrete slab. If your existing floor does not meet specifications, fastening points of the required concrete quality are acceptable alternatives.
What is the warranty coverage for the CHD 9041?
The Coats CHD 9041 is covered by a 1-year parts warranty and 90-day labor warranty from the date of delivery. Additionally, the transmission is covered for 5 years pro-rated, with the customer paying 60 percent of current list price between years 3-4, and 80 percent between years 4-5. Warranty applies only to defects in materials and workmanship under normal use conditions.
Can the CHD 9041 handle different types of rims and wheel styles?
Yes. The extended capacity four-jaw chuck is specifically designed to accommodate a wide range of rim styles including demountable rims, Dayton-style wheels, reverse disc rims, standard disc wheels, and off-road style wheels. Floating jaws match wheel contours for secure, safe clamping. Optional alloy wheel clamps are available for protecting expensive light-alloy wheels during service.
Is professional installation recommended for the CHD 9041?
Professional installation is strongly recommended. The machine must be properly anchored to a concrete foundation by someone experienced with heavy tire service equipment installation. Electrical work must be completed by a licensed electrician. Proper installation is critical for warranty coverage, operator safety, and optimal machine performance.
What optional accessories are available for the CHD 9041?
Optional accessories include clamping extensions for rims up to 56 inches, wireless remote control unit, specialized alloy wheel clamps and G-clamps, lock ring holders for multi-piece wheels, skidder clamps for special applications, bead lifting guide bars for agricultural tires, and various tool attachments. Consult the parts list for all available options and part numbers.
How does the CHD 9041 compare to the CHD 6330 and CHD 9551 models?
The CHD 6330 is the most compact model for smaller shops (13" to 27" rims, 63" tire diameter). The CHD 9041 is the mid-range model for diverse fitments (14" to 46" rims, 90.5" tires), ideal for moderate to high-volume operations. The CHD 9551 is the top-of-the-line model for the largest tires (14" to 46" rims, 95" tire diameter) with the most automated features. Choose based on your typical tire sizes and production volume.
What maintenance schedule does the CHD 9041 require?
Regular maintenance includes frequent checks of hydraulic and gear oil levels using the sight glass and dipstick. Lubricate swivel joints and guide rails periodically with light machine oil after cleaning with naphtha. Grease the spindle bracket swivel through the grease fitting using standard lubricating grease. Check hydraulic pressure regularly to ensure the relief valve is functioning at the factory setting of 1,885 PSI. Detailed maintenance schedules are provided in the operation manual.
What hydraulic fluid should be used in the CHD 9041?
Use ISO VG 46 hydraulic fluid such as Esso Nuto H46 or equivalent products like Agip Oso 46, Shell Tellus Oil 46, Mobil DTE 25, Castrol Hyspin AWS 46, Chevron RPM EP Hydraulic Oil 46, or BP Energol HLP. For the gear unit, use Esso Spartan EP 320 or equivalent oils like Agip F1 REP 237, BP GRX P 320, Chevron Gear Compound 320, Mobil Gear 632, Shell Omala Oil 320, or Castrol Alpha SP 320.
What is the shipping weight and how is the CHD 9041 delivered?
The CHD 9041 weighs 1,698 pounds with standard accessories. Shipping weight in the wooden crate is approximately 1,874 pounds. The machine is shipped on a standard pallet in a heavy-duty wooden crate. Delivery requires a forklift with forks positioned through the designated fork pockets on the base frame. Free freight shipping is included to 48 contiguous US states. Lead time is typically 4-6 weeks from order.
